ZONESUN ZS-BFM1 Automatic Triangular Cardboard Boxes Paper Carton Folding Forming Stapler Machine

Voltage
Price
Regular price $31,799.00 USD
Regular price Sale price $31,799.00 USD
Save $-31,799 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

This machine is to automatically fold the unformed paper into shape. No other consumables are required, saving labor costs. The cost of this and various consumables improves efficiency, and can be customized for different sizes of cartons. This machine is suitable for packaging umbrellas, hardware accessories and other strip products into triangular postal tubes.

Parameter

  • Machine model:ZS-BFM1
  • Voltage power:220V 2000W,
  • Control voltage:DC24V
  • Air pressure :0.6MPa
  • Air consumption:600L/min
  • Applicable carton size:customized
  • Folding box speed:0-8/min
  • Paper sheet storage capacity:20-40 pieces (based on 2mm thickess carboard)
  • Error range between cartons:±0.2%
  • Carton thickness:single-layer corrugated paper ≥ 2mm
  • Carton strength:1370KPa
  • Machine size:7000mm X 2000mmX 2300mm(L*W*H)
  • Machine weight:1100kg (refer to the actual product)

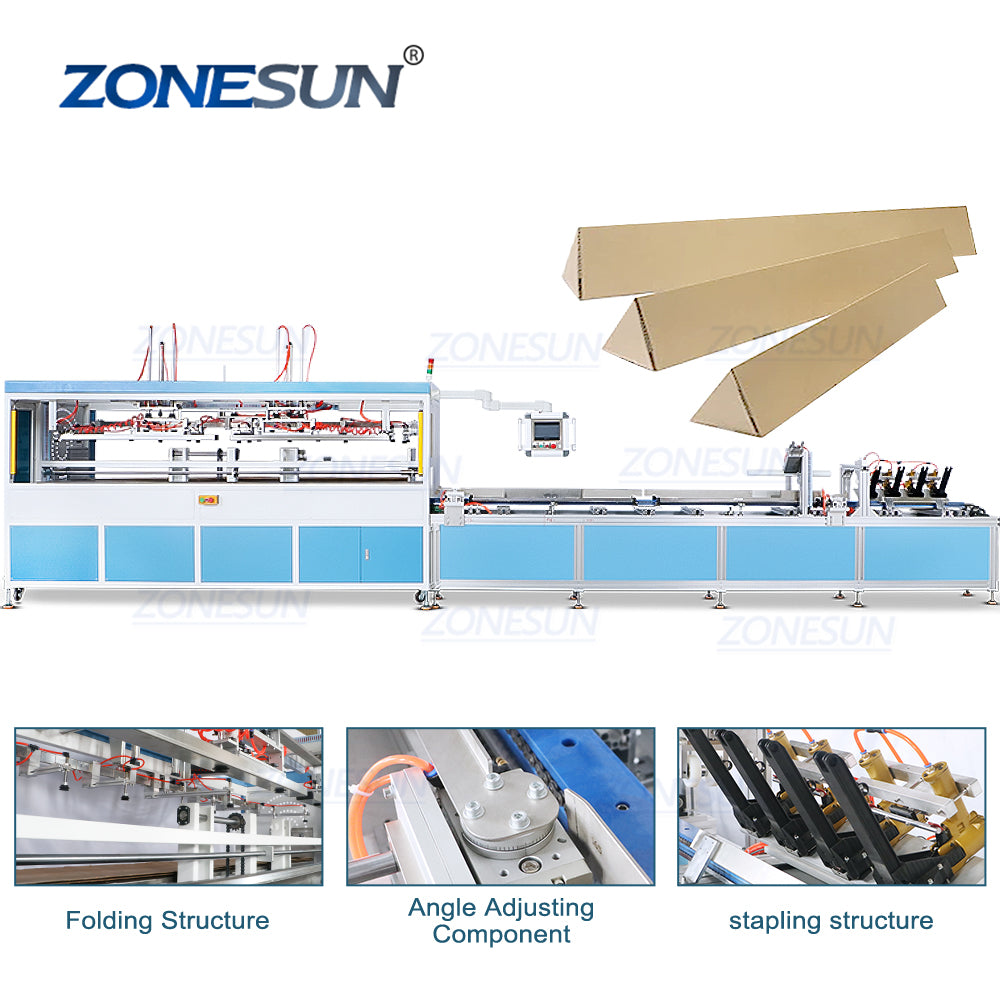

triangular postal box forming machine

process of triangular postal box forming machine

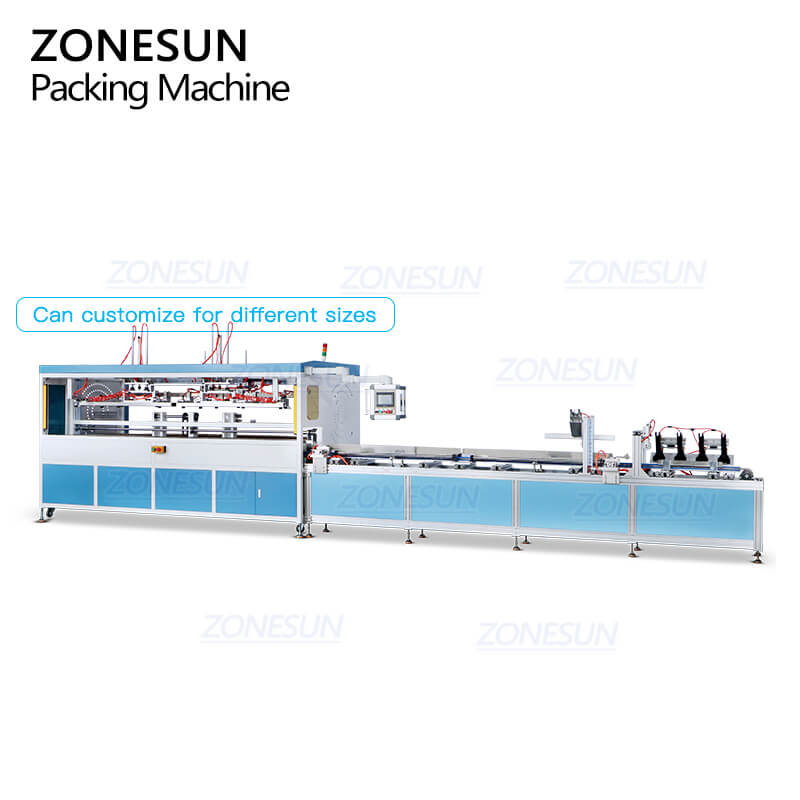

automatic triangular postal box forming machine

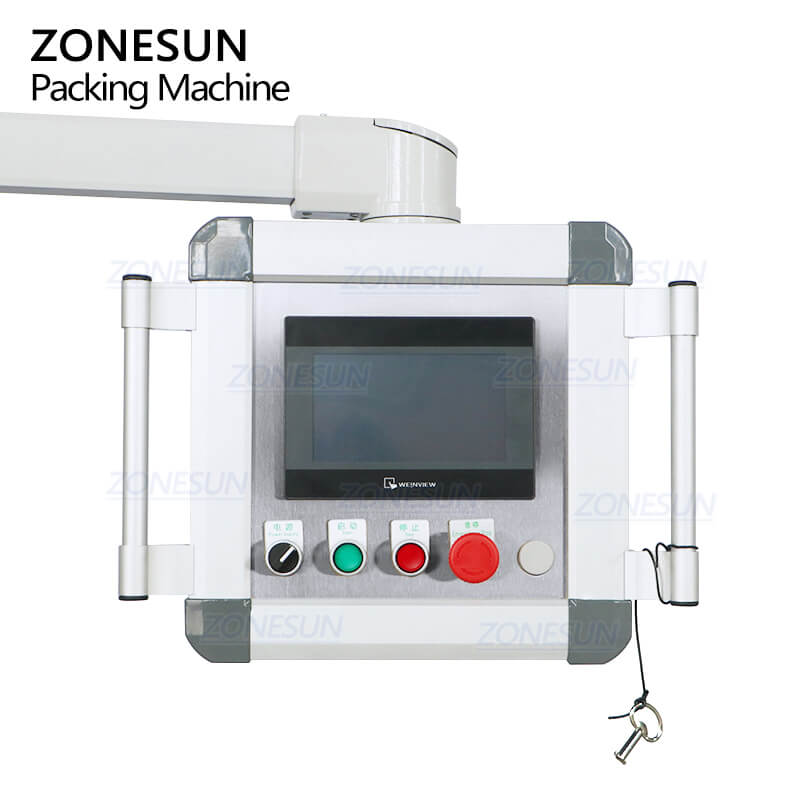

control panel of triangular postal box forming machine

Controlled by touch screen control panel, it makes working data visuable, this can help to watch working status of machine in real time.Different kinds of operation language can be customized as needed.

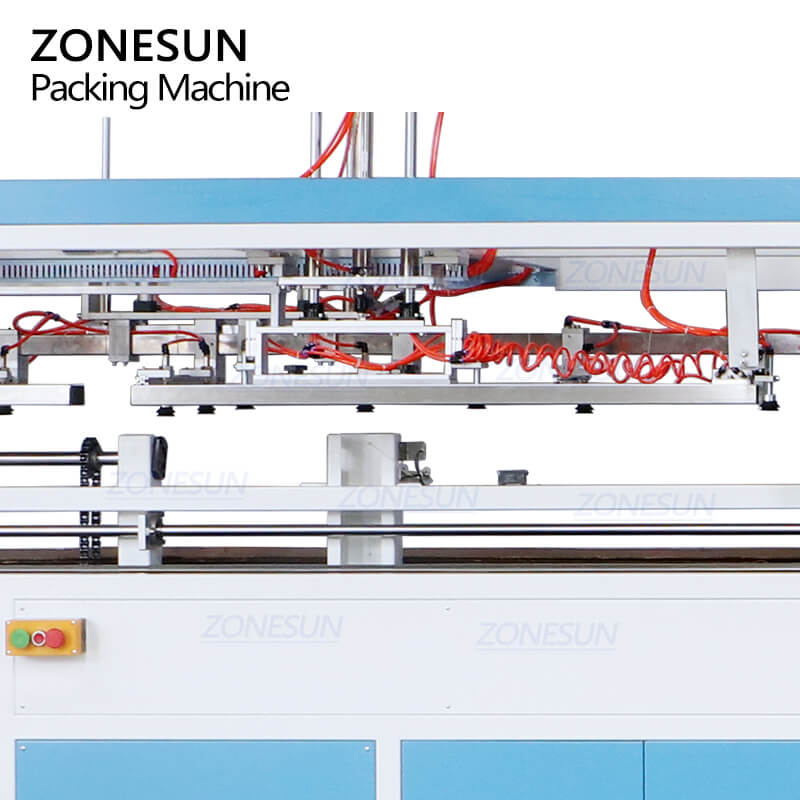

forming structure of triangular postal box forming machine

Equipped with multiple air nozzles to realize automated material supplying, the carton folding structure can shape carton initially.

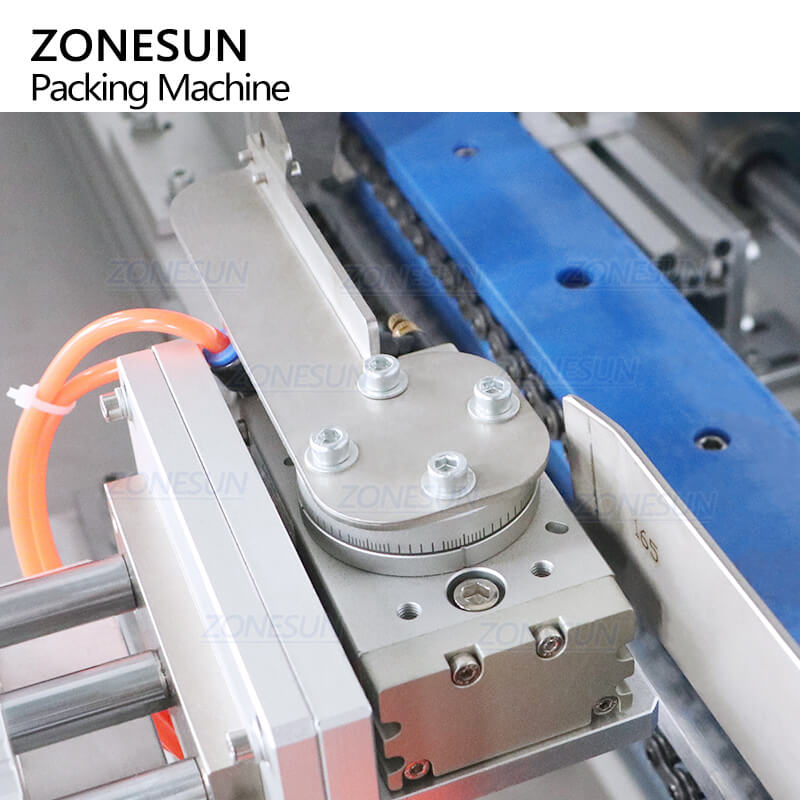

folding structure of triangular postal box forming machine

The working angle of side forming structure can be adjusted according to operation need.This can improve working accuracy.

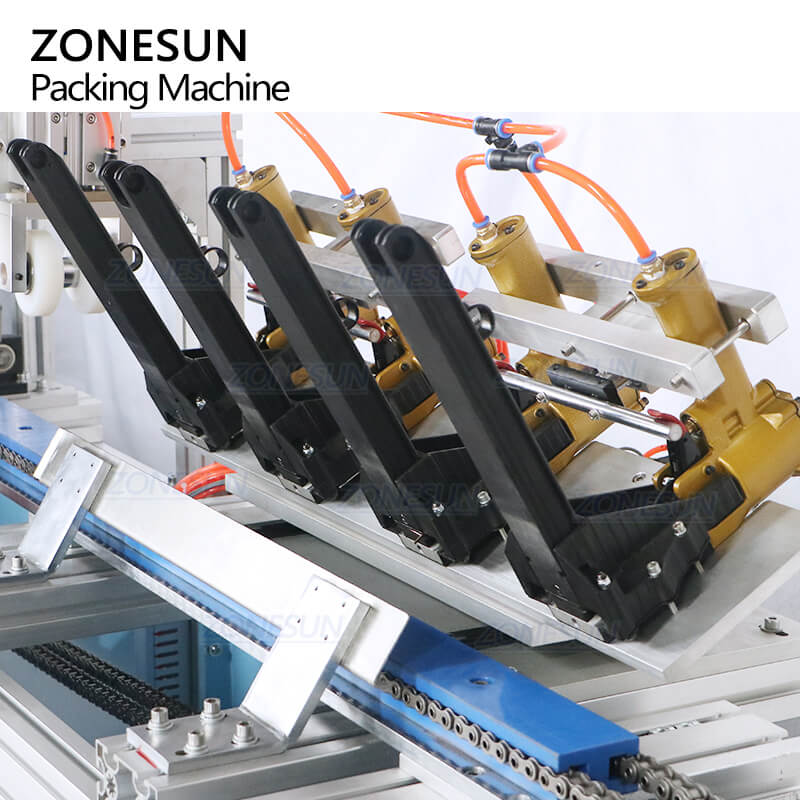

stapling structure of triangular postal box forming machine

The stapling structure is made of high quality material, it will staple the formed carton and finish the packaging process accurately, imporves production quality.

triangular postal box making machine
