Name: QDFM-125P Semi-automatic Hand Cream Facial Cleanser Soft Tube Sealing Cutting Machine
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00200500016-0171
Price: 3499.0 USD
Availability: InStock

Semi-automatic soft tube sealing machine

Fixing Mold of Shampoo soft tube sealing machine

Voltage

110V

220V

Price

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":42472350122225,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"00200500016-0171","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QDFM-125P Semi-automatic Hand Cream Facial Cleanser Soft Tube Sealing Cutting Machine - 110V","public_title":"110V","options":["110V"],"price":349900,"weight":75500,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42472350154993,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"00200500015-0171","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"QDFM-125P Semi-automatic Hand Cream Facial Cleanser Soft Tube Sealing Cutting Machine - 220V","public_title":"220V","options":["220V"],"price":349900,"weight":75500,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

This machine is designed for sealing soft tube like toothpaste,hand cream,lotion,nshampoo etc.It is with the cutting function,can cut off the needless soft tube after sealing.It can be equipped with date coder to make it achieve to seal and date code at the same time.reduce your production process and cost.

Parameter

Machine model:QDFM-125P
Power supply:110/220V 50-60HZ
Power:2600W
Sealing speed:About 10-13 pieces/min
Sealing diameter:15-50mm (Max 60mm can be customized)
Suitable product height:50-220mm
Suitable material:Aluminum-plastic soft tube/Plastic soft tube
Machine Dimensions:About 855*600*500mm(L*W*H)
Machine weight:About 86.5kg
Package size:About 960*720*830mm(L*W*H)
Package weight:About 110kg

Soft Tube Sealing Machine

Application of Soft Tube Sealing Machine

Machine Details of Hand Cream Tube Sealing Machine

Control Panel of Face Wash Tube Sealing MACHINE

With touch screen control panel,each function can be controlled easily according to this panel.This is good for debugging machine before using it.The imported chip and high quality circuit board makes the machine work stably.

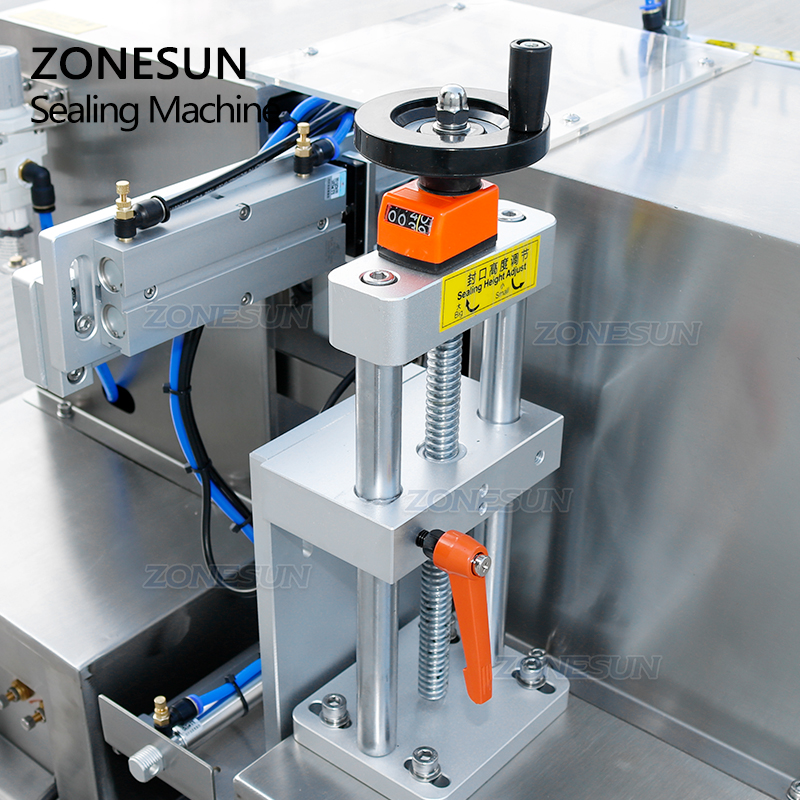

Sealing Stucture of Face Cream Tube Sealing Machine

With sealing and cutting function, the cutting blade is made of imported material,ensure the edge will be cut neatly,improve production quality.It can also be equipped with date coder to print production date or number.

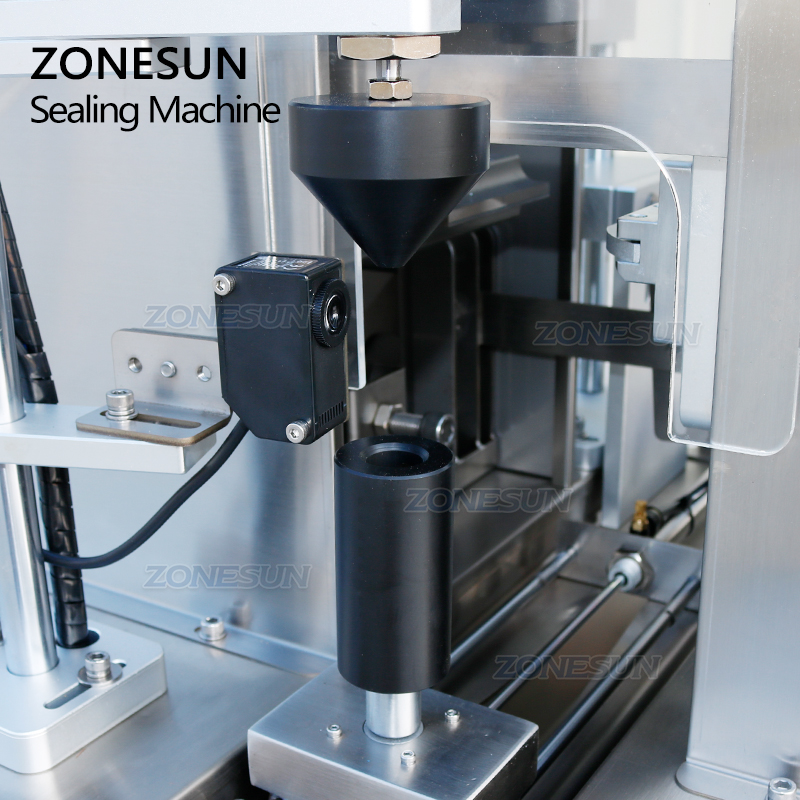

Electric Eye of Facial Cleanser Sealing Machine

This sensor is used to detecting the color mark and rotate the soft tube to the correct positon and ensure the next sealing work can be processed smoothly.

Fixing Mold of Soft Tube Sealing Machine

The soft tube fixing mold needs to be customized according to soft tube size.This can prevent from moving tube during sealing,improves working accuracy.

Electric Eye of Soft Tube Sealing Machine

Equipped with high quality electric eye,this is designed for detecting soft tube and control the machine to start sealing and coding,improves working accuracy.

Facial Cleanser Soft Tube Sealing Machine
