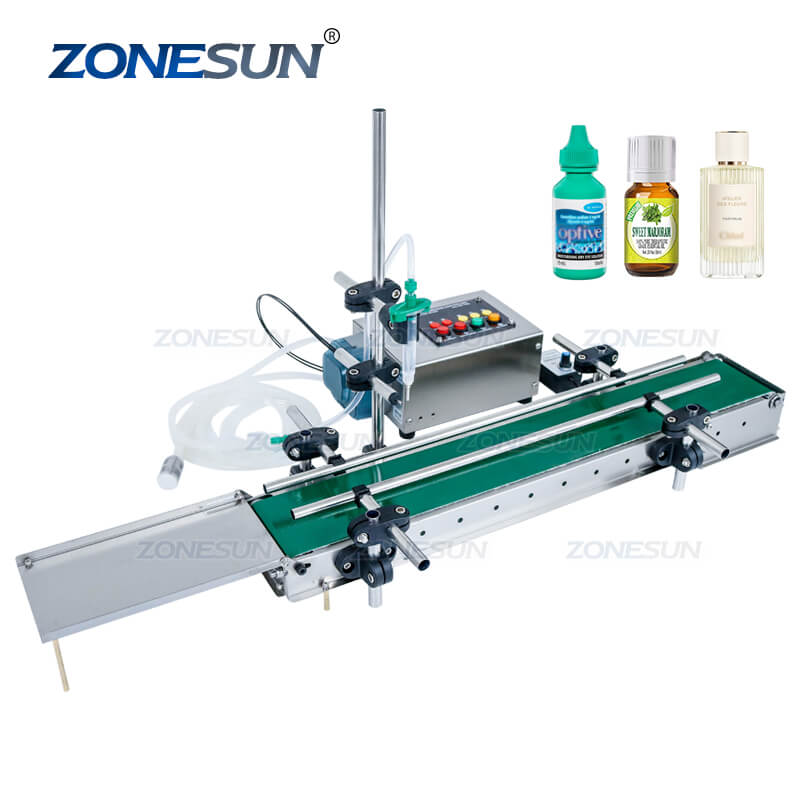

ZS-DTPP100C Single Nozzle Small Scale Glass Bottle Vial Perfume Liquid Filling Machine With Conveyor

Voltage
Conveyor Length
Price
Regular price $269.00 USD
Regular price $289.00 USD Sale price $269.00 USD
Save $20 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This small liquid filling machine is designed with the conveyor, can transport bottles and fill liquid automatically, it is suitable for low viscosity liquid without any particle and can work precisely. It is particularly suitable for filling essential oil etc.

Parameter

  • Machine Model:ZS-DTPP100C
  • Voltage:220V/110V 50-60Hz
  • Power:75W
  • Machine Pump:Peristaltic Pump
  • Recommended Filling Range:1-100ml
  • Max Flow Rate:700ml/min(based on water)
  • Filling Speed:About 10 bottles/min(50ml perfume)
  • Conveyor Size:(L)600mm*(W)100mm(Can choose 1200mm(L))
  • Filling Nozzle Diameter:OD 3.3mm&OD 8.3mm
  • Minimum Bottleneck Diameter:ID 8mm
  • Suitable Liquid Temperature:Max 100℃
  • Size of Collecting Tray:210mm*100mm(L*W)
  • Water Pipe Diameter :7.2mm(ID)*9.9(OD)
  • Net Weight:3.2kg
  • Gross Weight:3.9KG
  • Main Machine Size:180mm*125mm*85mm(L*W*H)
  • Package Size:About 660*160*185mm

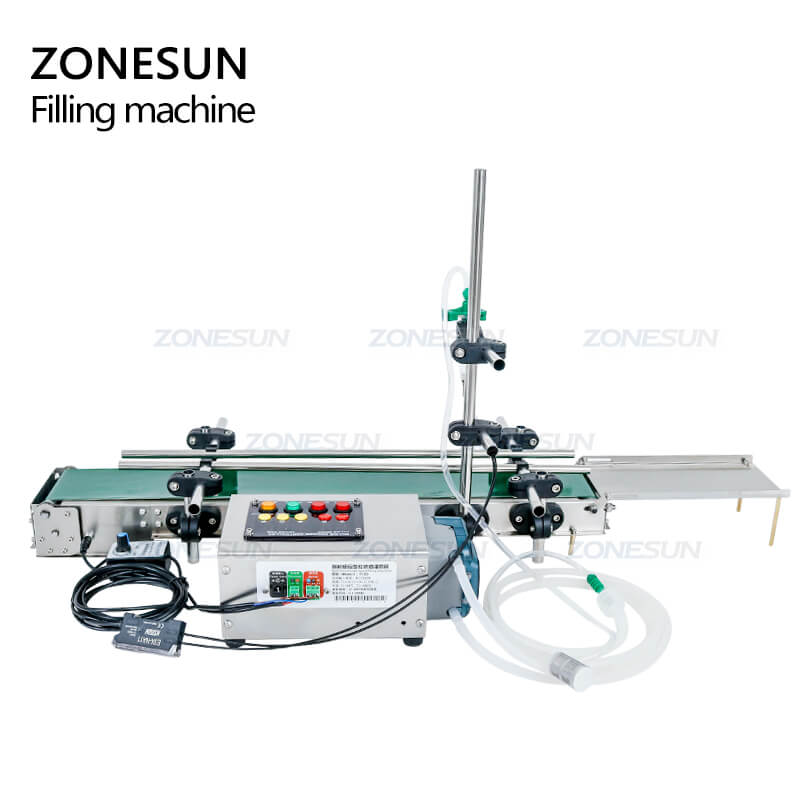

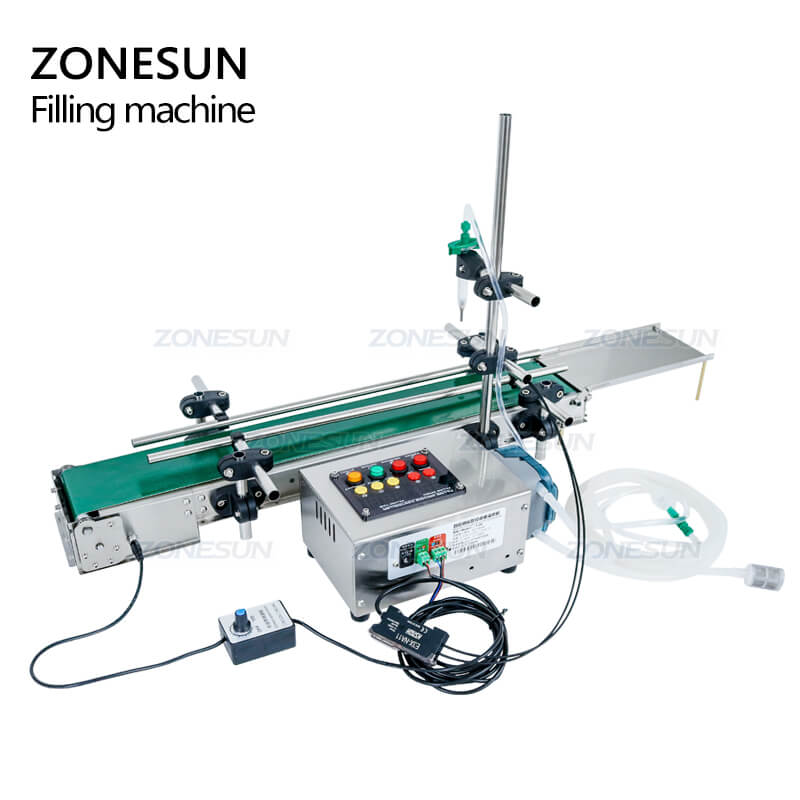

Small Peristaltic Pump Liquid Filling Machine

Application of Small Peristaltic Pump Liquid Filling Machine

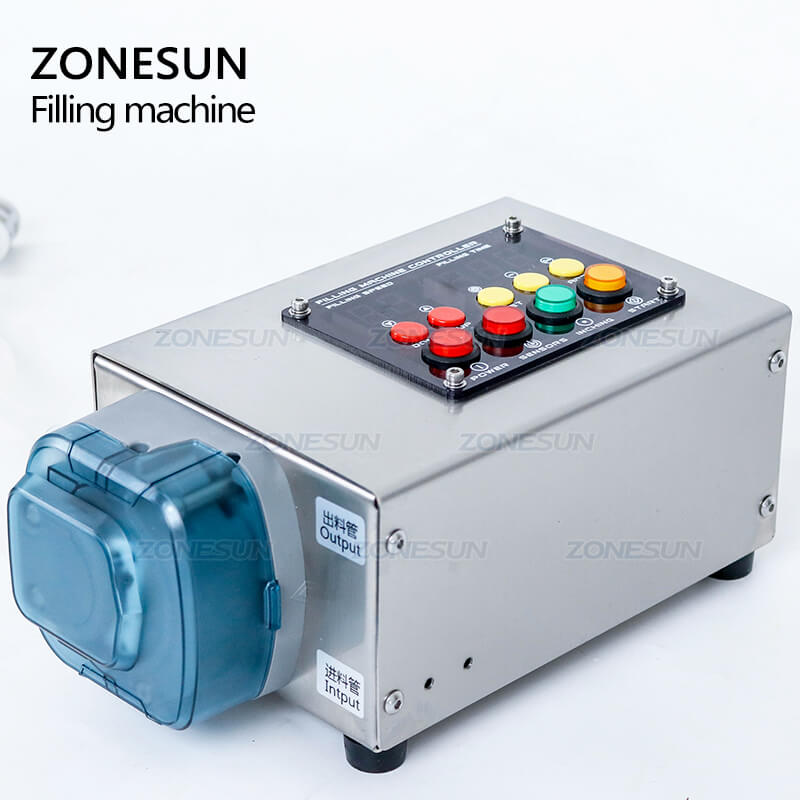

Operation Panel of Small Peristaltic Pump Liquid Filling Machine

Through the panel, you can set parameters like filling speed and filling time. Easy to operate. It is with inching button, which is good for testing machine.

Peristaltic Pump of Small Liquid Filling Machine

With peristaltic pump, the liquid won’t pass through the pump, ensuring its cleanliness. There is a screw inside the hole. Through loosening it, you can change hose easily when you want to fill different liquid.

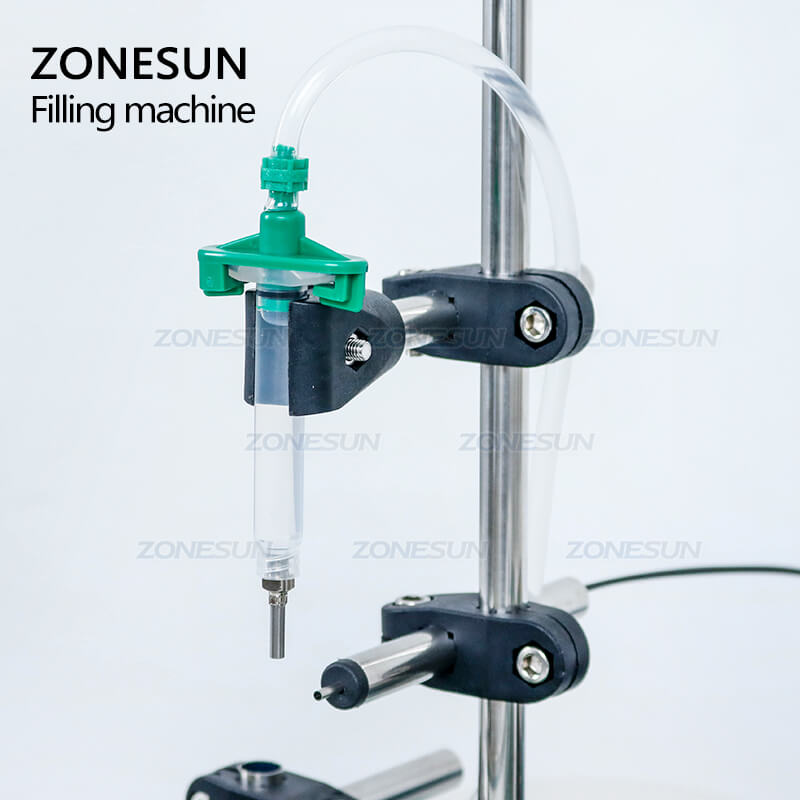

Filling Nozzle of Small Peristaltic Pump Liquid Filling Machine

With mini filling head, it is suitable for small-volume filling, which can be used to fill perfume, ink, essential oil. The height of filling head can be adjusted as needed, making it suitable for bottles of different heights.

Electric Eye of Small Peristaltic Pump Liquid Filling Machine

It is designed for detecting bottles and control the machine to work. Intelligent and efficient. The sensitivity of electric eye can be adjusted according to production need.

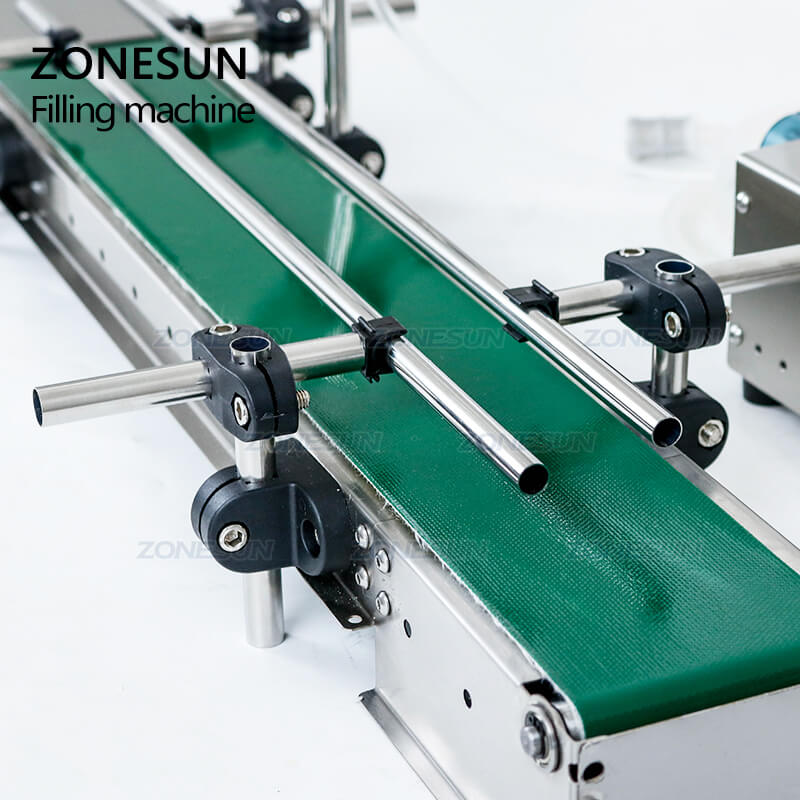

Conveyor Belt of Small Peristaltic Pump Liquid Filling Machine

It is with waterproof function, which can ensure production cleanliness. The conveying speed can be adjusted by rotating the knob. And the width of feed inlet can be adjusted according to bottle size.

Small Peristaltic Pump Liquid Filling MachineSmall Peristaltic Pump Liquid Filling Machine
