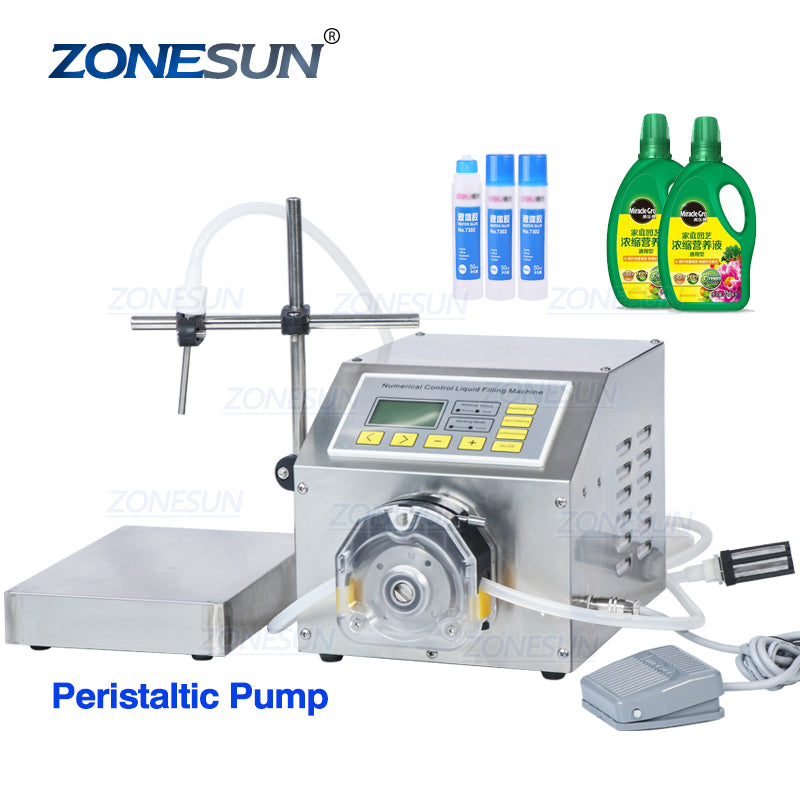

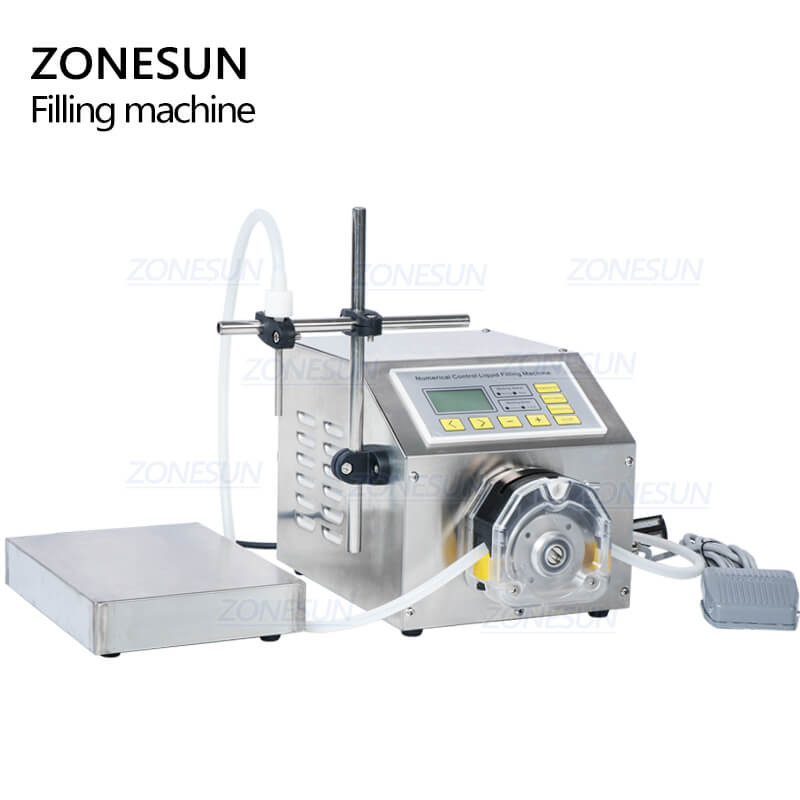

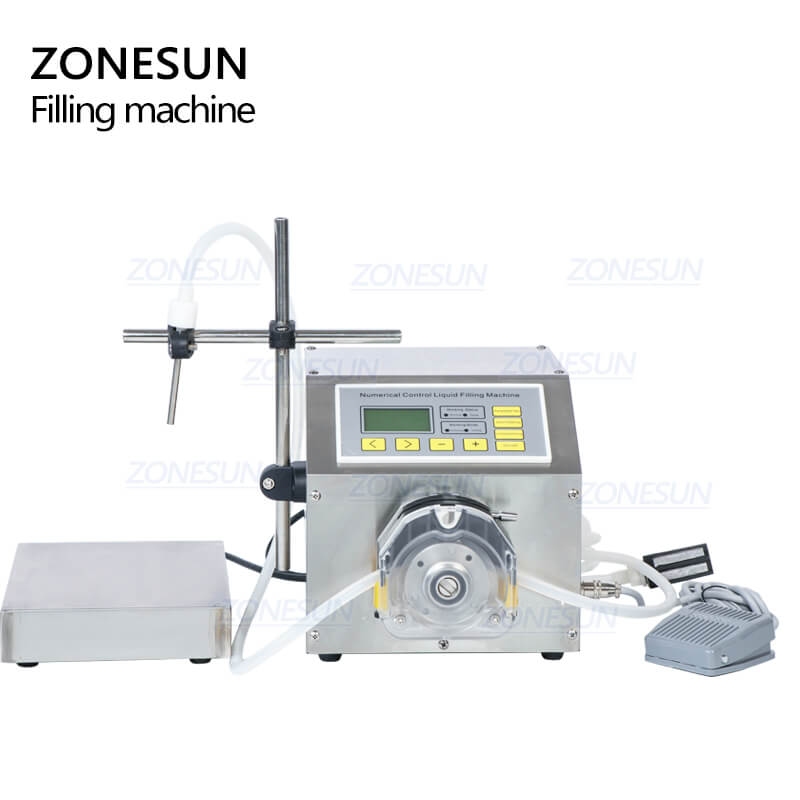

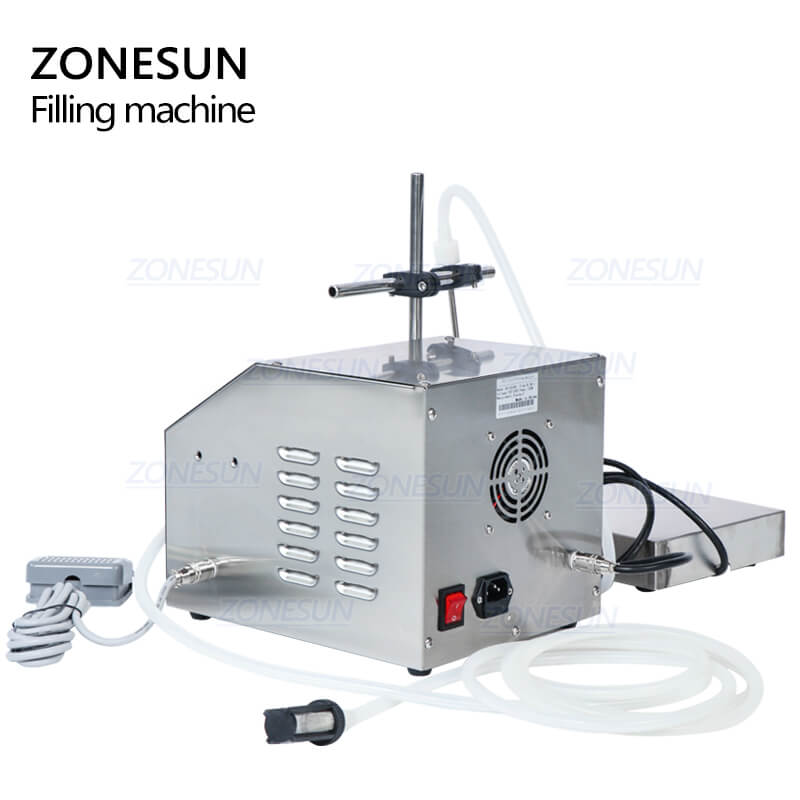

ZONESUN ZS-PP531W Single Nozzle Peristaltic Pump Liquid Ink Filling Machine For Perfume Essential Oil

This machine uses a microcomputer control system to manage the liquid filling process. When the preset filling volume is reached, the machine automatically stops filling to ensure stable and consistent results.

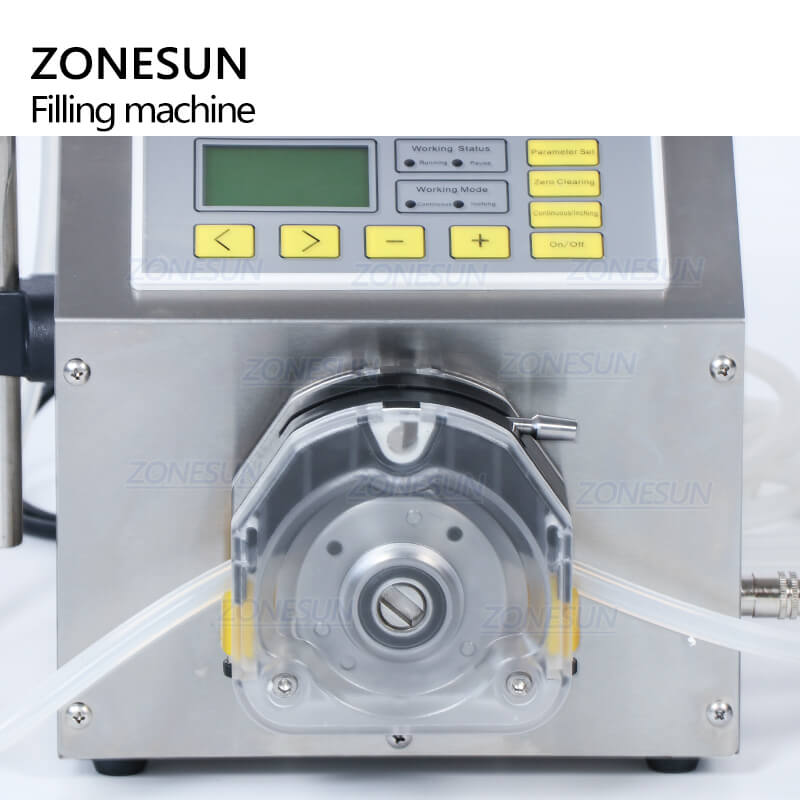

It is equipped with a peristaltic pump, which allows the liquid to pass only through the tube without contacting the pump body, helping maintain product cleanliness during filling. The built-in weighing function further improves filling accuracy.

This machine is suitable for filling liquids such as ink, water, essential oil, perfume, and other low-viscosity liquids.

Parameter

• Machine Model: ZS-PP531W
• Machine Power:220V/110V 100W
• Machine Pump: Peristaltic Pump
• Max Flow Rate: 6L/min
• Filling Range: 30 mL-6L
• Weighing Range: 30g-10kg
• Repetitive Error: ±1g
• Filling Nozzle Diameter: Φ6 mm&Φ8 mm
• Hose Diameter: 6.4 mm(ID)/9.4 mm(OD)
• Hose Length: 2m(inlet)/1m(outlet)
• Liquid Temperature: ＜150 ℃
• Max Suction Function: 4m
• Memory Function out of power: Available
• Machine Weight: 7.5 kg
• Machine Size: 218mm*272mm*203 mm (L*W*H)
• Weighing Device Size: 250*180*42 mm
• Package Weight: 8 kg
• Package Size: 400*370*270 mm

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
