Control Panel of Semi-automatic Drum Filling Machine

Filling Nozzle of Semi-automatic Drum Filling Machine

Roller Conveyor of Semi-automatic Drum Filling Machine

Weighing Device of Semi-automatic Drum Filling Machine

Voltage

110V

220V

380V

Price

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":42817444839665,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"00100600052-0387","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-YTW250L Semi-automatic Wine Liquid Engine Oil Rust Remover Barrel Drum Weighing Filling Machine With Roller Conveyor - 110V","public_title":"110V","options":["110V"],"price":504900,"weight":420000,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"00200500016-0171","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":42817444872433,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"00100600049-0387","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-YTW250L Semi-automatic Wine Liquid Engine Oil Rust Remover Barrel Drum Weighing Filling Machine With Roller Conveyor - 220V","public_title":"220V","options":["220V"],"price":504900,"weight":420000,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"00200500015-0171","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43524249911537,"title":"380V","option1":"380V","option2":null,"option3":null,"sku":"00100600050-0387","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-YTW250L Semi-automatic Wine Liquid Engine Oil Rust Remover Barrel Drum Weighing Filling Machine With Roller Conveyor - 380V","public_title":"380V","options":["380V"],"price":459900,"weight":420000,"compare_at_price":null,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Click For Video

Name: ZS-YTW250L Semi-automatic Wine Liquid Engine Oil Rust Remover Barrel Drum Weighing Filling Machine With Roller Conveyor
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00100600052-0387
Price: 5049.0 USD
Availability: InStock

This filling machine fills liquid by controlling the filling weight, it is equipped with the gear pump and suitable for filling large volume like rust remover.It is suitable for daily chemical industries.

Parameter

Model:ZS-YTW250L
Voltage:380V 50HZ
Power:11.5kw
Filling Pump:Gear Pump
Number of filling heads:1
Filling range:100-250L
Conveyor length:5m(can be customized)
Output:≤45 barrels/hour (200L)
Required air source:0.6MPa
Accuracy:≤±0.2% (depends on filling material)
Machine size:About 450*1000*1700mm
Package size:About 1360*1100*1840mm
Package weight:About 420kg

Semi-automatic Drum Filling Machine

Application of Semi-automatic Drum Filling Machine

Machine Details of Semi-automatic Drum Filling Machine

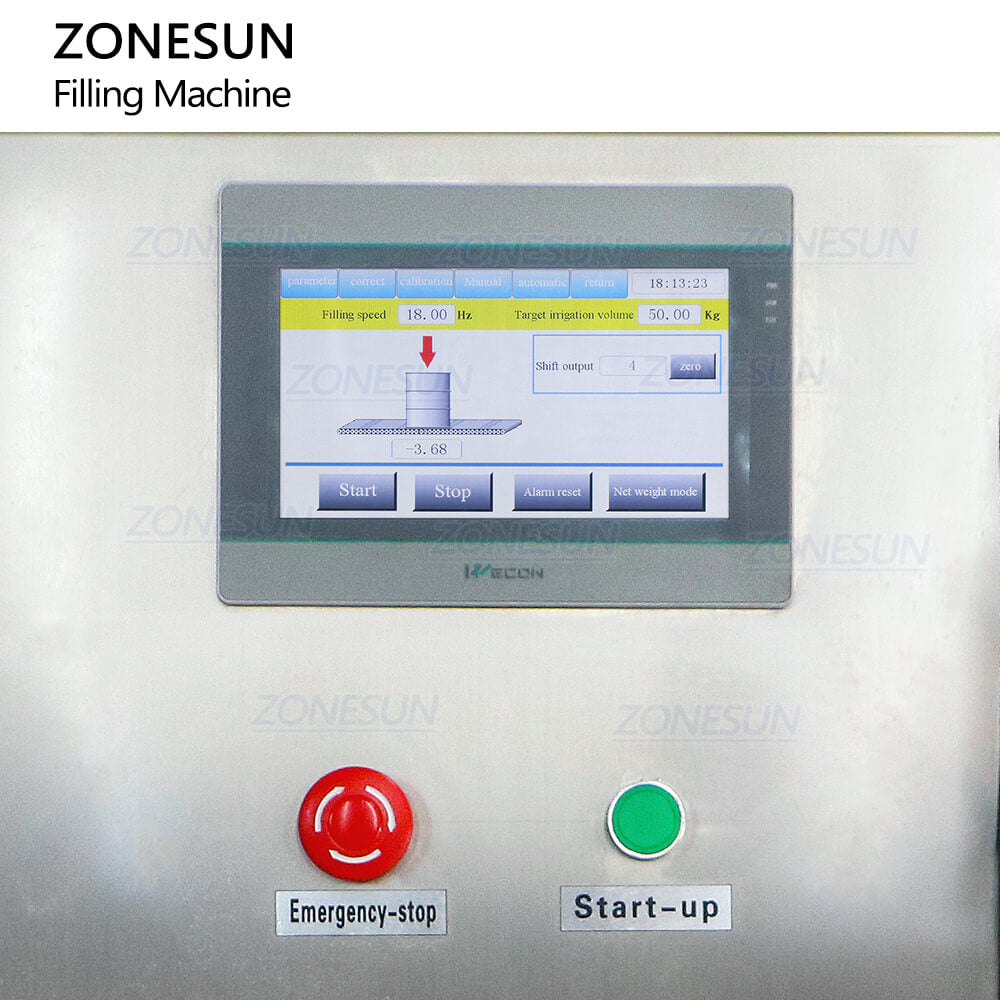

Control Panel of Semi-automatic Drum Filling Machine

The touch screen control panel makes working data be in visual, this is more convenient when debugging the machine.Different kinds of operation language can be customized as needed.

Filling Nozzle of Semi-automatic Drum Filling Machine

Equipped with pneumatic filling nozzle, it can ensure the stable flow rate when filling large volume liquid,improves filling efficiency.

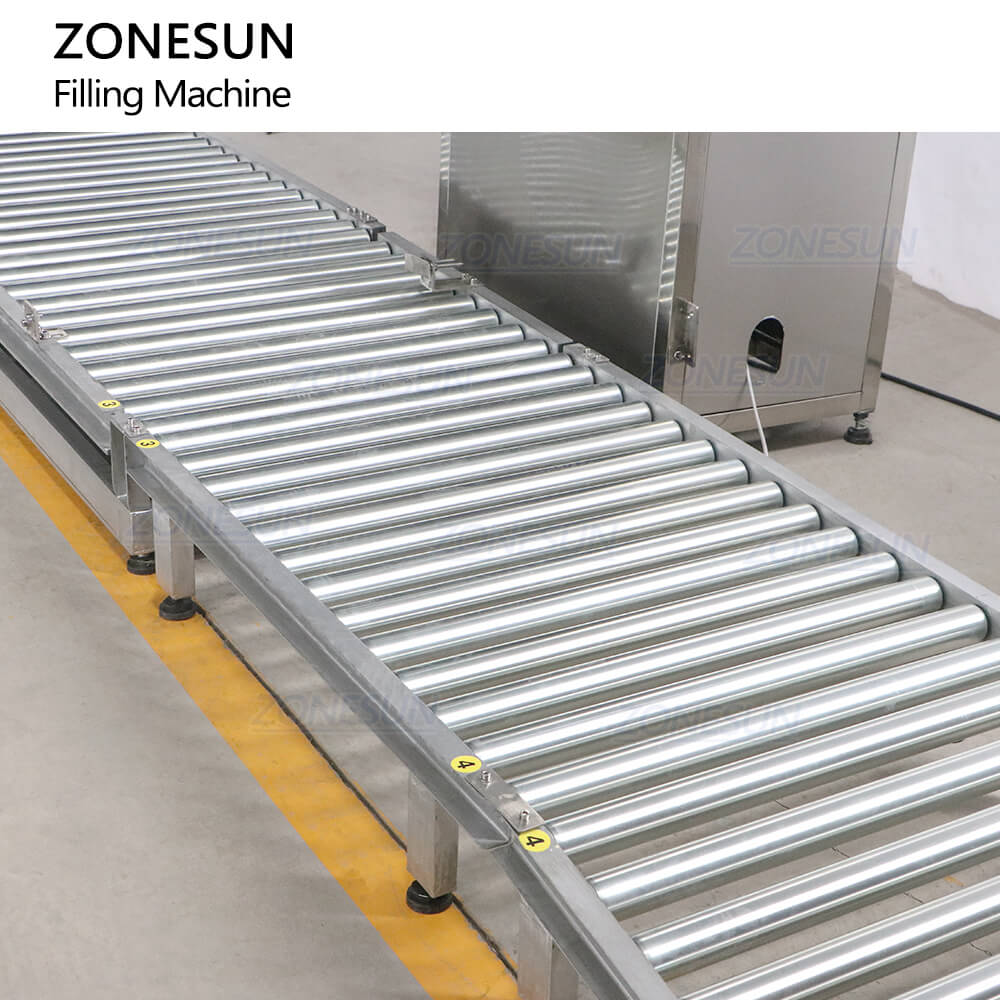

Roller Conveyor of Semi-automatic Drum Filling Machine

The roller conveyor can transport finished products easily, it saves working labor.The length of the conveyor can be customized according to production need.

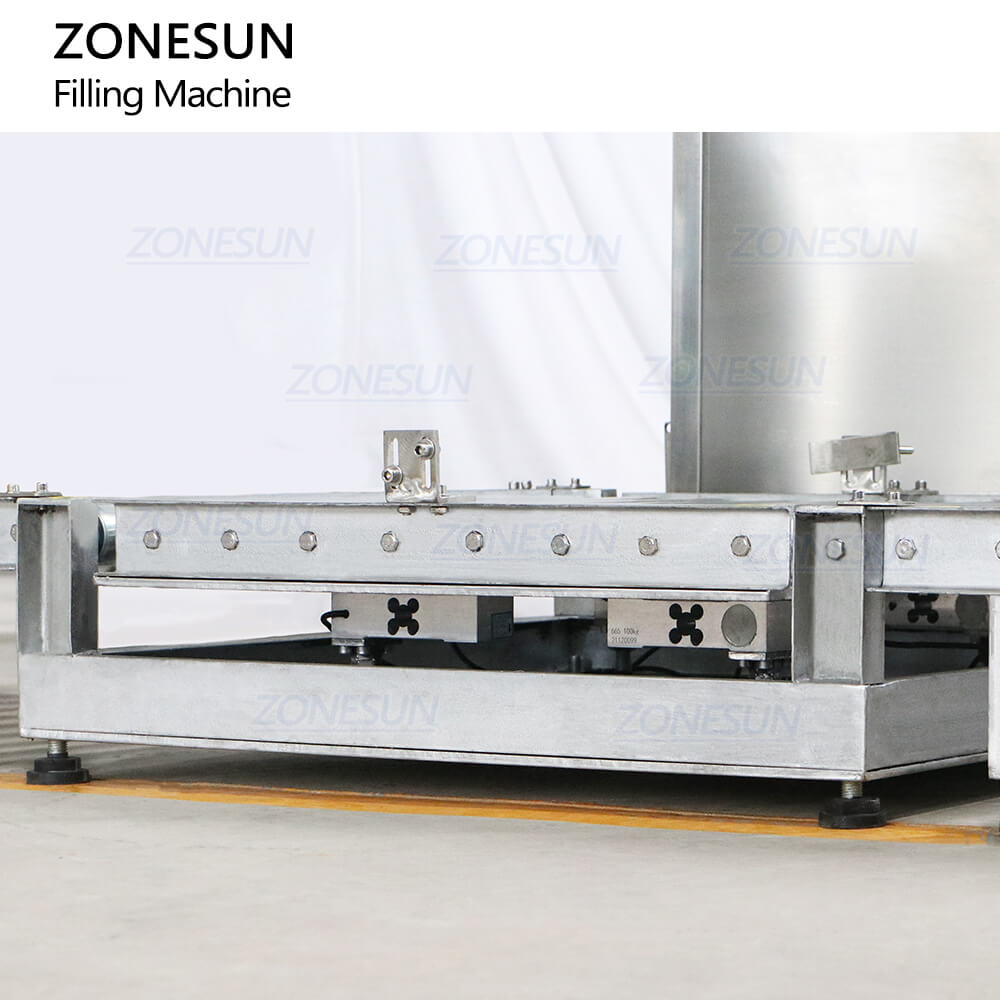

Weighing Device of Semi-automatic Drum Filling Machine

Equipped with stable weighing device.This machine can remove container weight automatically and realize net weight/gross weight filling

Gear Pump of Semi-automatic Drum Filling Machine

Fill liquid by large flow rate gear pump, it is designed for the large filling volume products like lubricating oil, rust remover. This machine is controlled by the pedal switch, it is easy to operate.

Semi-automatic Single Head Drum Filling Machine

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
