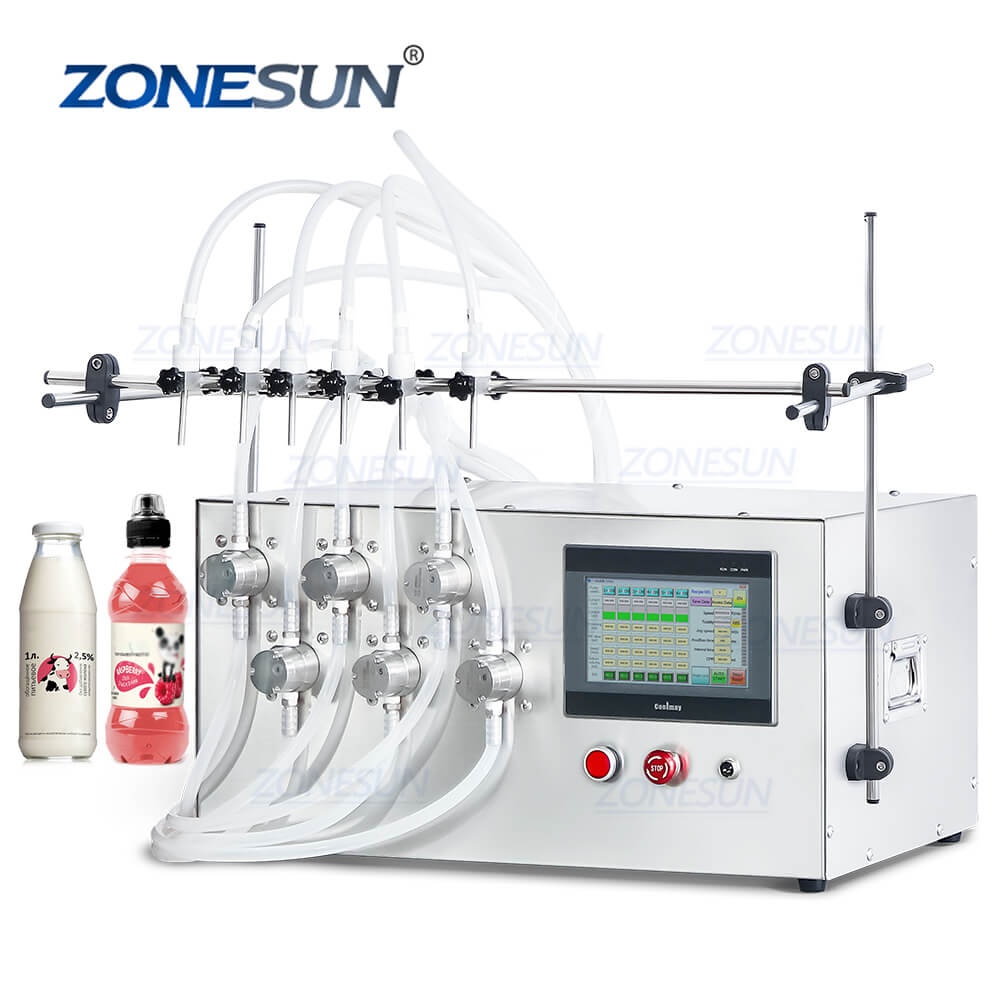

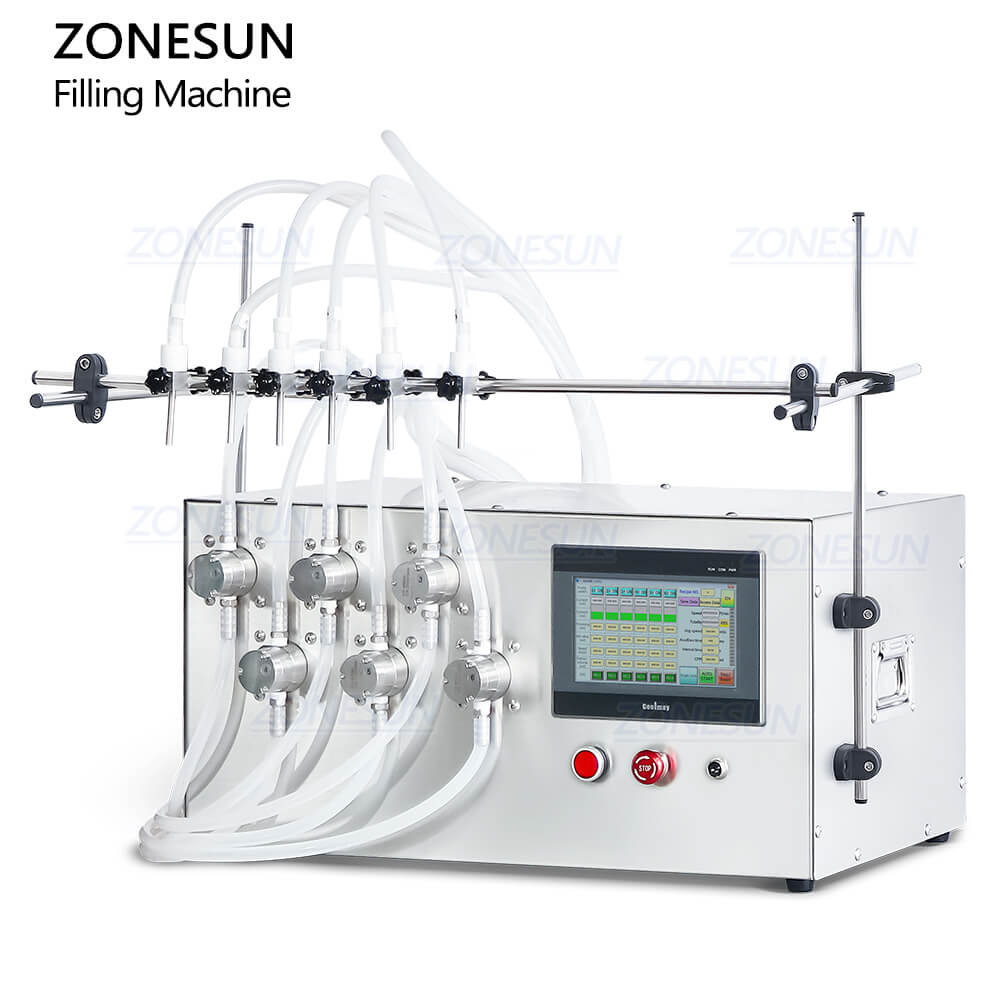

ZONESUN ZS-MPZ6 Semi-automatic Body Mist Essential Oil Eyedrops Magnetic Pump Skincare Cosmetic Liquid Quantitative Filling Machine

Machine Model
Regular price $449.00 USD
Regular price Sale price $449.00 USD
Save $-449 USD
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

This quantitative semi-automatic filling machine is equipped with touch screen control panel, which can make working data be visual.The 316 stainless steel magnetic pump is suitable for the low viscosity liquid like skin toner, solvent, essential oil etc.It is suitable for cosmetics, beverage, and daily chemical industries.


  • Machine model:ZS-MPZ6
  • Voltage:110/220V 50-60HZ 1200W
  • Max flow rate:6000ml/min
  • Filling pump:Magnetic pump
  • Working speed:About 10-30 bottles/min
  • Filling range:5-3000ml(recommend)
  • Filling nozzle size:OD6 & 8 mm
  • Suitable bottle height:About 5-40cm
  • Machine size:About 670*440*330mm
  • Machine weight:About 12kg

magnetic pump filling machine

application of magnetic pump filling machine

liquid filling machine

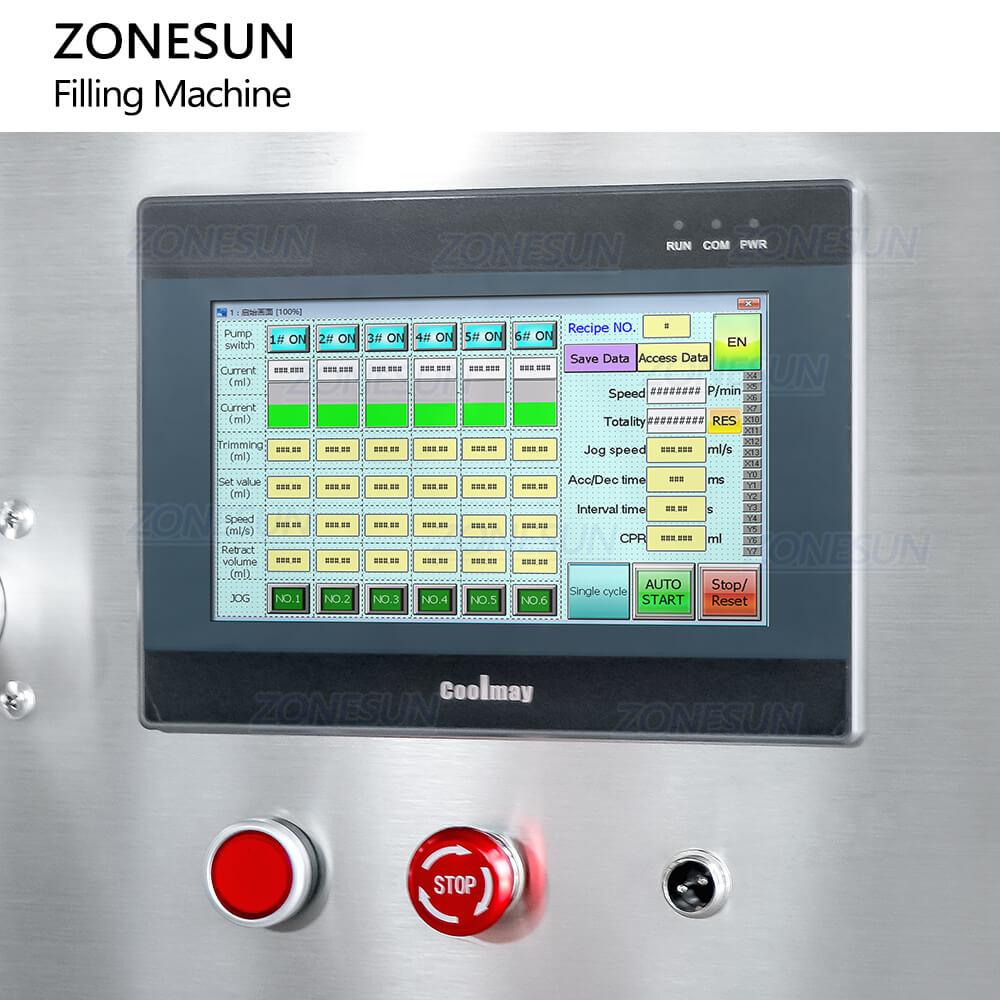

control panel of magnetic pump filling machine

Equipped with touch screen control panel, this makes working data be visual, it is more convenient to adjust the machine.Different kinds of operation language can be customized as needed.

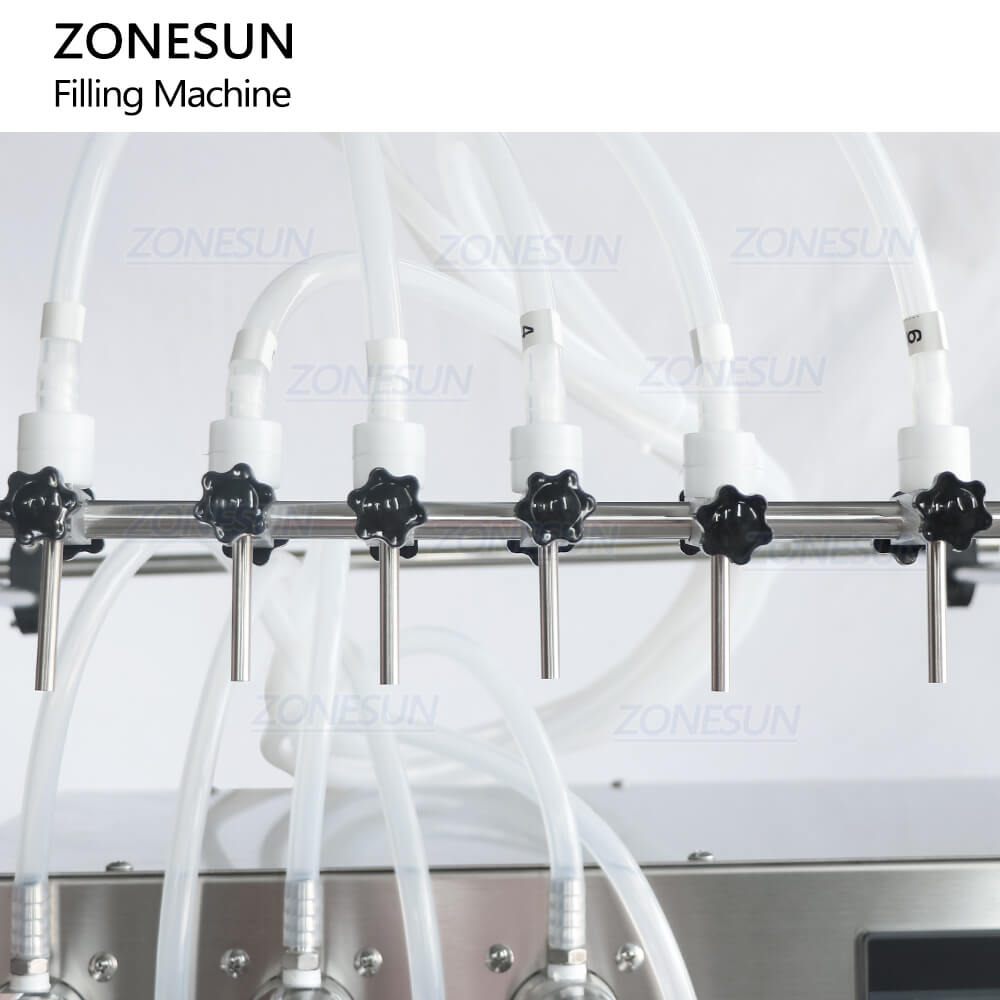

filling nozzle of magnetic pump filling machine

The quantity of filling nozzles can be customized as production need.Working height can be adjusted according to bottle size.

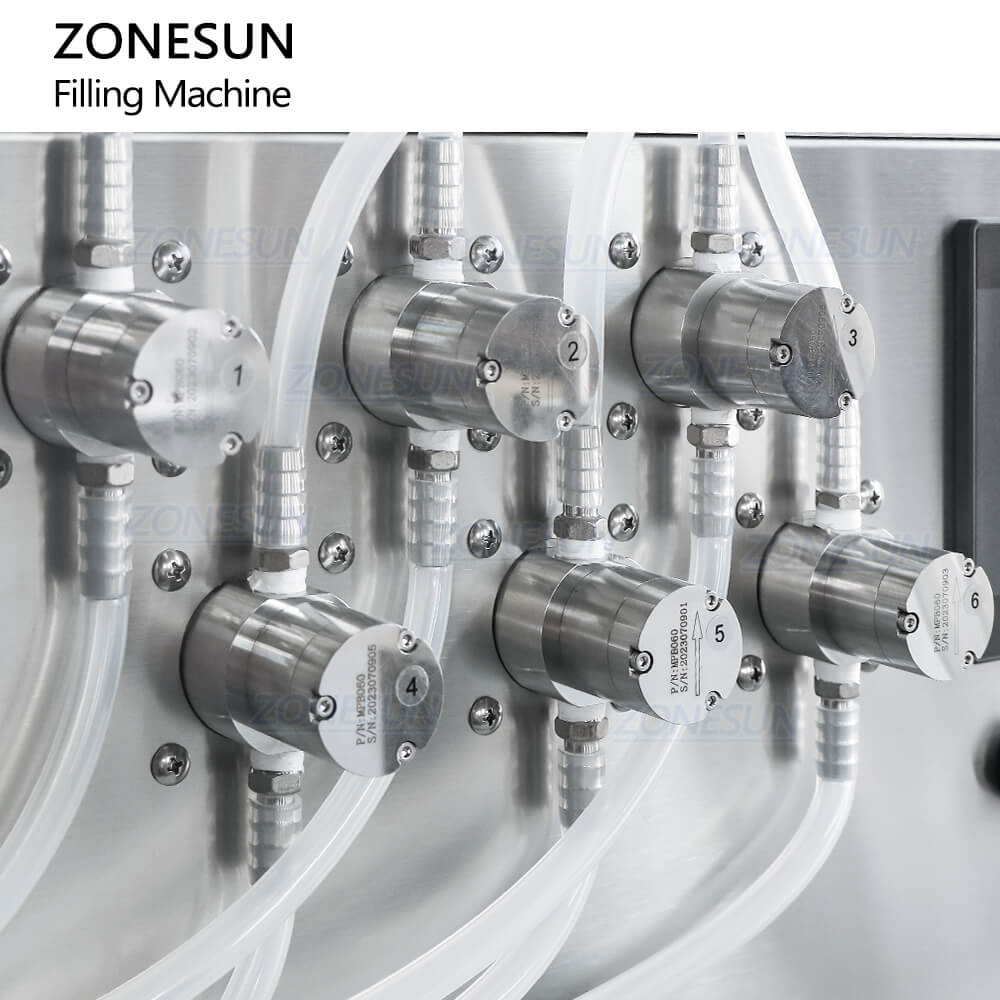

magnetic pump filling machine

Equipped with 316 stainless steel magnetic pump. It is suitable for the weakly corrosive liquid, this kind of filling pump has higher filling accuracy, it is the ideal choice for filling low viscosity liquid

pedal switch of magnetic pump filling machine

This machine can be controlled by pedal switch, this can free operators' hands during filling work, improves working flexibility.

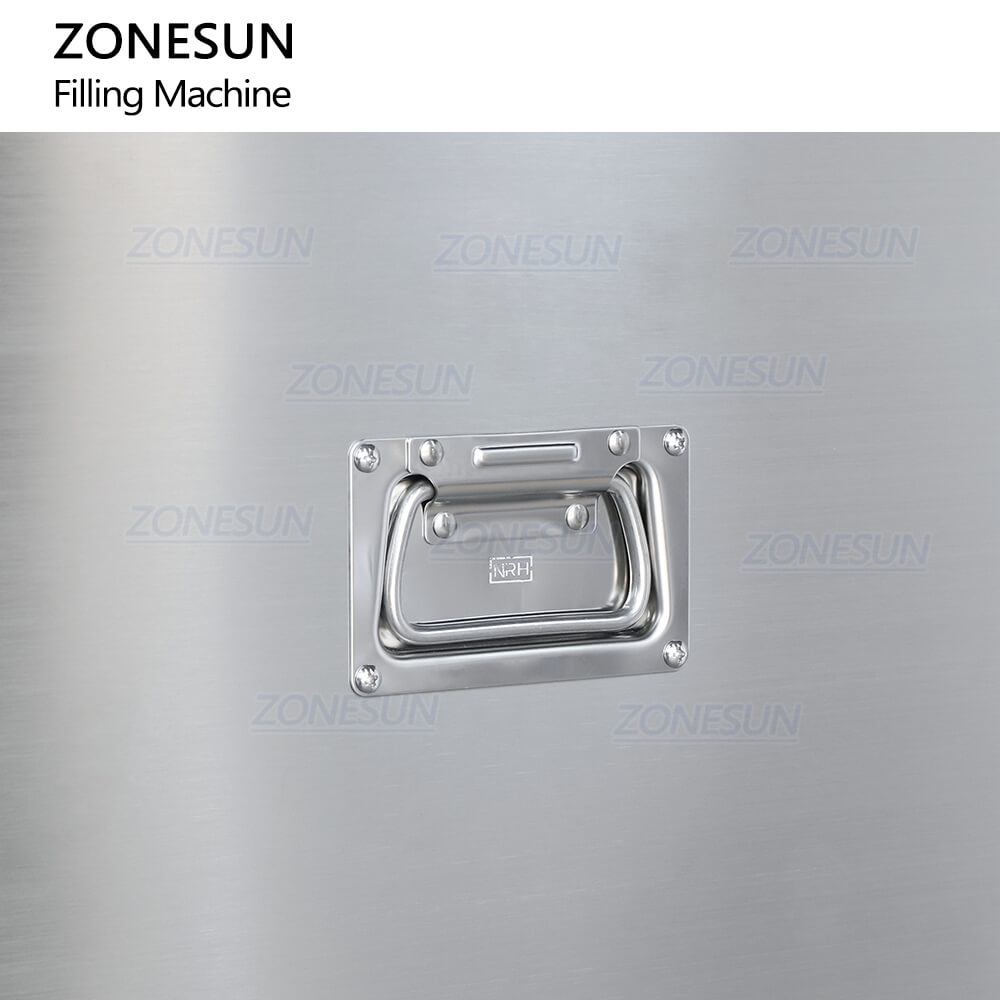

handle of magnetic pump filling machine

Reasonable machine design, it is with the retractable handle, this is more convenient when moving machine.

semi-automatic liquid filling machine

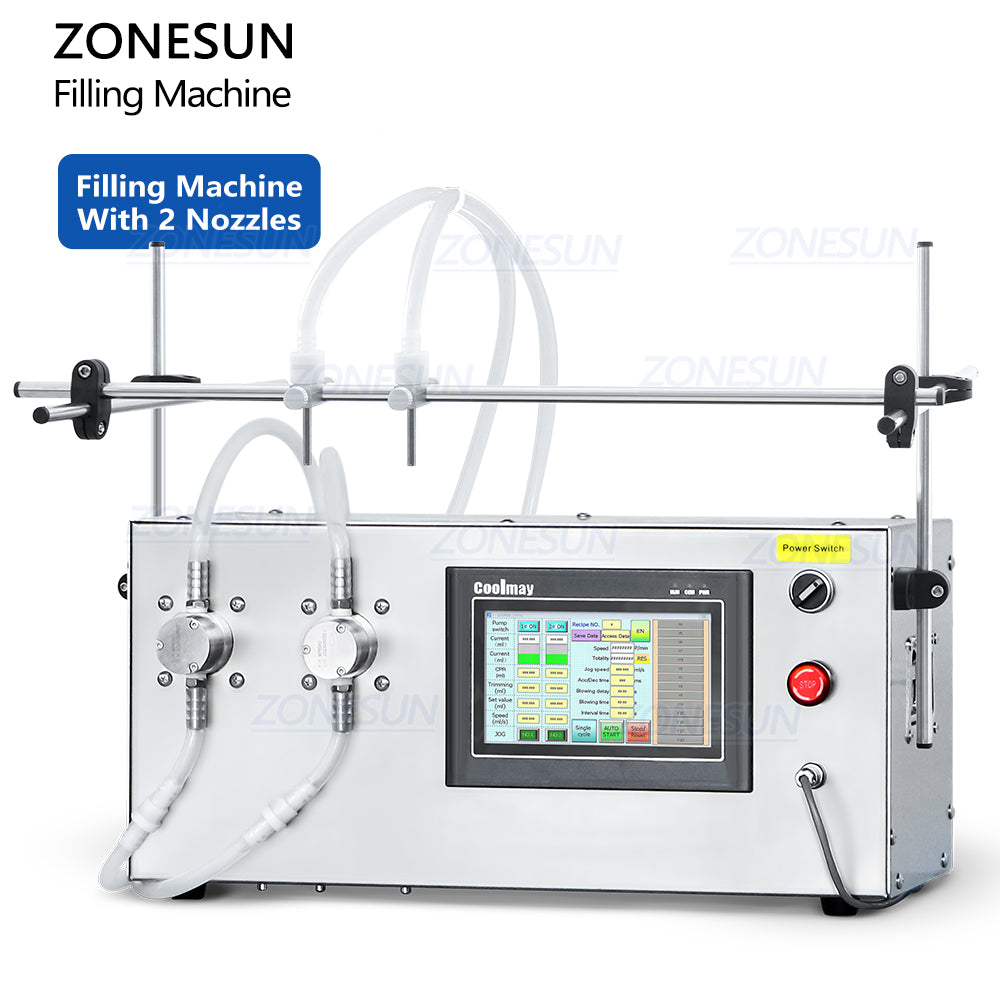

Double Heads Filling Machine
