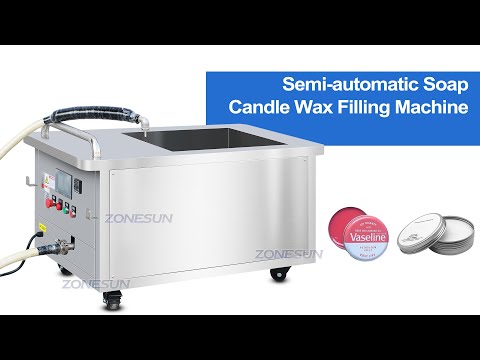

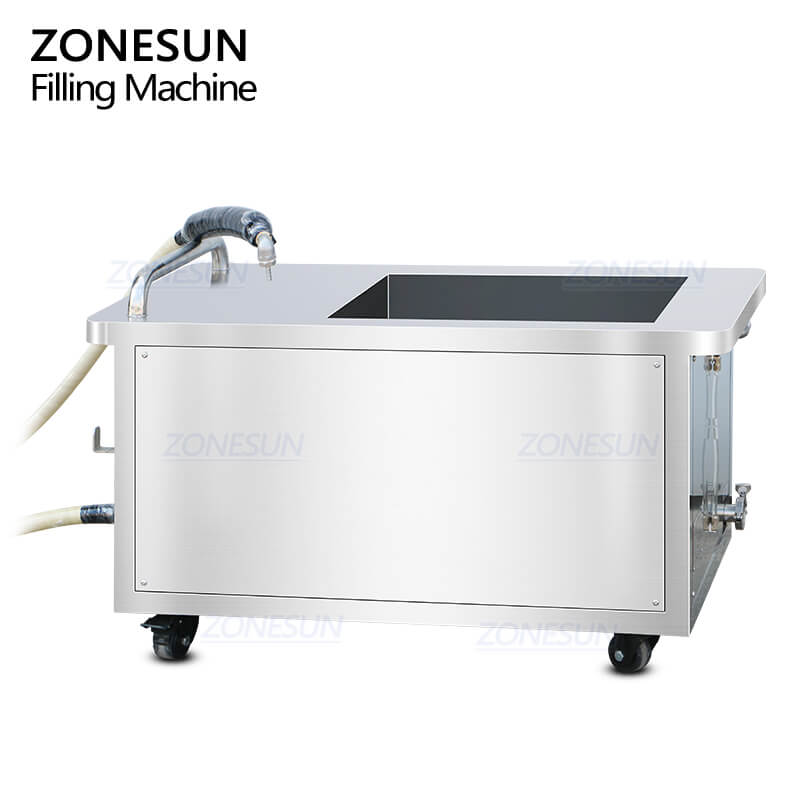

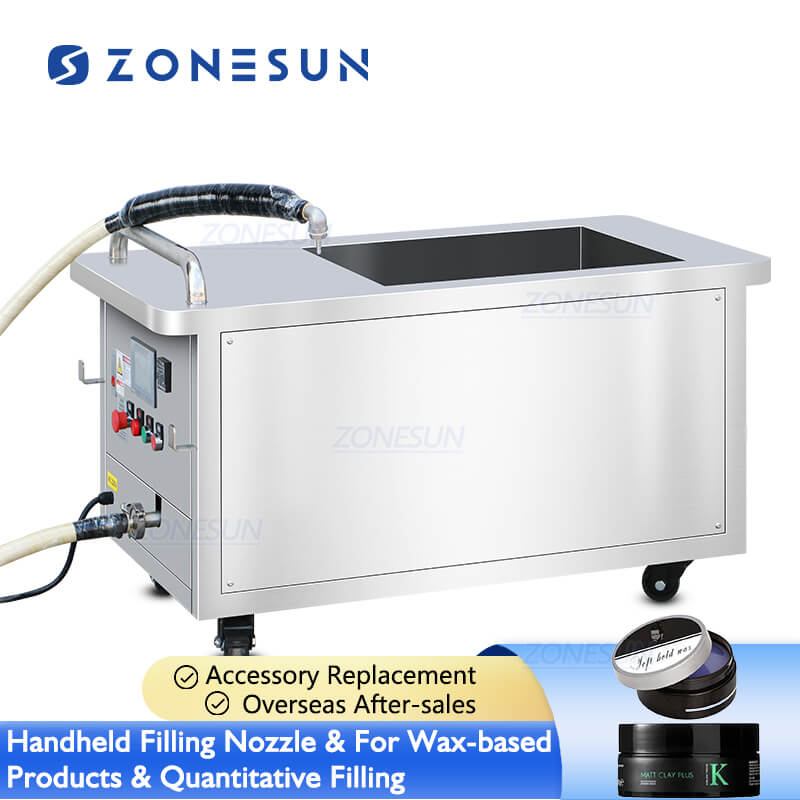

ZONESUN ZS-AZLF1 Semi-automatic Mobile Soap Candle Wax Filling Machine with Large Heating Hopper
Regular price
$3,478.00 USD
Regular price
Sale price
$3,478.00 USD
Save $-3,478 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This wax filling machine is equipped with a large heated hopper, handheld nozzle, and precise volume control for flexible operation. Adjustable flow rate, interval timing, and reflux functions ensure accurate & clean filling. Built-in water-level alarm protects the heating system. Ideal for soaps, candles, and wax-based products.
Wax Filling Machine Parameter
- Machine Model: ZS-AZLF1
- Machine Voltage: AC220V 4KW
- Filling Volume: 20 g-85 kg( Based on material density)
- Hopper Capacity: 90 kg( Based on material density)
- Working Speed: 25-8000 BPH ( Based on filling volume)
- Temperature Range: 0-100℃
- Machine Material: SUS304
- Machine Size: About 1120*640*730 mm(L*W*H)
- Machine Weight: About 82 kg
- Package Size: About 1240*730*1210 mm(L*W*H)
- Package Weight: About 145 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

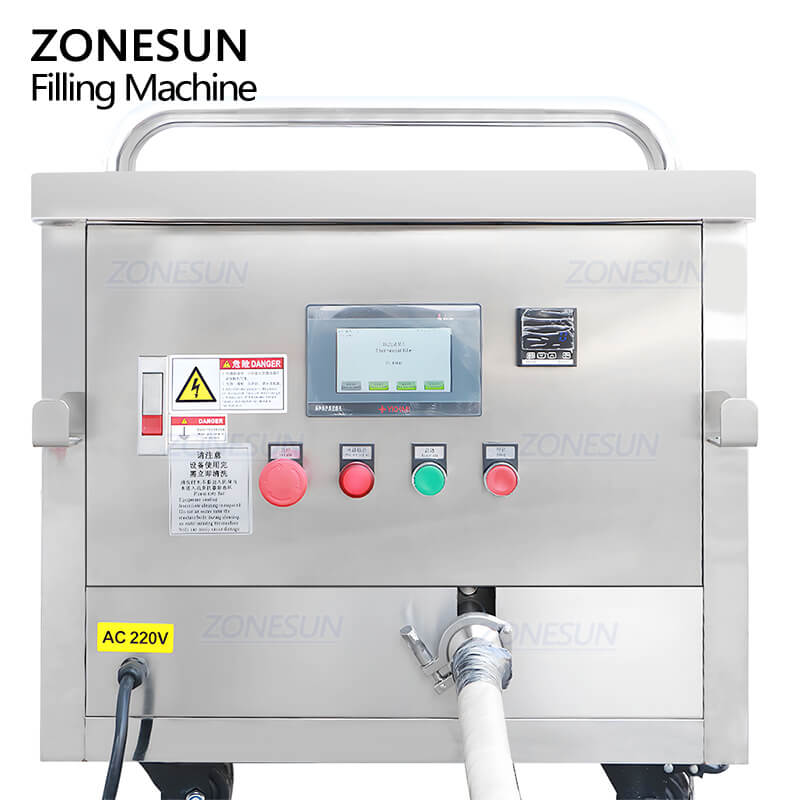

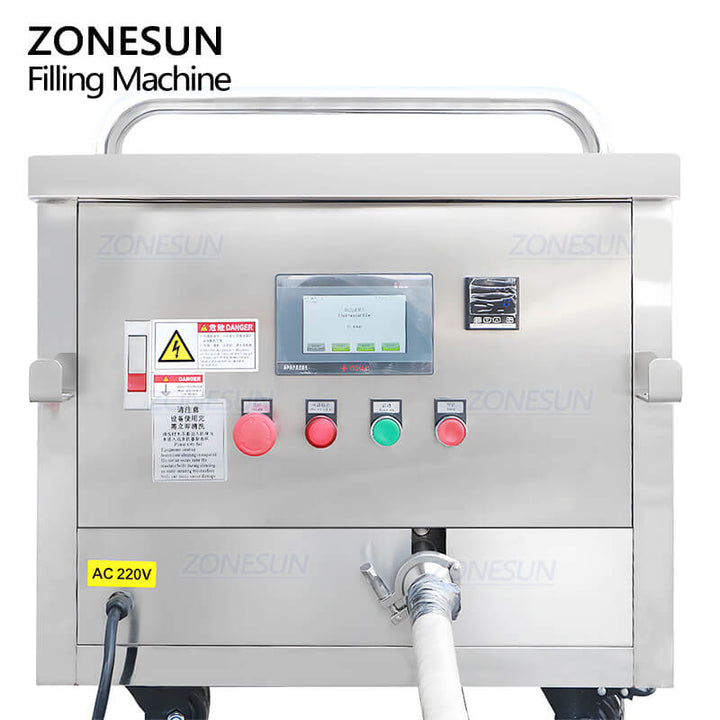

Control Panel
Intuitive interface for quick parameter setup including flow rate, filling interval, and reflux time.
Intuitive interface for quick parameter setup including flow rate, filling interval, and reflux time.

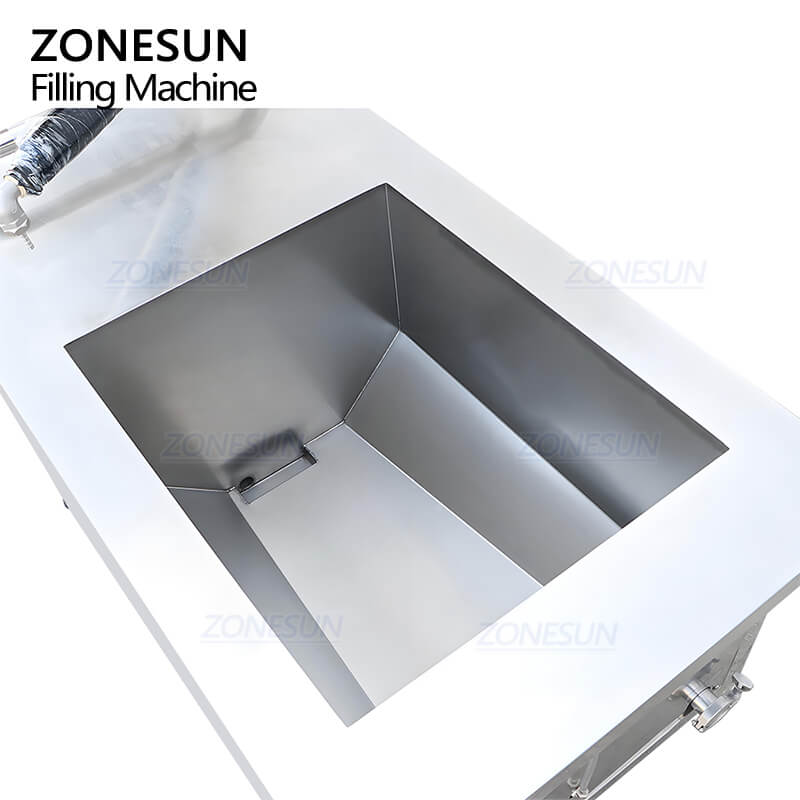

Large Heated Hopper of Wax Filling Machine
Maintains material consistency with adjustable temperature and insulation.
Maintains material consistency with adjustable temperature and insulation.

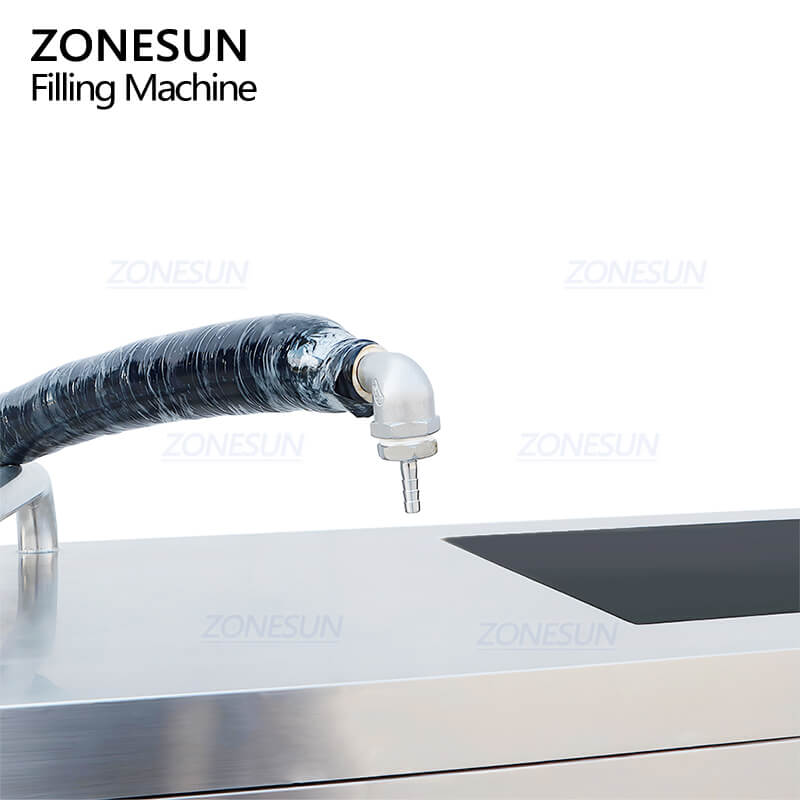

Handheld Filling Nozzle
Make operation more flexible and convenient for precise filling in various containers.
Make operation more flexible and convenient for precise filling in various containers.

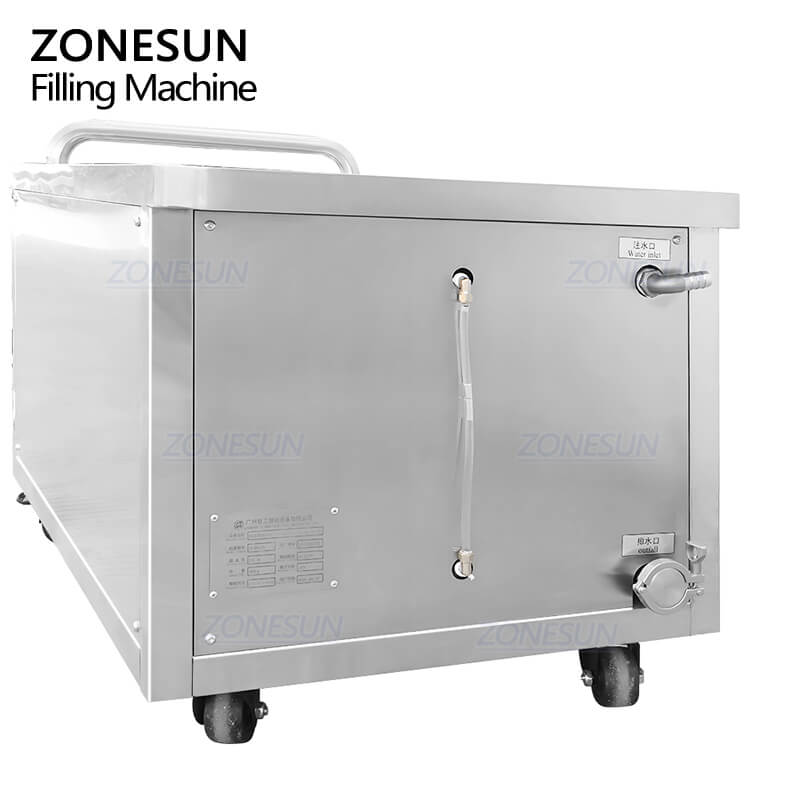

Insufficient Water Level Alarm
Alerts users when water is low; disables filling and heating to protect the machine. Automatically resets when water is added.
Alerts users when water is low; disables filling and heating to protect the machine. Automatically resets when water is added.
