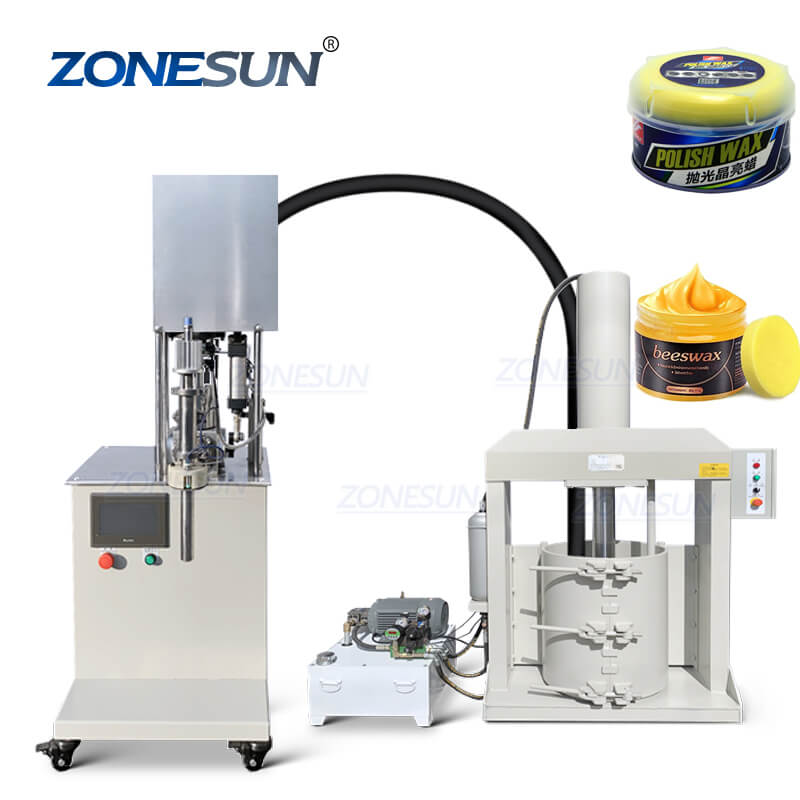

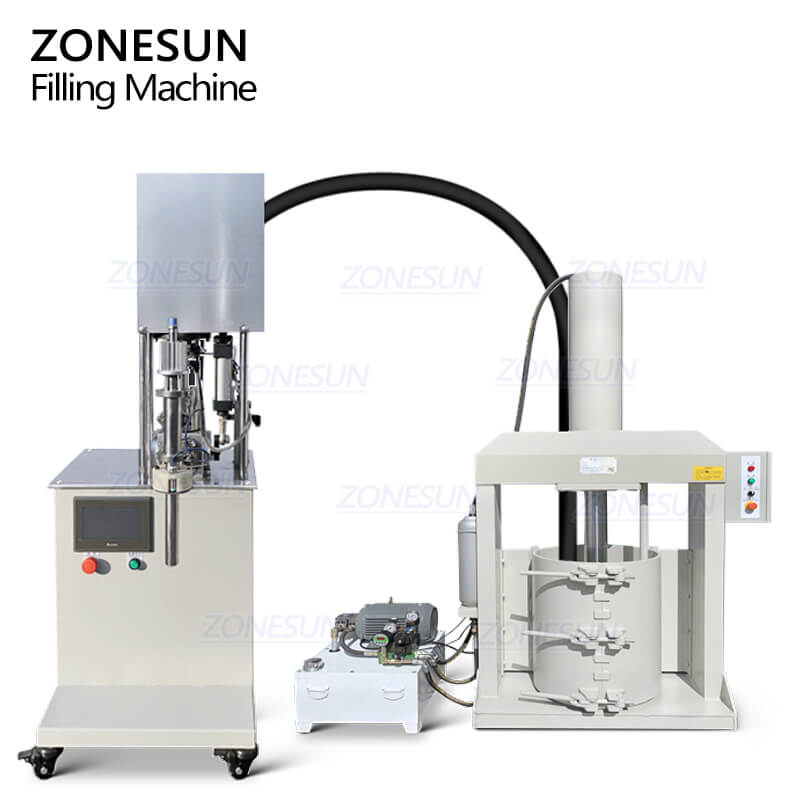

ZONESUN ZS-VGPJ1 Semi-automatic Servo Motor Modeling Paste Sealants Body Scrub High Viscosity Thick Paste Filling Machine With Hydraulic Discharge Machine

Designed for filling various pastes, greases, sealants, this filling machine is controlled by servo motor and usually work with the hydraulic discharge machine, which can supply filling material in time. It is widely used in chemical, pharmaceutical and food industries.

Filling Machine Parameter

• Machine Model: ZS-VGT1
• Power Supply: 220V/50HZ
• Air Supply: 0.5-0.8 MPa
• Air Consume: <0.3 m³/min
• Filling Volume: Max 350 ML(Can be customized)
• Volume Precision: ≤±0.5℅
• Working speed: 15-45 PCS/min
• Bottle Diameters: φ30-50 MM(Can be customized)
• Machine Size: 650×600*1400 MM(L×W×H)
• Machine Weight: 150 KG

Hydraulic Discharge Machine Parameter

• Machine Model: ZS-PJ15T

• Power Supply: 380V/220V

• Extruding Pressure: 15T(45T/60T are available)

• Material Tank Size: 20L(φ=284 MM*H=880 MM)

• Discharging Outlet Size: DN38

• Oil Tank Capacity: 40L

• Machine Size: About 800*600*1380 MM(L*W*H)

• Machine Weight: About 360 KG

• Package Size: About 950*720*1640 MM

• Package Weight: About 410 KG

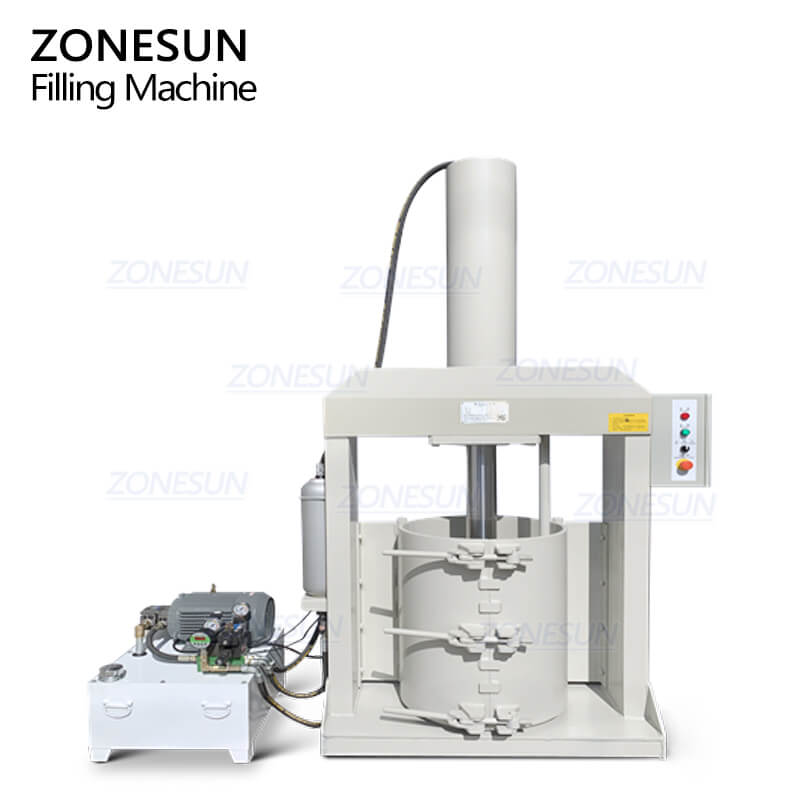

Hydraulic Extruder Module
The follower-plate press delivers steady, high force to push dense pastes directly to the filler without air pockets.

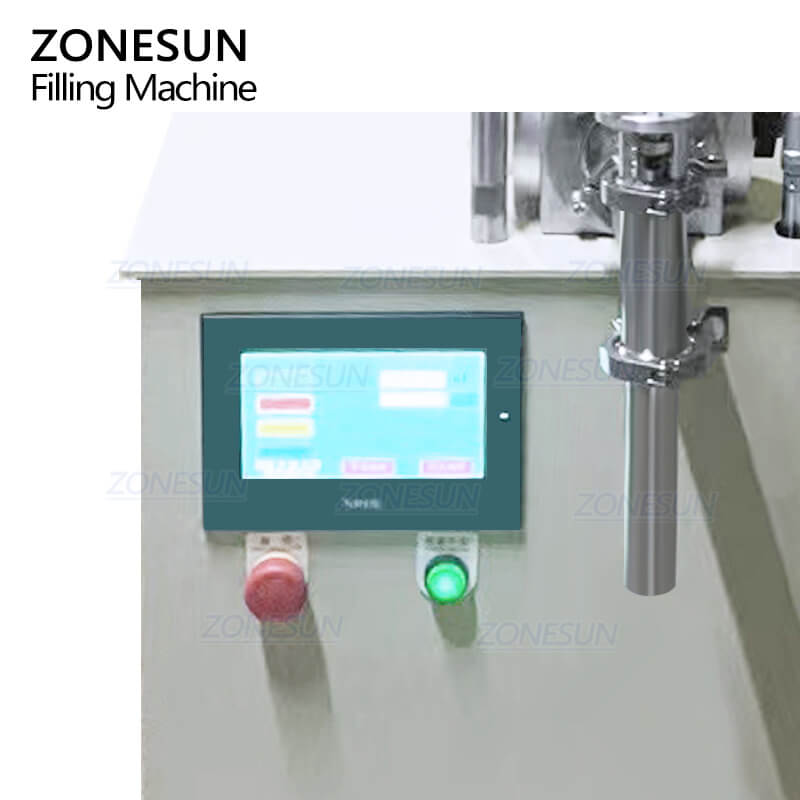

Control Panel
PLC touch screen control panel makes working parameter easier. Servo motor controls filling to ensures high filling accuracy.

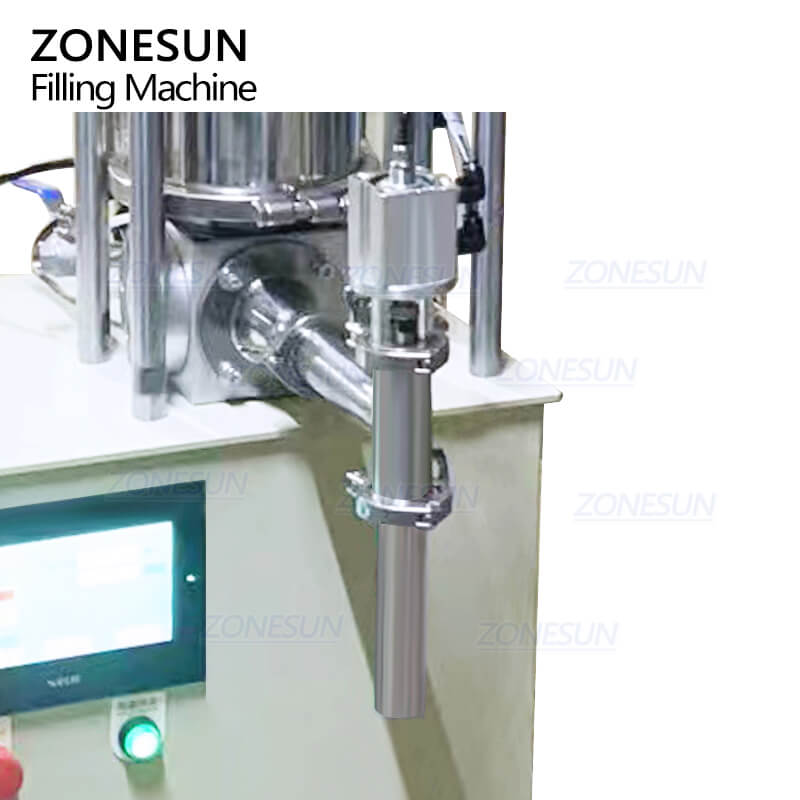

Filling Nozzle
Pneumatic filling nozzle is more powerful when filling thicker paste.

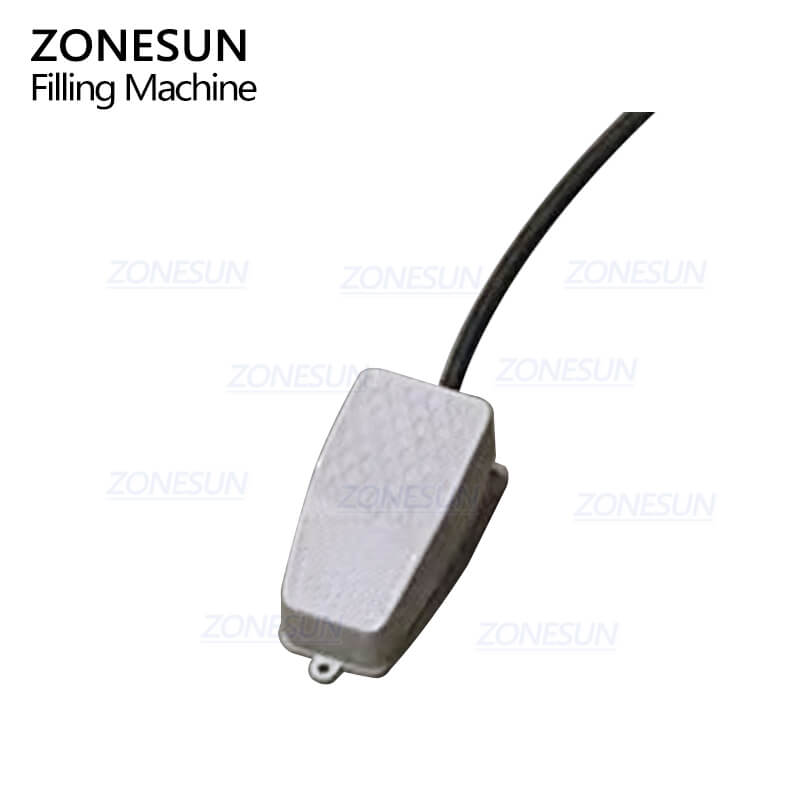

Pedal Switch
Machine can be controlled by pedal switch, this can free your hands and improve working efficiency.
