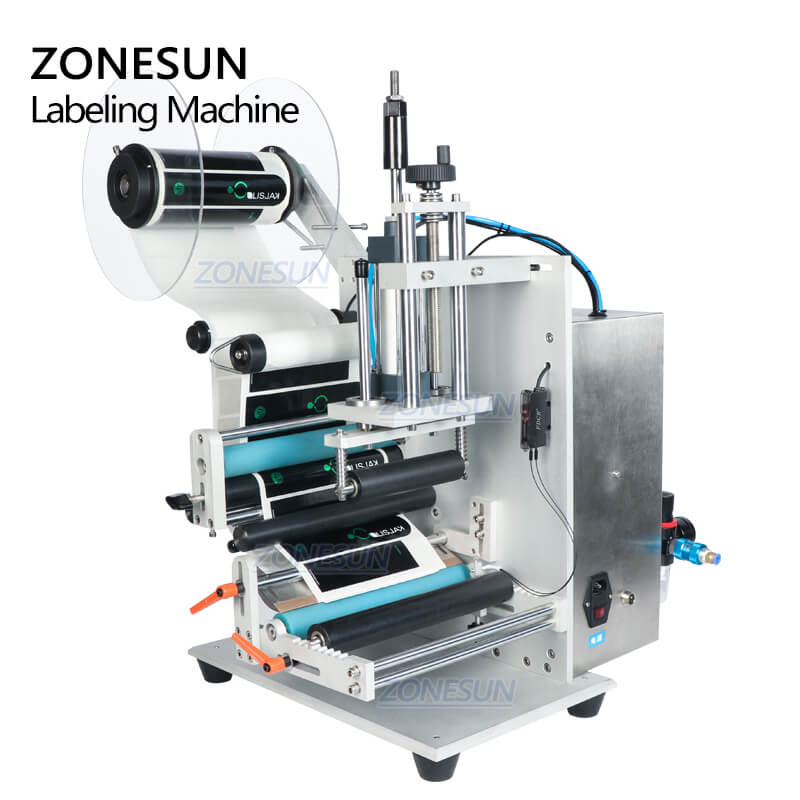

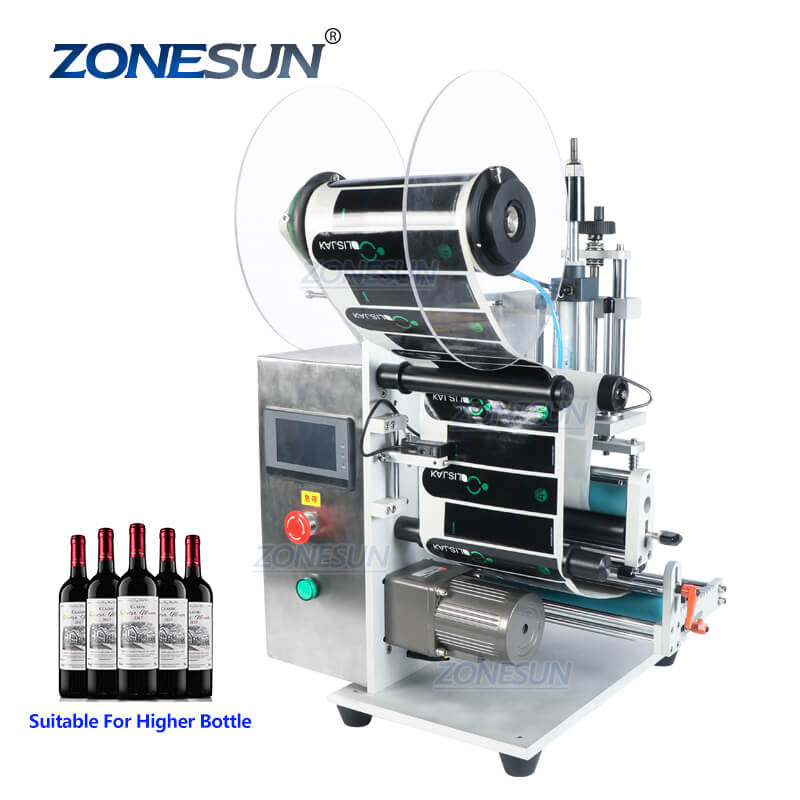

This semi automatic labeling machine is suitable for single side and double side labeling,it is designed for larger bottles like wine bottle,beverage bottles etc.It can be equipped with date coder to print production date or batch number.

Parameter

• Machine Model:ZS-TB100SW

• Main Feature:Wider Labeling

• Power Supply:110V/220V 50-60HZ

• Working Speed:15-35 pcs/min

• Labeling Accuracy:±1mm

• Air Pressure:0.4-0.6MPa

• Label Outputting Direction:Right

• Labeling Object Diameter:φ10-150mm

• Labeling Object Height:≤380mm

• Suitable Label Size:≤200mm(W)

• Label Roll OD:φ220mm

• Label Roll ID:φ75mm

• Size of Air Compressor Connector:OD8mm

• Machine Size:About 415*420*690mm

• Net weight:About 32kg

• Package Weight:About 540*460*800mm

• Gross weight:About 48kg

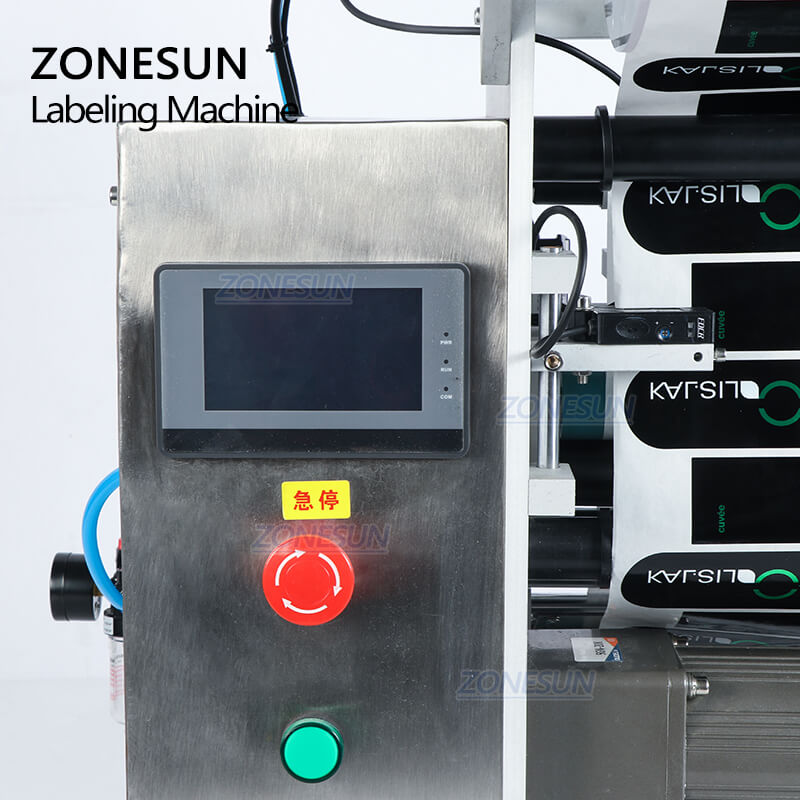

With touch screen control panel,it is easy to adjust parameter,make it more accurate to label stickers,this can improve labeling quality.Can be set into English version or Chinese Version.

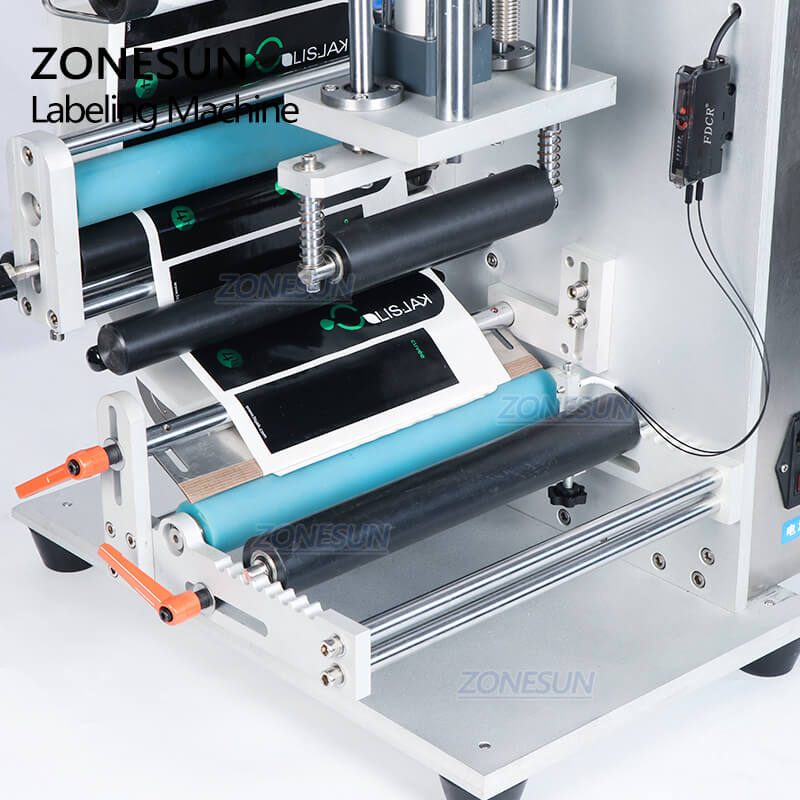

With label senor which can prevent from missing orwasting labels,ensure thelabeling accuracy.Please ensure the label roll will pass through the gap of the sensor when you wind the label roll.

The labeling width and working height can be adjusted according to labeling object,make it suitable for different kinds of products.lt is good for single side and double side labeling.

The sensor can be used to detect labeling object,it will not labeling stickers if no bottles is detected,this ensures the labeling accuracy.

The high quality motor can ensure the machine work stably,make the machine work for a long time.

This machine can be controlled by pedal switch orwork automatically,operator can choose the suitable working mode according to operation need.
