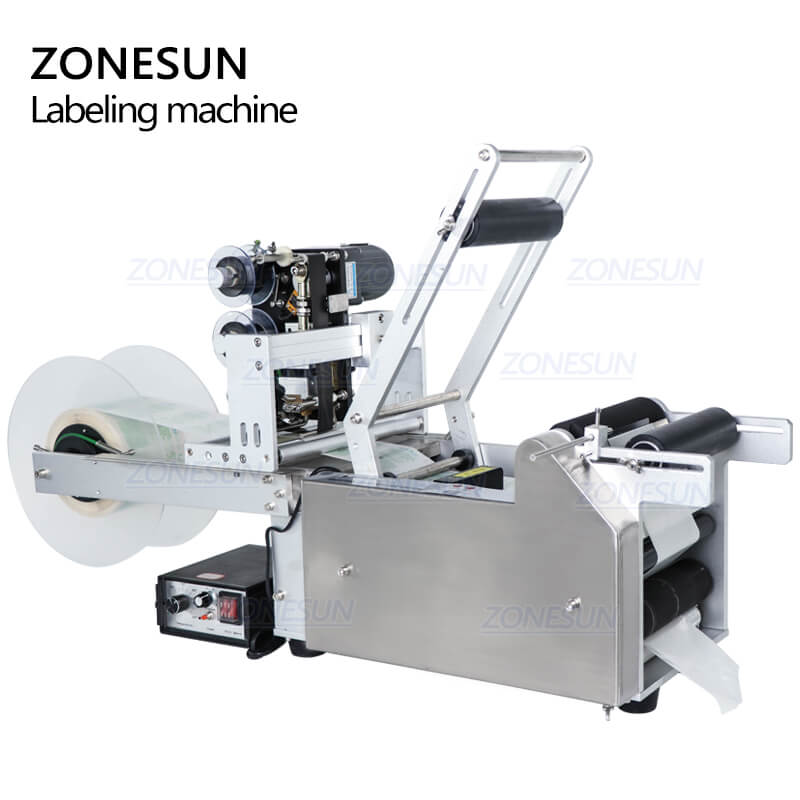

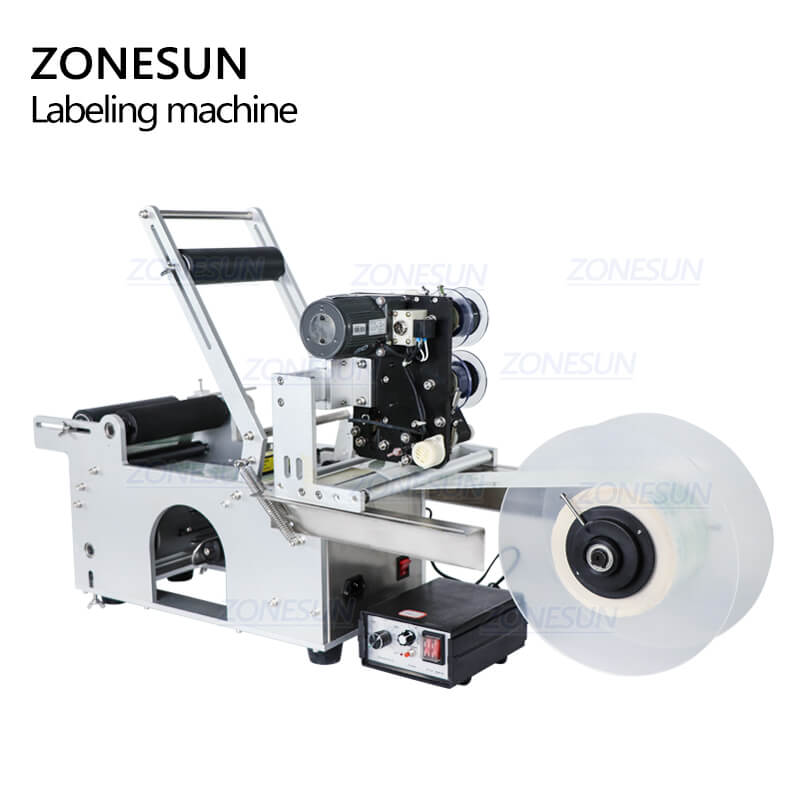

ZONESUN ZS-TB50DT Semi-automatic Round Jar Cosmetic Transparent Sticker Bottle Labeling Machine

SKU: 00300200004-0002
ZS-TB50DT Transparent Sticker Labeling Machine
Date Coder of ZS-TB50DT Transparent Sticker Labeling Machine
Label Sensor of ZS-TB50DT Transparent Sticker Labeling Machine
ZS-TB50DT Transparent Sticker Labeling Machine
ZS-TB50DT Transparent Sticker Labeling Machine
ZS-TB50DT Transparent Sticker Labeling Machine

ZONESUN ZS-TB50DT Semi-automatic Round Jar Cosmetic Transparent Sticker Bottle Labeling Machine

SKU: 00300200004-0002
Voltage
Regular price $1,028.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

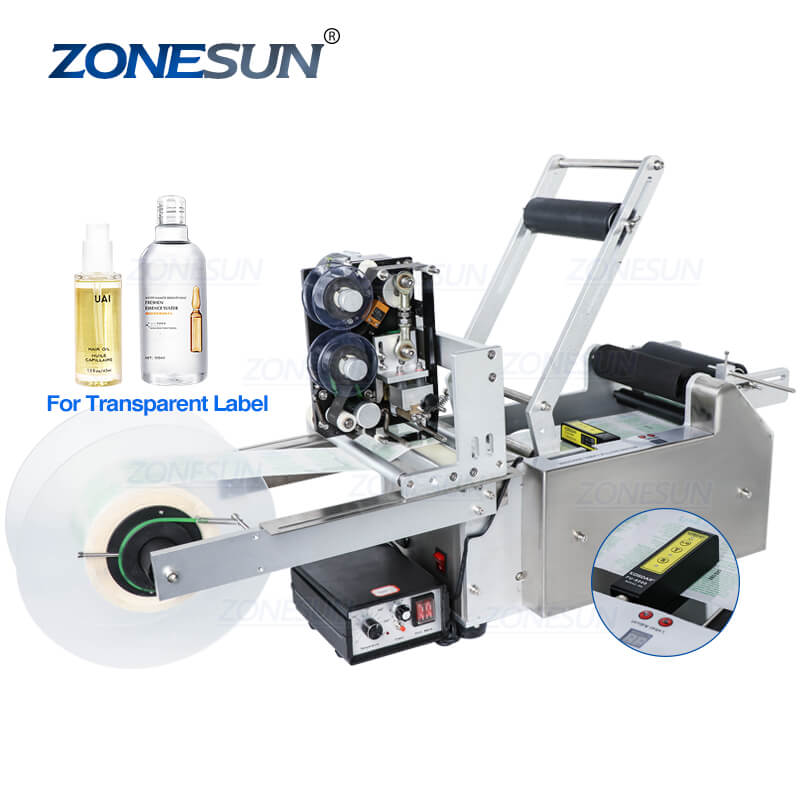

This semi automatic labeling machine is suitable for label stickers on round bottles,it is equipped with date coder,the temperature can be controlled as operation need.The color ribbon can be changed when you need to print production date with different colors.This machine is suitable for transparent label stickers and gold label stickers.It is widely used in food,cosmetics,daily chemical industries.

Parameter

Model:ZS-TB50DT
Voltage/Frequency:110V/220V 50-60HZ 100W
Labeling speed:20-40pcs/min
Diameter of bottle:φ15-120mm
Min. label size:20*20mm
Max label size:150mm(W)* 230mm(L)
Outside diameter of label roll:φ275mm
Accuracy of labeling:±0.5mm
Inside diameter of label roll:φ75mm
Machine size:About 650*280*345mm
Machine weight:About 29kg
Package size:About 610*320*520mm
Package weight:About 36kg

ZS-TB50DT Transparent Sticker Labeling Machine

Application of ZS-TB50DT Transparent Sticker Labeling MachineDimension of ZS-TB50DT Transparent Sticker Labeling Machine

Label Holder of ZS-TB50DT Transparent Sticker Labeling Machine

The green rubber belt is designed for keeping label roll flat during working and prevent from overusing label stickers.

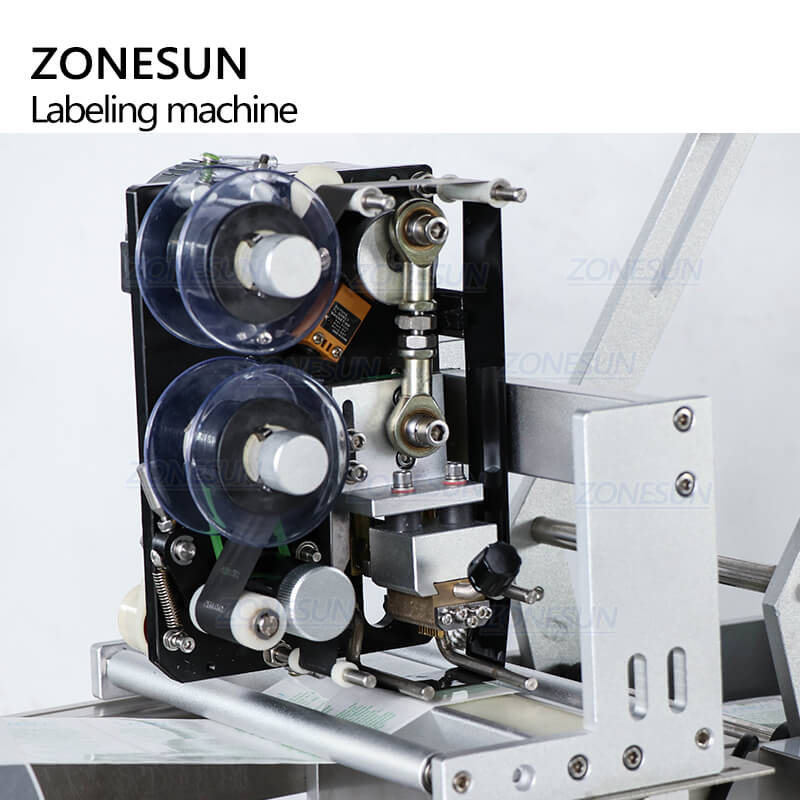

Coder of ZS-TB50DT Transparent Sticker Labeling Machine

This machine is equipped with date coder,the printing position can be adjusted according to operation needs.The color ribbon can be changed when you need to print date and number with different kinds of colors.The temperature of date coder can be adjusted as well.Improves production quality.

Roller of ZS-TB50DT Transparent Sticker Labeling Machine

This bar help to fix bottles during labeling.Two black roller should be parallel during working.They can be adjusted according to bottle diameter.

Micro Switch of ZS-TB50DT Transparent Sticker Labeling Machine

When the pressing bar press bottles,the micro switch will be flipped and the machine will start to rotate bottles and finish labeling work.

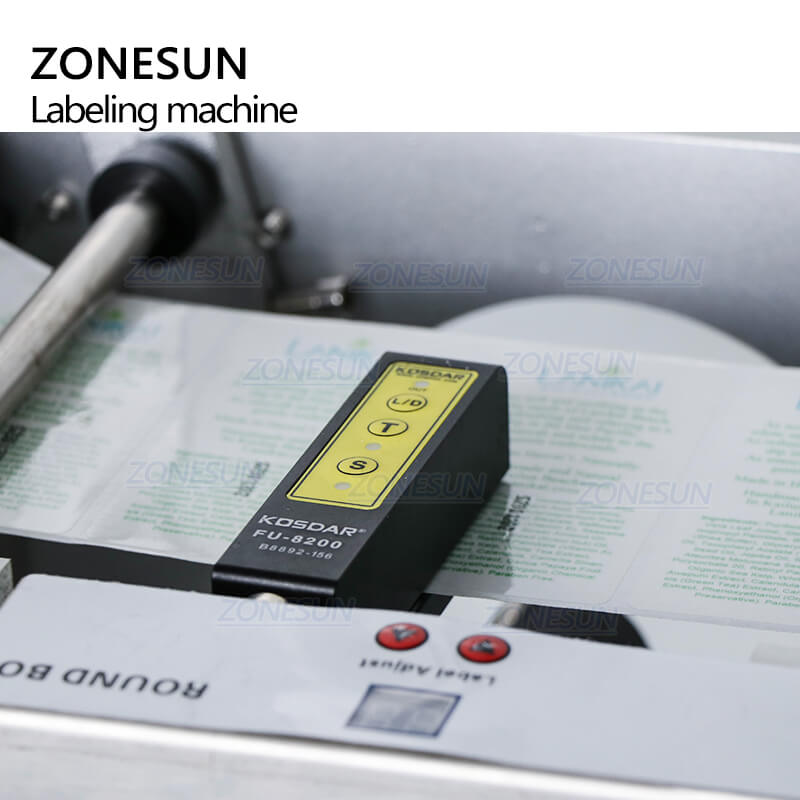

Label Sensor of ZS-TB50DT Transparent Sticker Labeling Machine

This machine is equipped with high quality label sensor,it can be used to detect normal label stickers and transparent label stickers.The sensitivity of sensor can be adjusted as well.Those two red arrow buttons are designed for controlling the outputting distance of label stickers.

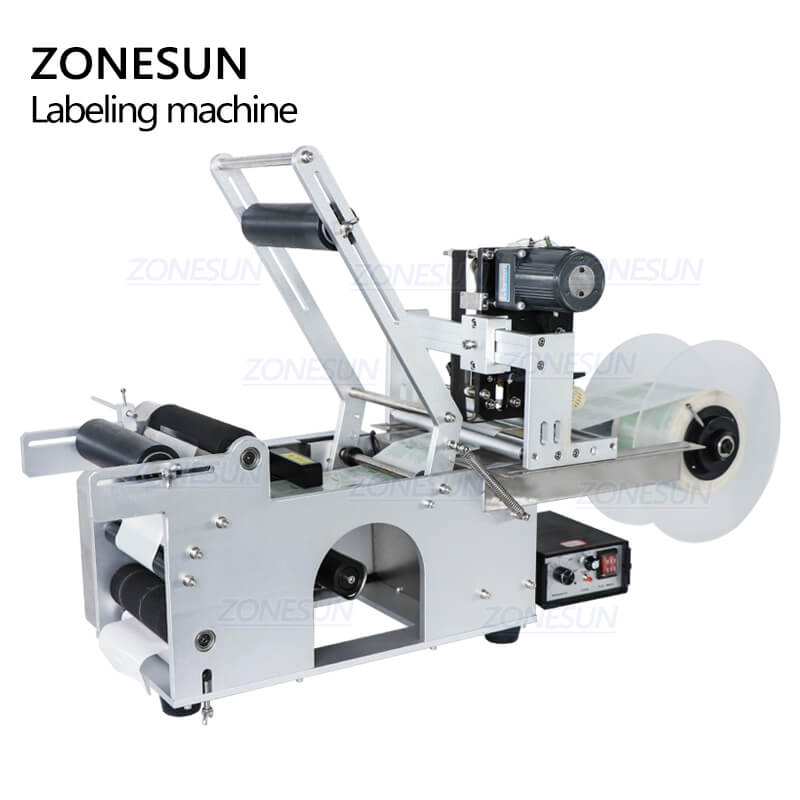

Real Shot of ZS-TB50DT Transparent Sticker Labeling MachineReal Shot of ZS-TB50DT Transparent Sticker Labeling Machine
