ZS-RXB1 Semi-automatic Rotor Pump Peanut Butter Lotion Hot Sauce Jam Bottle Honey Tomato Paste Filling Machine

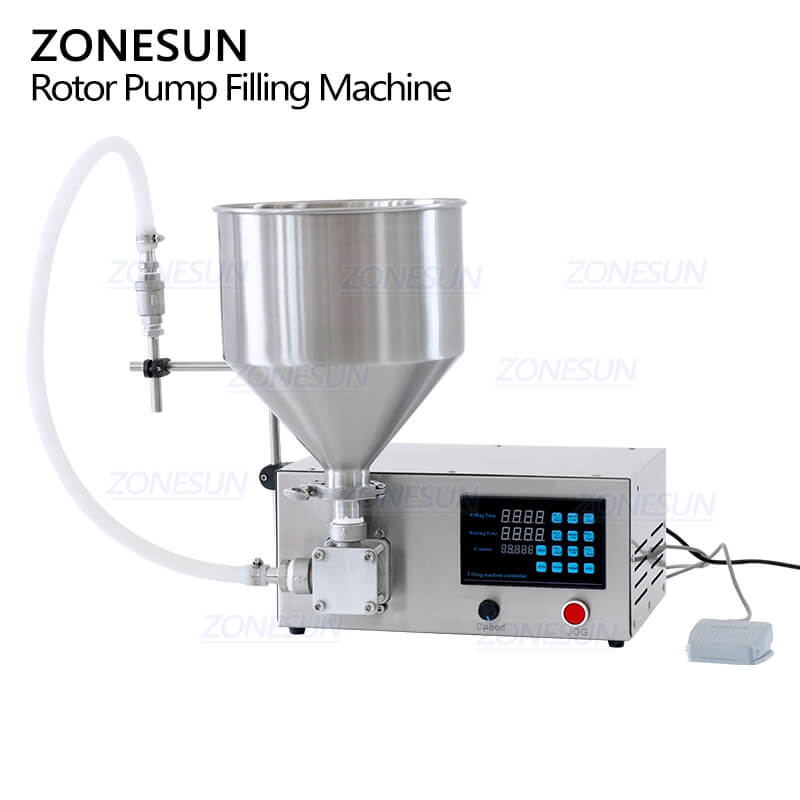

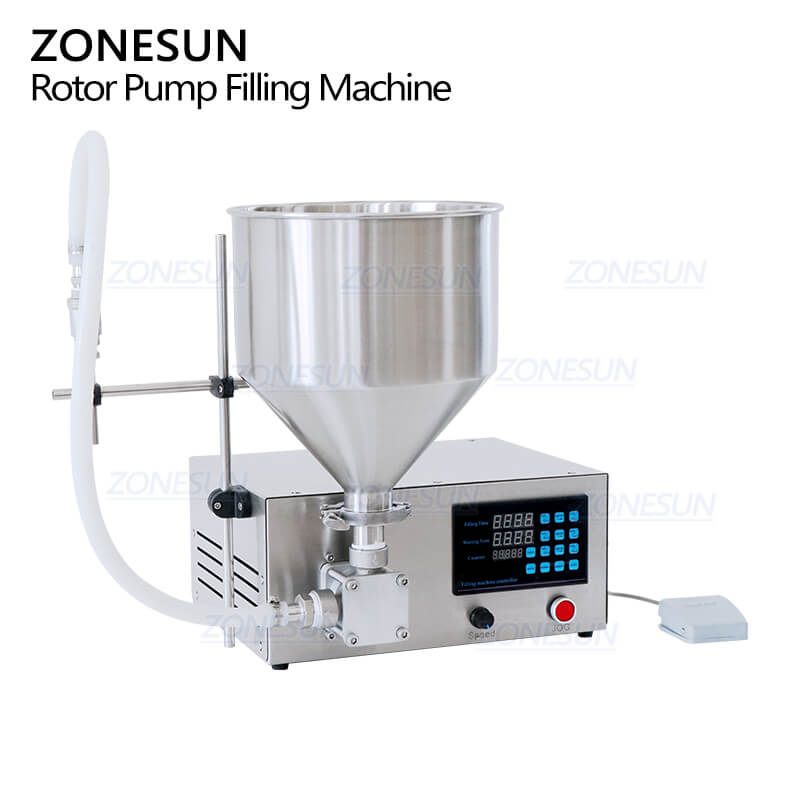

Semi-automatic Lobe Pump Filler For Honey
Control Panel of Semi-automatic Lobe Pump Filler For Honey
Filling Nozzle of Semi-automatic Lobe Pump Filler For Honey
Lobe Pump of Semi-automatic Filler For Honey
Pedal Switch of Semi-automatic Lobe Pump Filler For Honey
Semi-automatic Lobe Pump Filler For Face Cream
Semi-automatic Lobe Pump Filler For Body Lotion

ZS-RXB1 Semi-automatic Rotor Pump Peanut Butter Lotion Hot Sauce Jam Bottle Honey Tomato Paste Filling Machine

Voltage
Regular price $1,239.00 USD Sale price $1,139.00 USD Save $100 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

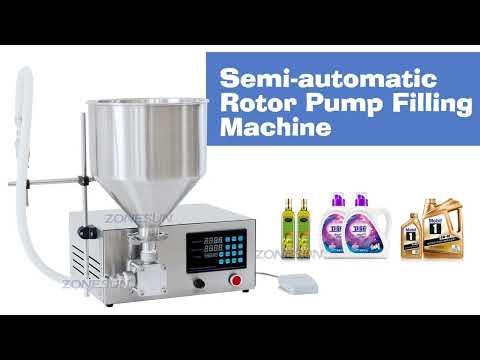

Click Video Link For Video

This semi-automatic filling machine is equipepd with rotor pump,it is suitable for filling liquid and paste.When filling paste, operator just need to pour material into hopper.and when filling liquid, you can remove hopper, and put the filling hose into material tank, the machine will suck liquid and fill liquid into containers.It is widely used in food, daly chemical and cosmetic industries.

Parameter

Model:ZS-RXB1
Working power:AC 220V
Pump:Rotary pump
Power:400w
Maximum flow rate:28L/min
Suitable filling range:0.5-20L
Suitable PH Value:PH≥3
Filling accuracy:±1%
Filling nozzle size:10*14mm
Delay time range:0.01s-999.9s
Counting range:1-59999 times
Machine size:500*300*230mm
Package size:About 350*310*350mm(Hopper)+570*450*350mm(Machine)
Package weight:About 3kg(Hopper))+18.5kg(Machine)

Semi-automatic Lobe Pump Filling Machine For Jam

Application of Semi-automatic Lobe Pump Filling Machine

Machine Details of Semi-automatic Lobe Pump Filling Machine

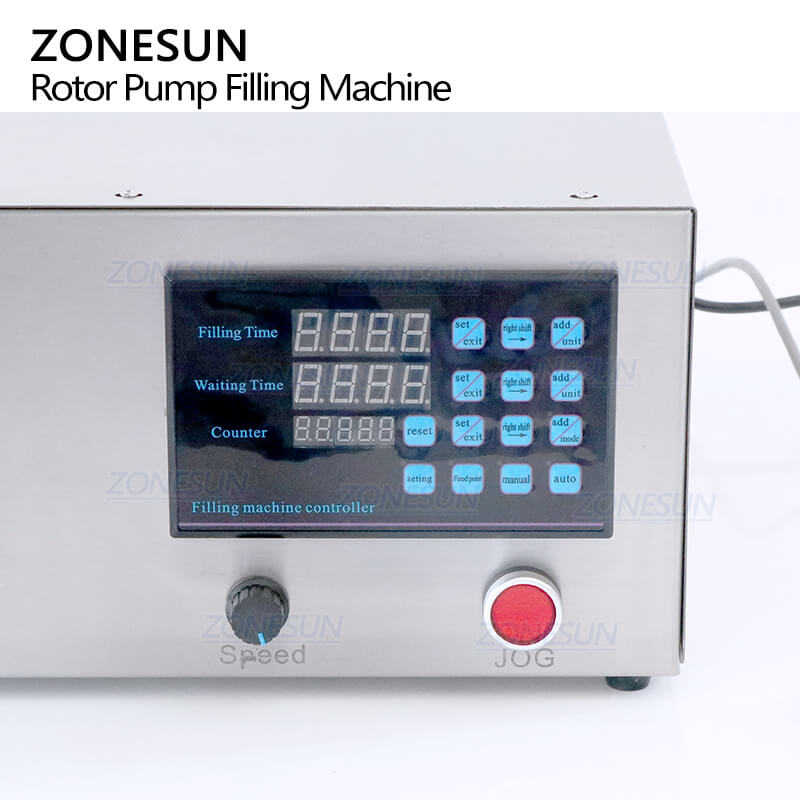

Control Panel of  Semi-automatic Lobe Pump Filling Machine

Simple control panel, operator can adjust the filling time and speed to control the filling volume,this is good for the new hand.

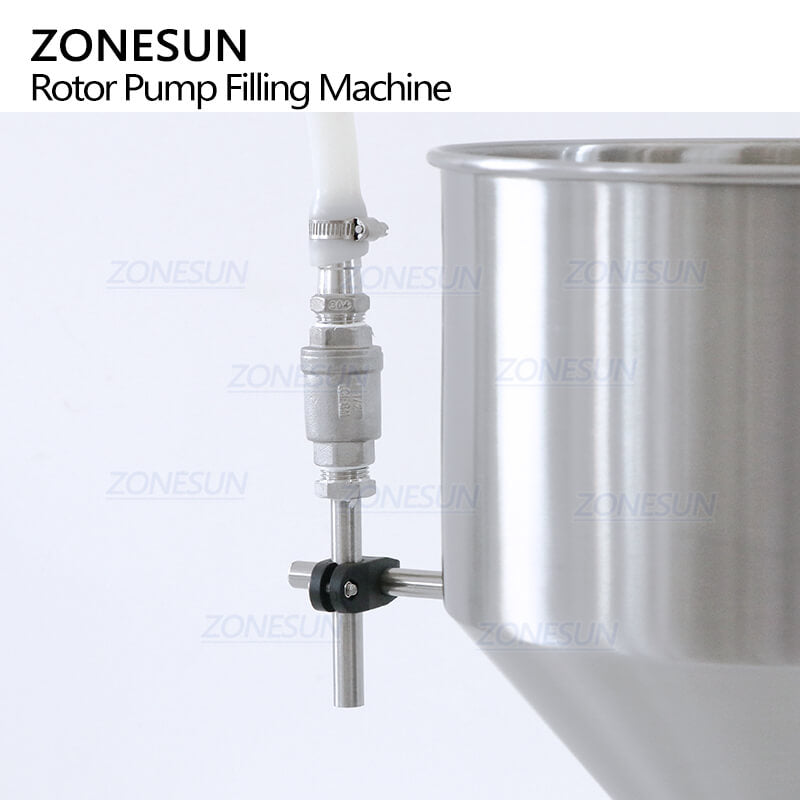

Filling Nozzle of Semi-automatic Lobe Pump Filling Machine

Equipped with stainless steel filling nozzles, the size of filling nozzle can be changed accoding to bottle opening mouth size,prevent from spraying out liquid.

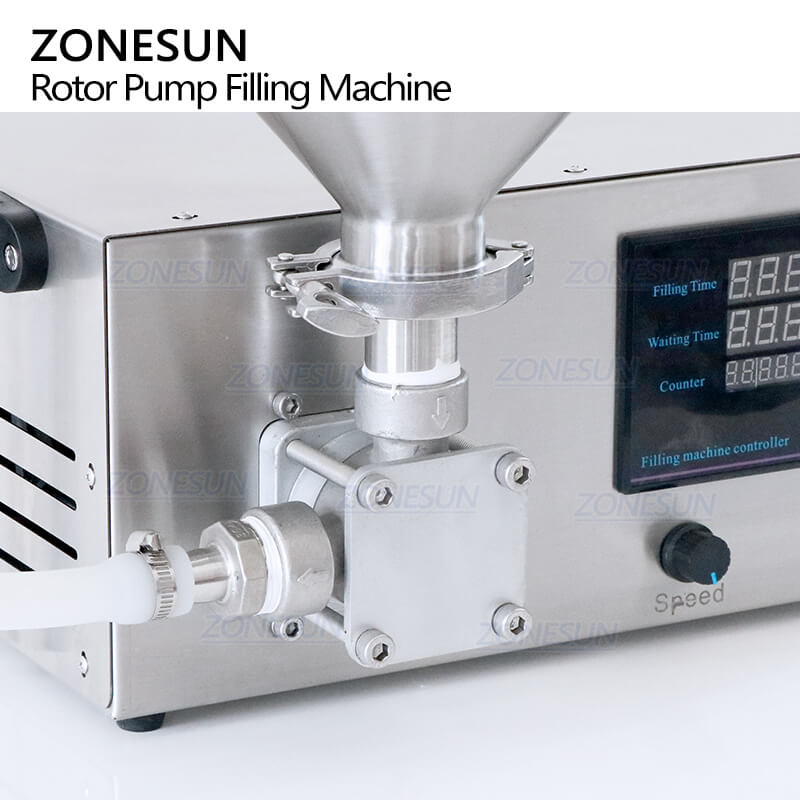

Rotor Pump of Semi-automatic Jam Filling Machine

Equipped with rotor pump, it has high filling accuracy and suitable for large filling volume and PH≥3 liquid.

Pedal Switch of Semi-automatic Lobe Pump Filling Machine

Operator can control the machine to work by pressing pedal switch, it can also be used for debugging machine.Besides, set filling time,filling speed and waiting time can make the machine work automatically.

Semi-automatic Lobe Pump Filling Machine For Thick Liquid

Semi-automatic Lobe Pump Filling Machine For Honey

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
