ZS-RPW1 Semi-automatic Rotor Lobe Pump Ketchup Jam Jar Lotion Cream Chili Sauce Tomato Paste Weighing Filling Machine

ZS-RPW1 Semi-automatic Rotor Lobe Pump Ketchup Jam Jar Lotion Cream Chili Sauce Tomato Paste Weighing Filling Machine

Voltage
Regular price $2,199.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

The rotor pump filling machine has advantage of high accuracy when filling thick liquid or paste like jam,noodle pulp,meat stuffing,tomato paste etc.It is widely used in food,cosmetics,daily chemical industries.

Parameter

Machine Model:ZS-RPW1
Voltage:220V/110V 50-60Hz
Power:750W
Filling Pump: Rotor Pump
Filling Range: 100-10000g
Filling Speed:10-45L/min(depending on filling materials)
Filling Accuracy: ±5g
Liquid Temperature: 2-60℃
Hopper Capacity: 50L
Application: Suitable for paste with particles that are <10mm
(Can customize for >10mm)
Package Weight: 49kg+10kg
Package Size:About 810*410*580mm(Machine)
About 450*450*650mm(Hopper)

Rotor Pump Paste Filling Machine

Application of Paste Filling Machine

Machine Details of Semi-automatic Paste Filling Machine

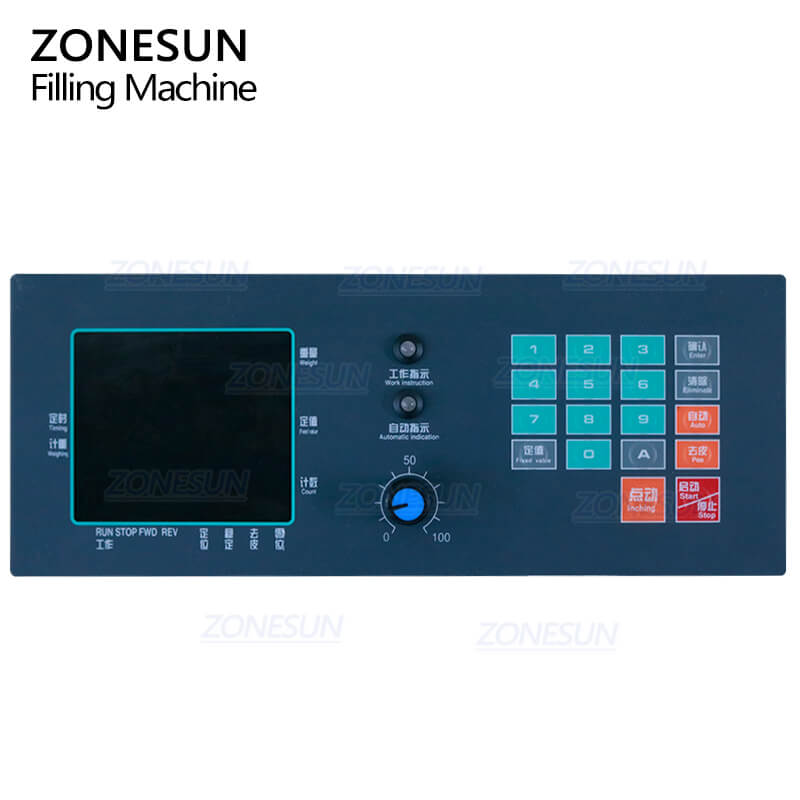

Control Panel of Semi-automatic Paste Filling Machine

With digital control panel, it is easy to set or adjust working parameters like filling weight, filling speed. With counting function, the quantity of filled bottles will show on panel, visual and accurate.

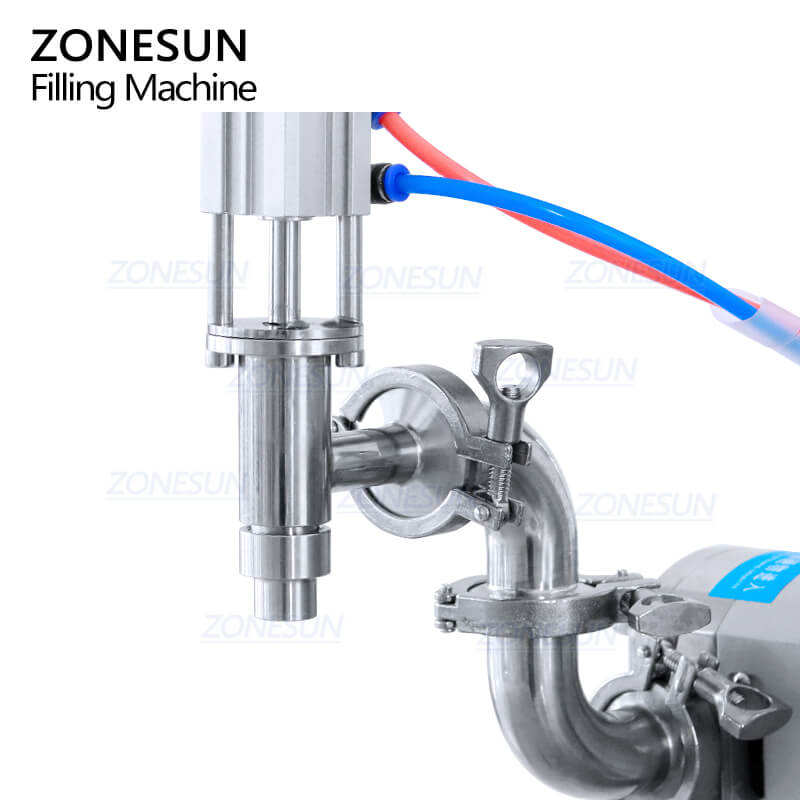

Filling Nozzle of Semi-automatic Paste Filling Machine

With pneumatic filling head, it can fill paste like jam, peanut butter, honey. Through loosening the knob, you can disassemble the nozzle and clean it. Easy to operate.

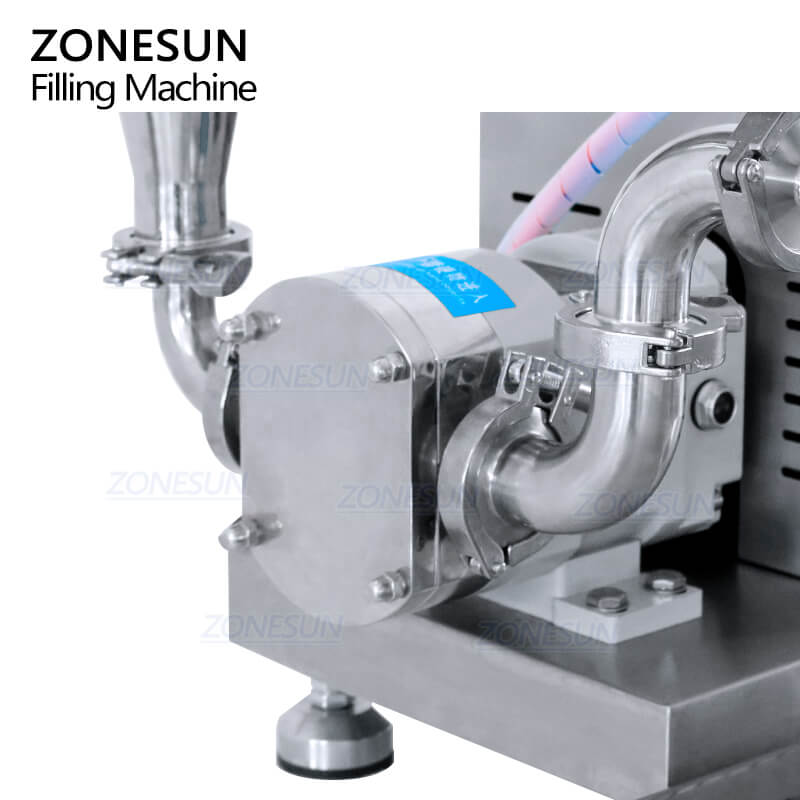

Rotor Pump of Semi-automatic Paste Filling Machine

Equipped with cam rotor pump, it has feature of high filling accuracy and high filling speed. With self-priming function, it can ensure smooth filling.

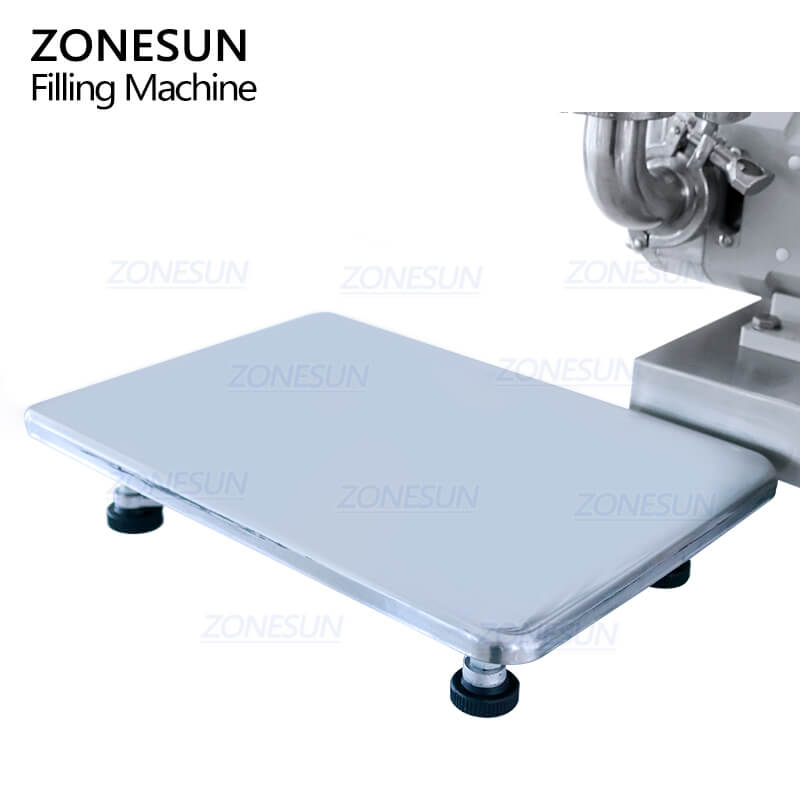

Weighing Device of Semi-automatic Paste Filling Machine

With weighing function, it can fill paste accurately. The real weight of filled bottle can show on panel, visual and accurate.

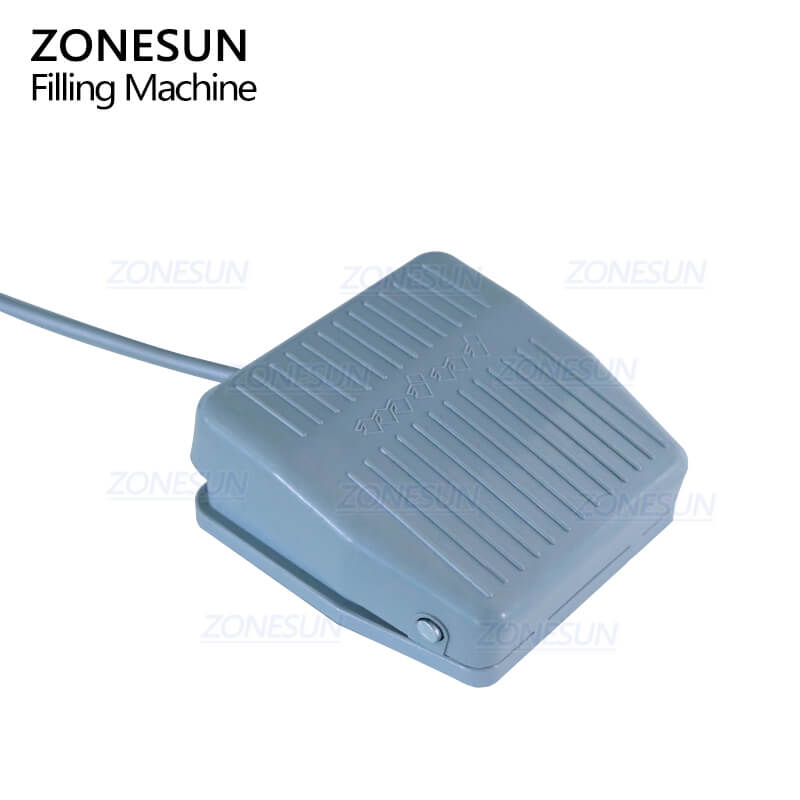

Pedal Switch of Semi-automatic Paste Filling Machine

With weighing function, it can fill paste accurately. The real weight of filled bottle can show on panel, visual and accurate.

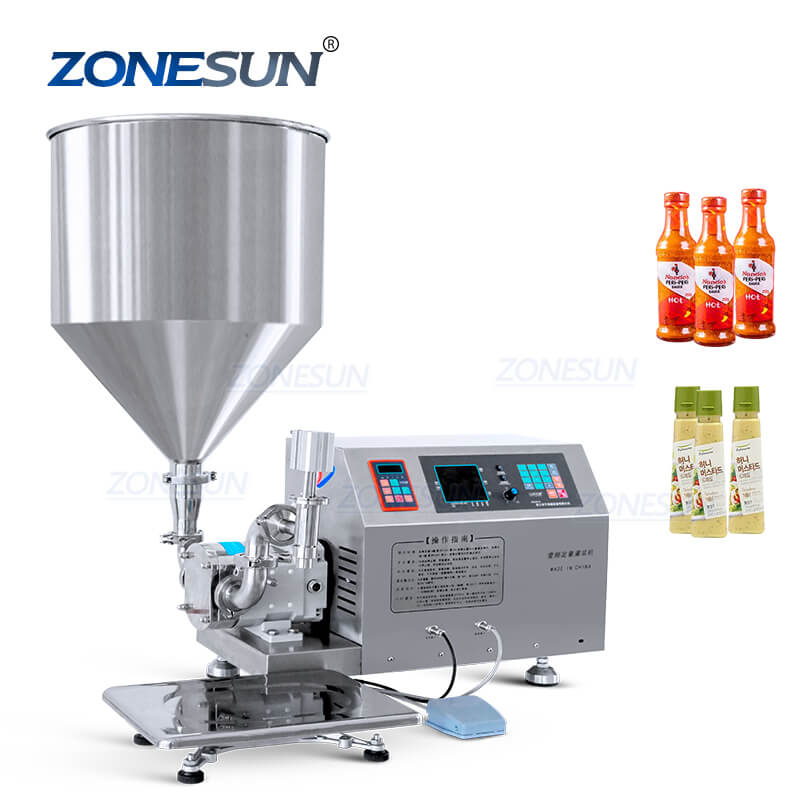

Semi-automatic Rotor Pump Paste Filling Machine
