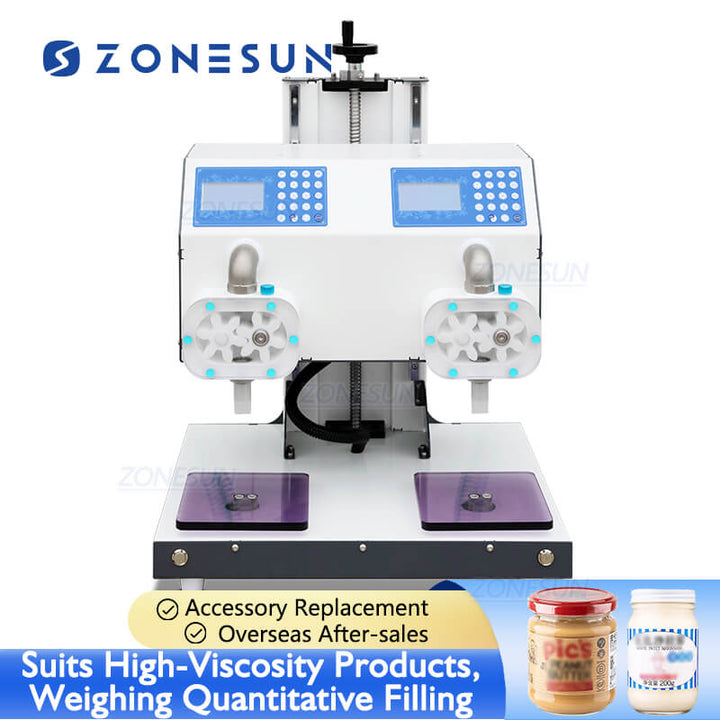

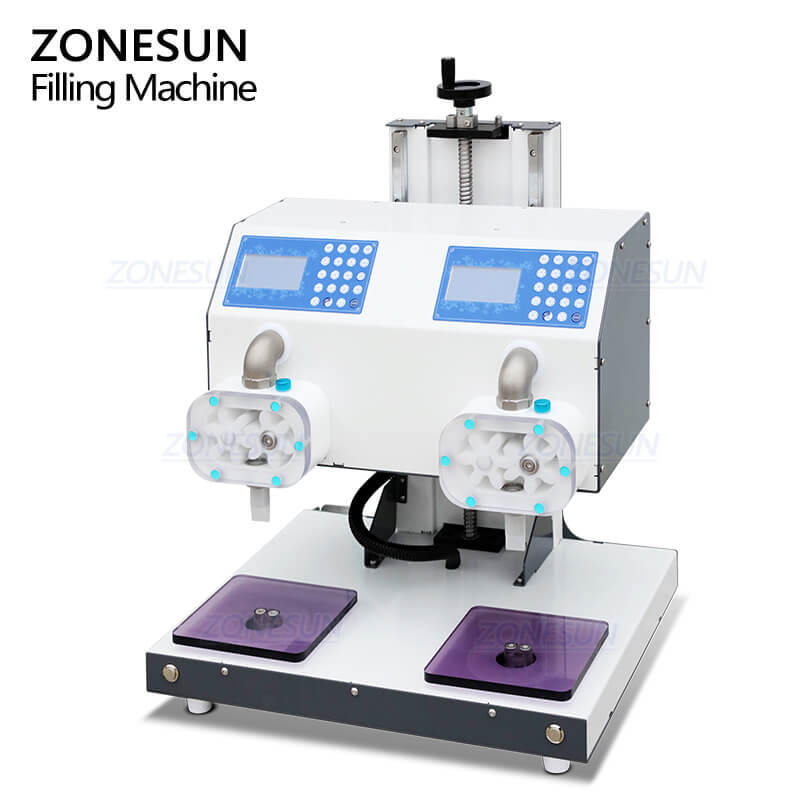

ZONESUN ZS-DTFP2 Semi-Automatic High Viscosity Gear Pump Paste Honey Weighing Filling Machine

The ZONESUN dual-head semi-automatic honey filling machine is designed for precise and efficient filling of liquid products with 34–44° Brix, such as honey, creams, or peanut butter. Equipped with a gear pump system and integrated weighing functionality, it ensures each container receives the exact target weight. With adjustable height, automatic de-skinning, and suction recovery capabilities, the ZONESUN honey filling machine provides high efficiency and minimal waste, making it an ideal solution for small to medium-scale production.

Key Features

• Designed for liquid products with 34–44° Brix (e.g., honey, creams, peanut butter)

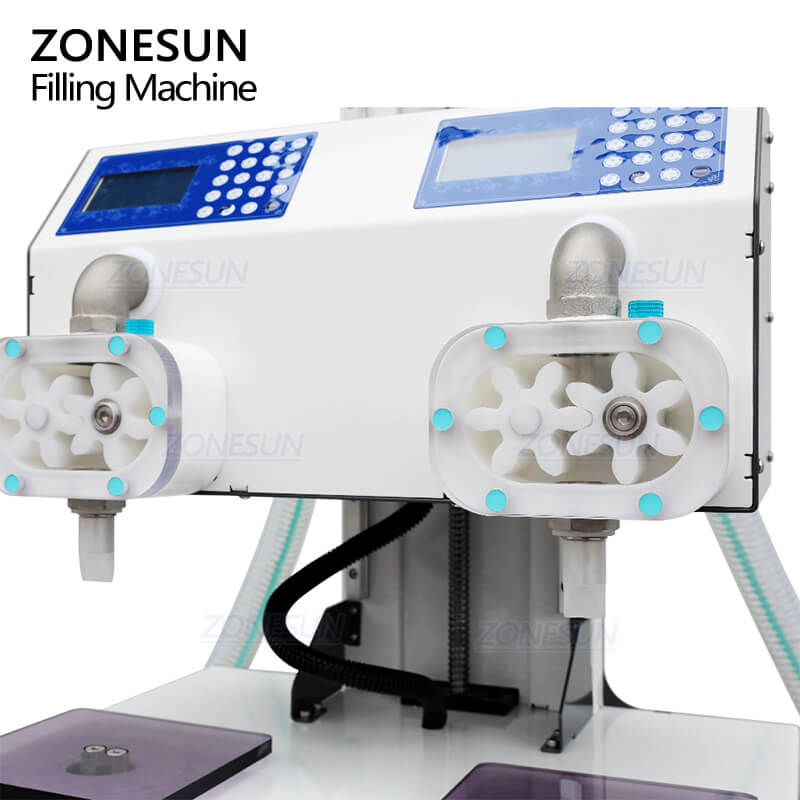

• Dual gear pumps for continuous flow and precise control

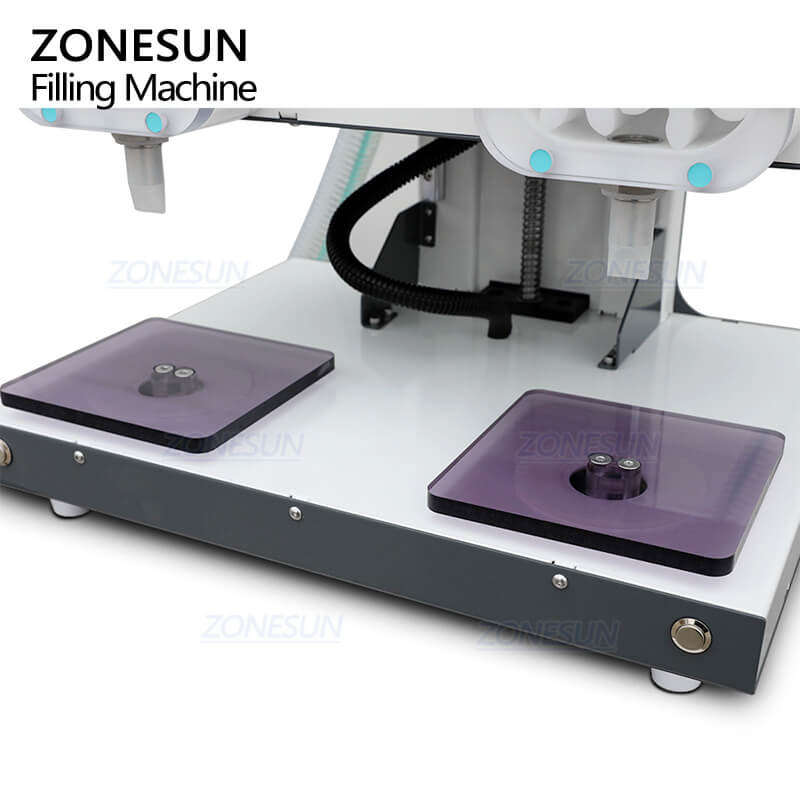

• Integrated weighing system to ensure each container reaches a specific weight (30 g–10 kg)
• Filling speed varies with viscosity and volume: 500 g → 1000 bottles/hour; 1000 g → 700 bottles/hour
• Automatic de-skinning function
• Suction/recovery function for leftover material in containers or pumps
• Compact body with dual-head design to improve efficiency

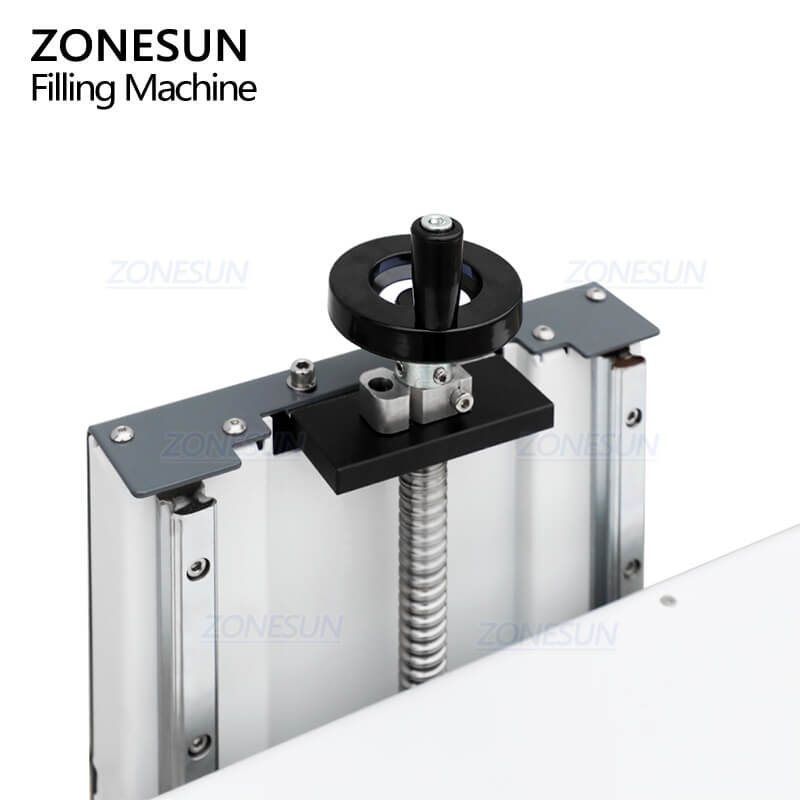

• Adjustable height to accommodate different container sizes

Honey Weighing Filling Machine Parameter

• Machine Model: ZS-DTFP2
• Voltage: AC 110V / AC 220V 50-60HZ
• Rated Power: ≤400W
• Filling Pump: Gear Pump
• Flow Rate: 20 L/min
• Filling Range: 30 g~500 g
• Applicable Bottle Height: 0-210 mm(Customizable for Bottles Up to 320 mm high)
• Applicable Viscosity: Non-crystalline, 34–43 Baumé
• Applicable Temperature Range: 15-70 ℃
• Working Capacity:  500g/bottles=1000pieces/hour 1000g/bottles=700pieces/hour
• Ambient Humidity: ≤70% RH
• Machine Size: 470*379*625 mm
• Packaging Size: 640*540*485 mm
• Packaging Weight: 35 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required.
