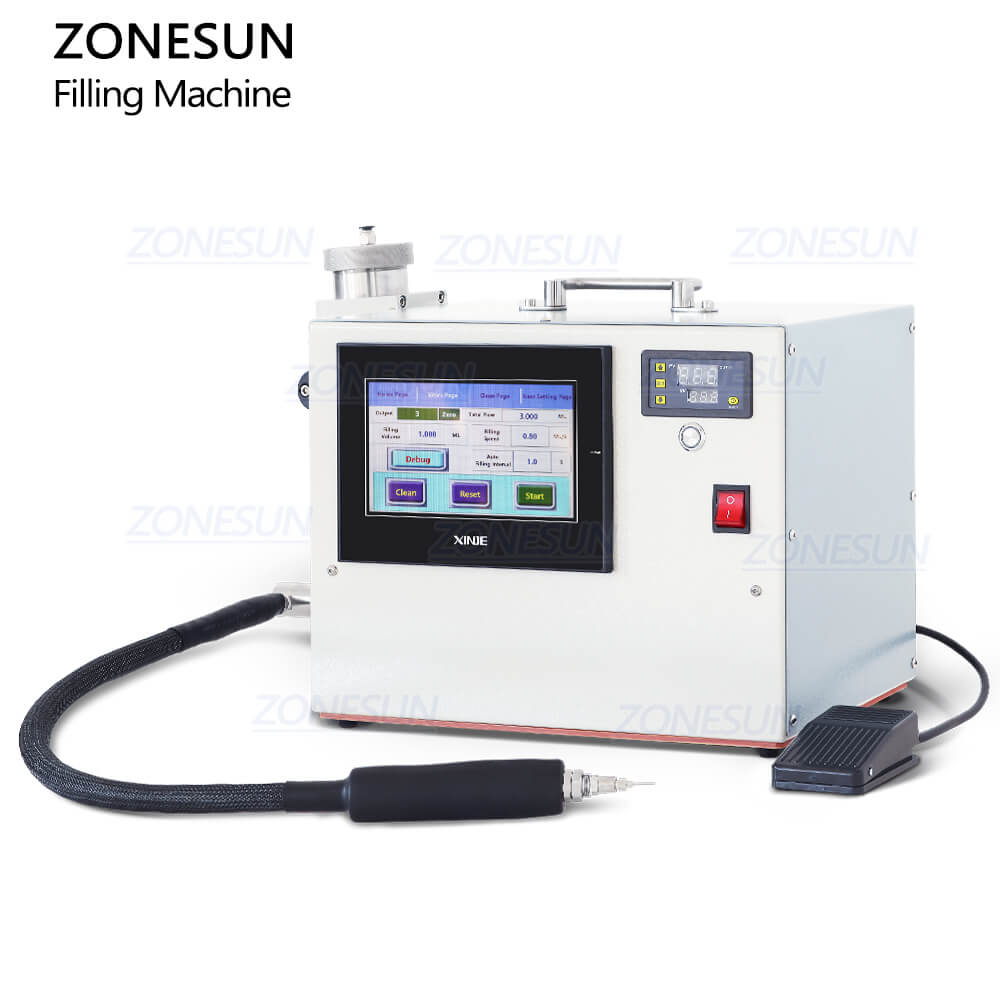

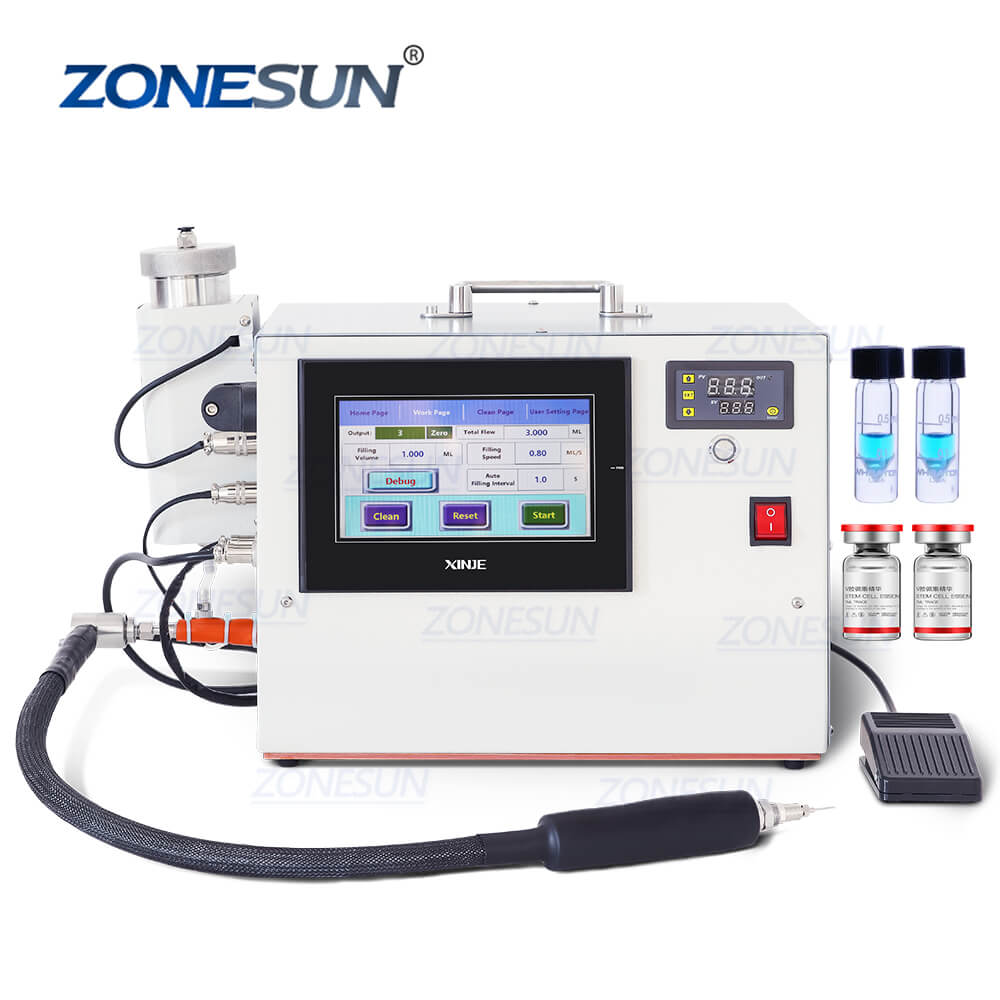

ZS-EL100R Semi-automatic High Filling Accuracy Syringe Pump Glass Vial Liquid Essential Oil Perfume Filling Machine

Voltage
Price
Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Save $-2,999 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This semi-automatic filling machine is equipped with syringe pump which has high accuracy, this machine is suitable for filling 0.2-2ml liquid into containers.Handheld type filling nozzle can ensure the liquid will not spray out, the operation is also more flexible.

Parameter

Machine Model:ZS-EL100R
Voltage:220V/110V 50-60Hz
Power:200W
Filling Principle:Negative Pressure
Filling Speed:About 10-20pcs/min
Filling Range:0.2-2ml
Filling Accuracy:±1%
Suitable Bottleneck:>2mm
Capacity of Storage Tank:300ml
Machine Size:About 240*380*300mm
Machine Weight:About 14kg

Small Glass Vial Filling Machine

Application of Small Glass Vial Filling Machine

Machine Component of Small Glass Vial Filling Machine

Navigation

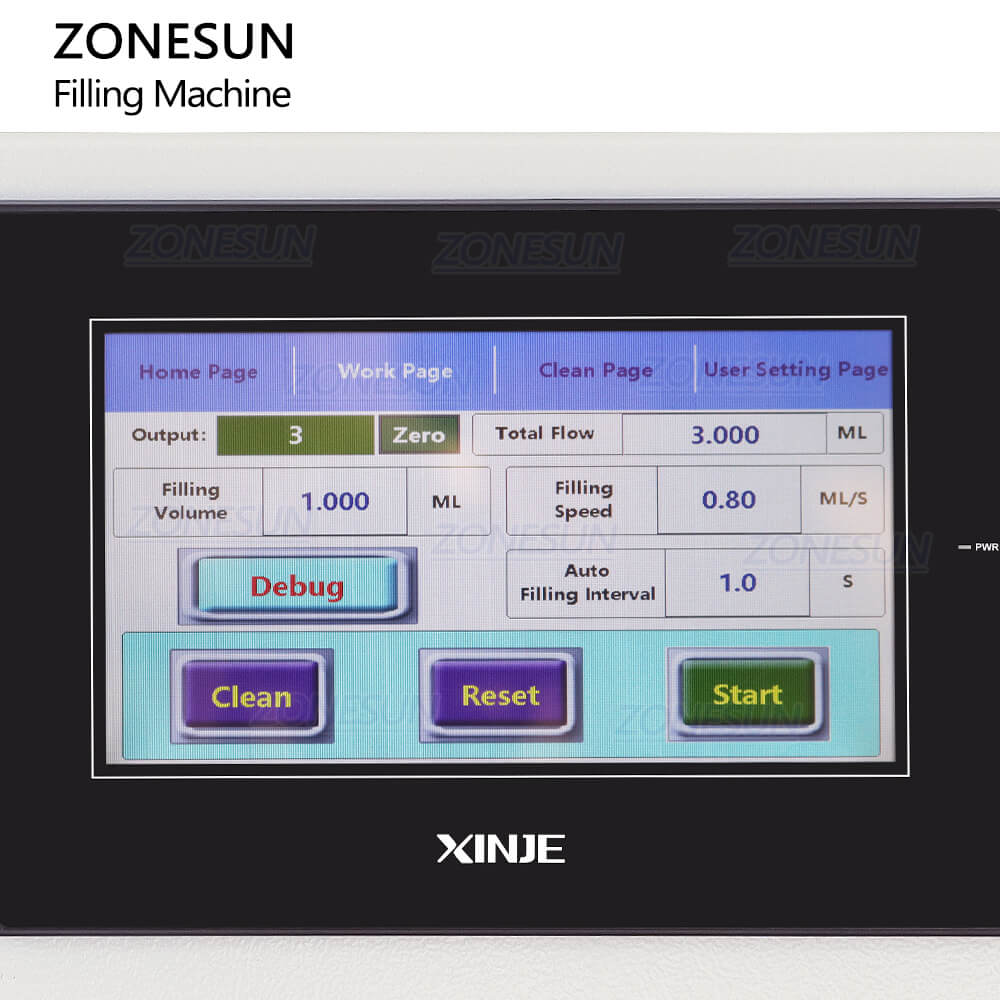

Control Panel of Small Glass Vial Filling Machine

With PLC control panel, it is easy to set or adjust working parameters, like filling range. The language of panel can be customized as your need.

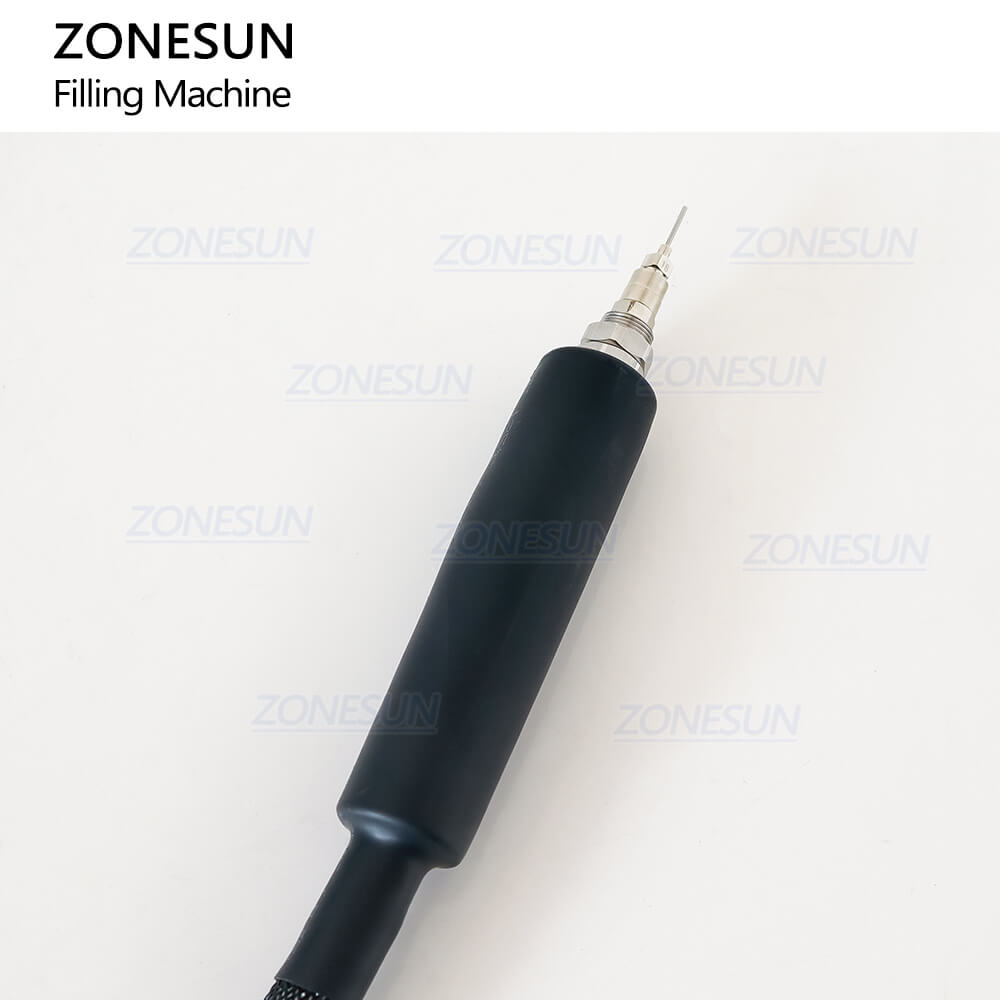

Filling Nozzle of Small Glass Vial Filling Machine

The portable filling nozzle makes it more convenient to fill liquid. Quantity of nozzles can be customized as production need.

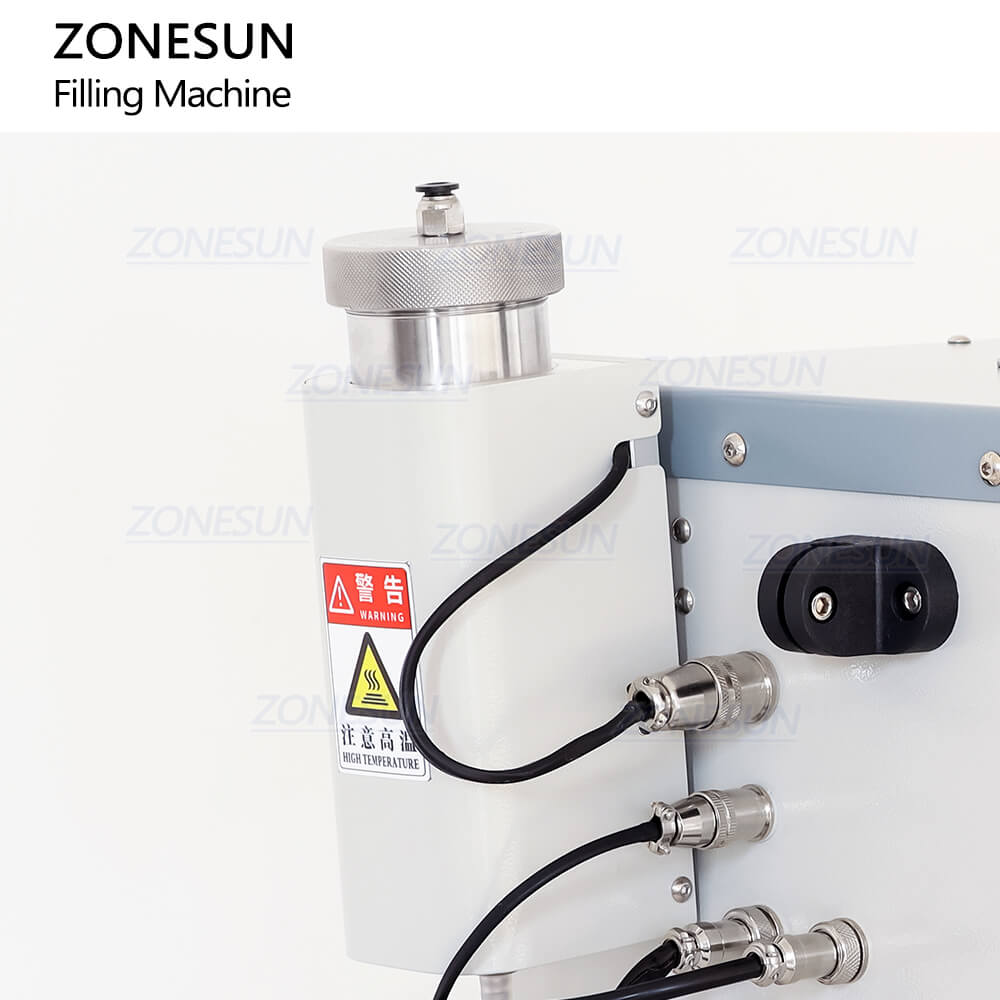

Material Tank of Small Glass Vial Filling Machine

The tank is designed for storing filling materials. It has heating function, ensuring smooth filling. The heating temperature is adjustable.

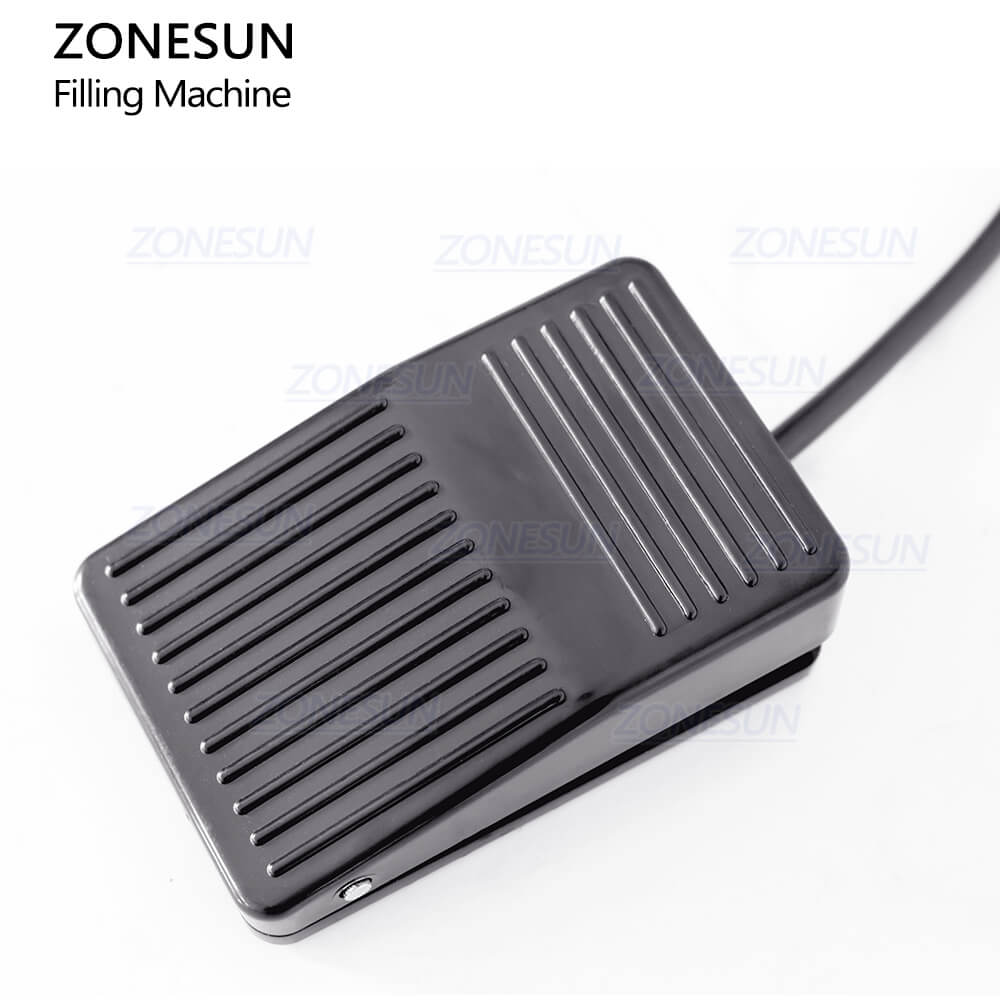

Pedal Switch of Small Glass Vial Filling Machine

This machine has automatic working mode and manual mode, which can be switched freely. In manual mode, you can press pedal switch to control machine. Easy to operate.

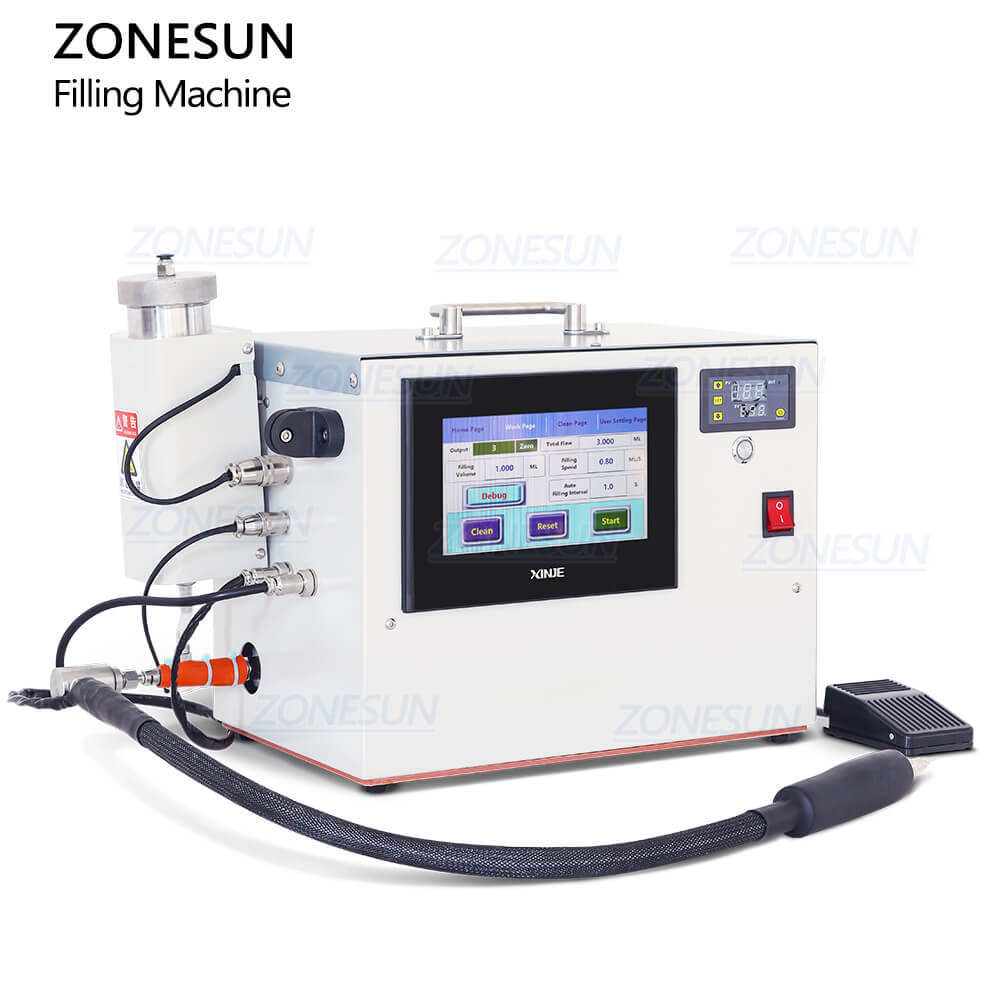

Semi-automatic Small Glass Vial Filling Machine
