ZS-GPGT1W Semi-automatic Hand Sanitizer Gear Pump Face Cream Lotion Paste Filling Weighing Machine

Size
Pump
Price
Regular price $522.00 USD
Regular price Sale price $522.00 USD
Save $-522 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video For Gear Pump Honey Filling Machine

This semi-automatic filling machine is equipped with gear pump,it is suitable for filling thick paste like face cream,peanut butter,honey,shampoo.But it is not good for filling liquid. This machine is widely used in food,daily chemical,cosmetics industries.

Parameter

  • Machine Model:ZS-GPGT1W
  • Voltage:220V(Can customize 110V)
  • Power:150W
  • Weighing Range:30g-8kg
  • Max Flow Rate:3.5kg/min
  • Working Temperature:0-50℃
  • Filling Error:<±5g
  • Applicable Bottle Height:150-350mm
  • Application:Suitable for fluid paste that’s without particles,
    not for liquid.
  • Machine Size:About 350*290*420mm
  • Package Size:About 440*390*310mm
  • Net Weight/Gross Weight:About 10.4kg/12kg

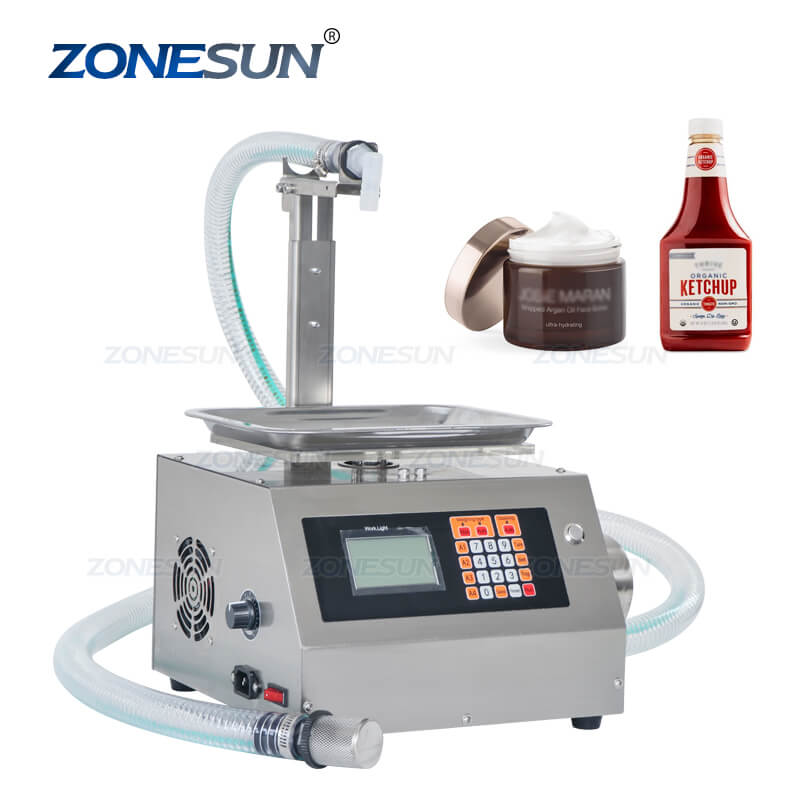

Semi-automatic Paste Filling Weighing Machine

Application of Semi-automatic Paste Filling Weighing MachineMachine Details of Semi-automatic Paste Filling Machine

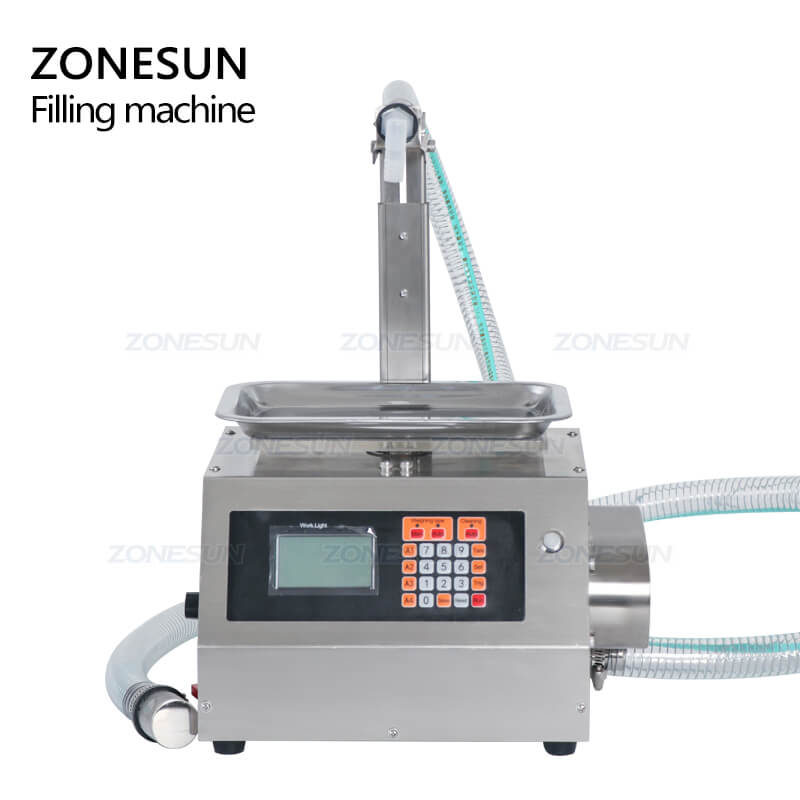

Operation Panel of Semi-automatic Cream Filling Machine

 Simple control panel, it’s easy to set filling weight directly and choose working mode as needed. It can store the used data, convenient for reusing it for next-time filling. Smart and efficient.

Weighing Device of Semi-automatic Honey Filling Machine

With weighing function, it will start or stop working when it receives signal from the electronic scale, reducing the filling error. The real weight of bottle will show on panel, visual and accurate.

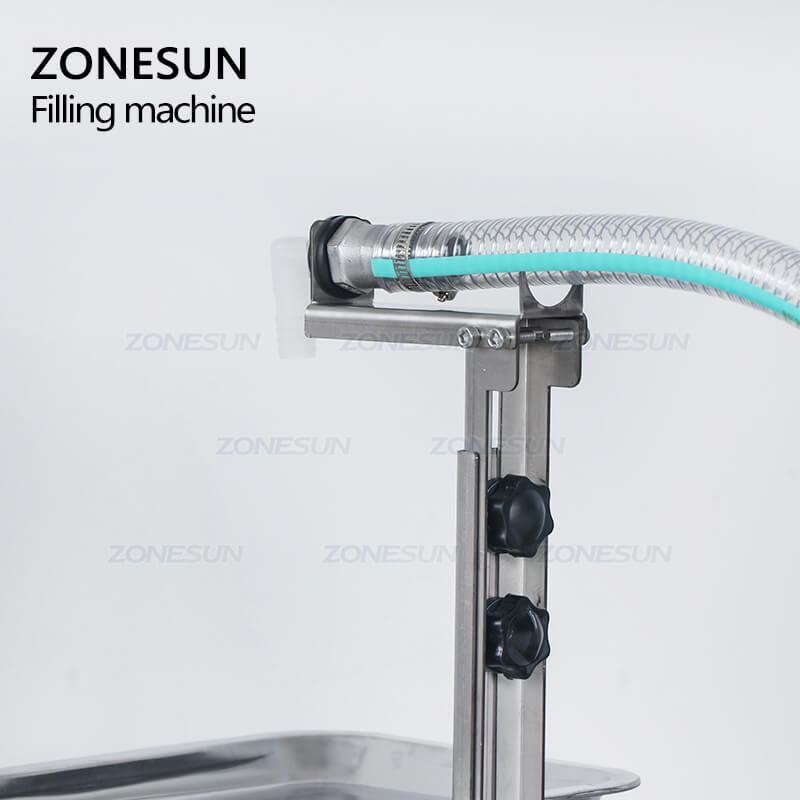

Filling Nozzle of Semi-automatic Ketchup Filling Machine

The nozzle is with anti-dripping function, which can fill paste accurately. The height of filling nozzle can be adjusted by rotating knobs, making it suitable for bottles of different heights.

Gear Pump of Semi-automatic Paste Filling Machine

With gear pump, it can fill paste quickly, improving working efficiency. The machine is not suitable for filling liquid like water, milk, or perfume.

Filter of Semi-automatic Ketchup Filling Machine

The high-quality filter can prevent that the impurities are pumped and make the pump clogged. It can ensure the working efficiency of pump and improve production quality.

Semi-automatic Face Cream Filling Machine
Semi-automatic Lotion Filling Machine
Semi-automatic Gear Pump Paste Filling Machine
