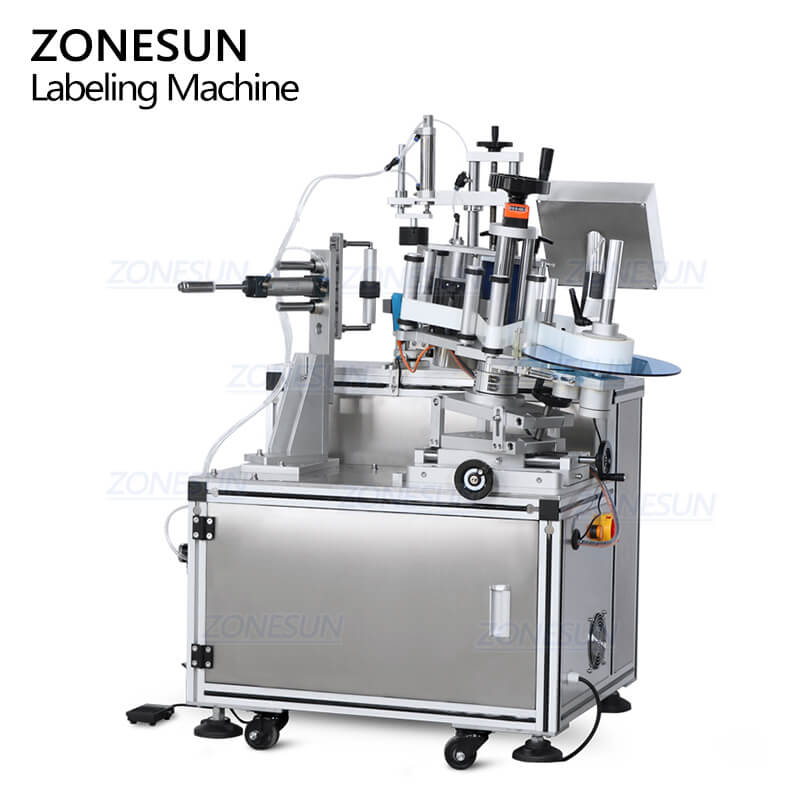

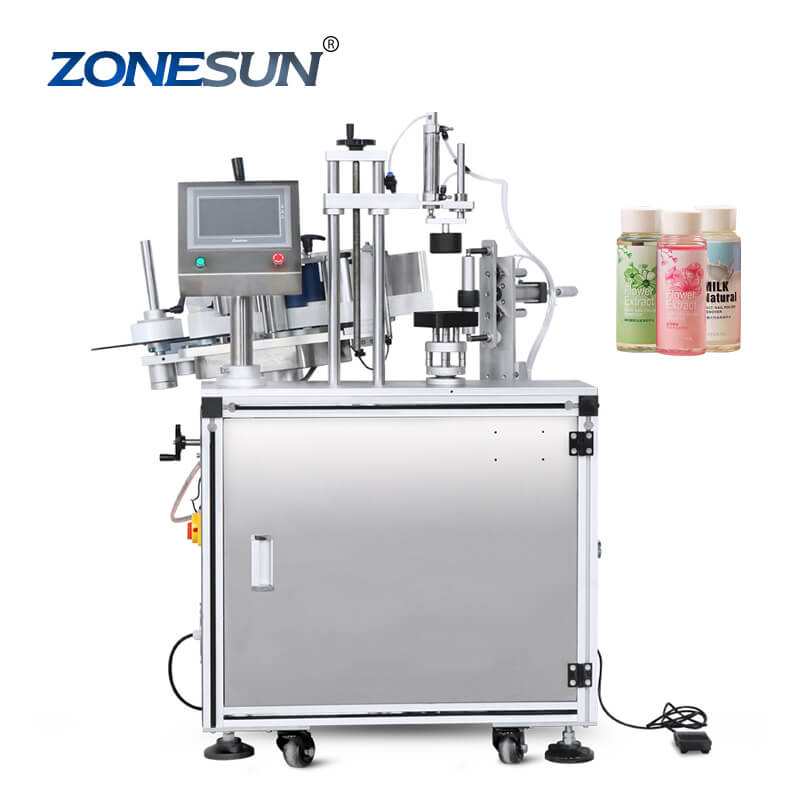

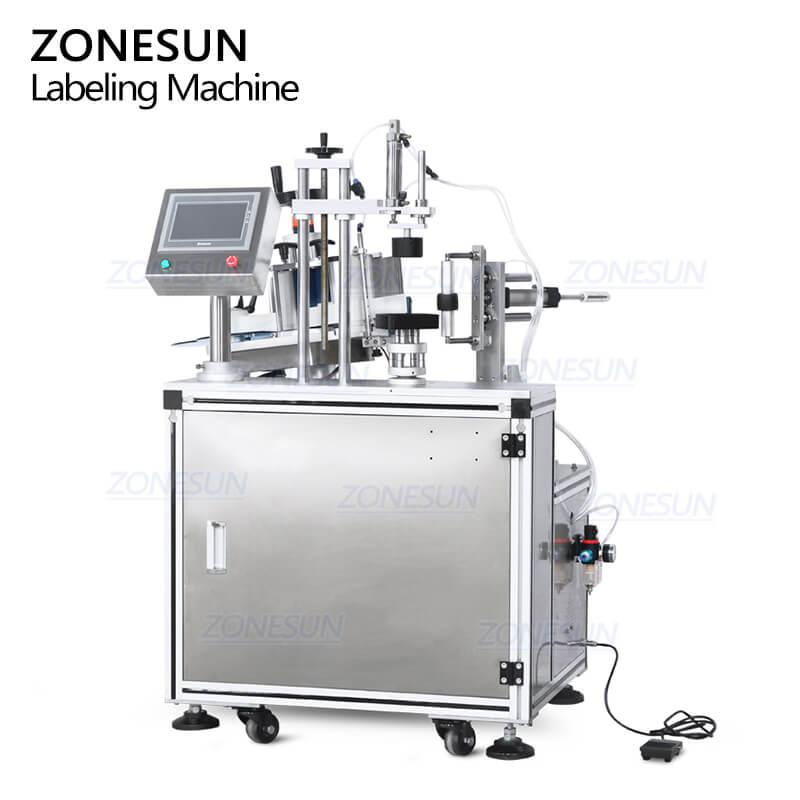

This semi-automatic labeling machine is used for wrap around labeling on regular bottles(includes hexagon bottles,round bottle,square bottles).It is widely used in food,daily chemical and cosmetics industries.
Parameter
Machine Model:ZS-TB805B
Voltage:220V/50HZ
Power:2000W
Labeling Speed:15-30pcs/min(depending on label and product size)
Suitable Label Size:15mm-200mm(L)*15mm-130mm(W)
Suitable Product Size:Can be customized
Label Roll Inside Diameter:φ76mm
Label Roll Outside Diameter:≤300mm
Labeling Accuracy:±1mm
Package Size:About 1300*1050*1540mm
Package Weight:About 235KG

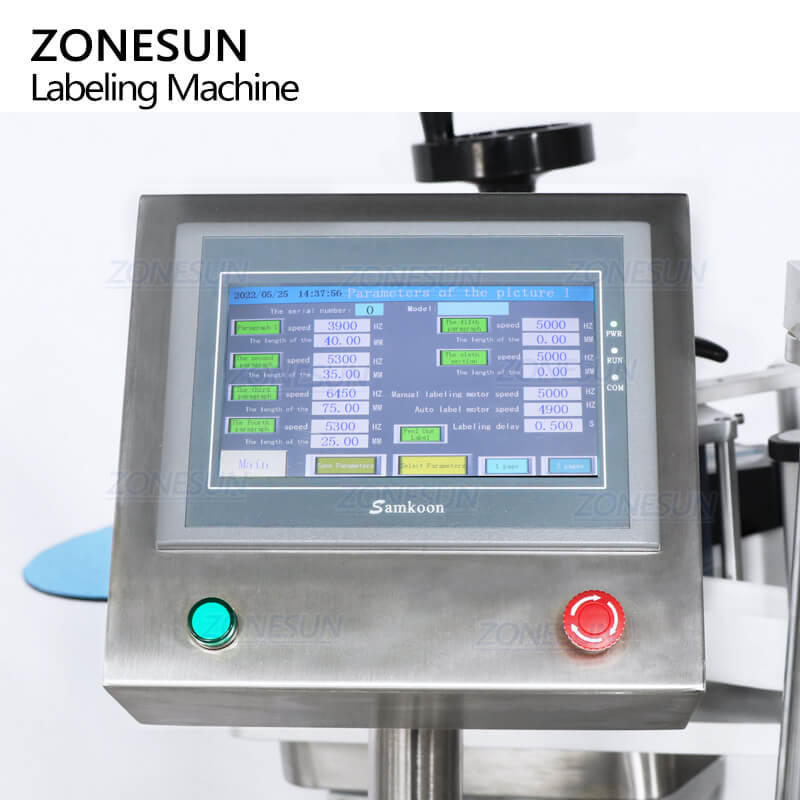

With PLC operation panel, it is easy to set or adjust working parameters. The language of panel can be customized according to production need.

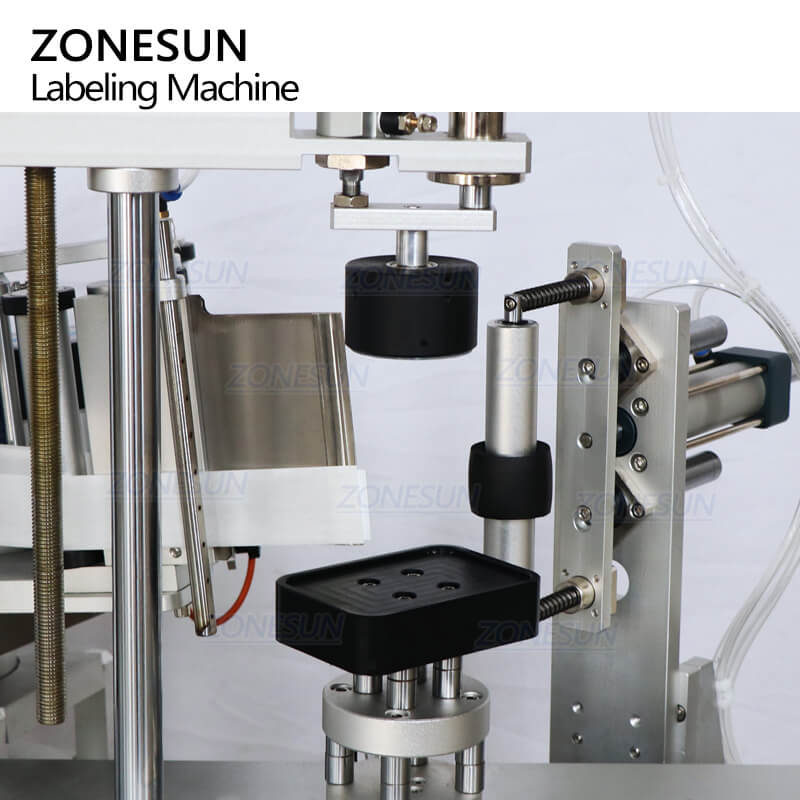

Scrolling to label stickers, it can create good labeling effect. The working height can be adjusted as needed. Size and shape of bottle holder can be customized according to your products.

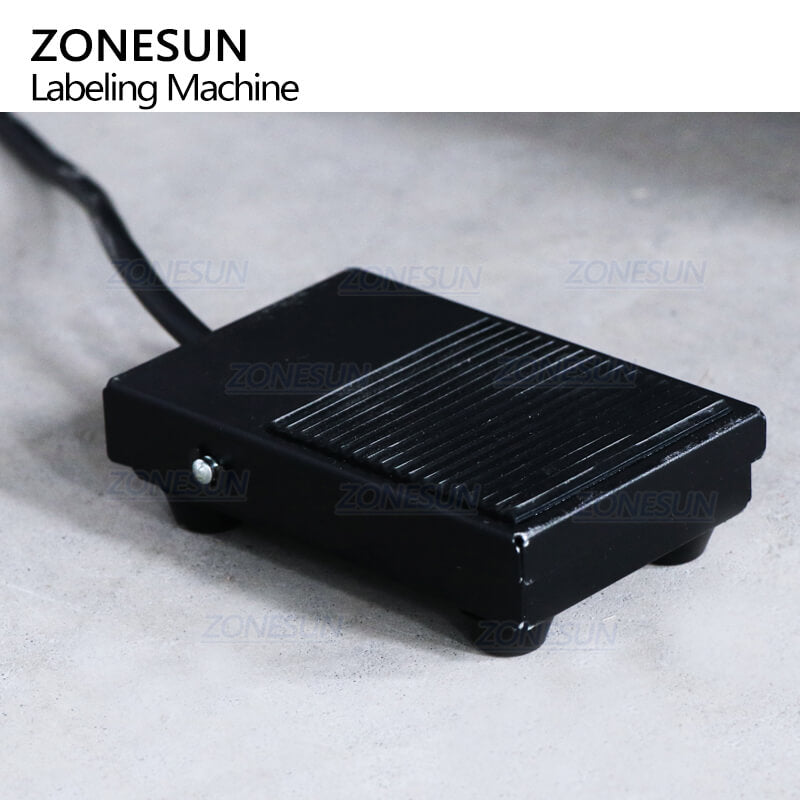

This machine has two working modes: Automatic working mode and manual mode, which can be switched as needed. In manual mode, you can press pedal switch to control machine, easy and convenient.

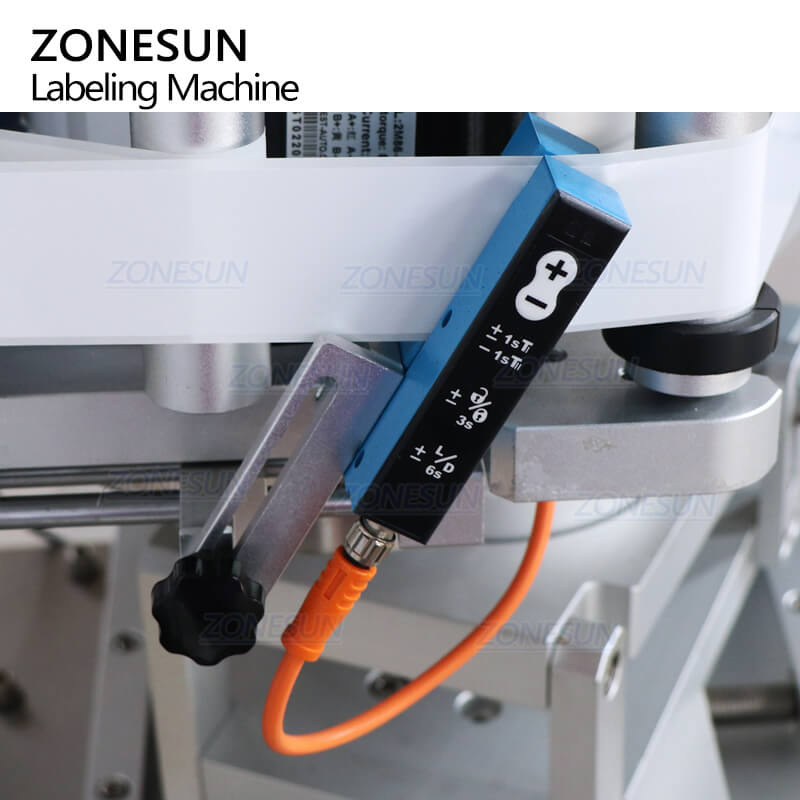

With high-quality label sensor, it can detect labels and control machine to output labels accurately, improving efficiency. The sensitivity of sensor can be adjusted as needed
The labeling heads can be adjusted in different directions,this can ensures the self-adhesive stickers can be labeled better,improves labeling accuracy.
