Name: ZS-TB16P Semi-automatic Electric Round Bottle Self Adhesive Sticker Labeling Machine For Wine Shampoo Glass Bottle Label Applicator
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00300500019-ZS
Price: 229.0 USD
Availability: InStock

Semi-automatic Labeling Machine For Wine Bottle

Electric Box of Wine Bottle Labeling Machine

Pressing Bar of Wine Bottle Labeling Machine

Labeling Structure of Wine Bottle Labeling Machine

Voltage

110V

220V

Label Sticker Type

Normal Label

Transparent Label

Price Save $30 USD

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan）

[{"id":43489083588849,"title":"110V \/ Normal Label","option1":"110V","option2":"Normal Label","option3":null,"sku":"00300500019-ZS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-TB16P Semi-automatic Electric Round Bottle Self Adhesive Sticker Labeling Machine For Wine Shampoo Glass Bottle Label Applicator - 110V \/ Normal Label","public_title":"110V \/ Normal Label","options":["110V","Normal Label"],"price":22900,"weight":16000,"compare_at_price":25900,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43517362995441,"title":"110V \/ Transparent Label","option1":"110V","option2":"Transparent Label","option3":null,"sku":"00300500021-ZS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-TB16P Semi-automatic Electric Round Bottle Self Adhesive Sticker Labeling Machine For Wine Shampoo Glass Bottle Label Applicator - 110V \/ Transparent Label","public_title":"110V \/ Transparent Label","options":["110V","Transparent Label"],"price":45900,"weight":16000,"compare_at_price":48900,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43489083621617,"title":"220V \/ Normal Label","option1":"220V","option2":"Normal Label","option3":null,"sku":"00300500018-ZS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-TB16P Semi-automatic Electric Round Bottle Self Adhesive Sticker Labeling Machine For Wine Shampoo Glass Bottle Label Applicator - 220V \/ Normal Label","public_title":"220V \/ Normal Label","options":["220V","Normal Label"],"price":22900,"weight":16000,"compare_at_price":25900,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43517363028209,"title":"220V \/ Transparent Label","option1":"220V","option2":"Transparent Label","option3":null,"sku":"00300500020-ZS","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-TB16P Semi-automatic Electric Round Bottle Self Adhesive Sticker Labeling Machine For Wine Shampoo Glass Bottle Label Applicator - 220V \/ Transparent Label","public_title":"220V \/ Transparent Label","options":["220V","Transparent Label"],"price":45900,"weight":16000,"compare_at_price":48900,"inventory_quantity":666,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Designed for labeling stickers on round bottles,this machine is controlled by one-button,it is no need to rotate the handle all the time,helps you save working labor.This machine can be used for taller bottles.It is widely used in food,daily chemicals and cosmetics industries.

Parameter

Machine Model:ZS-TB16P
Voltage:220V/110V 50-60Hz
Motor Power:36W
Label Width:≤160mm
Suitable Bottle Diameter:20-100mm
Suitable Bottle Height:≤200mm
Inner Diameter of Label Roll:75mm
Outer Diameter of Label Roll:≤145mm
Machine Size:About 490*290*275mm
Machine Weight:About 8.7kg
Package Size:About 570*370*370mm
Package Weight:About 10kg

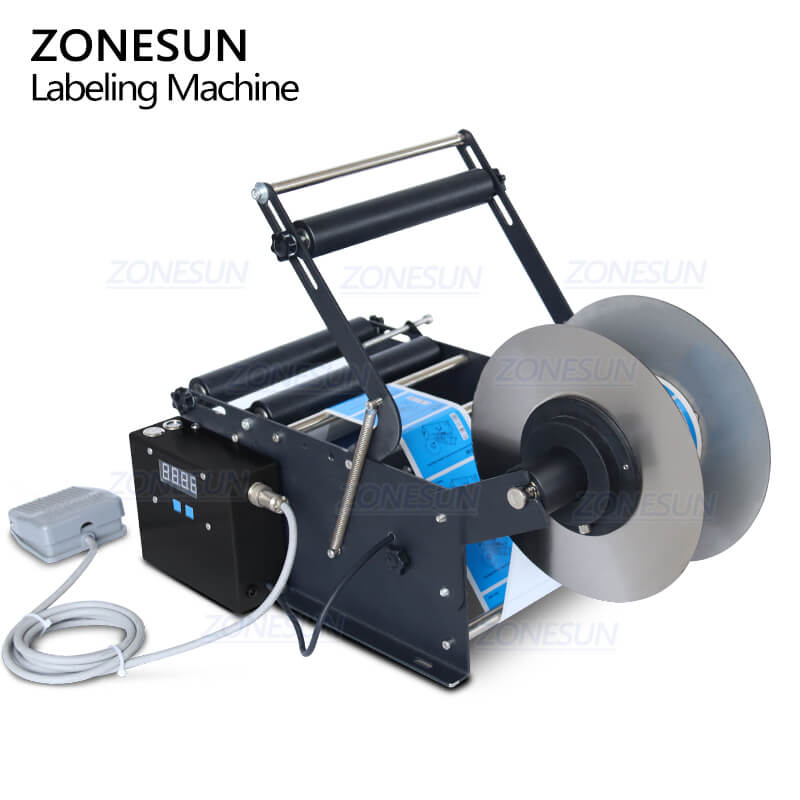

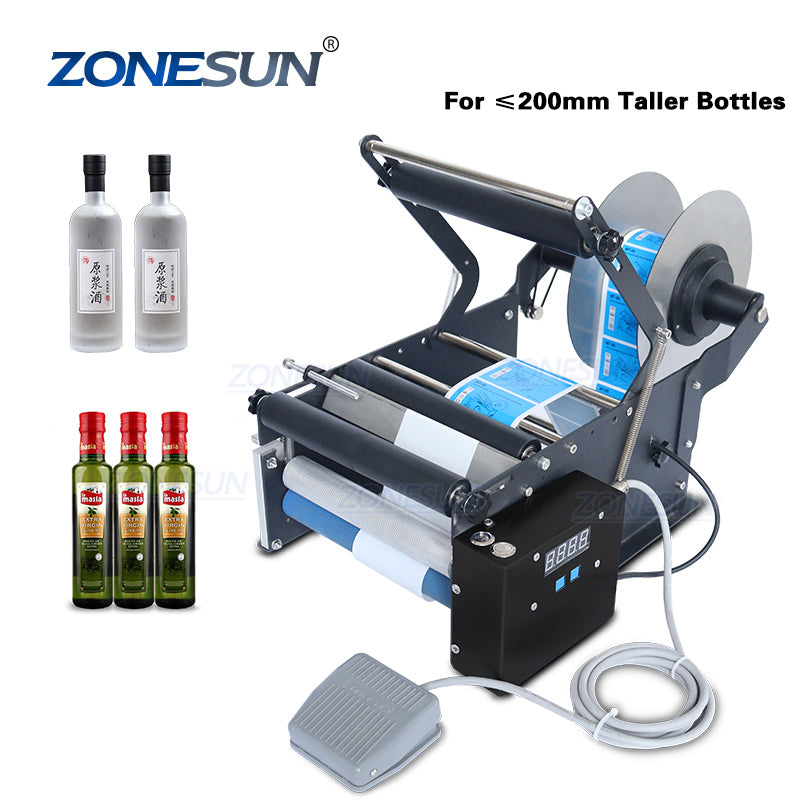

Semi-automatic Labeling Machine For Taller Bottle

Application of Semi-automatic Labeling Machine For Taller Bottle

Parameter of Semi-automatic Labeling Machine For Taller Bottle

Semi-automatic Labeling Machine For Taller Bottle

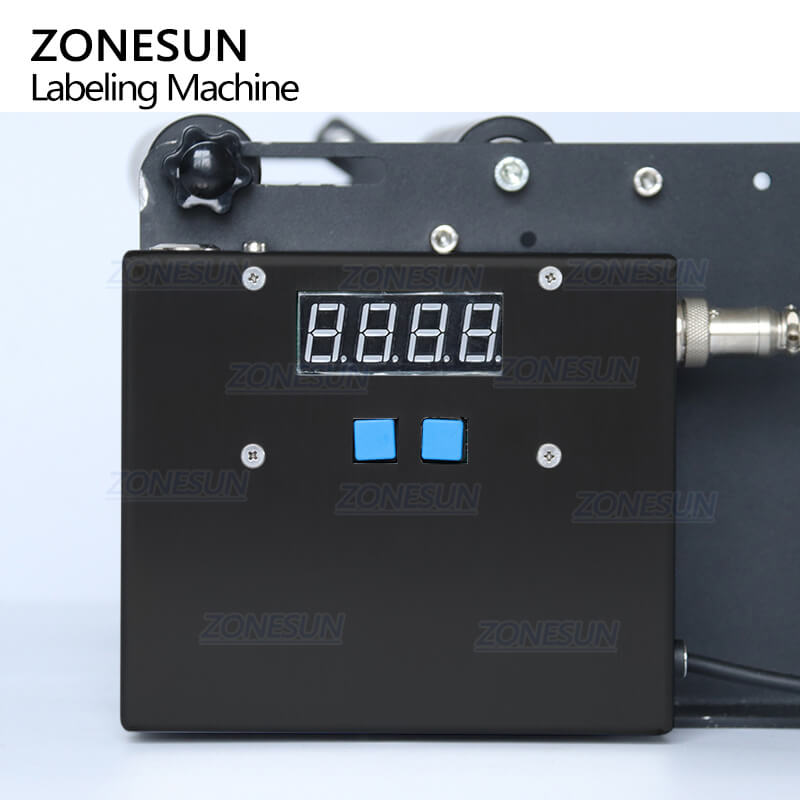

Electric Box of Semi-automatic Labeling Machine For Taller Bottle

Equipped with high quality control box,the label outputting speed can be controlled as production need.Visual working parameter makes it more convenient to test the machine.

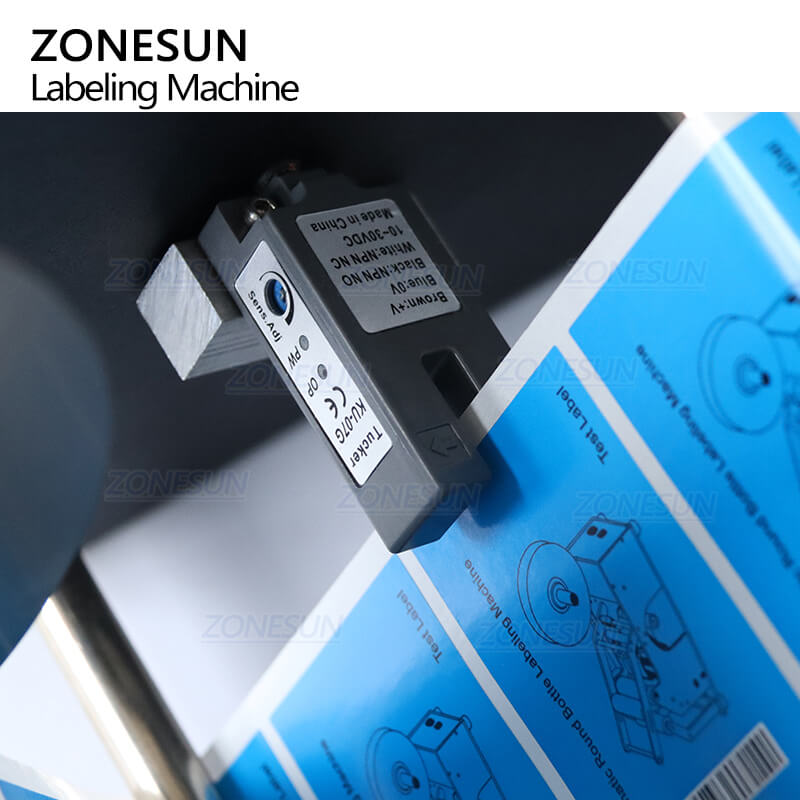

Label Sensor of Semi-automatic Labeling Machine For Taller Bottle

Designed with high quality label sensor,it can detect label stickers based on light transmittance and control the machine to stop labeling once it finish labeling a completed stickers .

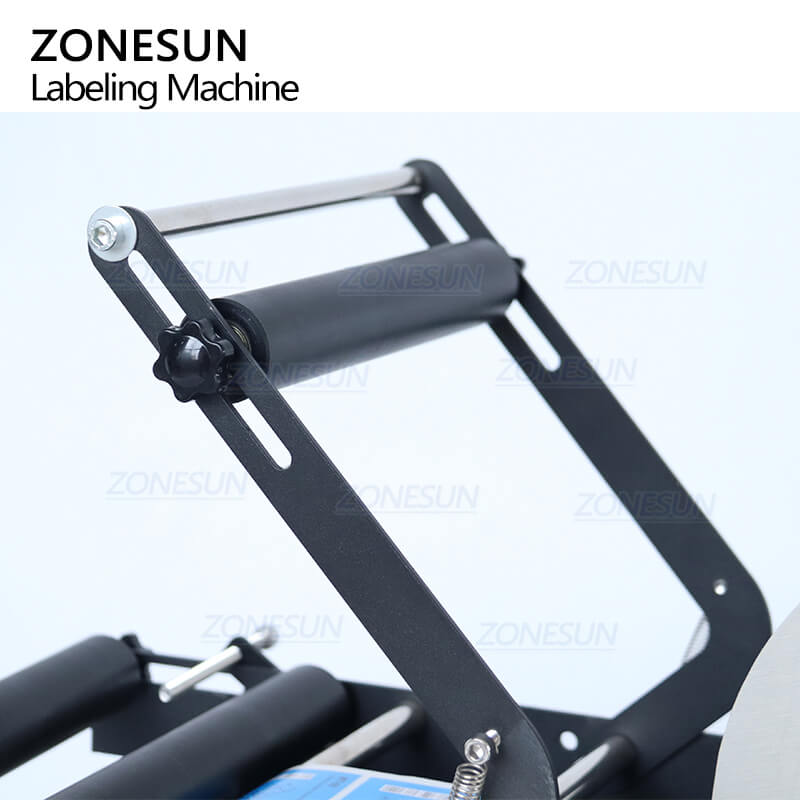

Pressing Bar of Semi-automatic Labeling Machine For Taller Bottle

High quality bottle pressing bar can help to compress bottles and prevent the bottle from being crooked during labeling,ensures there is no bubble under stickers

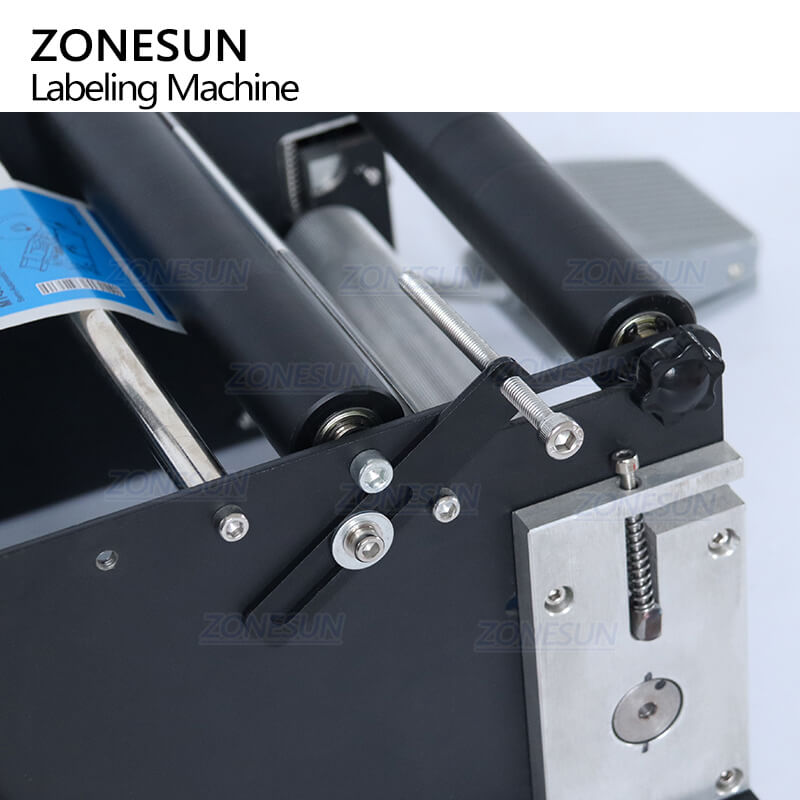

Labeling Structure of Semi-automatic Labeling Machine For Taller Bottle

The distance of two bottle holding bars can be adjusted according to bottle diameter.And we can customized the machine with longer holding bar for taller bottles.
