Name: ZS-XG201 Semi-automatic Desktop Vacuum Metal Twist-off Caps Bottle Lid Capping Machine For Honey Jar Fruit Jam Glass Bottles
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00200800067-0259
Price: 2449.0 USD
Availability: InStock

Control Panle of Semi-automatic Jam Jar Capping Machine

Bottle Holding Mold of Semi-automatic Jam Jar Capping Machine

Rotary Knob of Semi-automatic Jam Jar Capping Machine

Air Cylinder of Semi-automatic Jam Jar Capping Machine

Semi-automatic Jam Vacuum Capping Machine

Size

220V

110V

Price

One Year Warranty

User Manual

One-to-one Video Chat Support

Install & Debug Video

Custom Package Solution

Local Service Location （Romania /Serbia /Kazakhstan/Mexico）

[{"id":31961568379015,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"00200800067-0259","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-XG201 Semi-automatic Desktop Vacuum Metal Twist-off Caps Bottle Lid Capping Machine For Honey Jar Fruit Jam Glass Bottles - 220V","public_title":"220V","options":["220V"],"price":244900,"weight":93000,"compare_at_price":null,"inventory_quantity":999,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":31961648300167,"title":"110V","option1":"110V","option2":null,"option3":null,"sku":"00200800068-0259","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ZS-XG201 Semi-automatic Desktop Vacuum Metal Twist-off Caps Bottle Lid Capping Machine For Honey Jar Fruit Jam Glass Bottles - 110V","public_title":"110V","options":["110V"],"price":244900,"weight":93000,"compare_at_price":null,"inventory_quantity":999,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

This semi-automatic capping machine is designed for vacuum capping twist-off metal caps,and it is normally used for food hygiene and product life to guarantee tight caps and avoid health and safety issues with leaking products.

Parameter

Machine model:ZS-XG201
Machine voltage:110/220V 50-60HZ
Machine power:1000W
Working speed:About 600-720BPH
Air pumping rate:20m³/min
Suitable bottle height:About 55-190mm
Suitable bottle diameter:About 40-140mm
Machine size:About 560*510*730mm
Machine weight:About 55kg
Package size:About 720*590*850mm
Package weight:About 93kg

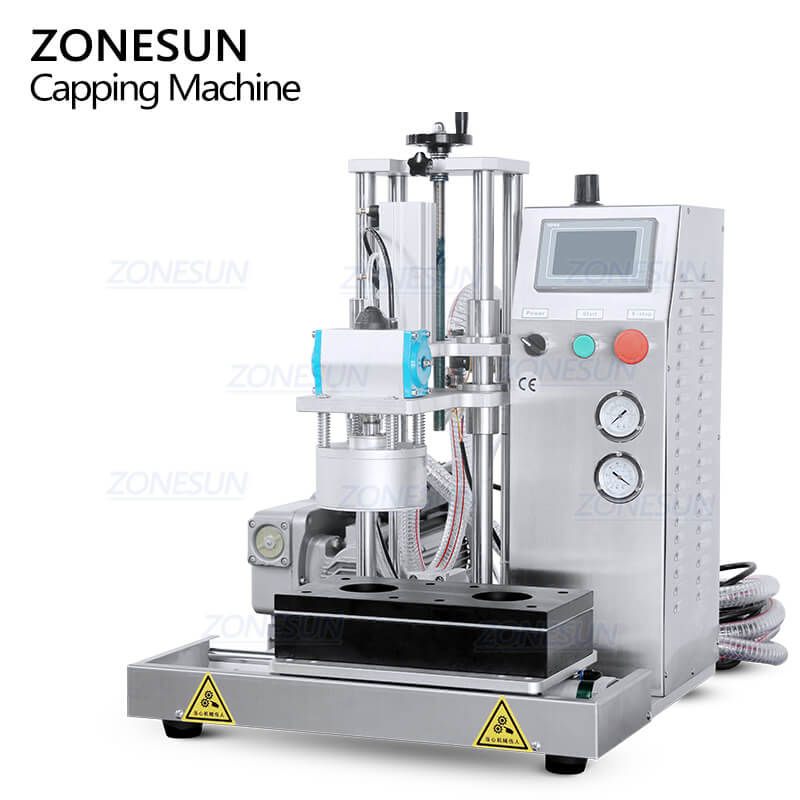

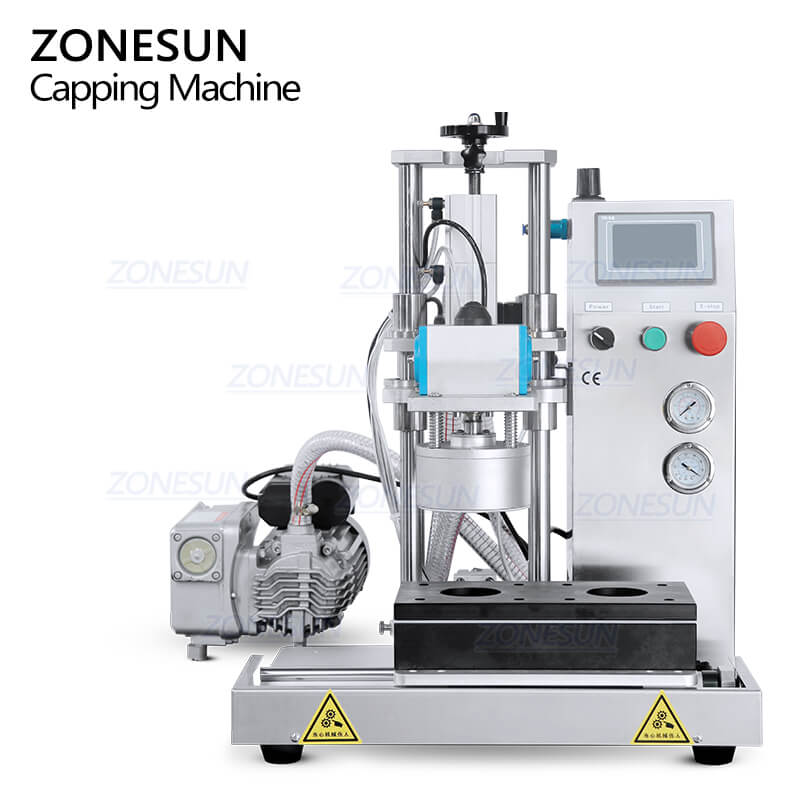

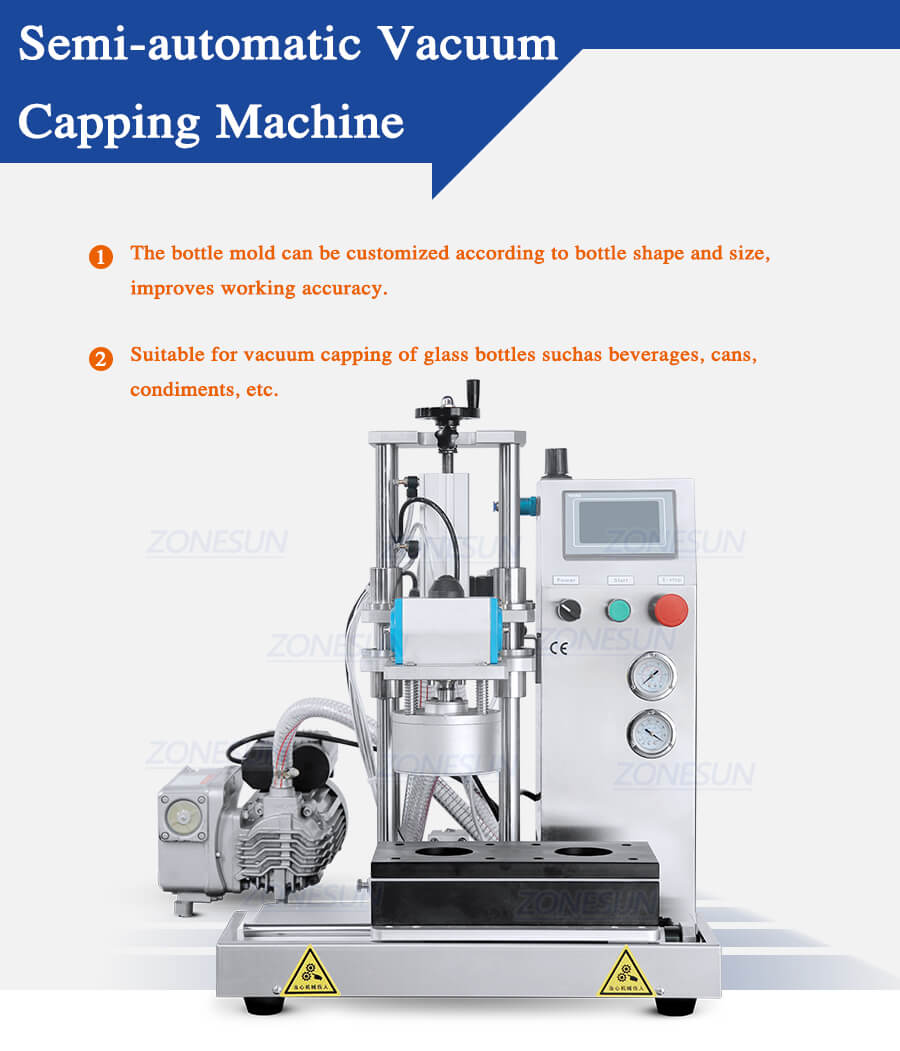

Semi-automatic Jar Vacuum Capping Machine

Application of Semi-automatic Jar Vacuum Capping Machine

Machine Details of Semi-automatic Jar Vacuum Capping Machine

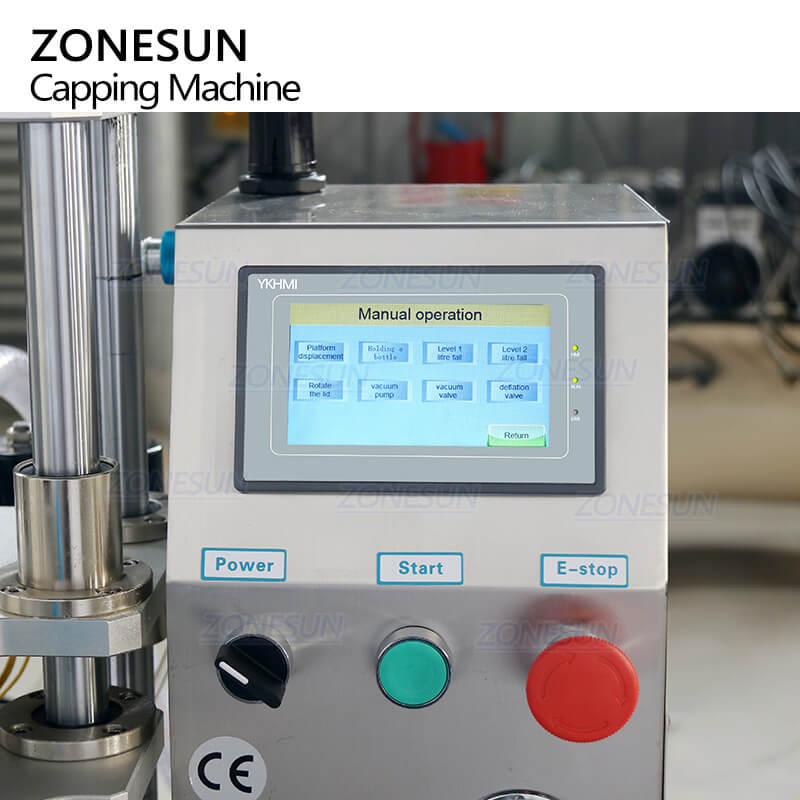

Control Panel of Semi-automatic Jar Vacuum Capping Machine

This machine is equipped withdigital control panel,it makesworking parameter visual andthis is more convenient to watch the working stauts in realtime,reduce production error.

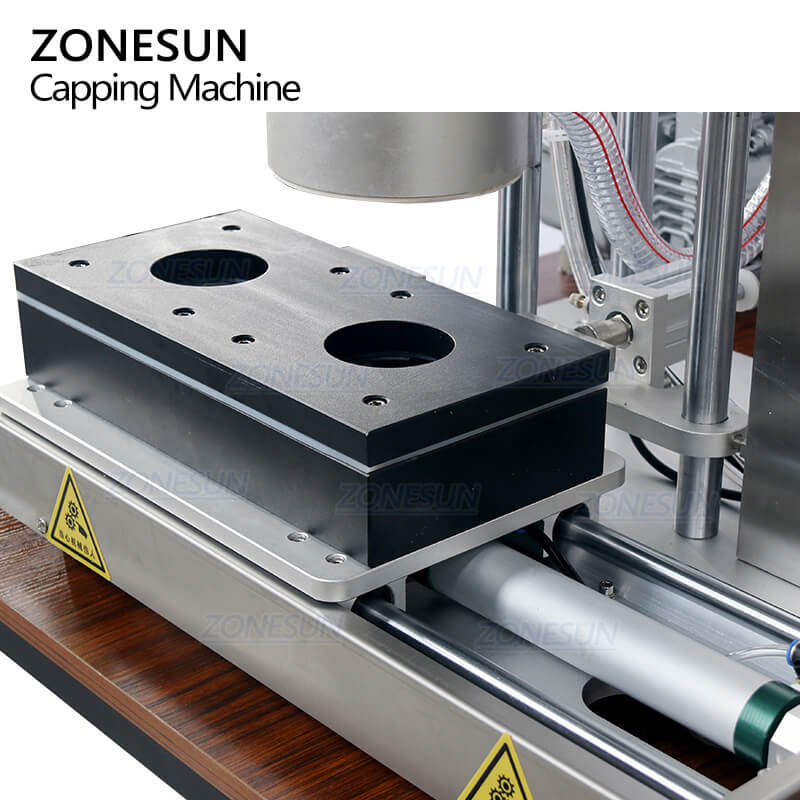

Bottle Holding Mold of Semi-automatic Jar Vacuum Capping Machine

The bottle mold can be customized according to bottle size and shape,this can ensure that the machinewill work perfectly,the slide canmake the machine work moresmoothly,improves capping effect.

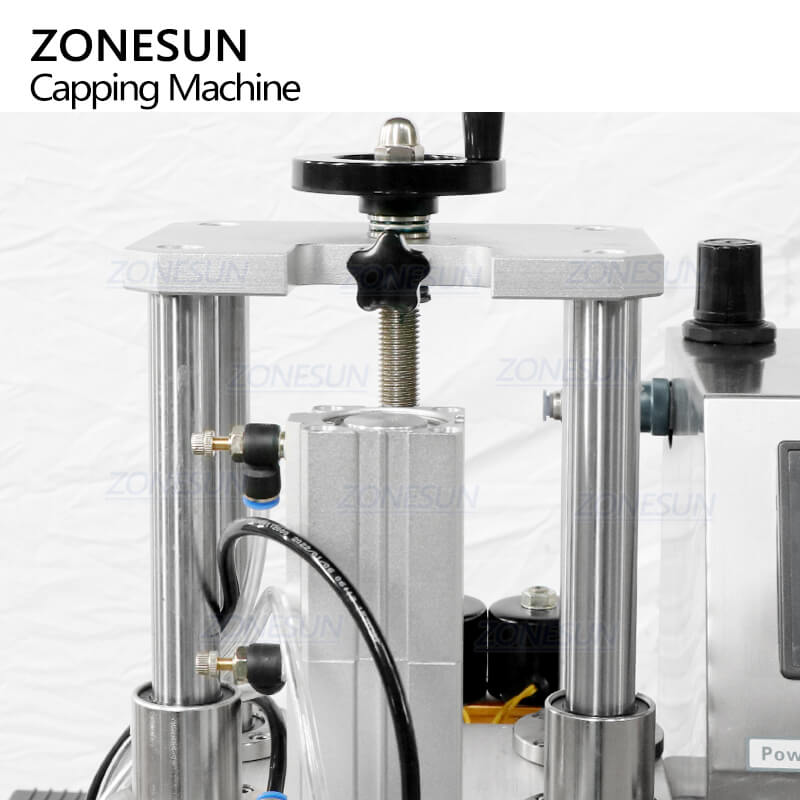

Rotary Knob of Semi-automatic Jar Vacuum Capping Machine

The working height of the machinecan be adjusted according to bottleheight.Ilt is also equipped with largeair cylinder,this is more powerfulwhen capping bottles.

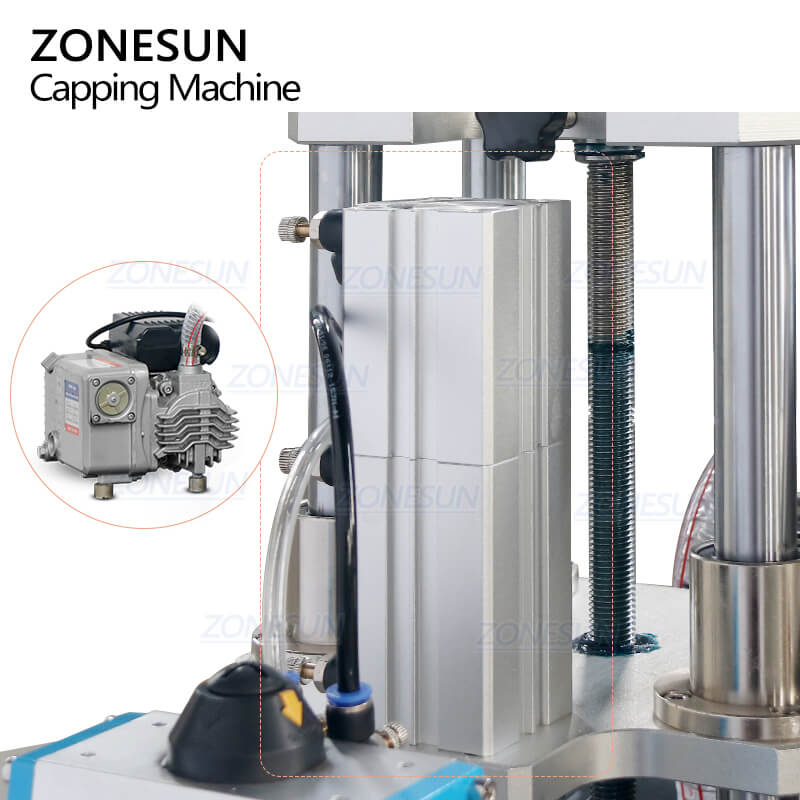

Air Cylinder of Semi-automatic Jar Vacuum Capping Machine

Equipped with large air cylinderand vacuum pump,these canensure the machine work stablyand improve capping effect.

Semi-automatic Jar Vacuum Capping Machine

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
