ZONESUN ZS-MCS4 Semi-Automatic Cosmetic Cream Filling Machine for Swirl Body Lotion & Capsule Gel Cream
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

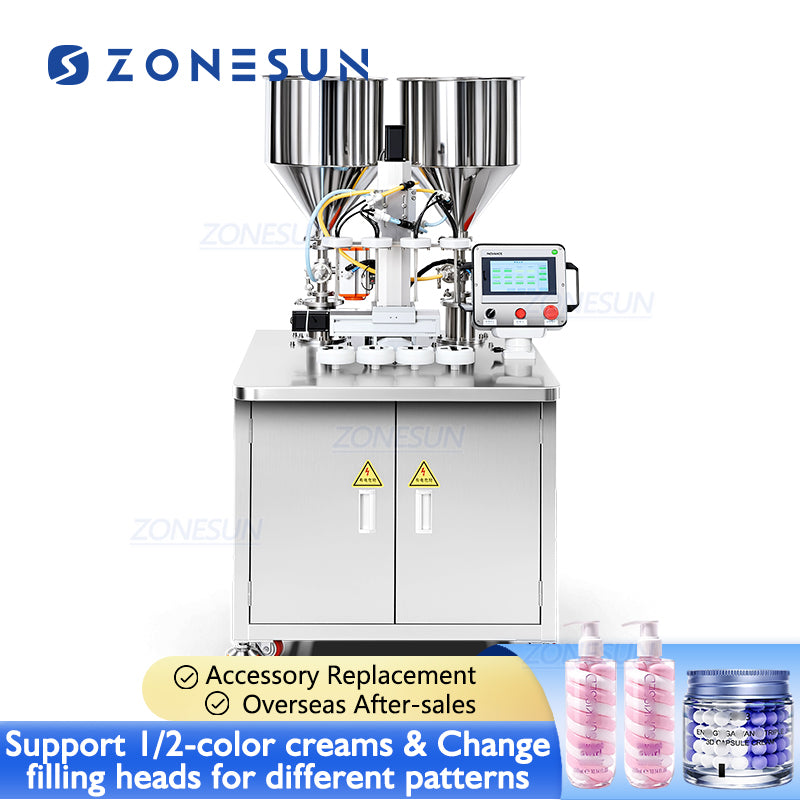

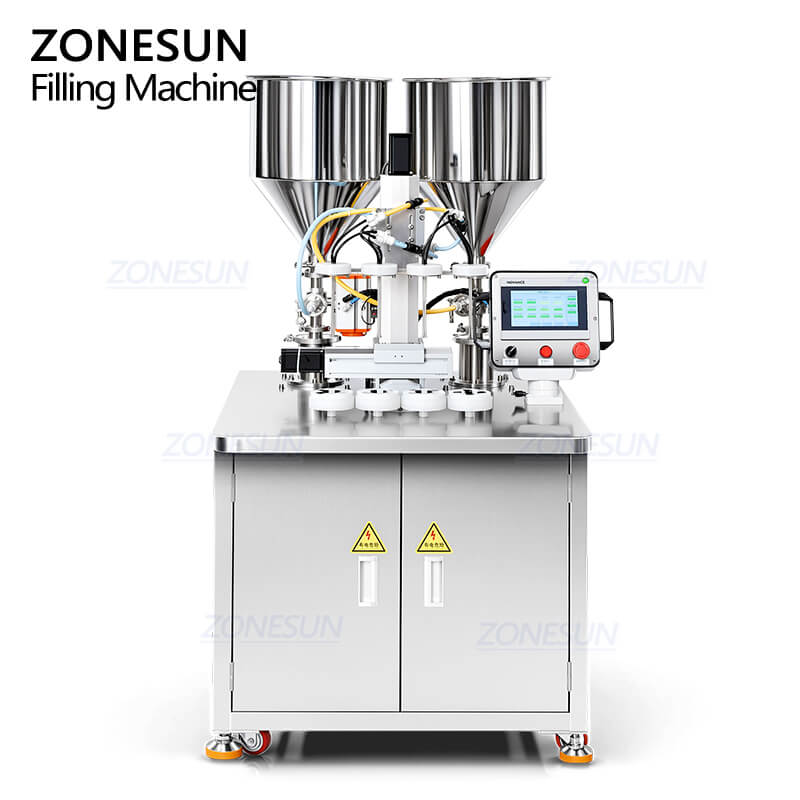

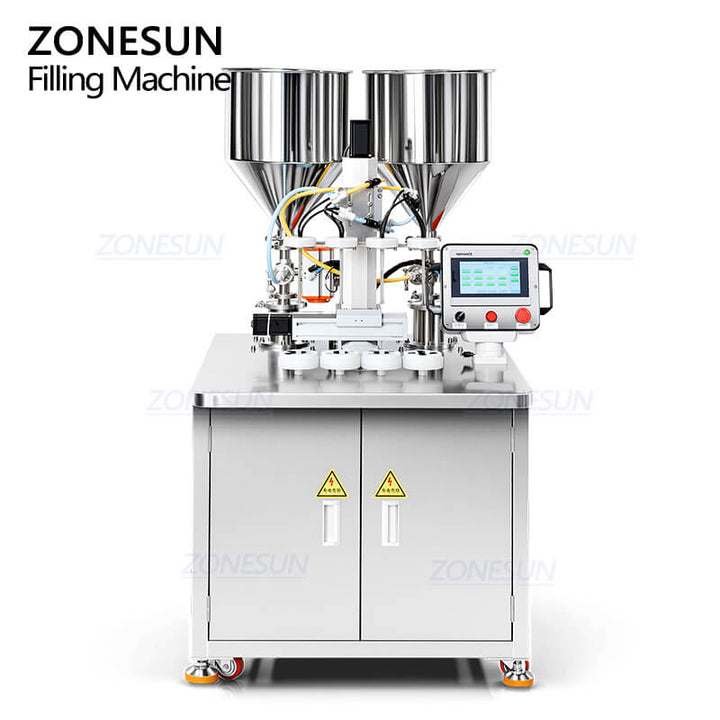

ZONESUN ZS-MCS4 Cosmetic cream filling machine is a semi-automatic solution for filling cosmetic creams into small containers. It supports both single-color and two-color cream filling with two independent material hoppers. Four filling heads work with piston pumps to control the filling volume, with a filling range of up to 50 ml. The filling heads can move along the X, Y, and Z axes to create different cream patterns. Rotating bottle molds help form swirl patterns during filling and can be customized for different bottle sizes. Operators can adjust filling parameters and manage recipes through the touchscreen control panel. The machine reaches about 12–16 bottles per minute, depending on the material. It is suitable for cosmetic creams that require decorative or multi-color filling effects.
Cosmetic Cream Filling Machine Parameter
- Machine Model: ZS-MCS4
- Power Supply: 110/220V, 50 Hz, 1.8 KW
- Filling Heads: 4
- Filling Pump: Piston Pump
- Filling Range: ≤50 ml
- Filling Speed: About 12-16 BPM (Depending on Materials)
- Hopper Size: 20 L * 2
- Air Pressure: 0.6 MPa
- Machine Size: About 900*985*1553 mm (L*W*H)
- Package Size: About 1040*930*1690 mm (L*W*H)
- Package Weight: About 268 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Machine Detail

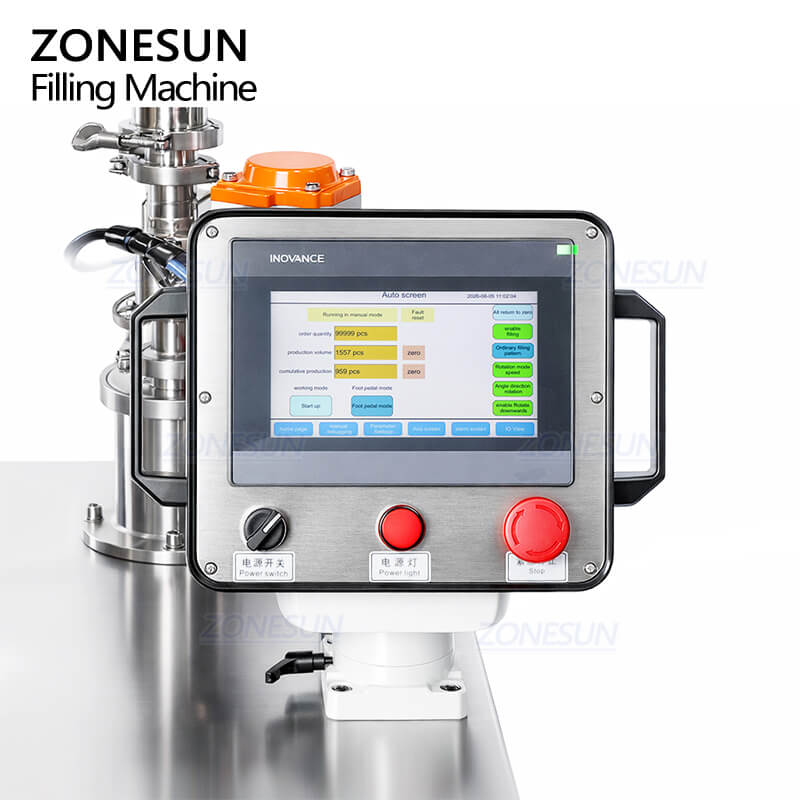

The touchscreen control panel allows operators to set filling parameters, monitor machine operation, and manage filling recipes. It provides a centralized interface for controlling the cream filling process.

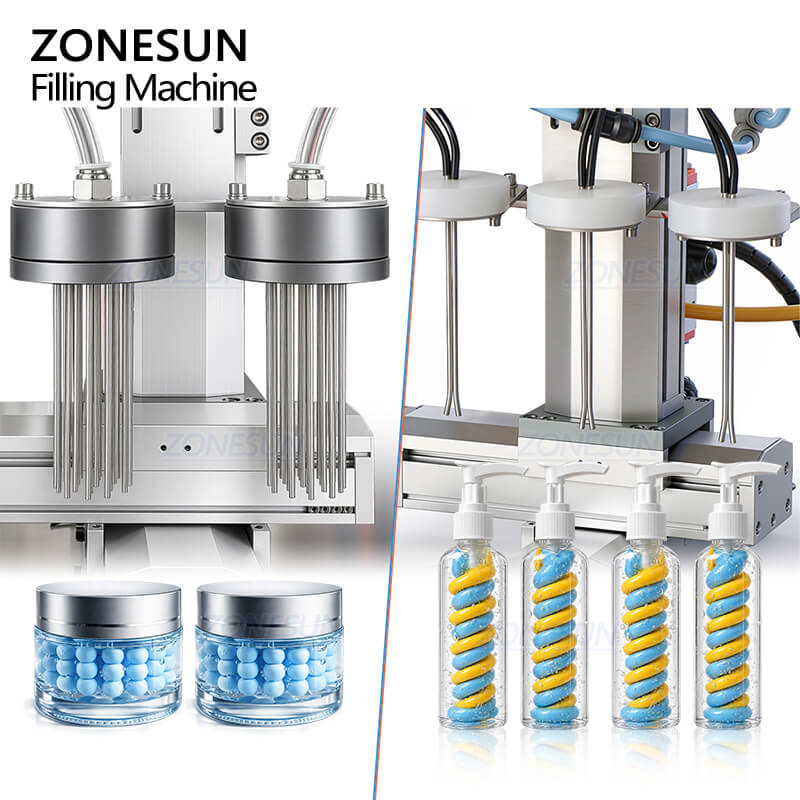

The machine is equipped with four filling heads for dispensing cosmetic creams. Different filling heads can be installed to create different cream patterns and filling effects according to the product requirements.

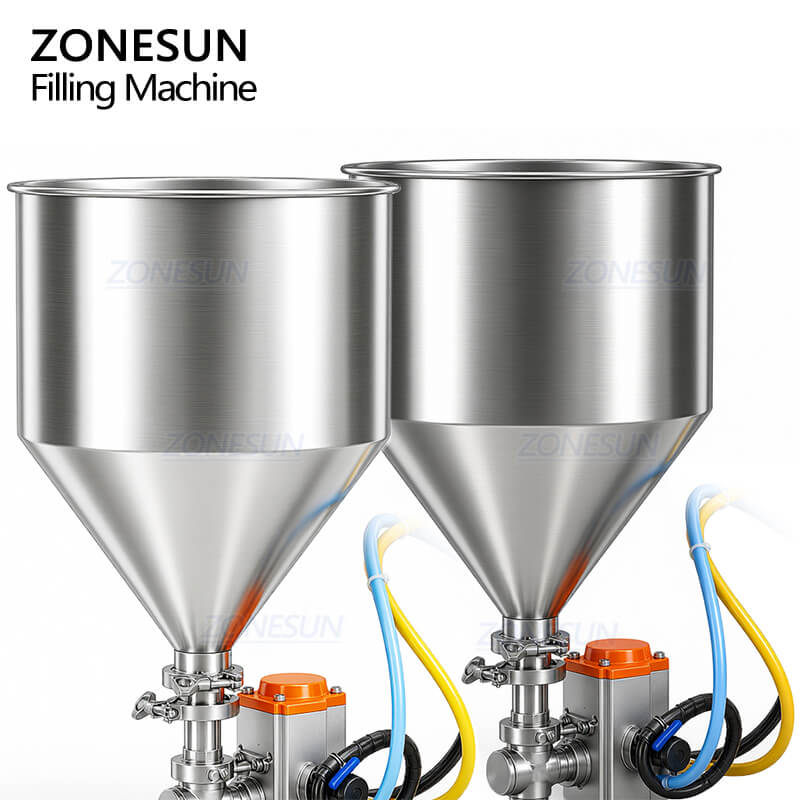

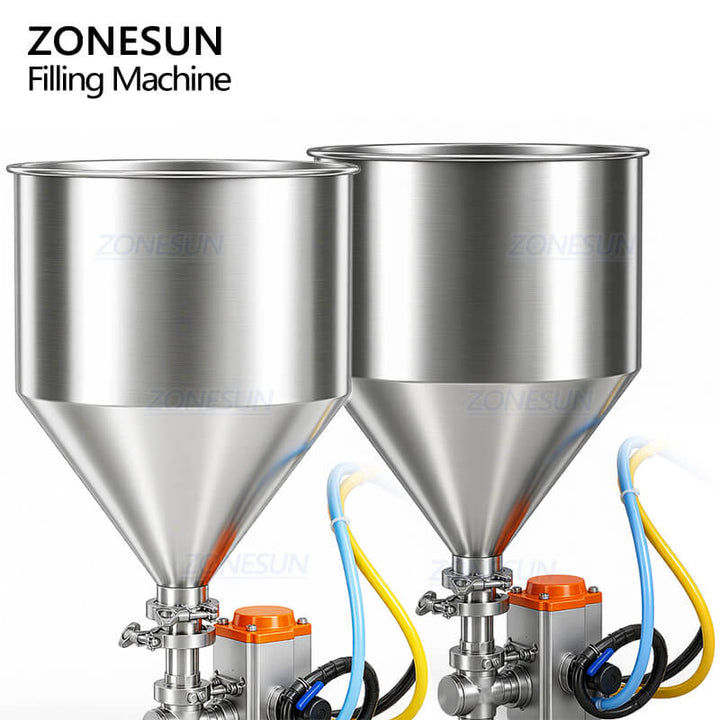

Two independent material hoppers support single-color or two-color cream filling. The hopper configuration allows two cream materials to be supplied separately during the filling process. Hopper capacity can be customized.

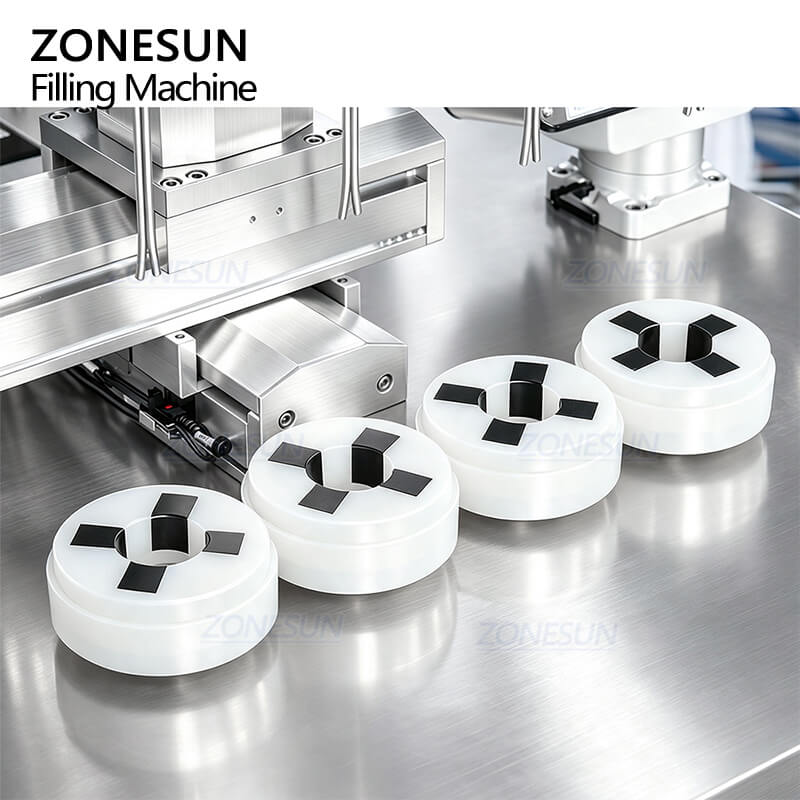

The bottle molds automatically rotate during filling to create swirl patterns inside the container. The molds can be customized according to the bottle size and shape.
FAQ
What products can this cream filling machine fill?
The machine is designed for cosmetic creams and other cream-based products that require controlled or decorative filling. Product suitability depends on the material characteristics.
Can this machine fill two colors of cream?
Yes. The ZS-MCS4 has two material hoppers and supports both single-color and two-color cream filling.
Can it create swirl patterns?
Yes. The bottle molds can rotate automatically during filling to create swirl patterns inside the container.
Can the filling pattern be changed?
Yes. Different filling heads can be installed to create different cream filling patterns. The filling heads also move along the X, Y, and Z axes for pattern control.
What filling pump does the machine use?
The machine uses piston pumps to control the filling volume. The filling range is up to 50 ml.
How fast can the cream filling machine work?
The filling speed is approximately 12–16 bottles per minute. Actual speed depends on the characteristics of the filling material.
Can the machine handle different bottle sizes?
Yes. The bottle molds can be customized according to the bottle size and shape.
How are filling parameters controlled?
Operators can set filling parameters, monitor operation, and manage filling recipes through the touchscreen control panel.
Is this machine fully automatic?
No. The ZS-MCS4 is a semi-automatic cream filling machine. Its filling functions are controlled by the machine, while loading and handling operations may require operator involvement.
