ZONESUN ZS-ACW1 Semi-automatic Bopp Film Cellophane Overwrapping Machine for Cosmetic Perfume Boxes
Regular price
$3,169.00 USD
Regular price
Sale price
$3,169.00 USD
Save $-3,169 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

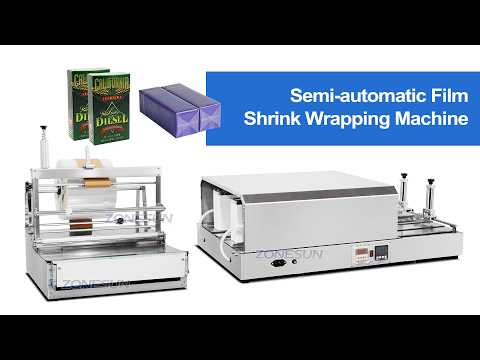

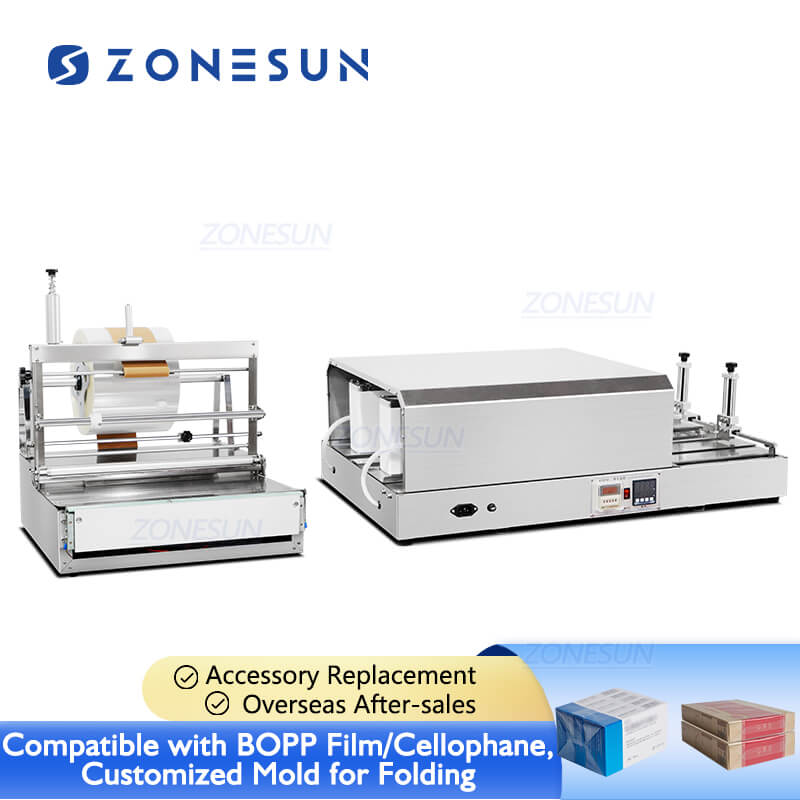

The ZONESUN Semi-automatic cellophane overwrapping machine takes over after the product is placed and wrapped by hand — cutting the film to length, folding the ends, and running the product through heat shrink wrapping. POF, PE, and other shrink films all run on the same system. Sealing temperature adjusts to match film type and product size. Food boxes, cosmetic cartons, pharmaceuticals, electronics, daily necessities, toys, stationery, promotional gift sets — the product range is broad, but the packaging requirement stays constant: a tight seal that holds through handling, regardless of what's inside the box or how it was wrapped going in.
Semi-automatic Cellophane Overwrapping Machine Parameter
Film Wrapping Machine
- Machine Model: ZS-ACW88
- Voltage: 110V/220V, 50-60 Hz
- Power: 1.5 KW
- Applicable Packaging Size: ≤400*200*70 mm(L*W*H)
- Packaging Speed: 5-10 boxes/min (Depend on Product's Size)
- Film Roll Inner Diameter: ≥75 mm
- Film Roll Outer Diameter: ≤280 mm
- Film Width: ≤400 mm
- Applicable Film Material: BOPP
- Machine Material: Stainless Steel
- Machine Size: About 500*480*600 mm
- Package Size: About 580*585*300 mm
- Net Weight/Gross Weight: About 13.8 kg/18 kg
Film Folding Machine
- Machine Model: ZS-A3DP1
- Voltage: 110V/220V, 50-60Hz
- Power: 1.5 KW
- Working Speed: 20 times/min
- Applicable Packaging Size: 220*140*20-90 mm, 220*140*30-100 mm, 220*140*40-110 mm, (Customizable)
- Package Weight: About 35 kg
- Package Size: About 890*640*340 mm
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

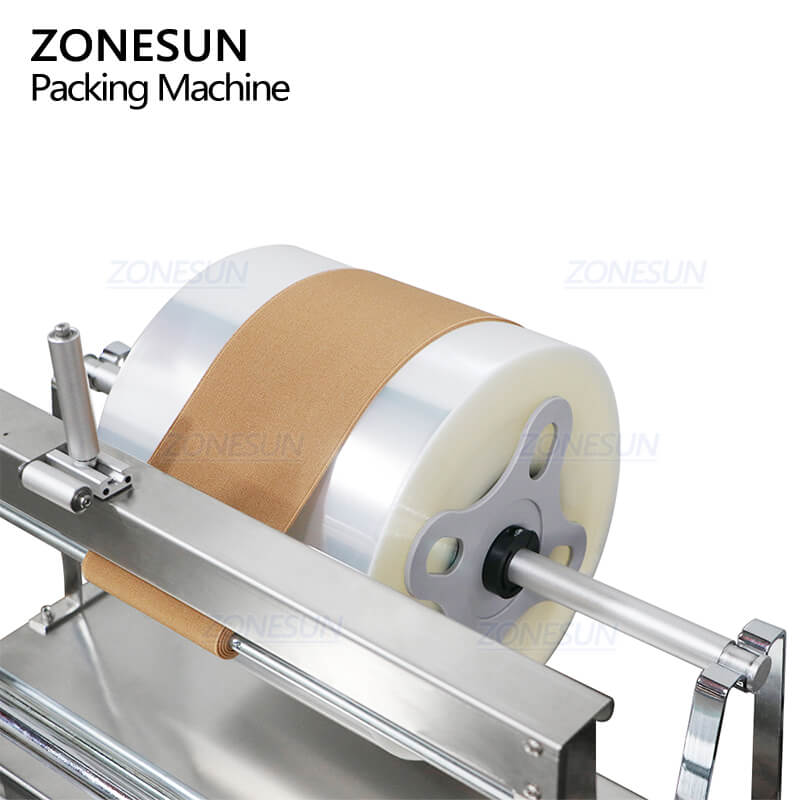

Film Roller Holder
Supports stable and smooth film unwinding to prevent misalignment or tension fluctuations. It accommodates shrink film rolls securely, helping maintain consistent packaging quality and uninterrupted production.
Supports stable and smooth film unwinding to prevent misalignment or tension fluctuations. It accommodates shrink film rolls securely, helping maintain consistent packaging quality and uninterrupted production.

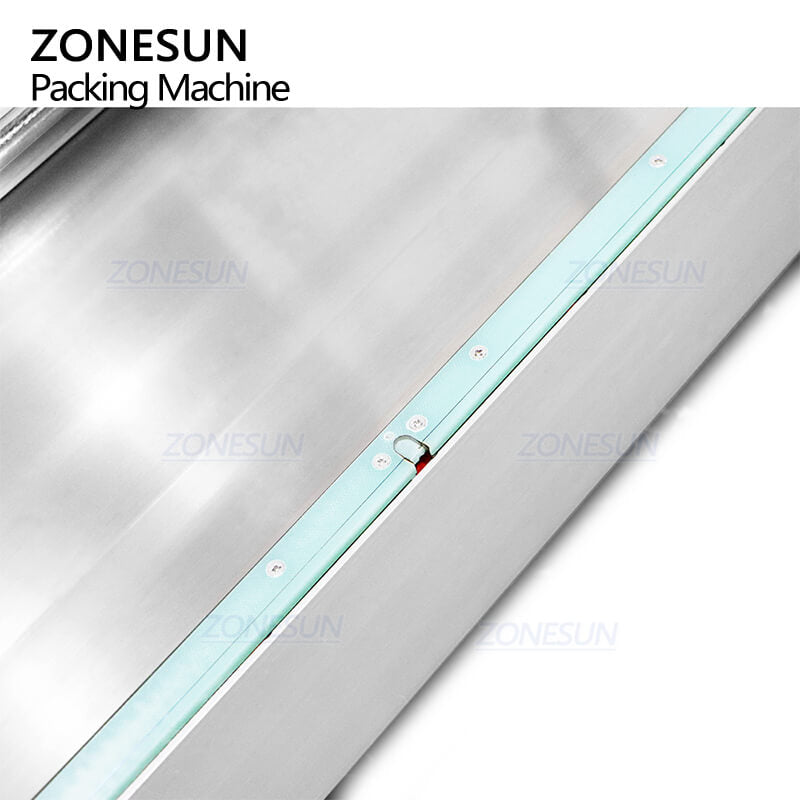

Heating Plate
Provides uniform and stable heat distribution for consistent film shrinking and sealing. The adjustable heating system helps improve package appearance while reducing wrinkles and incomplete shrinking.
Provides uniform and stable heat distribution for consistent film shrinking and sealing. The adjustable heating system helps improve package appearance while reducing wrinkles and incomplete shrinking.

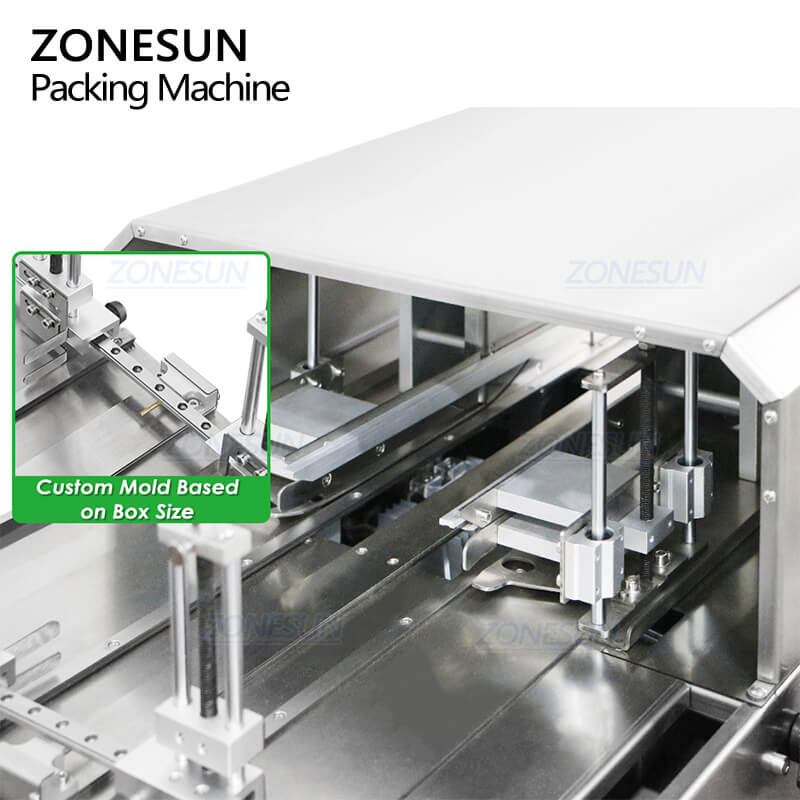

Feeding & Folding Structure
Automatically pushes products into the wrapping area while guiding the film into position. The synchronized feeding and folding mechanism ensures smooth product transfer and accurate film formation for consistent packaging results.
Automatically pushes products into the wrapping area while guiding the film into position. The synchronized feeding and folding mechanism ensures smooth product transfer and accurate film formation for consistent packaging results.

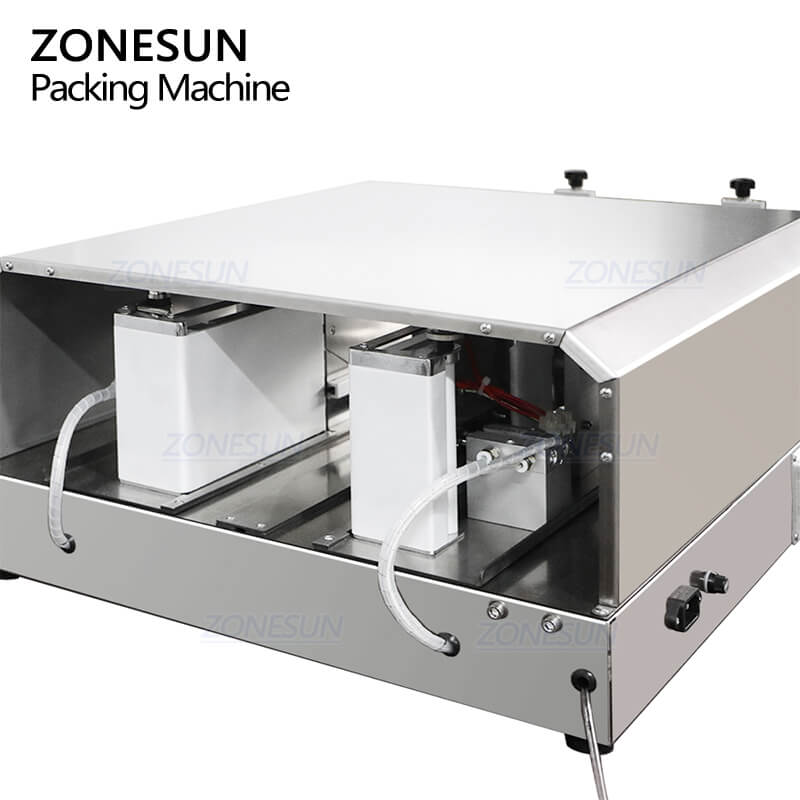

Heat Sealing Structure
Creates strong, clean, and reliable seals with adjustable sealing temperature to suit different shrink films and packaging requirements. The stable sealing performance helps improve package integrity and production consistency.
Creates strong, clean, and reliable seals with adjustable sealing temperature to suit different shrink films and packaging requirements. The stable sealing performance helps improve package integrity and production consistency.
Frequently Asked Questions
1. What types of boxes can this shrink wrapping machine package?
Cosmetic boxes, food boxes, pharmaceutical cartons, gift boxes, electronics packaging, and other retail cartons — most box formats within the working range can be wrapped. If the box holds a stable shape once film is wrapped around it by hand, the heat shrink stage handles the rest.
2. Which shrink films are compatible with this machine?
POF, PE, and other heat-shrinkable films. The right choice depends on box dimensions and packaging requirements — POF generally runs better on irregular or multi-pack boxes, while PE suits flat, uniform cartons at lower cost.
3. Can different box sizes be packaged on the same machine?
Yes, within the working range. Since boxes are placed and wrapped by hand, size variation doesn't require a mechanical changeover — only an adjustment to film amount and fold for each box.
4. Is the sealing temperature adjustable?
Yes. Temperature adjusts to match film material and thickness. Running one fixed setting across different films produces uneven results — tight seals on some materials, underdone seals on others.
5. Can the machine be customized for larger boxes?
Yes. Sealing size, conveyor width, and other configurations can be specified at order to match your box dimensions and production requirements.
6. Why use shrink wrapping for boxed products?
The film barrier keeps dust, moisture, and surface scratches off the box during storage and transit. A tight wrap also holds multiple boxes together as one stable unit on a pallet, rather than letting them shift independently. And a clean, even shrink reads as a finished retail product rather than a loose carton — which matters at the point of sale.
7. What information should I provide before ordering?
Box dimensions (L × W × H), box weight, target packaging speed, film type — POF or PE — and power supply. These details let us match the right configuration to your application.
