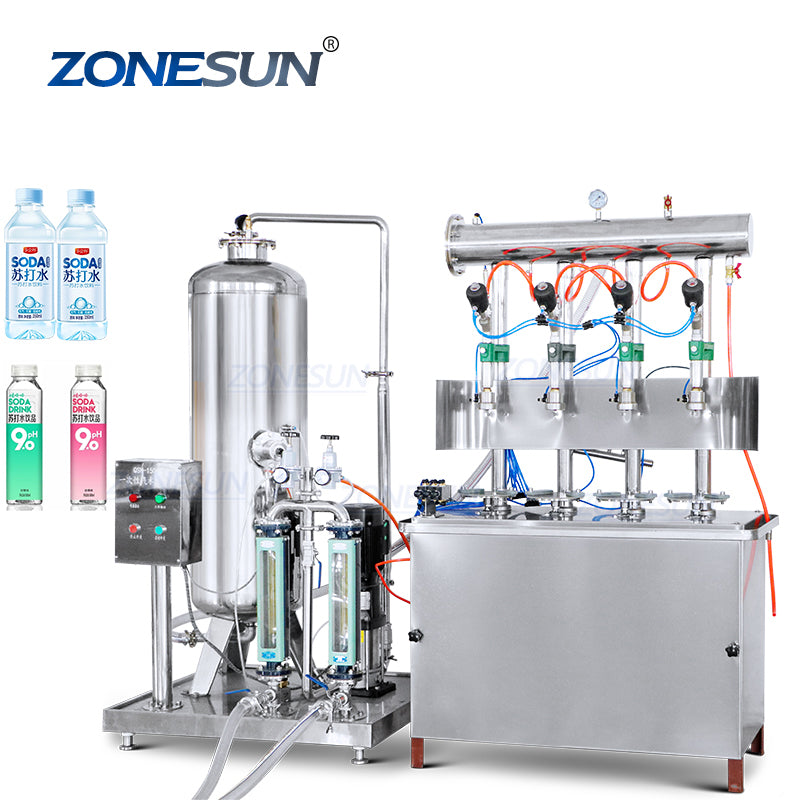

ZS-CF4 Semi-automatic 4 Heads Carbonated Drinks Sparkling Wine Beer Soda Water Liquid Isobar Filling Machine

Size
Regular price $4,499.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan)

This filling machine is used to mix carbon dioxide and drinks to produce carbonated drinks like cola, sparkling wine and soda water. It has the advantage of stable and reliable work, safe operation, convenient maintenance and unlimited production. It is an ideal filling equipment for small and medium scale production.

Parameter

Filling Machine

Filling nozzle quantity:4
Working temperature:4-10℃
Working capacity:300-500BPH
Inlet & Outlet Diameter:32mm
Air pressure:0.5-0.7MPa
Machine size:About 1090*590*1800mm

Mixing Machine

Technical requirements

Production capacity:1.5-2T/h
The mixing ratio of syrup and water:1:2-1:8
Beverage liquid outlet temperature:<6℃
Beverage liquid outlet pressure:0.3-0.5Mpa
Carbonation gas content:3G.V

Requirements for raw materials

Inlet pressure of treated water:0.2 Mpa
Inlet temperature of treated water:<6℃
Syrup inlet temperature:<4℃
CO2 inlet pressure:0.28-0.35 Mpa
CO2 purity:>99%

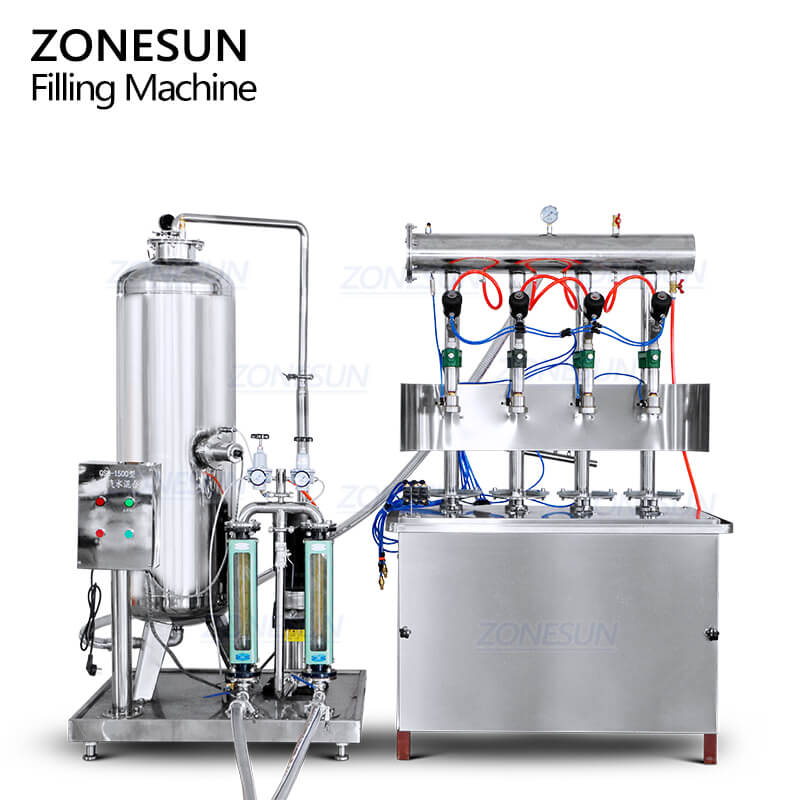

Carbonated Drinks Filling Machine

Application of Carbonated Drinks Filling MachineMachine Details of Carbonated Drinks Filling Machine

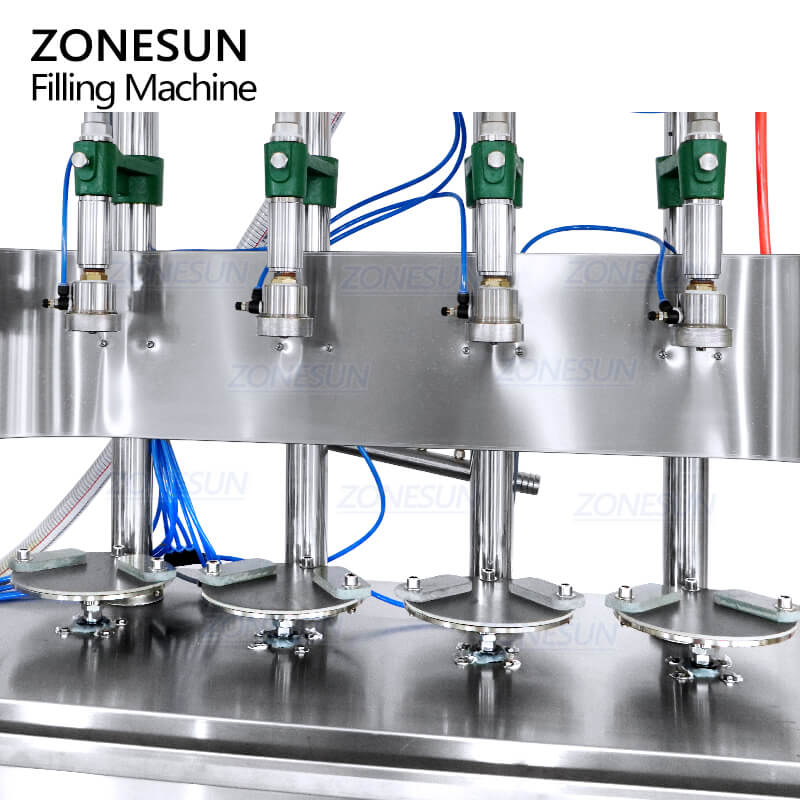

Filling Nozzle of Carbonated Drinks Filling Machine

Filling nozzles are made of high quality,  the air hose connection is well sealed, which can prevent the air from entering and causing the material to deteriorate and reduce the production quality.

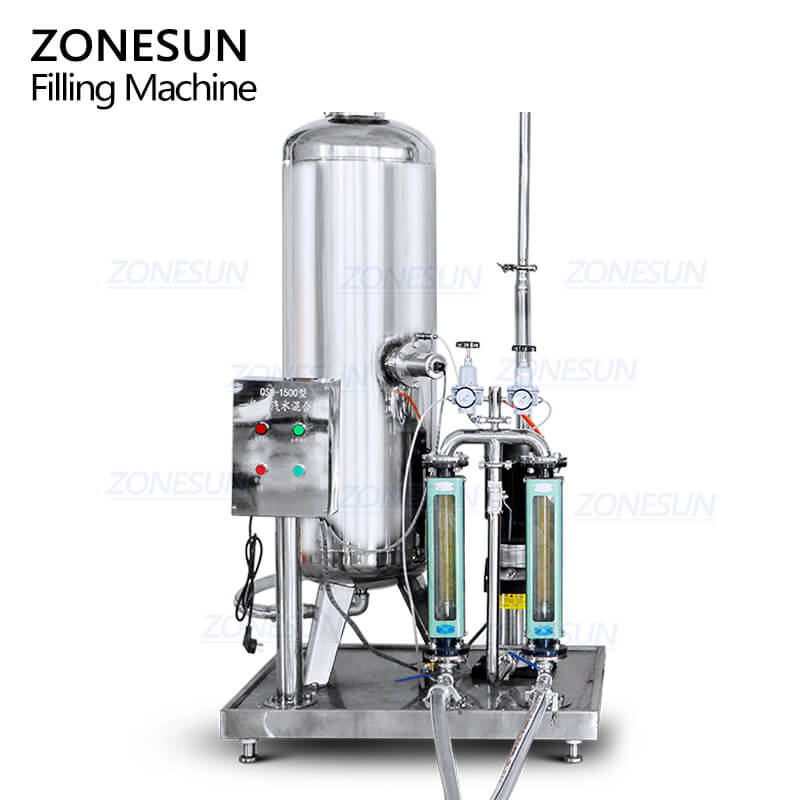

Mixing Tank of Carbonated Drinks Filling Machine

Filling nozzles are made of high quality,  the air hose connection is well sealed, which can prevent the air from entering and causing the material to deteriorate and reduce the production quality.

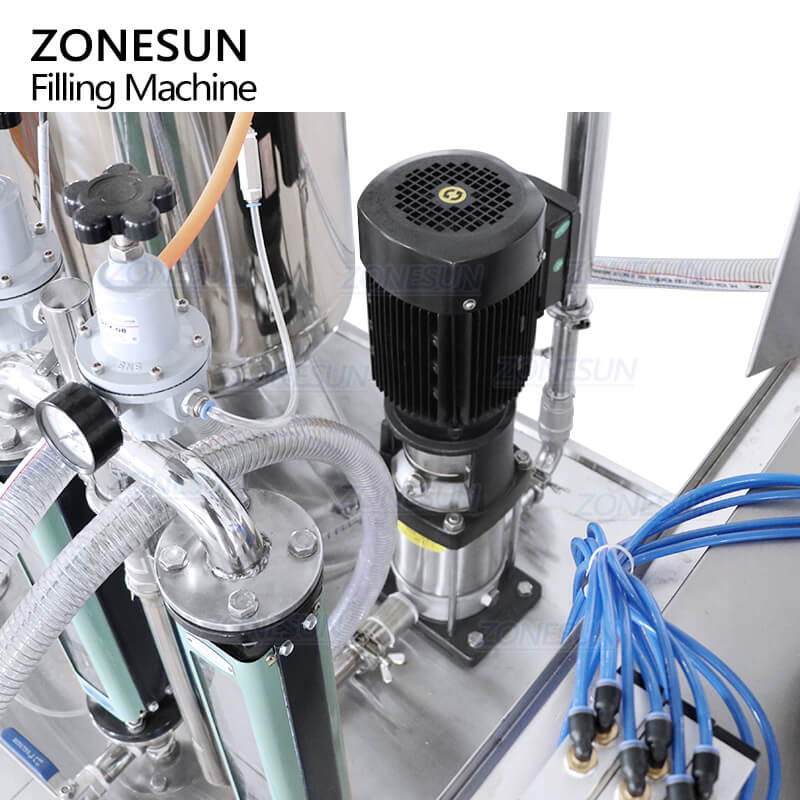

Large Motor of Carbonated Drinks Filling Machine

Equipped with large motor, this makes the machine work stably and smoothly, improves the safety operation and production quality.

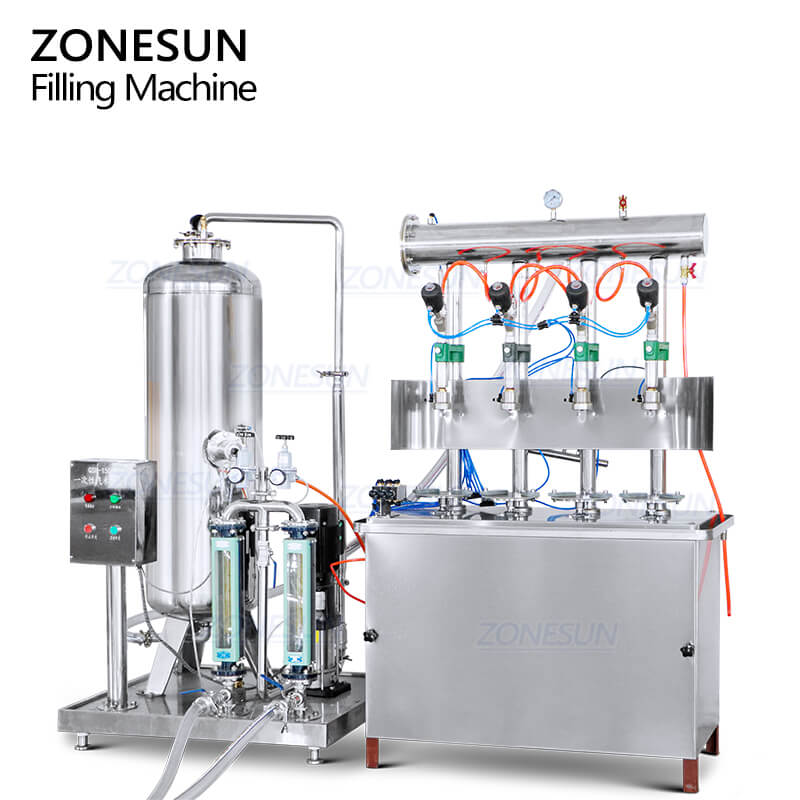

Semi-automatic Carbonated Drinks Filling Machine
