ZONESUN ZS-RSV4L Semi-Automatic Piston Pump 4-Color Swirl Lotion Cream Filling Machine For Cosmetic
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

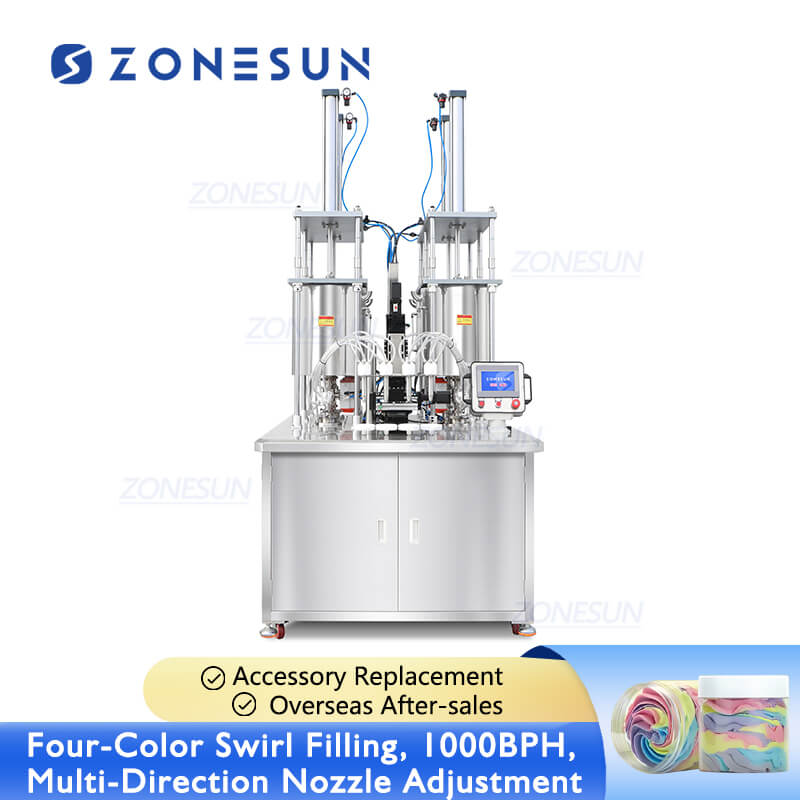

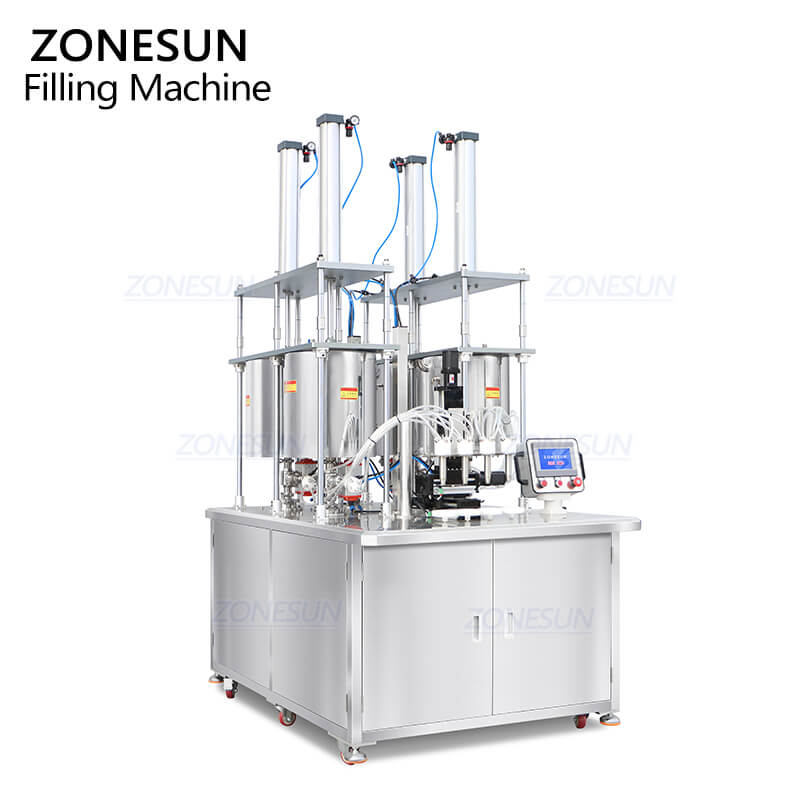

The ZONESUN swirl cream filling machine is customized for filling creams with an ice cream-like swirl texture, such as whipped hair butter, body butter and decorative cosmetic creams. It supports one-, two-, three- or four-color filling and can be equipped with up to four filling heads. Independent 30L double-jacket hoppers can be filled with warm water or thermal oil to maintain a stable product temperature, with optional mixing available. The swirl size can be adjusted to create different decorative patterns, while customized nozzles and bottle holders accommodate various packaging formats. Each filling nozzle can be adjusted forward, backward, left, right, up and down to match production needs. The machine can reach speeds of up to 1,000 bottles per hour.
Swirl Cream Filling Machine Parameter
- Machine Model: ZS-RSV4L
- Voltage: 220 V, 50 Hz (Customizable)
- Power: 4 kW
- Air Pressure: 0.5-0.6 MPa
- Filling Speed: About 200-1000 Bottles/Hour (Depending on Bottle Size and Filling Materials)
- Filling Range: 50-350 ml
- Filling Pump: Piston Pump
- Bottle Height: Customizable
- Bottle Diameter: Customizable
- Hopper Capacity: 30 L * 4
- Machine Size: About 1400*1850*2715 mm (L*W*H)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

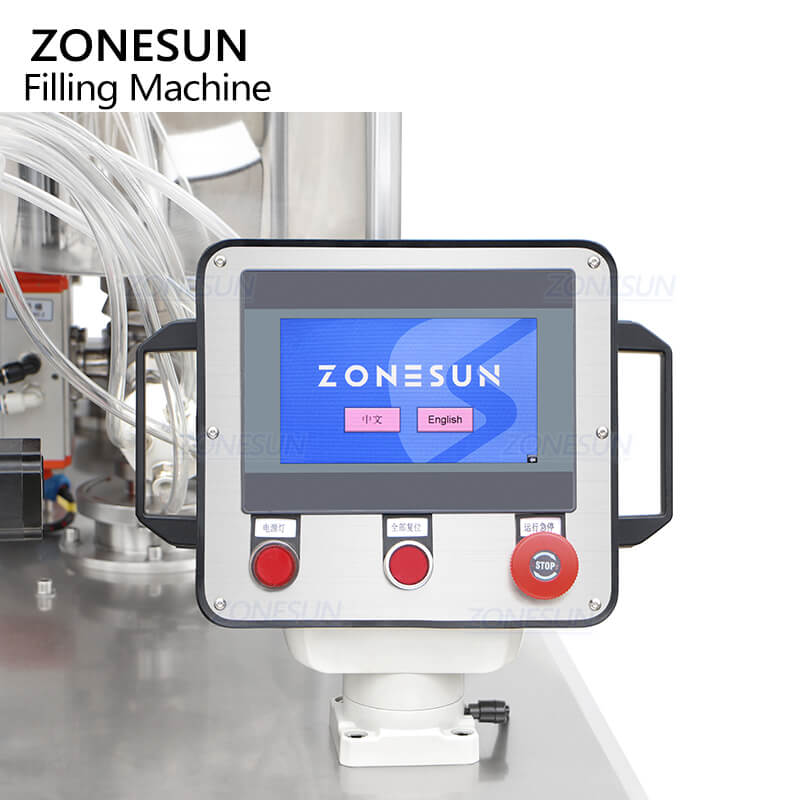

The touchscreen interface allows operators to adjust filling parameters and monitor machine operation for easier production control.

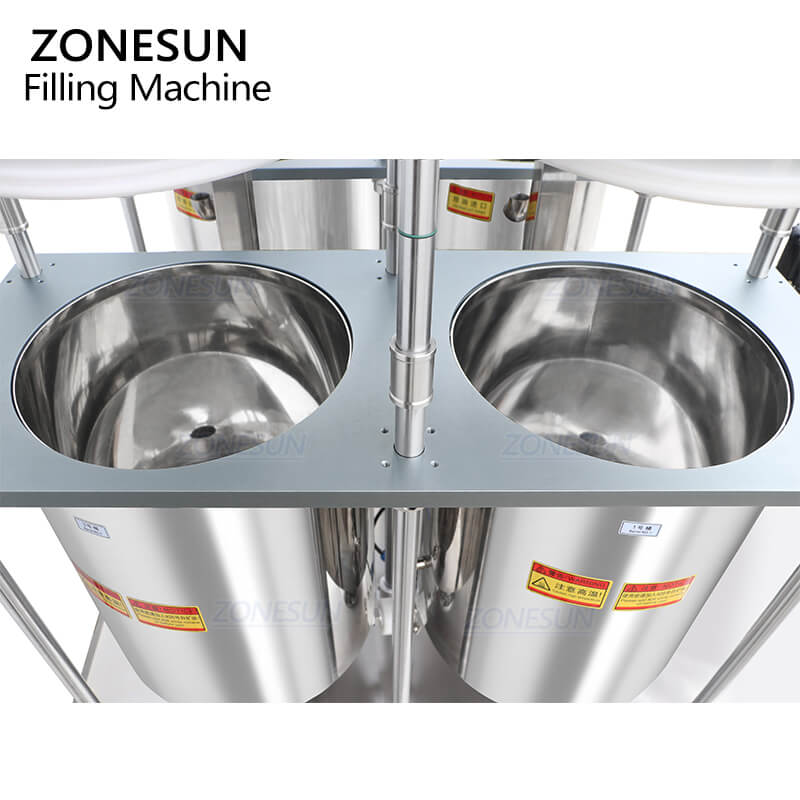

The 30L double-jacket hoppers maintain stable product temperature with warm water or thermal oil, with optional mixing function. Supports one to four color cream filling.

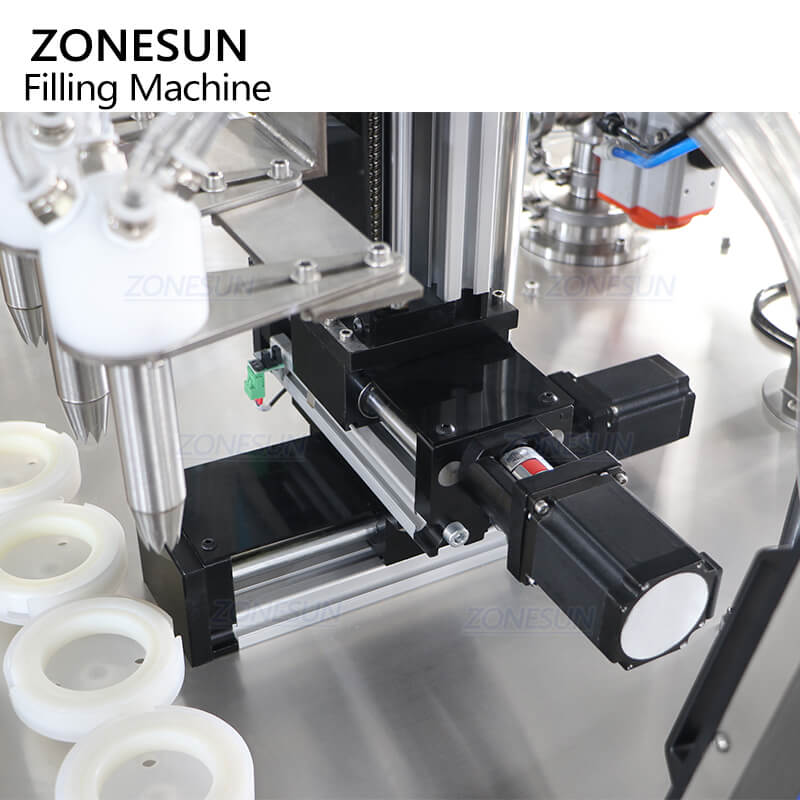

Each nozzle can be moved forward, backward, left, right, up and down to match different containers and filling positions.

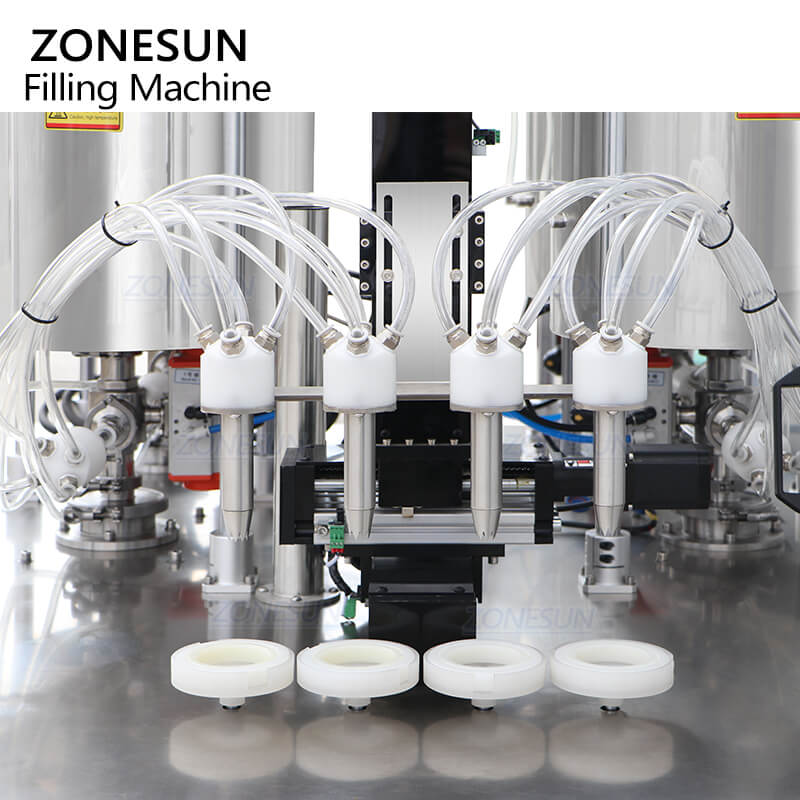

Up to four filling heads can be customized according to production requirements. The swirl pattern size and decorative effects can be flexibly adjusted for different cream designs.

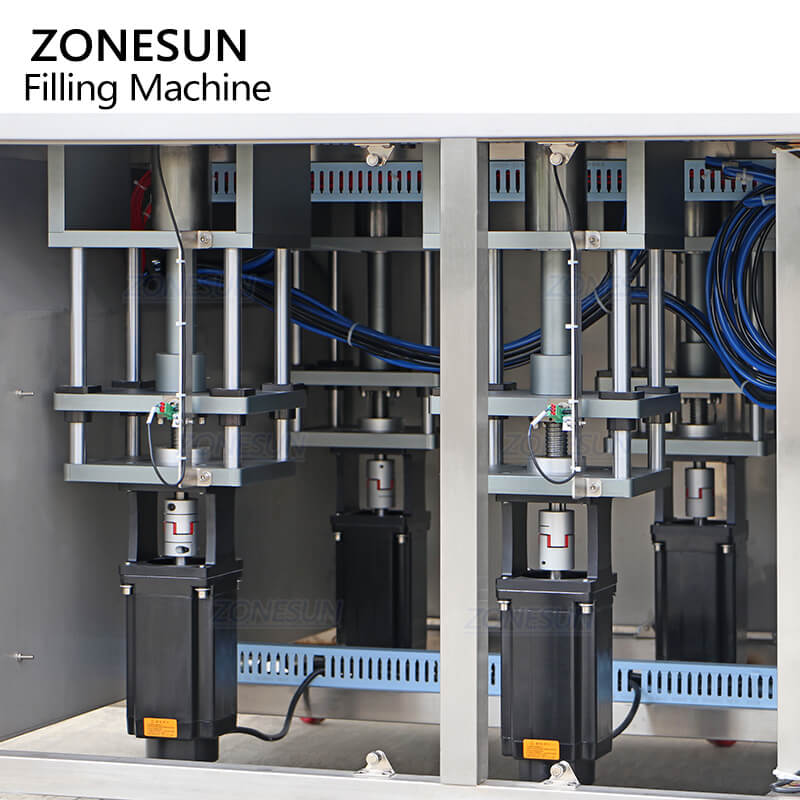

The piston pump provides stable filling performance for thick cream products, helping maintain consistent filling volume and pattern quality.

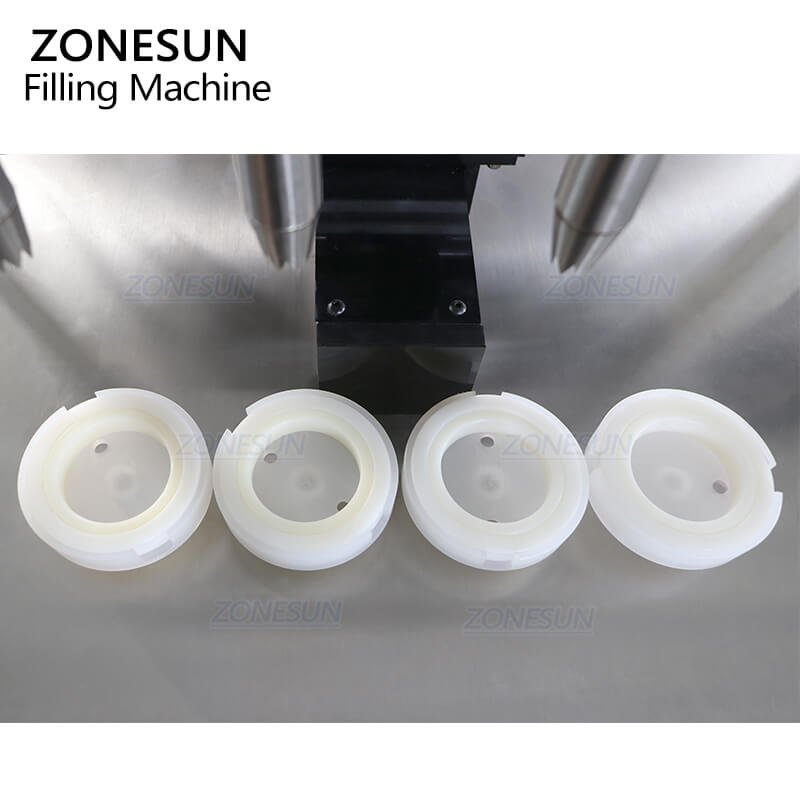

Bottle positioning molds are customized according to the container shape and size to ensure stable filling.
Bottle positioning molds are customized according to the container shape and size to ensure stable filling.
FAQ of Swirl Cream Filling Machine
Q1. Can the machine create different swirl patterns?
Yes. Like other ZONESUN swirl cream filling machines on zonesuntech.com, The filling nozzles can be adjusted according to product requirements, allowing the swirl pattern size and decorative appearance to be customized.
Q2. How does the machine keep the cream at a stable filling temperature?
The double-jacket 30L hoppers use warm water or thermal oil circulation to maintain consistent product temperature during filling. An optional mixing function is also available for some formulations.
Q3. Can the machine work with different bottles or containers?
Yes. The bottle holding molds can be customized according to different container sizes. By replacing the positioning molds, the machine can be adjusted for different bottle specifications.
Q4. Can the filling position be adjusted?
Yes. The filling nozzles support multi-direction adjustment, including forward, backward, left, right, up and down movement, to match different production requirements.
