ZONESUN ZS-QW2Y Semi-automatic 3 In 1 BOV Aerosol Aluminium Tin Metal Cans Spray Paint Bottle Liquid Filling Capping Machine
Regular price
$9,099.00 USD
Regular price
$9,299.00 USD
Sale price
$9,099.00 USD
Save $200 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

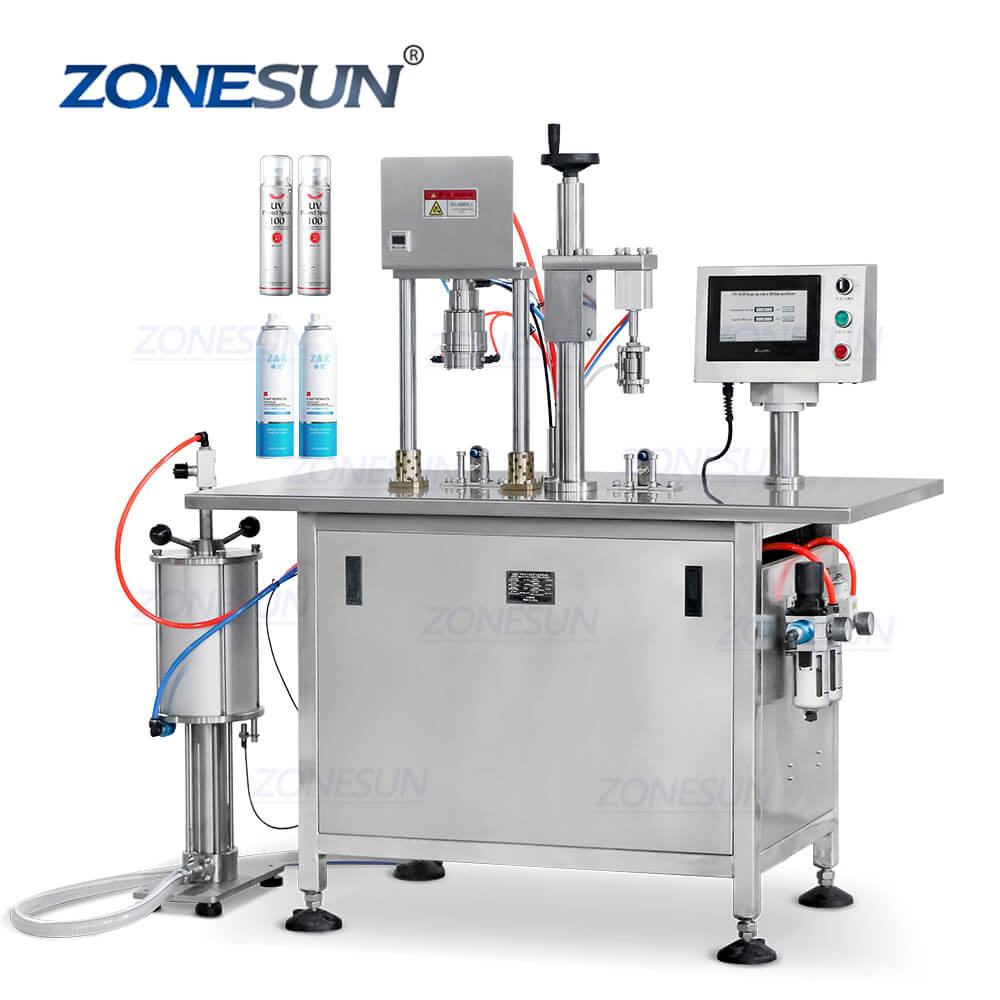

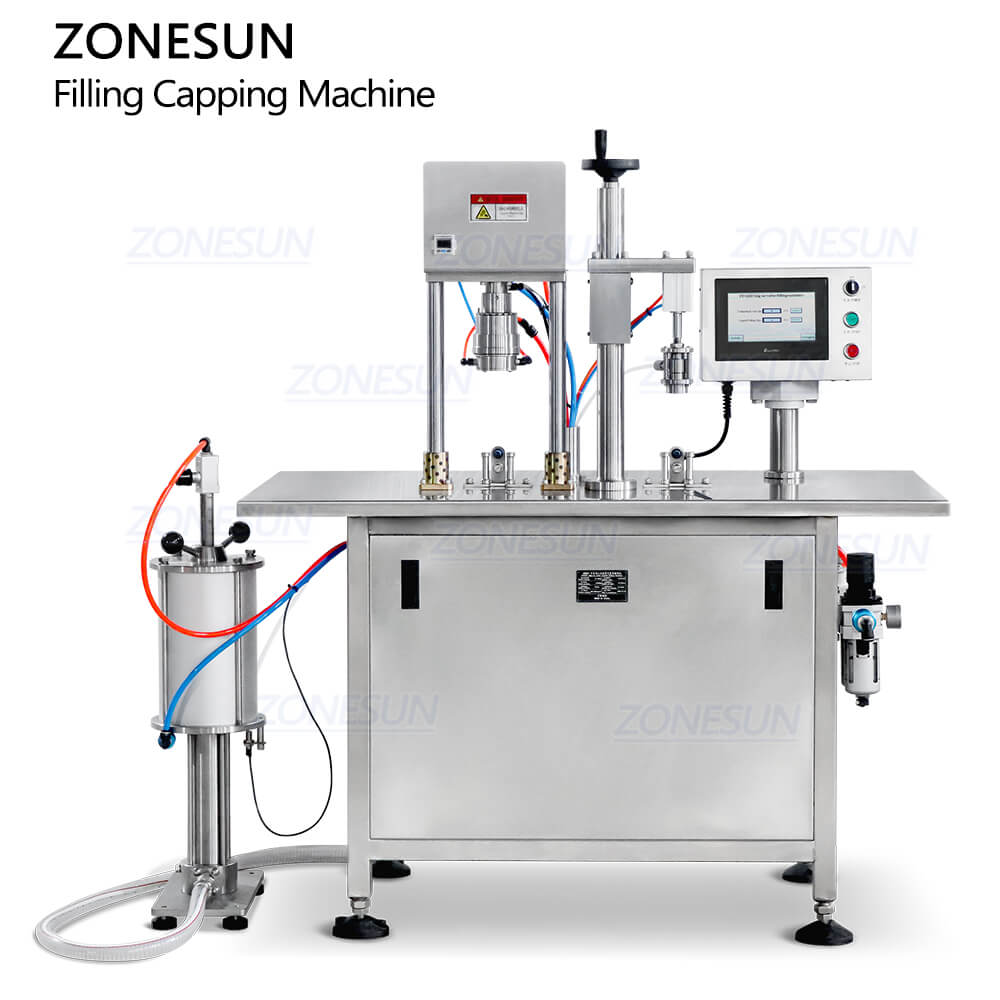

The aerosol filling equipment is completed on the same workbench by combining the capping machine, inflator and high-pressure liquid filling machine. One person works and the operation is simple. This machine is suitable for daily chemical, food and other industries.
Parameter
- Machine Model: ZS-QW2Y
- Valve Size: About 1 inch
- Air Filling Capacity: 800-1200 cans/h
- Liquid Filling Capacity: 600-800 cans/h
- Air Filling Accuracy: ±0.03 MPa
- Liquid Filling Accuracy: ±1%
- Working Air Pressure: 0.5-0.7MPa
- Suitable Aerosol Can Diameter: 35-65 mm
- Suitable Aerosol Can Height: 70-330 mm
- Machine Size: About 1370*615*1305 mm
- Package Size: About 1230*680*1630 mm
- Package Weight: About 227.5 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required

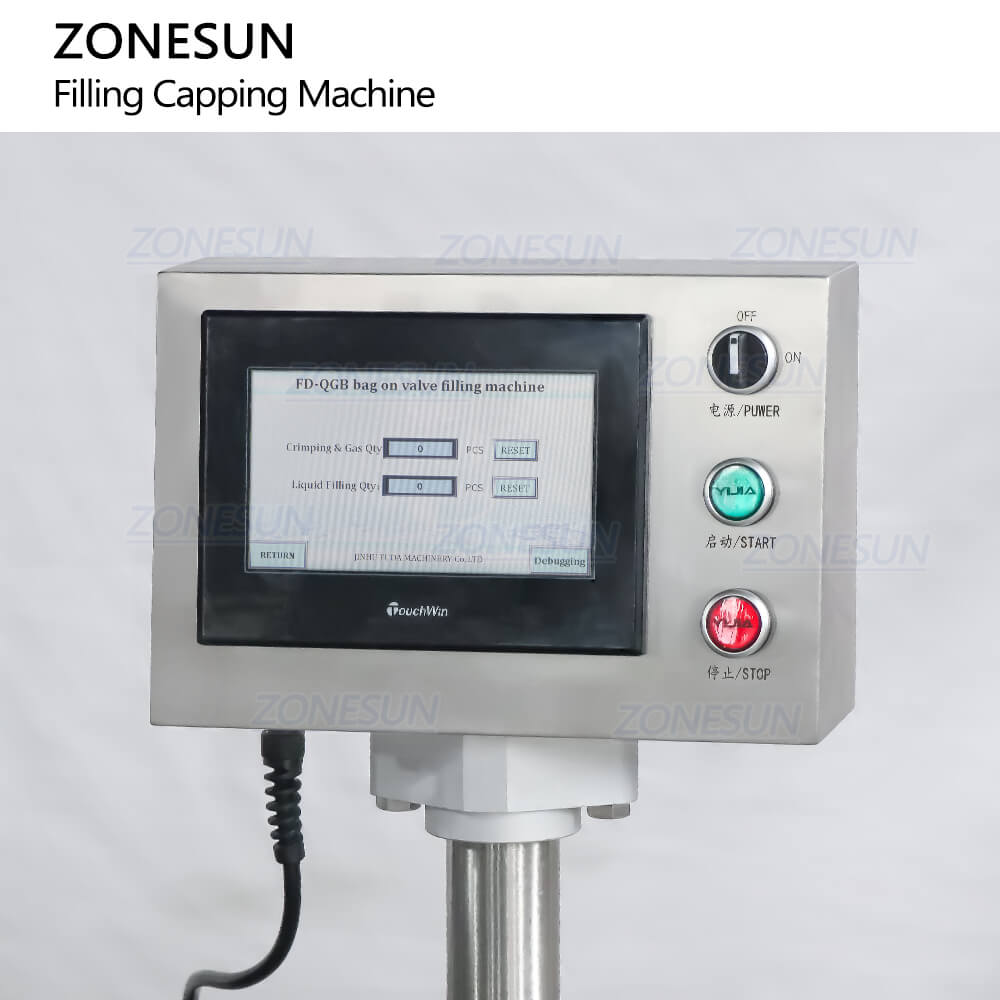

Equipped with a touch screen control panel, the clear display of working parameters makes machine debugging more convenient and significantly improves efficiency.

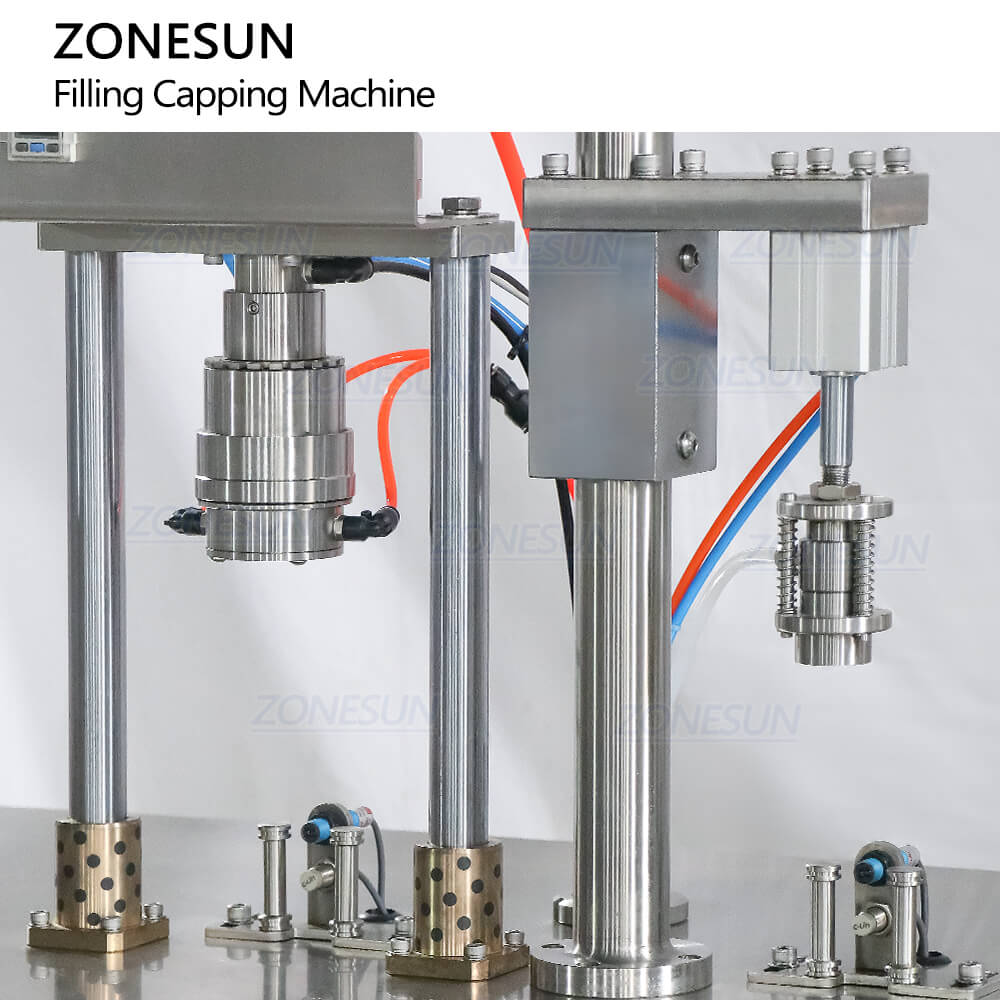

This machine is completed on the same workbench by combining the capping structure, inflator and high-pressure liquid filling structure. This is more convenient and saves production cost.

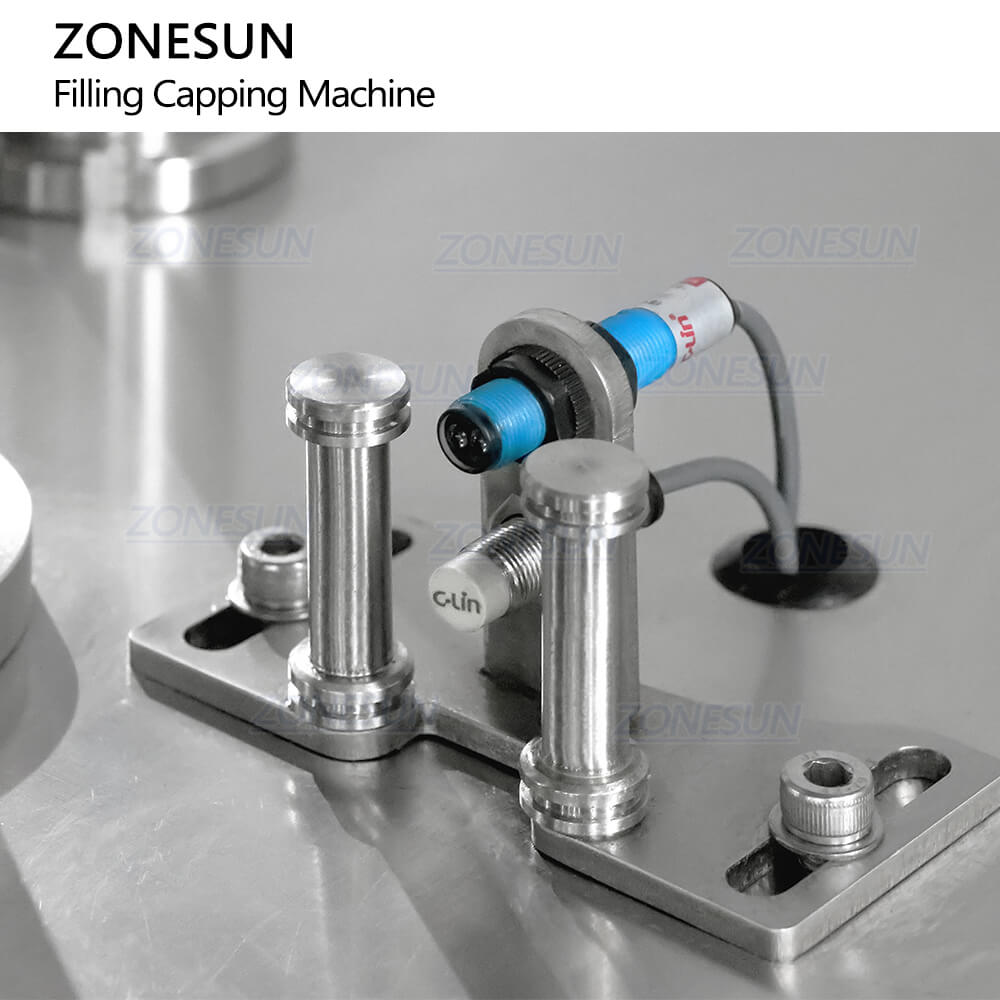

This machine is without pedal switch,it controls machine to work by the electric eye. When aerosol can is detected by the electric eye ,the machine will start to work automatically. This can reduce working error and save time.

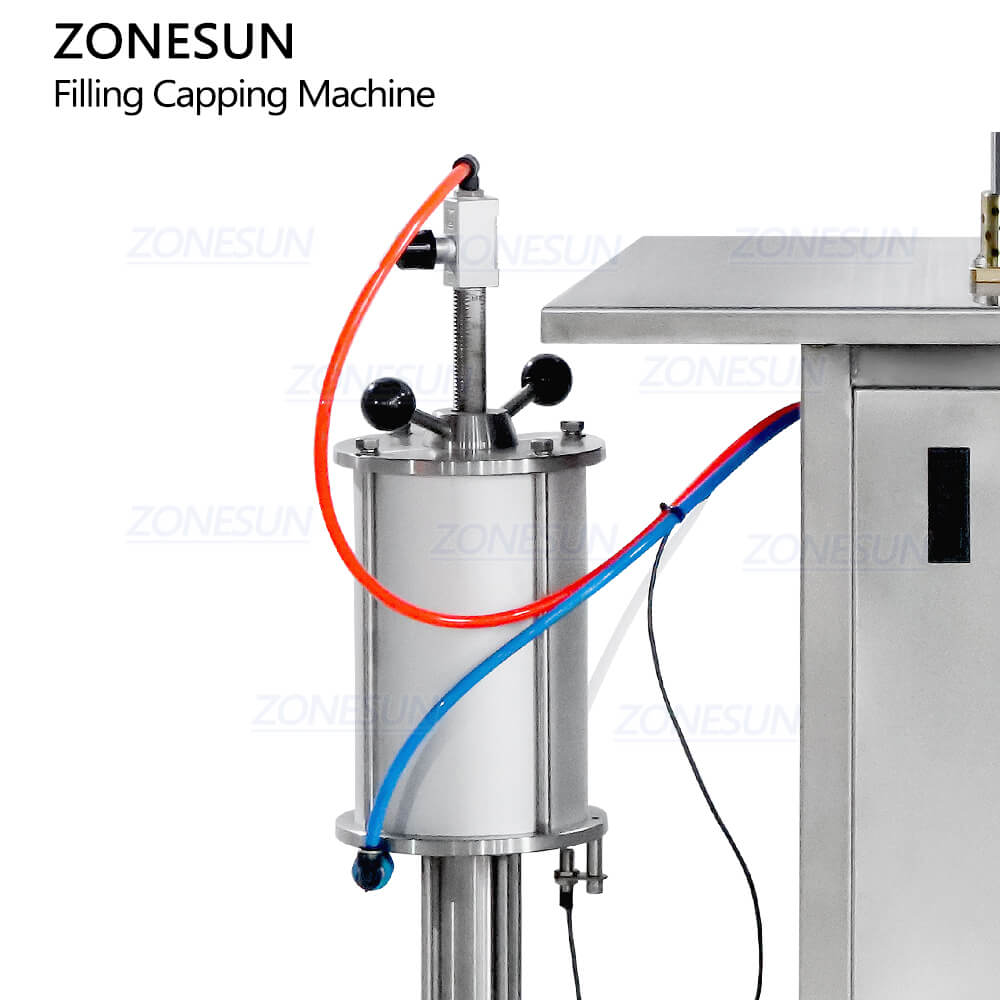

The black handle is used to control the filling volume. This machine is equipped with the feeding pump, this can supply filling material easily and faster,it saves the labor of lifting material bucket.
