ZONESUN ZS-YG08Z Semi-automatic 15/18/20mm Fragrance Perfume Glass Bottle Spray Caps Capping Crimping Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Machine Video

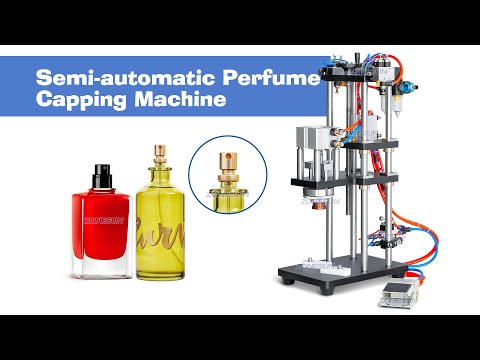

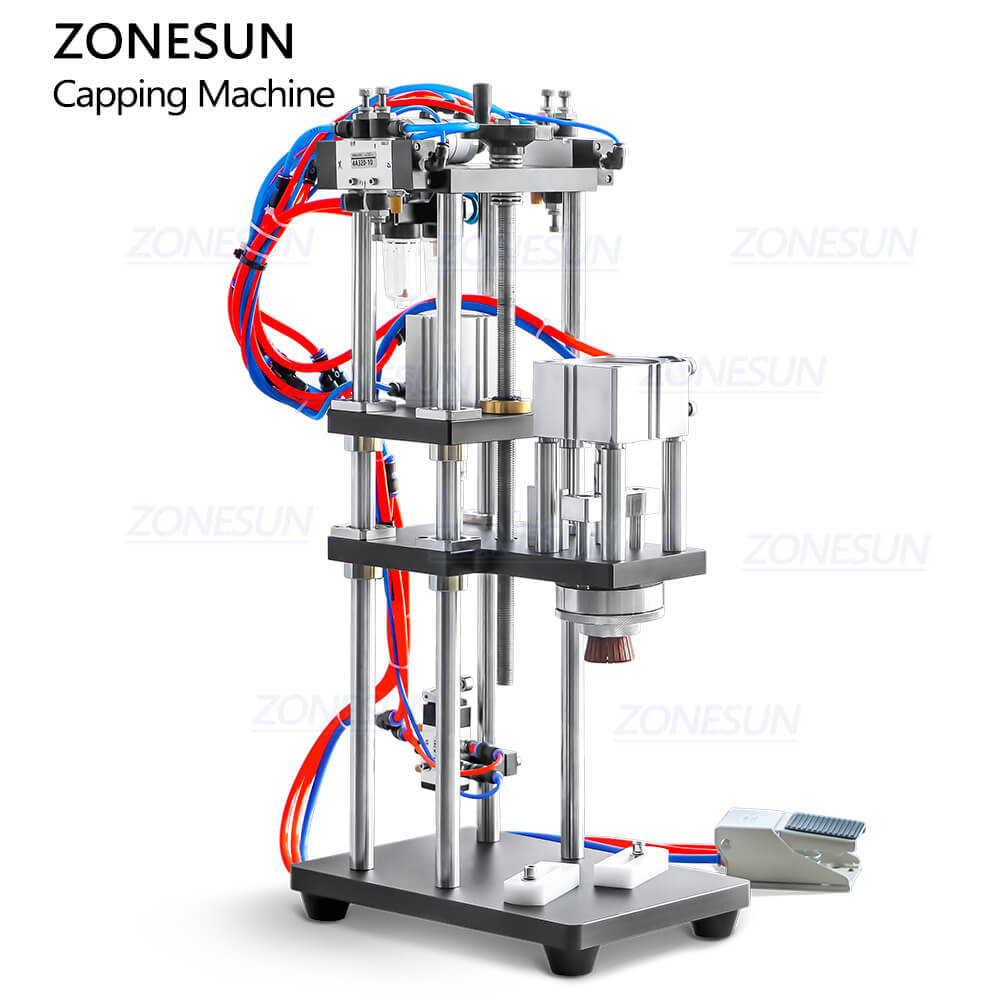

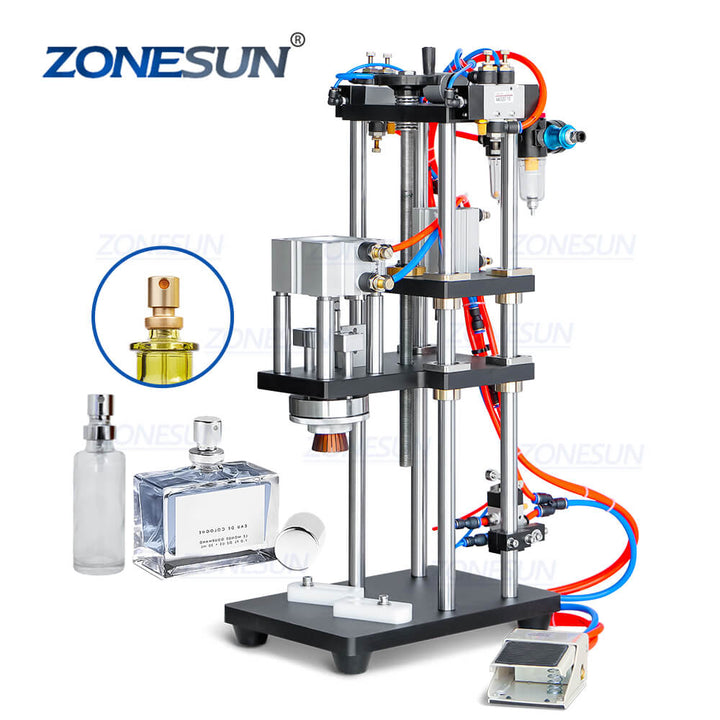

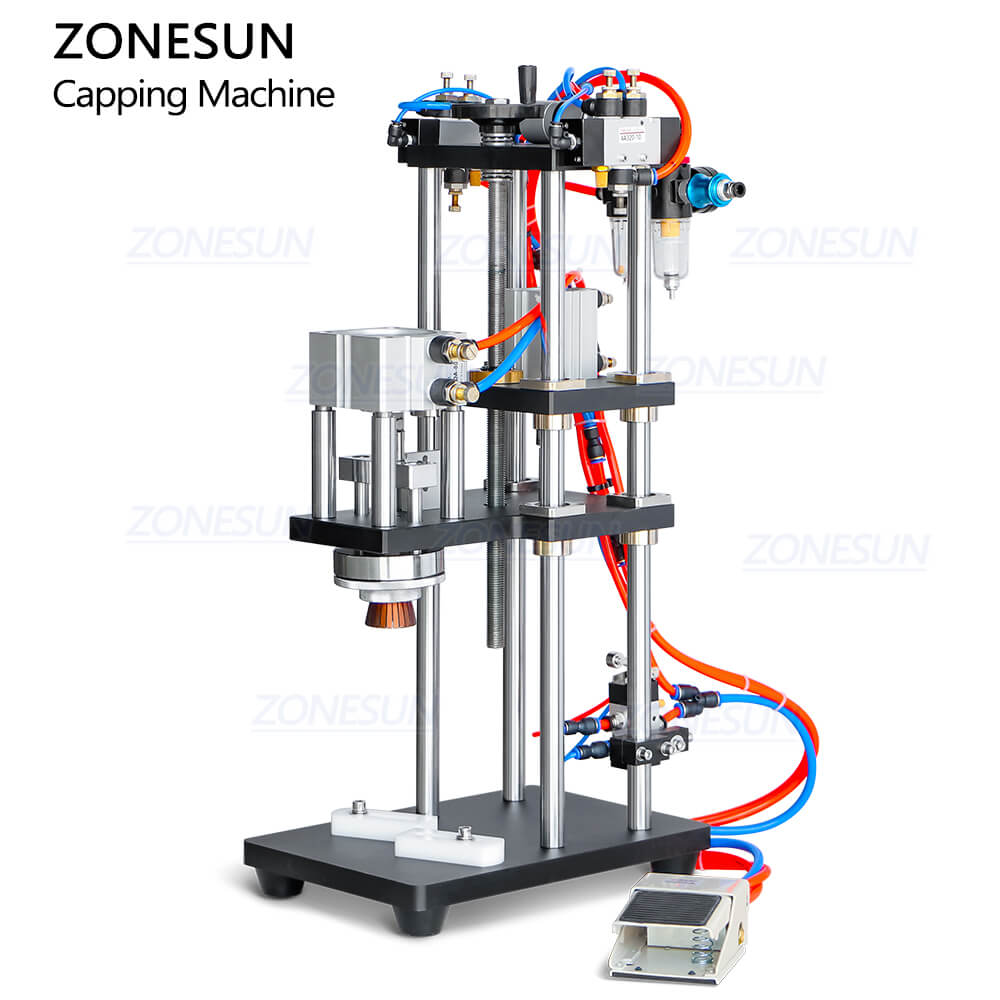

This semi-automatic capping machine is designed for packaging perfume bottles.By controlling the cylinder stroke, the capping component of the machine can automatically lower to the bottle mouth and complete the capping process.
Parameter
- Machine model:ZS-YG08Z
- Suitable bottle mouth: φ=13/15/18/20mm(Can be customized)
- Suitable bottle height:≤280mm
- Working speed:About 800-1000BPH
- Machine size:About 300*420*750mm
- Machine weight:About 25kg

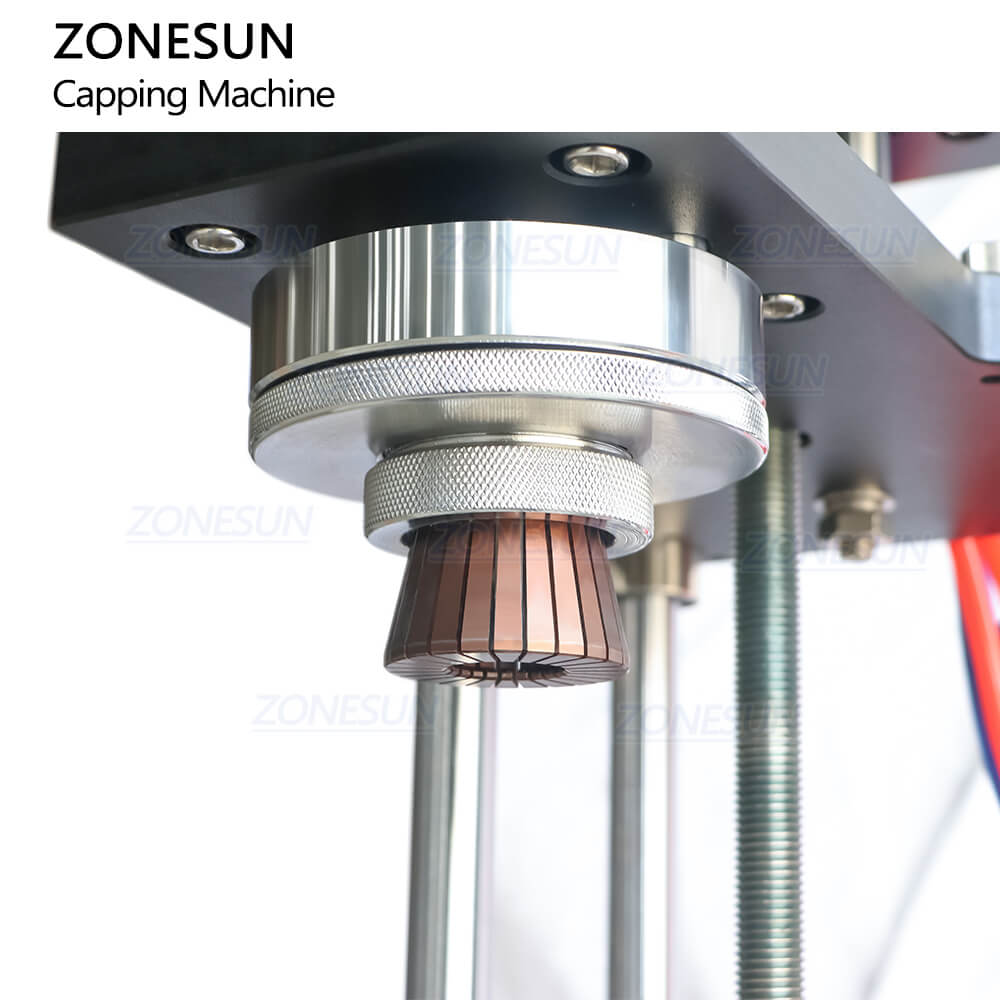

The capping chuck is customized according to each size of spray caps, changing capping chuck, this machine can be used for different sizes of caps and bottles.

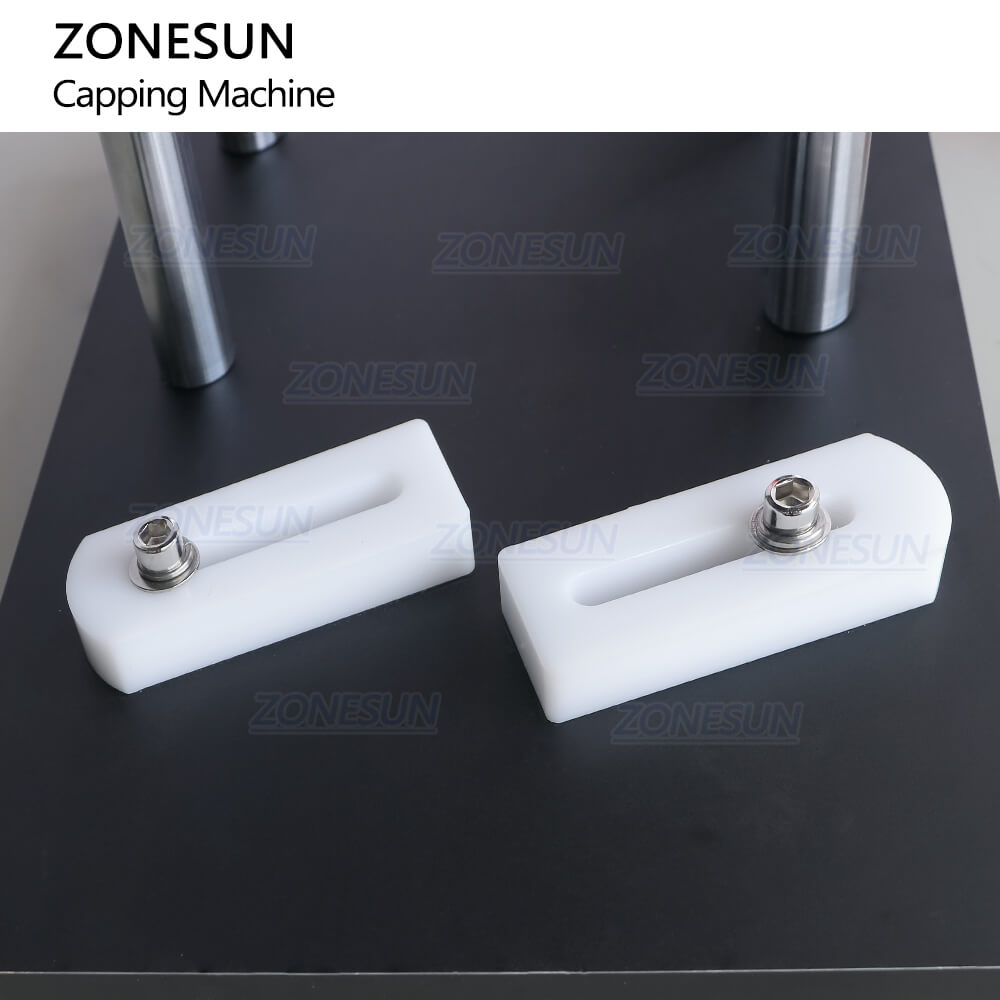

The bottom fixing mold is used to fixing bottles during capping work.It can be adjusted according to bottle size.With this, it improves capping accuracy.

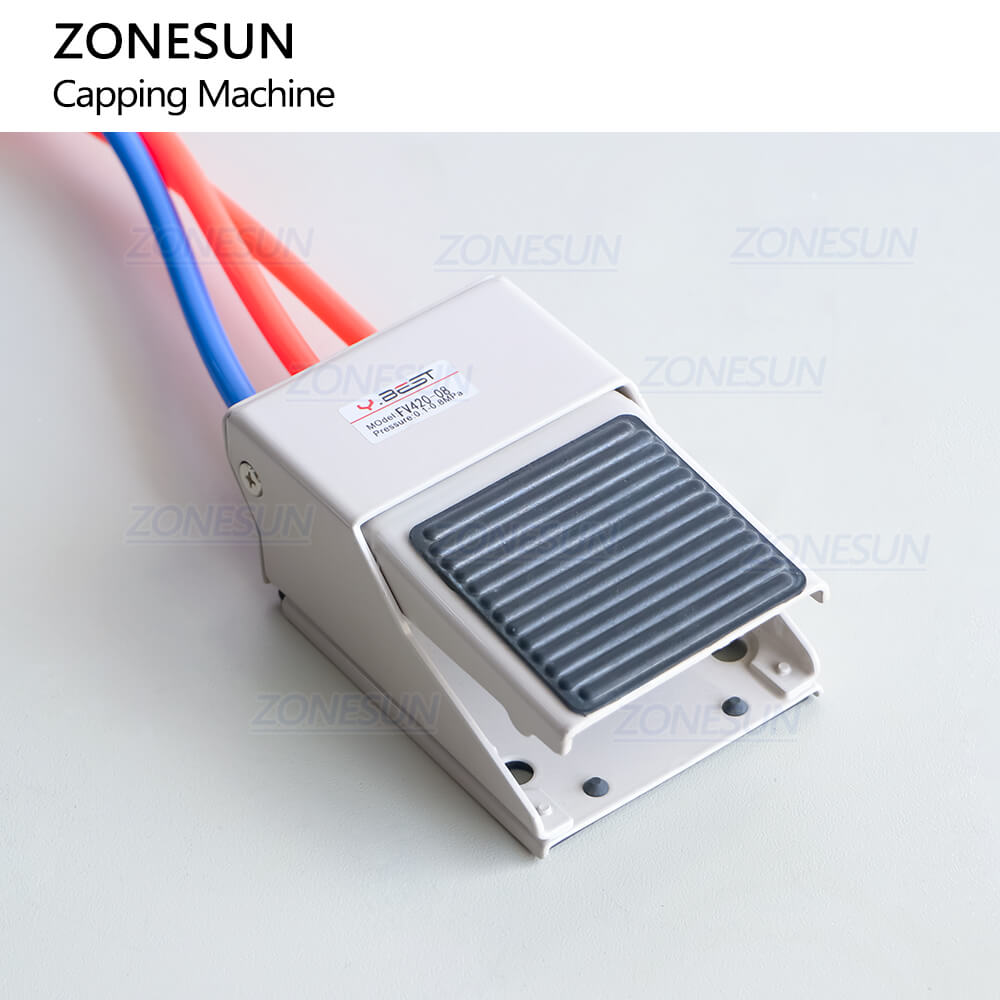

Full pneumatic capping machine, it can be controlled by the pedal switch.This can free operators’ hands during capping work, improves working efficiency

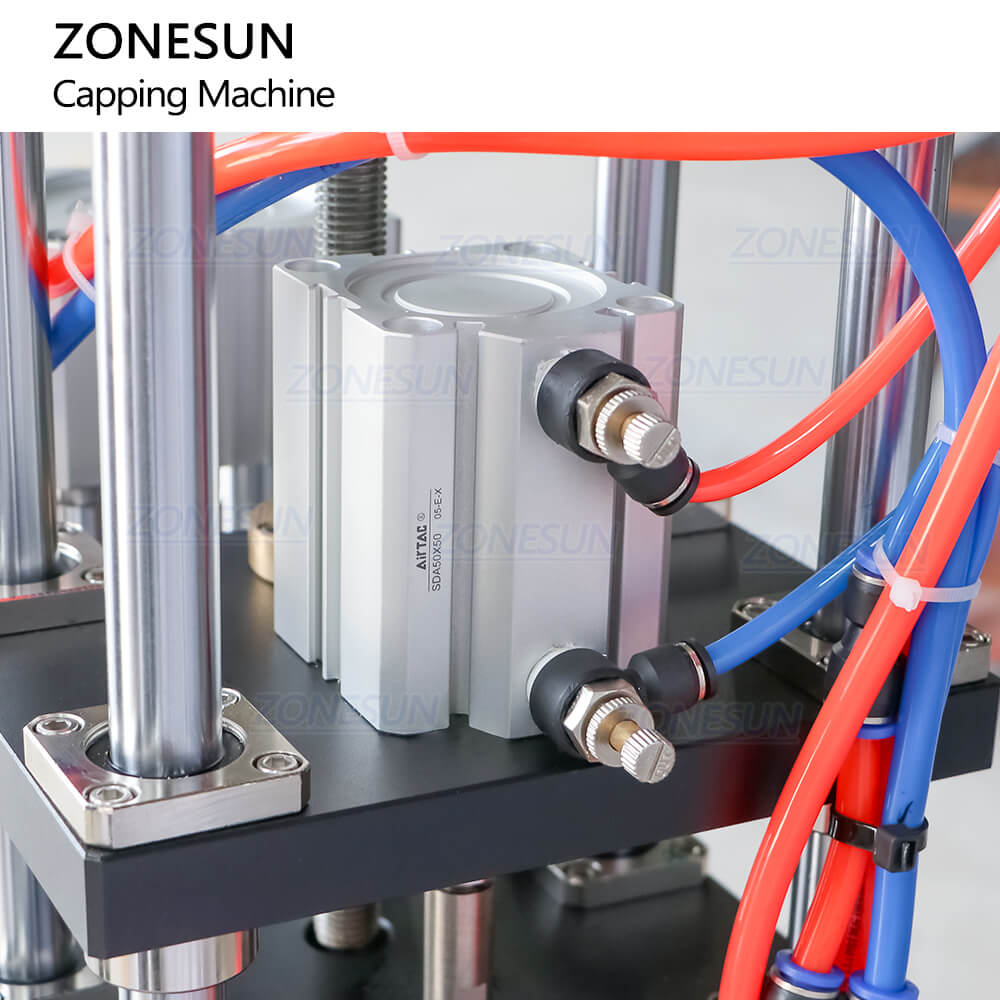

Driven by high quality air cylinder, it is more powerful when capping bottles.This machine should work with air compressor, you can buy them separately if you need this.
