ZONESUN ZS-AFC07 Automatic Rotary Double Heads Piston Pump Mayonnaise Cream Cheese Yogurt Cup Filling and Sealing Machine
Earn 0 points on this purchase.
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
The rotary automatic cup filling and sealing machine is an efficient and versatile solution for automated cup packaging. This machine integrates multiple functions, including cup feeding, paste filling, film feeding, and cup sealing, ensuring a seamless production process. Equipped with a piston pump, it is capable of filling thick liquids and pastes, such as ketchup, yogurt, sauces, and creams, with high precision. The machine can be customized to meet your specific production requirements, making it ideal for food, dairy, and beverage industries.
Parameter
- Machine Model: ZS-AFS07
- Voltage: 220V 3-Phase
- Power: About 1.5 kW
- Production Capacity: About 25 cups/min (depending on cup size and filling materials)
- Filling Range: 10-100 ml (Can be customized)
- Filling Pump: Piston Pump
- Suitable Cup Size: Can be customized
- Hopper Capacity: 50L
- Hopper Function: Heating & Mixing Function
- Machine Size: About 1400*1100*1750 mm
Equipped with PLC control panel, it is easy to set and adjust working parameters. The language of panel can be customized as your need.
The hopper has heating and mixing function, which enables it to fill thick paste smoothly. It is also equipped with feeding pump, which can feed materials into hopper automatically, saving labor.
Driven by piston pump, this machine can fill thick liquid or paste accurately. The filling range and quantity of filling nozzles can be customized as your need.

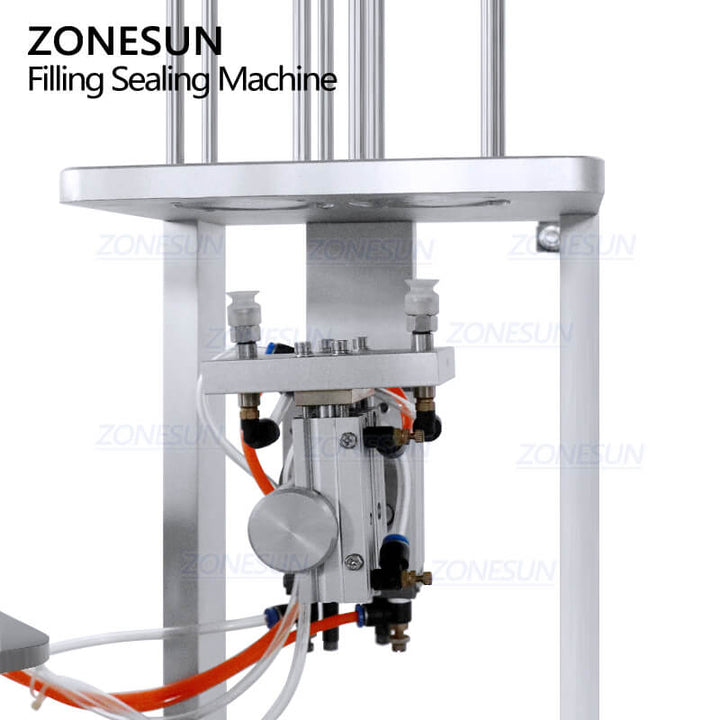

The structure is designed for feeding pre-cut film lids onto cups. It can help to improve working efficiency. The structure can be customized according to your products.

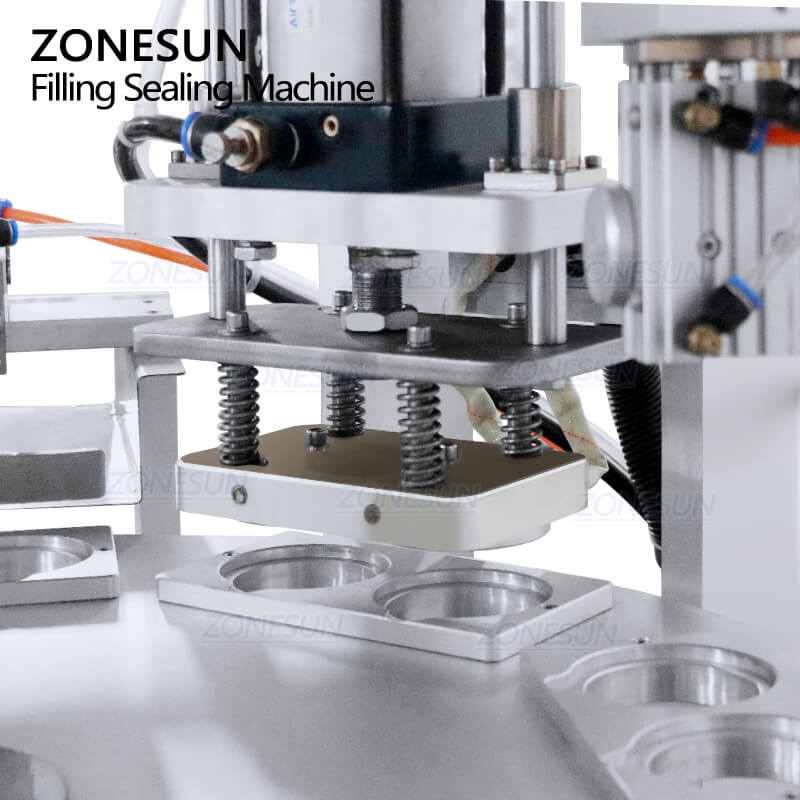

Driven by powerful cylinder, the structure can seal plastic cups well. The sealing temperature and sealing time can be adjusted as production need.
