ZONESUN ZS-AFC6 Rotary Automatic Pocket Card Perfume Mini Tester Liquid Soap Small Bottle Vial Cap Press Monoblock Filling Capping Machine

Size
Price
Regular price $5,199.00 USD
Regular price Sale price $5,199.00 USD
Save $-5,199 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Video of Pocket Card Perfume Filling Capping Machine

This machine is equipped with 316 stainless steel magnetic pump,it can fill liquid and cap bottles at the same time,multifunctional and reduce working space.It is widely used in food,drinks,daily chemical and advanced cosmetics industries.

Parameter

  • Machine model:ZS-AFC6
  • Voltage:110/220V
  • Machine power:1000W
  • Bottle diameter:Customize
  • Max flow rate:2L/min
  • Bottle height:Customize
  • Cap diameter:Customize
  • Size of filling nozzle:OD 4mm
  • Working speed:10-50 bottles/min(based on filling volume and liquid)
  • Machine size:About 930*670*1080mm
  • Machine weight:About 104kg
  • Package size:About 950*690*1440mm
  • Package weight:About 135kg

Vertical Monoblock Filling Capping MachineApplication of Vertical Monoblock Filling Capping MachineMachine Details of Vertical Monoblock Filling Capping Machine

Operation Panel of Vertical Monoblock Filling Capping Machine

The touch screen control panel is more convenient to adjust the machine,and the visual working parameter makes it possible to watch the working status of the machine in real time,reduce production error.

Electric Eye of Vertical Monoblock Filling Capping Machine

Equipped with high quality electric eye,it can be used to detct bottles and control the machine to start filling,prevent from missing bottles and improve working accuracy.

Magnetic Pump of Vertical Monoblock Filling Capping Machine

The 316 stainless steel magnetic pump is suitable for filling low viscosity liquid and corrosive liquid,it has the high filling accuracy and good for most of liquid.

Rotary Plate of Vertical Monoblock Filling Capping Machine

The rotary plate is designed for holding bottles and transport the bottle during filling and capping,it need to be customized according to bottle shape and size,with this,the machine can work more accurately.

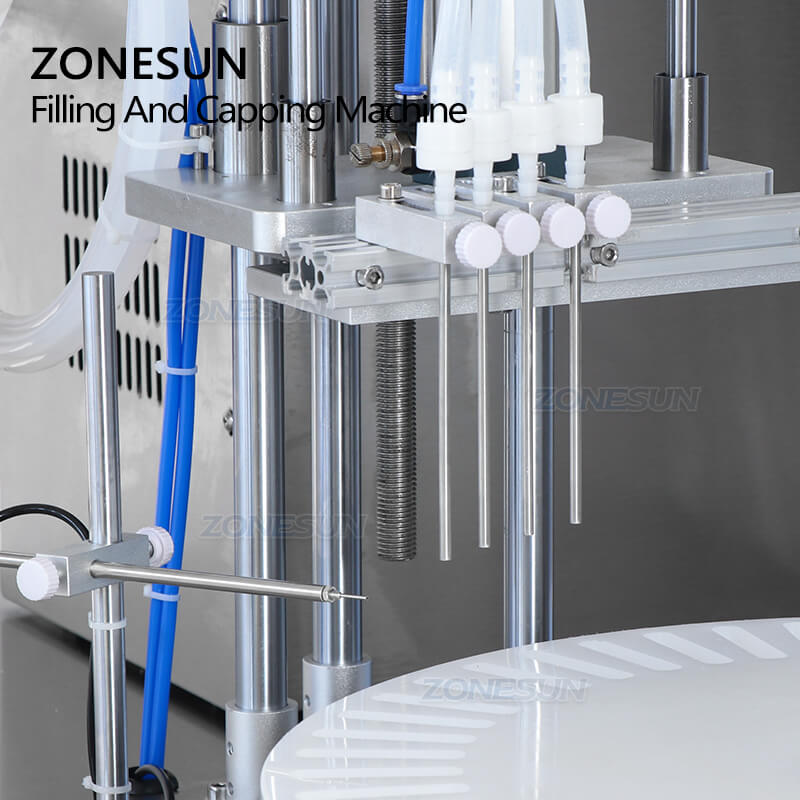

Filling Nozzle of Vertical Monoblock Filling Capping Machine

The customized filling nozzle can prevent from spraying out the liquid during filling,improves filling accuracy. Multiple filling nozzles are available according to production need.

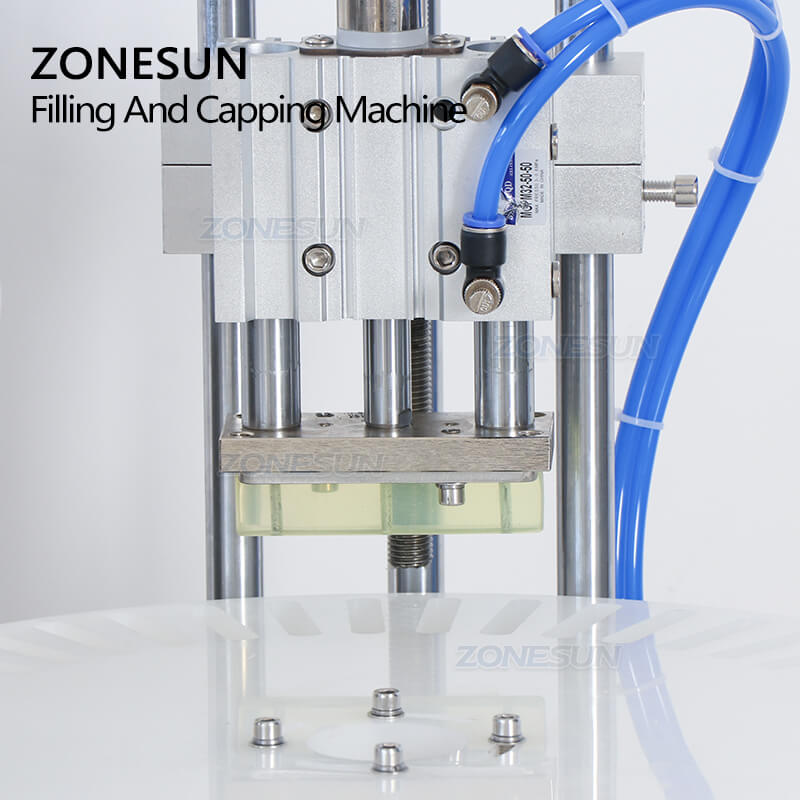

Capping Head of Vertical Monoblock Filling Capping Machine

The capping structure is made of high quality material,it is more powerful to press bottle caps.This structure can be customized according to bottle cap shape.Extra cap feeding machine can be customized as customers'requirement.

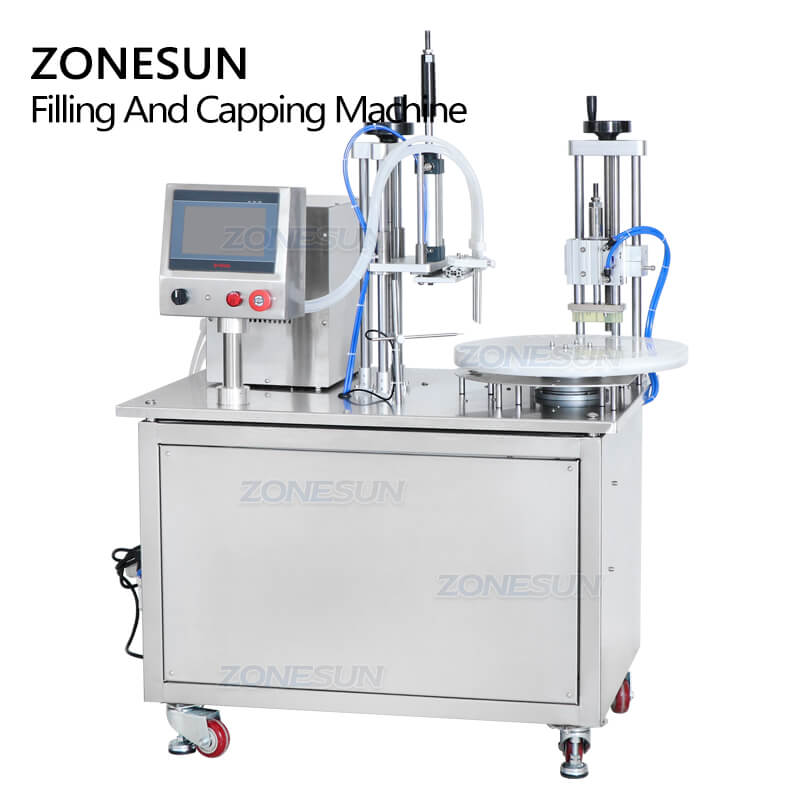

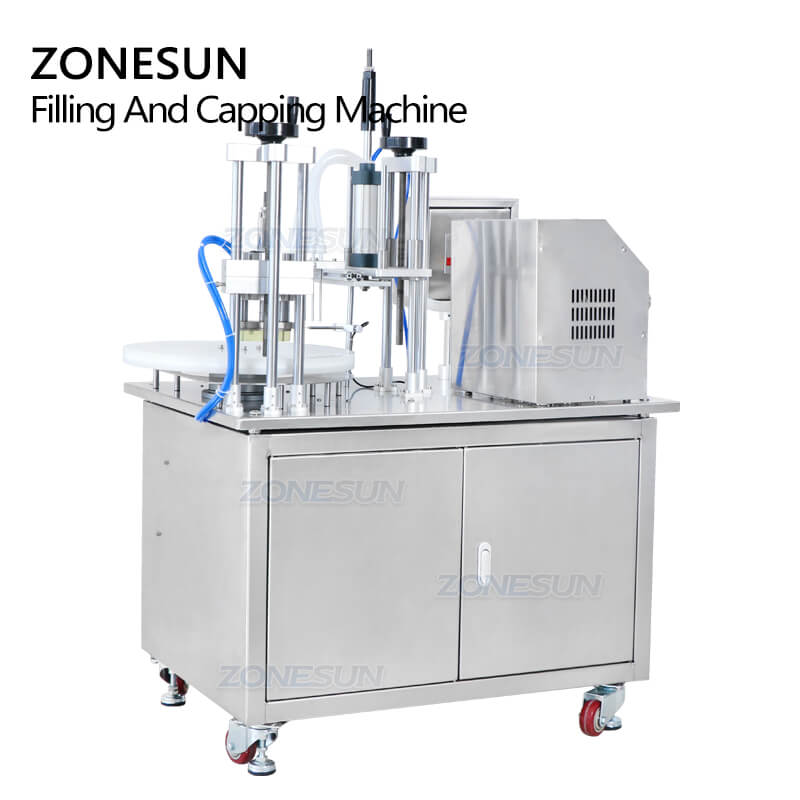

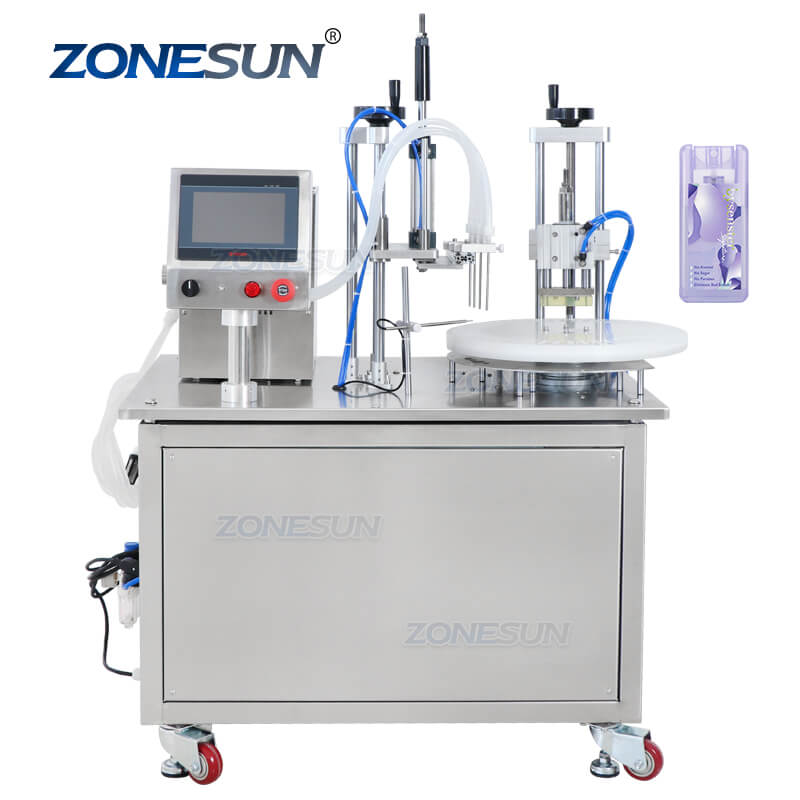

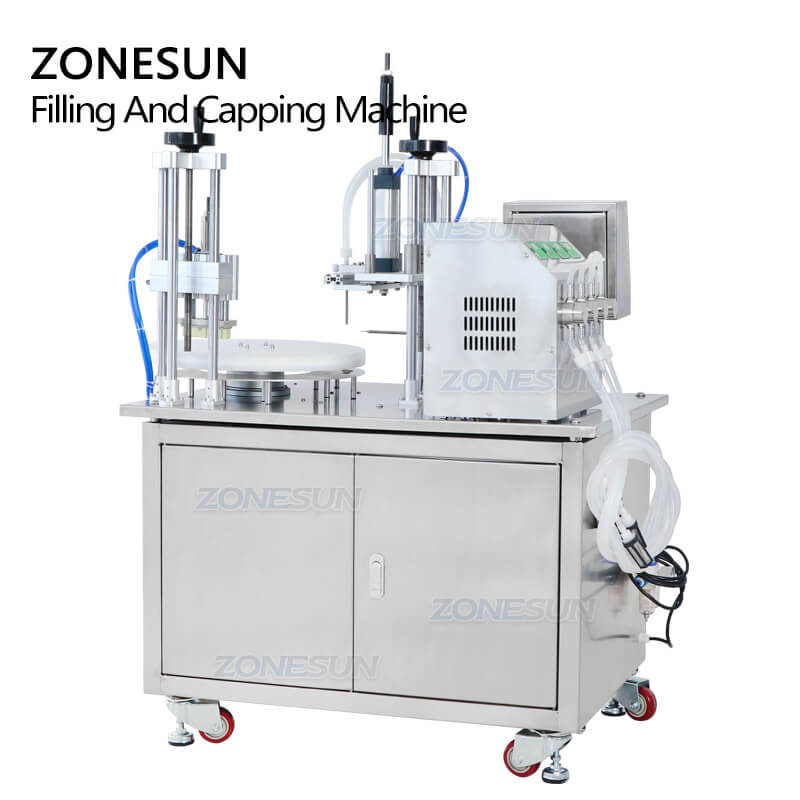

Vertical Monoblock Filling Capping Machine

ZS-AFC6 Vertical Monoblock Filling Capping Machine
