Rotary 4 In 1 Automatic Filling Capping Machine
4 In 1 Filling And Capping Machine
4 In 1 Filling And Capping Machine
4 In 1 Filling And Capping Machine
4 In 1 Filling And Capping Machine
4 In 1 Filling And Capping Machine

ZONESUN Rotary 4 In 1 Automatic Essential Oil Vial Bottle Filling And Capping Machines

Size
Price
Regular price $11,499.00 USD
Regular price Sale price $11,499.00 USD
Save $-11,499 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

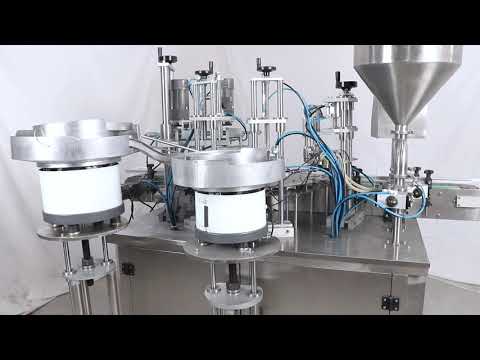

Click Video Link For Video

This automatic production line is designed with multiple function,it can arrange bottles, fill liquid or paste,feed bottle plugs and caps , cap bottles and sort finished products automatically.It can help you improve working efficiency.This is suitable for essential oil,water,juice etc.We can customize the machine and make it can work for different sizes of containers at the same time.
Parameter
  • Machine Model:ZS-AFC4
  • Voltage:220V/110V 50-60HZ 1.2KW
  • Filling Material:liquid and paste
  • Filling Range:Customize
  • Conveyor Size:1920mm*100mm(L*W)
  • Bottle Height:Customize
  • Bottle Diameter:Customize
  • Bottle Caps Diameter:Customize
  • Working Speed:About 20-30 bottles/min(according to liquid and filling range)
  • Machine Weight:455kg
Package Weight:576kg
With touch screen control panel,the operator just need to enter the number to set parameter,makes it more convenient to control the machine,save time on testing machine.The language of the control panel can be customized according to operation needs.
Designed with two pneumatic filling nozzle,it is suitable for filling thicker liquid like lotion,hand cream,essential oil.Each nozzle can be controlled separately.
This mechanism can feed bottle plug and press them precisely and automatically.Help you reduce the production process and save labor,improve working efficiency.
The cap feeding mechanism can arrange bottle caps,feed caps automatically,make the machine can work in order.The cap feeding mechanism will be customized according to your needs.
These four rubber wheels will rotate and tighten the bottle cap.This kinds of capping method makes it suitable for different kinds of bottle caps like spray bottles,water bottle,dropper bottles.
The turntable structure is made of high quality stainless steel, which is durable.Bottle outlet size is 20-80mm,but we can customize the machine according to your need.
