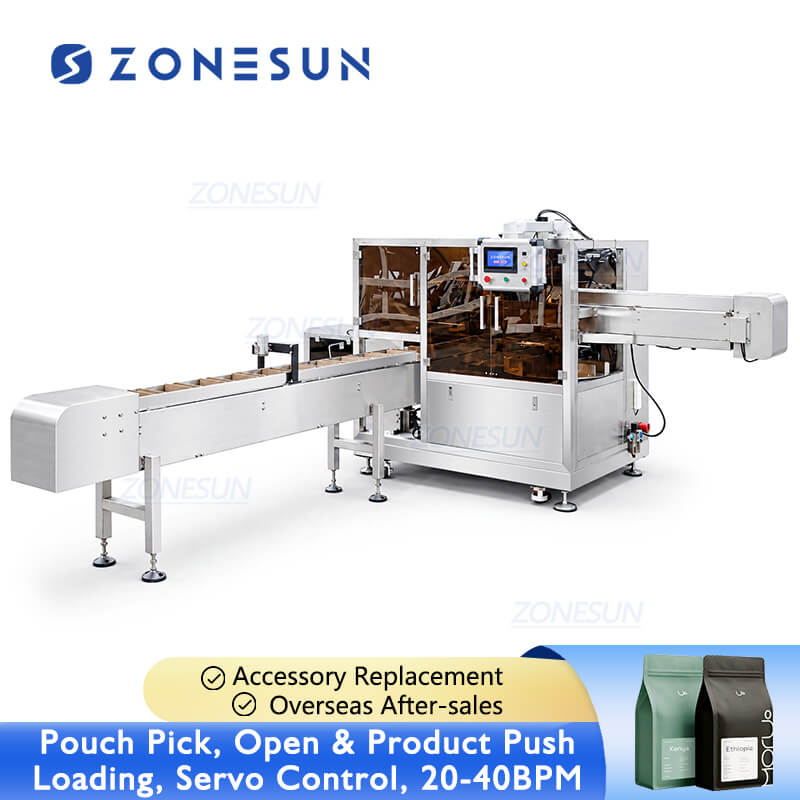

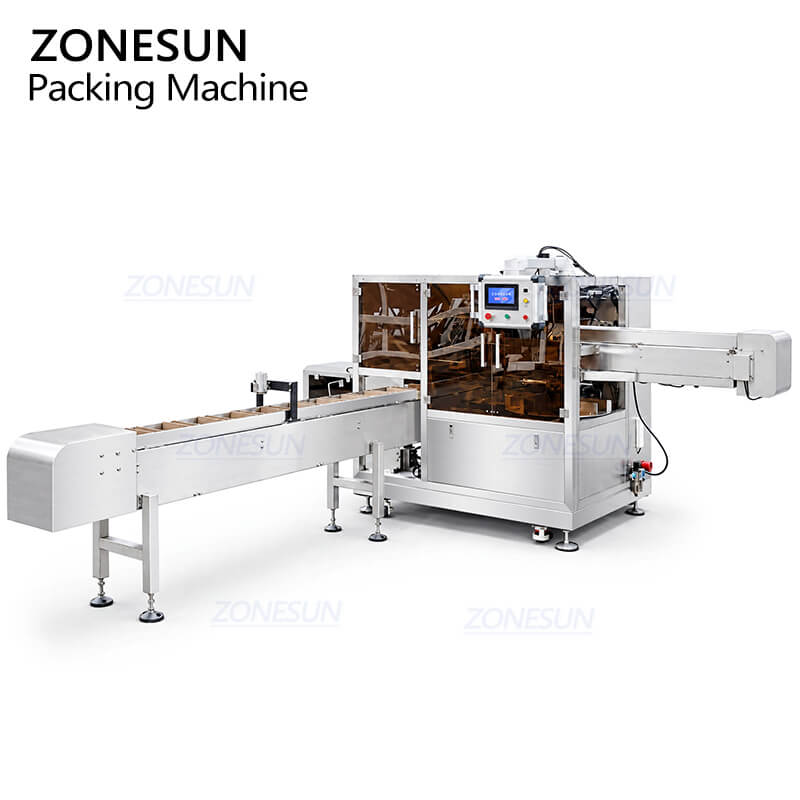

ZONESUN ZS-MSZD01 Push-Type Automatic Horizontal Premade Pouch Packing Machine for Wet Wipes Cotton Pads and Bakery Bread
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
Description

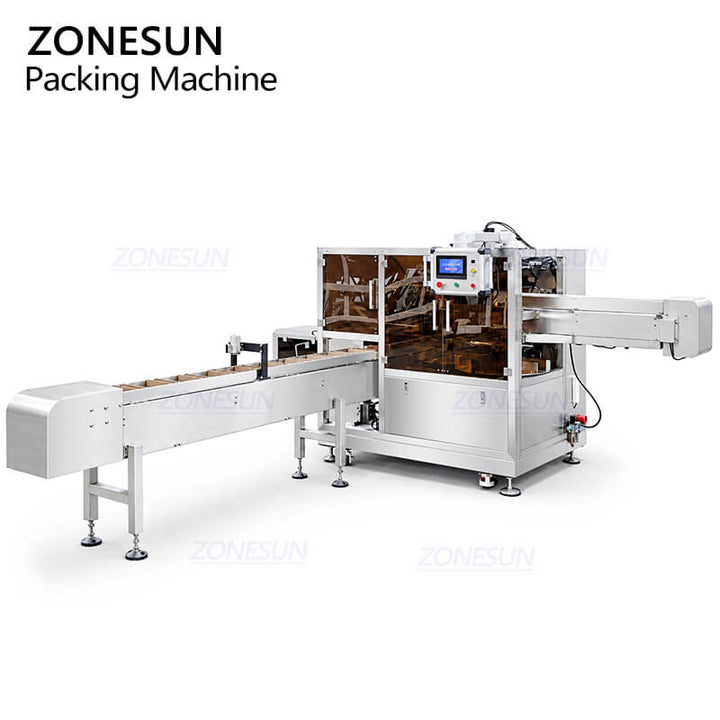

The ZONESUN ZS-MSZD01 is an automatic horizontal premade pouch packing machine for bread, cakes, toast, block foods, tray products, and multipacks of prepacked goods. It feeds and arranges products, picks and opens premade pouches, pushes products horizontally into pouches, heat seals, and discharges finished packs. A suction-cup system transfers pouches to the rotary bag-opening station. Opening clamps hold each pouch open and positioned for loading. Pouch-size changes require matching bag-support forming tooling, while stored recipes recall sealing and pouch-pulling adjustments. Packaging speed is 20–40 bags per minute, depending on product characteristics and pack weight. Heat-sealing temperature is adjustable, and no-pouch-no-push control is included. Date printing, coding, safety guards, and door interlocks are optional.
Specification
- Machine Model: ZS-MSZD01
- Power Supply: Three-phase, 380 V
- Rated Power: 5 kW
- Total Power: 7.62 kW
- Packaging Speed: 20–40 bags/min
- Design Speed: 20–45 bags/min
- Pouch Width: 100–200 mm
- Pouch Length: 100–280 mm
- Pack Height: 30–100 mm
- Compatible Pouches: Flat pouches M-shaped pouches stand-up pouches three-side seal bags four-side seal bags aluminum foil bags nylon bags and paper bags
- Air Consumption: 200–260 L/min
- Machine Dimensions: 3520 × 3140 × 1825 mm
- Machine Weight: 1590 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
Details

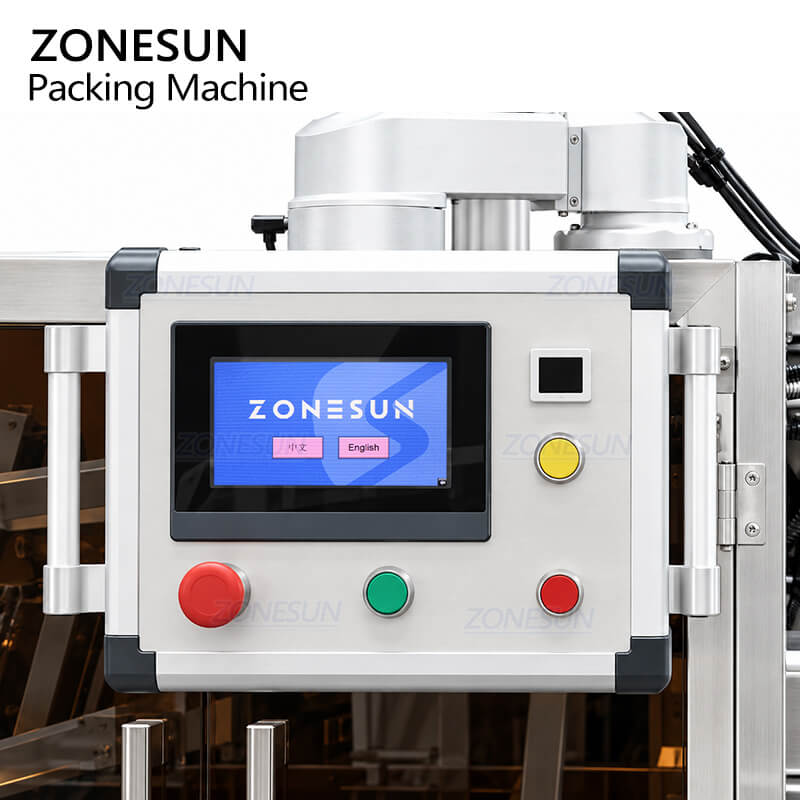

Touchscreen Control Panel
The 10-inch touchscreen works with the motion control system for operation and parameter adjustment. The control system stores and recalls recipes for sealing and pouch-pulling adjustments.
Product Push-Loading Structure
The push-loading structure moves fixed-shape products horizontally into opened pouches while maintaining product orientation.

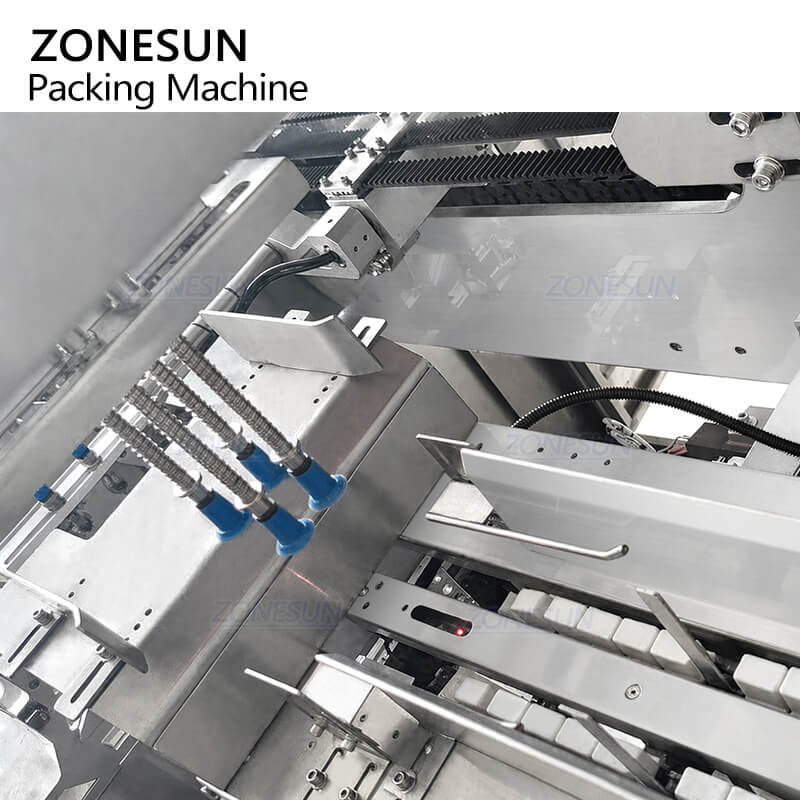

Premade Pouch Feeding Station
The SUS304 pouch feeding station supplies premade pouches through multiple working positions.

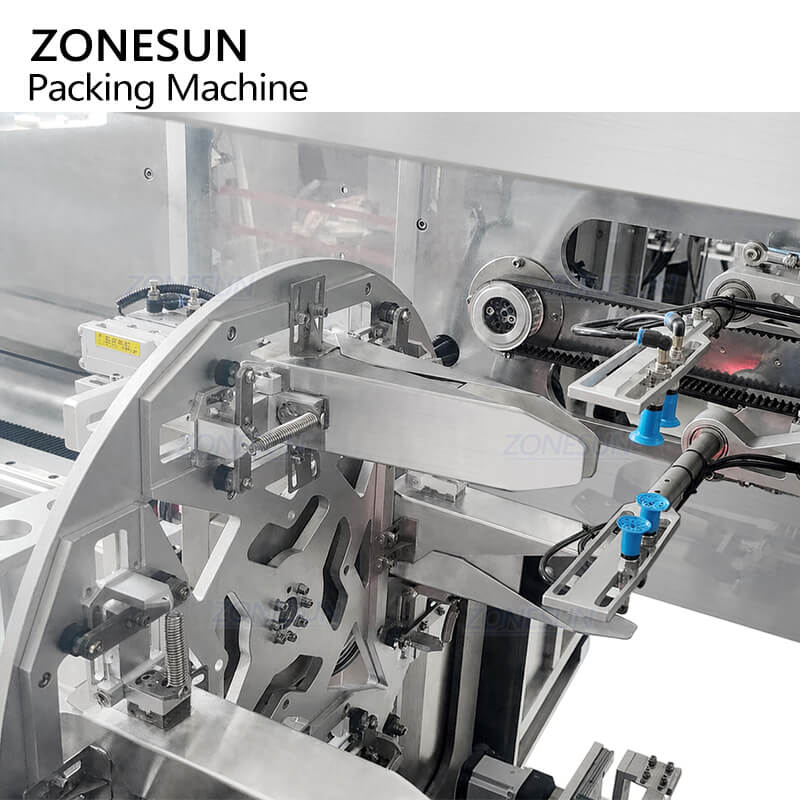

Rotary Pouch-Opening Station
The SUS304 station uses suction cups to pick pouches. Opening clamps hold each pouch open and positioned for product loading.

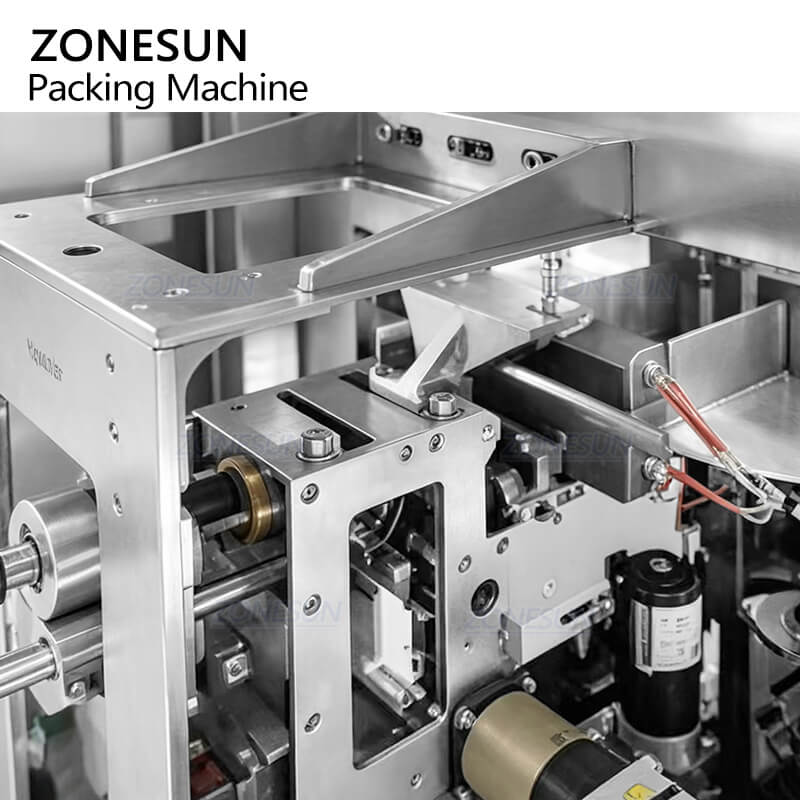

Heat Sealing Structure
The heat sealing structure closes filled pouches. Sealing temperature can be adjusted for different pouch materials.

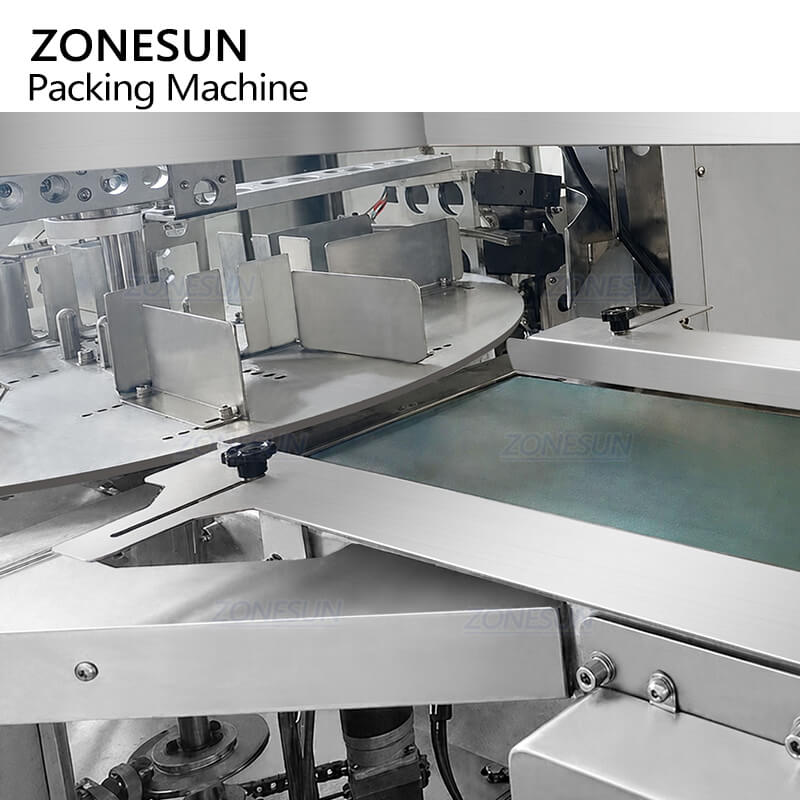

Finished Product Conveyor
The food-grade PU conveyor transfers sealed packs to the next production stage.
FAQ
Q1. What types of products are best suited to this machine?
The machine is designed for fixed-shape solid products that can be stably conveyed and pushed into premade pouches. Typical examples include bread, cakes, toast, block foods, tray products, and multipacks of prepacked goods.
Q2. Which premade pouch styles can this machine handle?
The machine supports flat pouches, M-shaped pouches, stand-up pouches, three-side seal bags, four-side seal bags, aluminum foil bags, nylon bags, and paper bags. Pouch stiffness, opening condition, and dimensions should be checked with the actual product.
Q3. What affects the actual packaging speed?
The reference packaging speed is 20–40 bags per minute. Actual output depends on product dimensions, product weight, pack arrangement, pouch size, and the stability of product feeding.
Q4. What is required when changing to another pouch size?
A pouch-size change requires a matching bag-support forming tool. Sealing and pouch-pulling settings can be adjusted by recalling the stored recipe.
Q5. Can coding equipment or downstream packing equipment be added?
Date printing and coding equipment can be configured when required. The finished-pack conveyor can also connect with cartoning or case-packing equipment after production rhythm and conveyor direction are confirmed.
