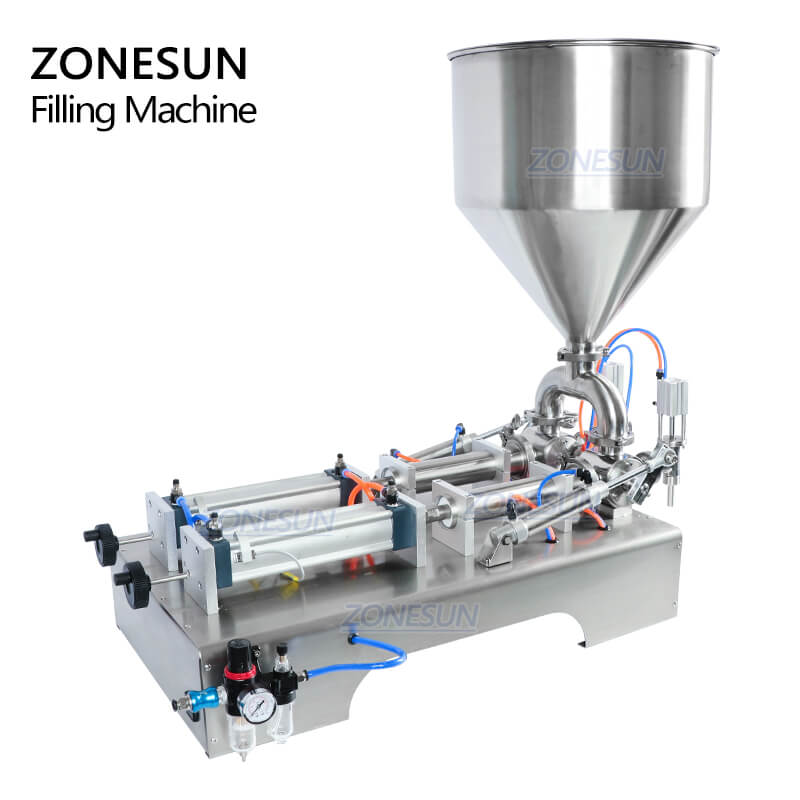

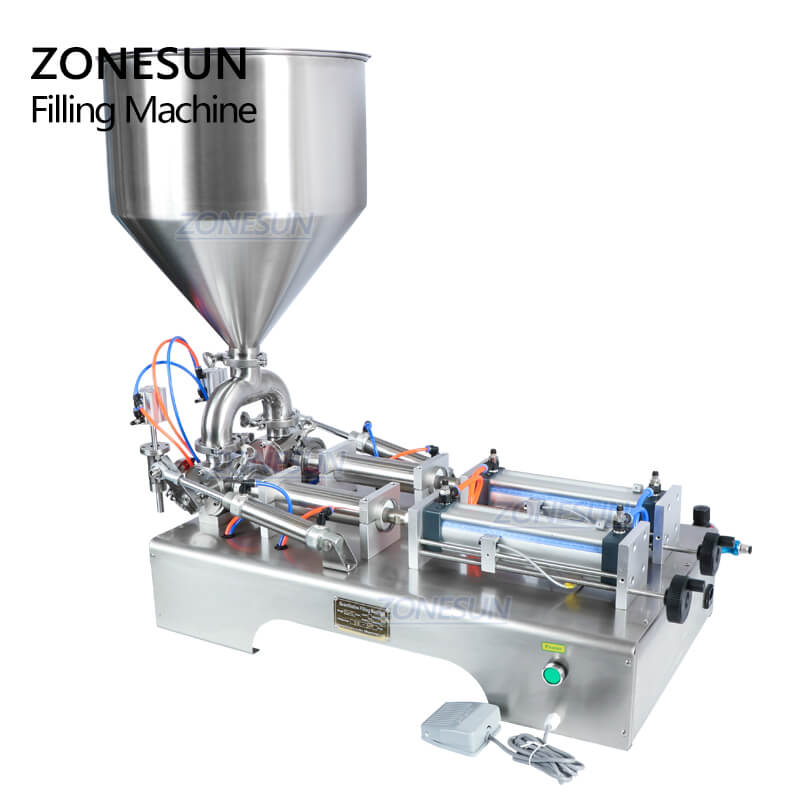

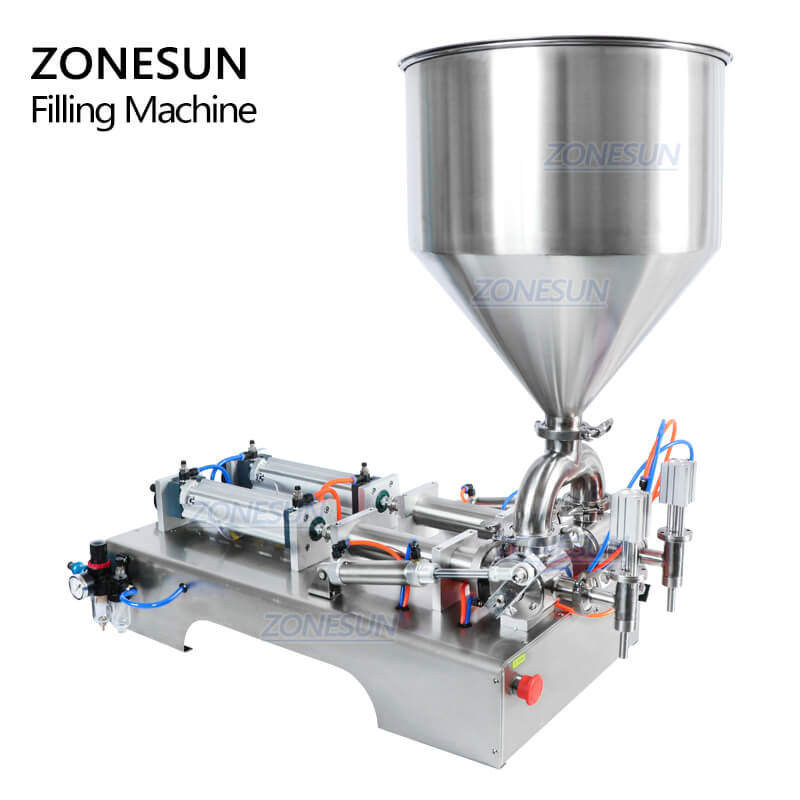

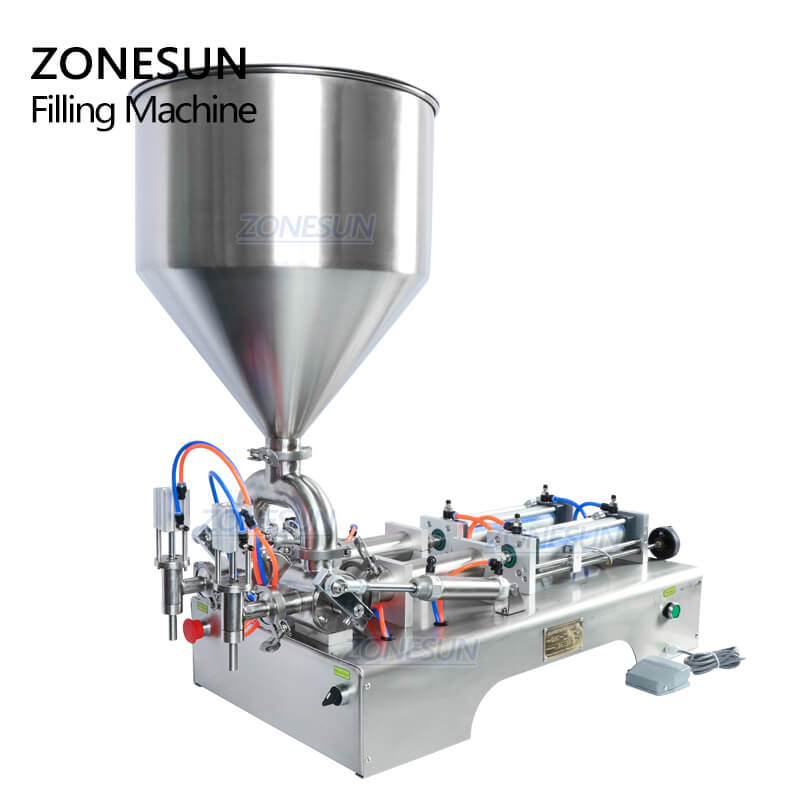

ZS-GY2 Pneumatic Piston Pump Liquid Chili Sauce Paste Honey Jam Bottle Filling Machine

Voltage
Size
Regular price $689.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

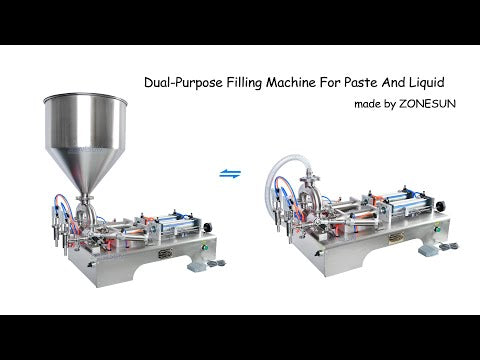

Click Video Link For Video

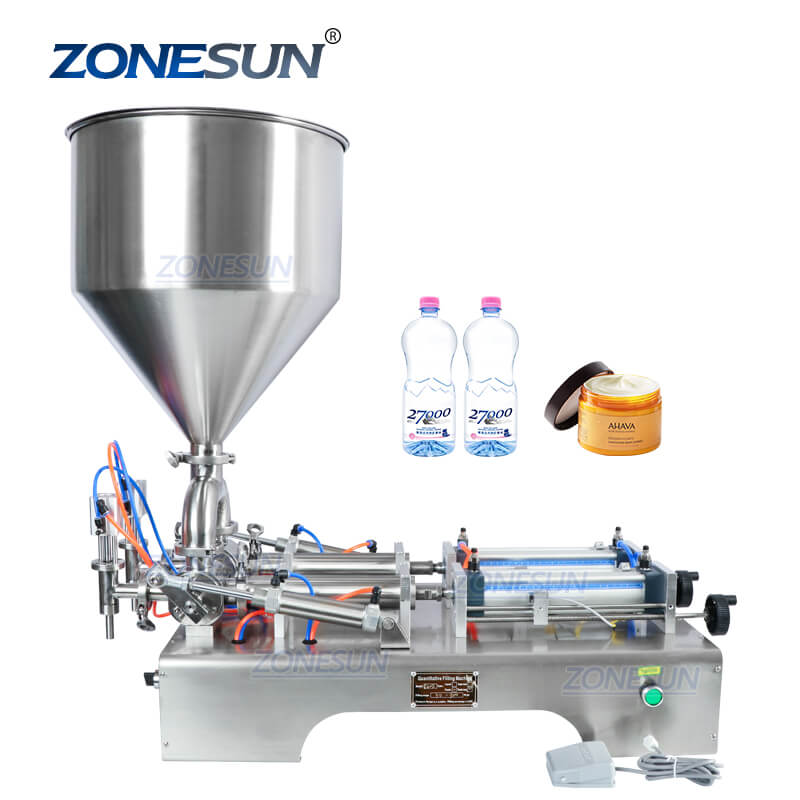

This semi automatic filling machine is suitable for paste and liquid,such as cream,chocolate,perfume, essential oil,shampoo,etc.The two filling nozzles can be controlled separately,easy to operate.The hopper can be changed into hose according to production needs.The machine can be widely used in beverage, pharmaceutical,daily chemical,cosmetic industries.Help to improve working efficiency.

Parameter

Machine Model:ZS-GY2
Voltage:220V/110V 50-60Hz
Power:10W
Filling Range:5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Filling Speed:10-50bottles/min(depend on bottle size and liquid)
Air Pressure:0.4-0.6MPa
Filling Accuracy:±0.5%
Driven Type:Electric and pneumatic
Air Capacity:>30L
Machine Size:About 800*440*880mm
Package Size:About 960mm*515mm*330mm(machine)
About 440mm*460mm*540mm(hopper)
Net weight/Gross weight:About 35+4kg/43+5kg

ZS-GY2 Piston Pump Filling MachineApplication of ZS-GY2 Piston Pump Filling MachineMachine part of ZS-GY2 Piston Pump Filling MachineDetails of ZS-GY2 Piston Pump Filling Machine

The feeding container can be changed by the knob, helping to improve working efficiency.Please notice that if you change the hopper into hose, the machine can only fill liquid, not suitable for filling paste.

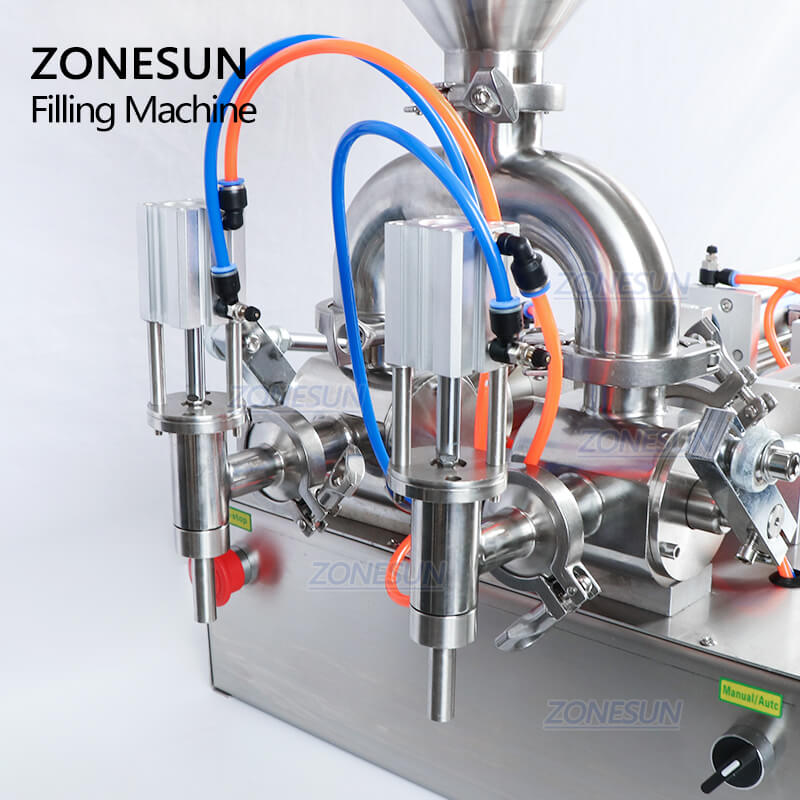

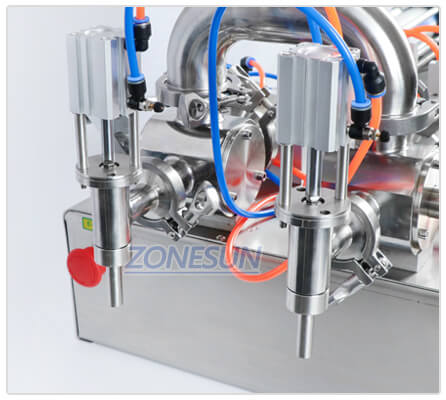

Filling Nozzle of Piston Pump Filling Machine

Both of the nozzles have anti-drip-ping function, which ensures the filling accuracy.They can be controlled separately.Easy to operate.

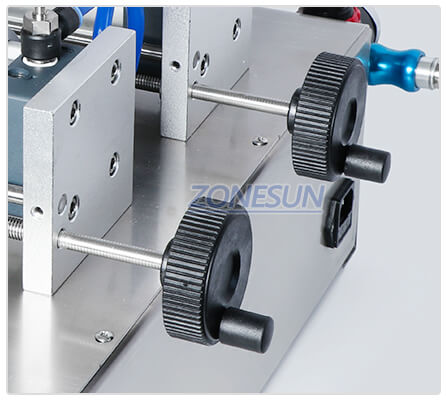

Rotary Knob of Piston Pump Filling Machine

The black handle is used for adjusting the filling volume.The cylinder is with detailed scale, making it more accurate to fill liquid.

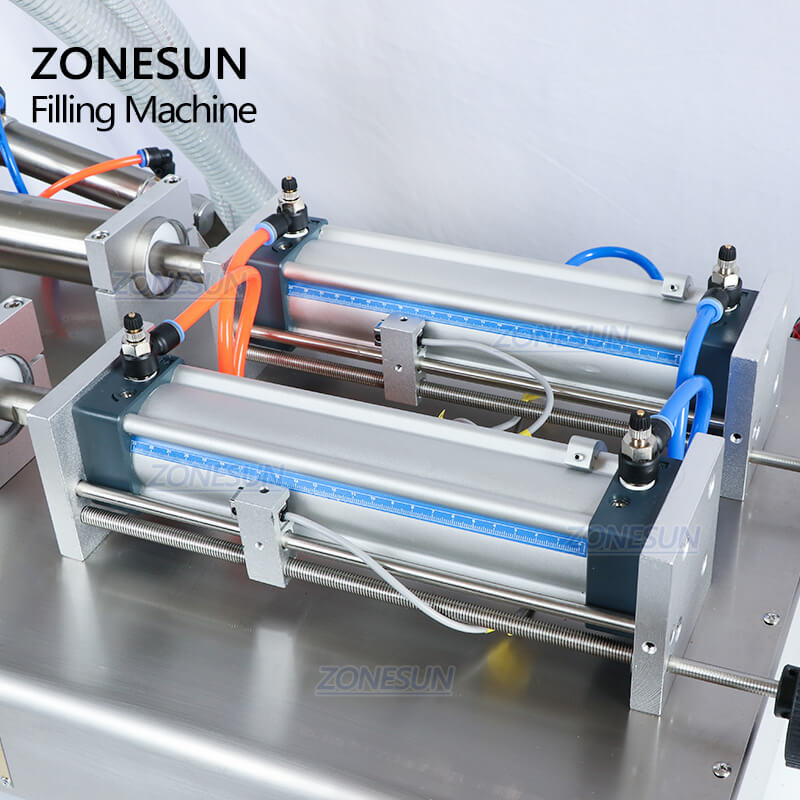

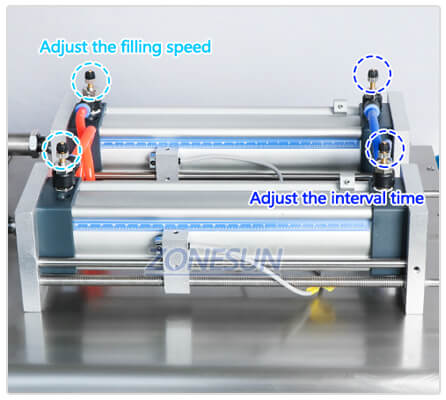

Filling Range Cylinder of Filling Machine

The filling speed of the two nozzles can be adjusted separately by the left knobs. In automatic mode, operator can adjust the internal time by the right knob.

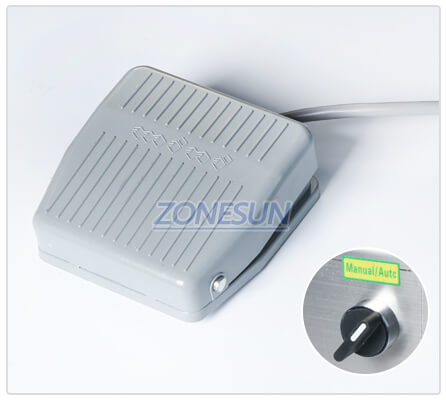

Pedal Switch of Filling Machine

This machine has two working modes(Automatic mode / Manual mode). In automatic mode, opera-tor can use the pedal switch to test the machine. In manual mode, operator can fill bottles by pressing the pedal switch.

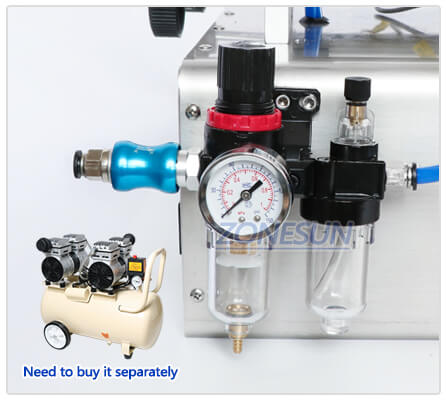

Oil-water separator of Filling Machine

The barometer is designed for watching ari pressure in real time,ensuring a safe working environment. This machine need to work with ari compressor, which should be bought separately. lf you need, please contact us.

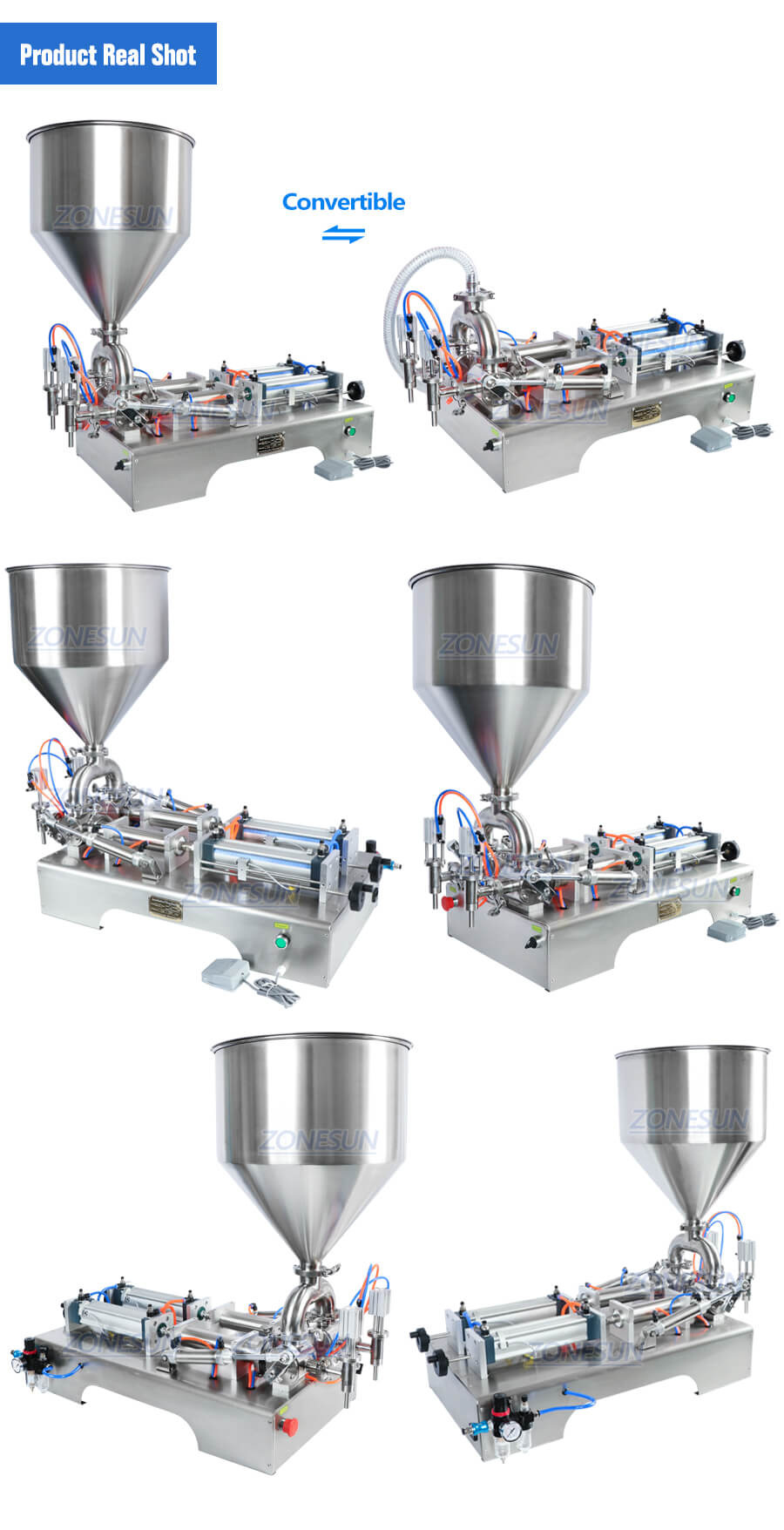

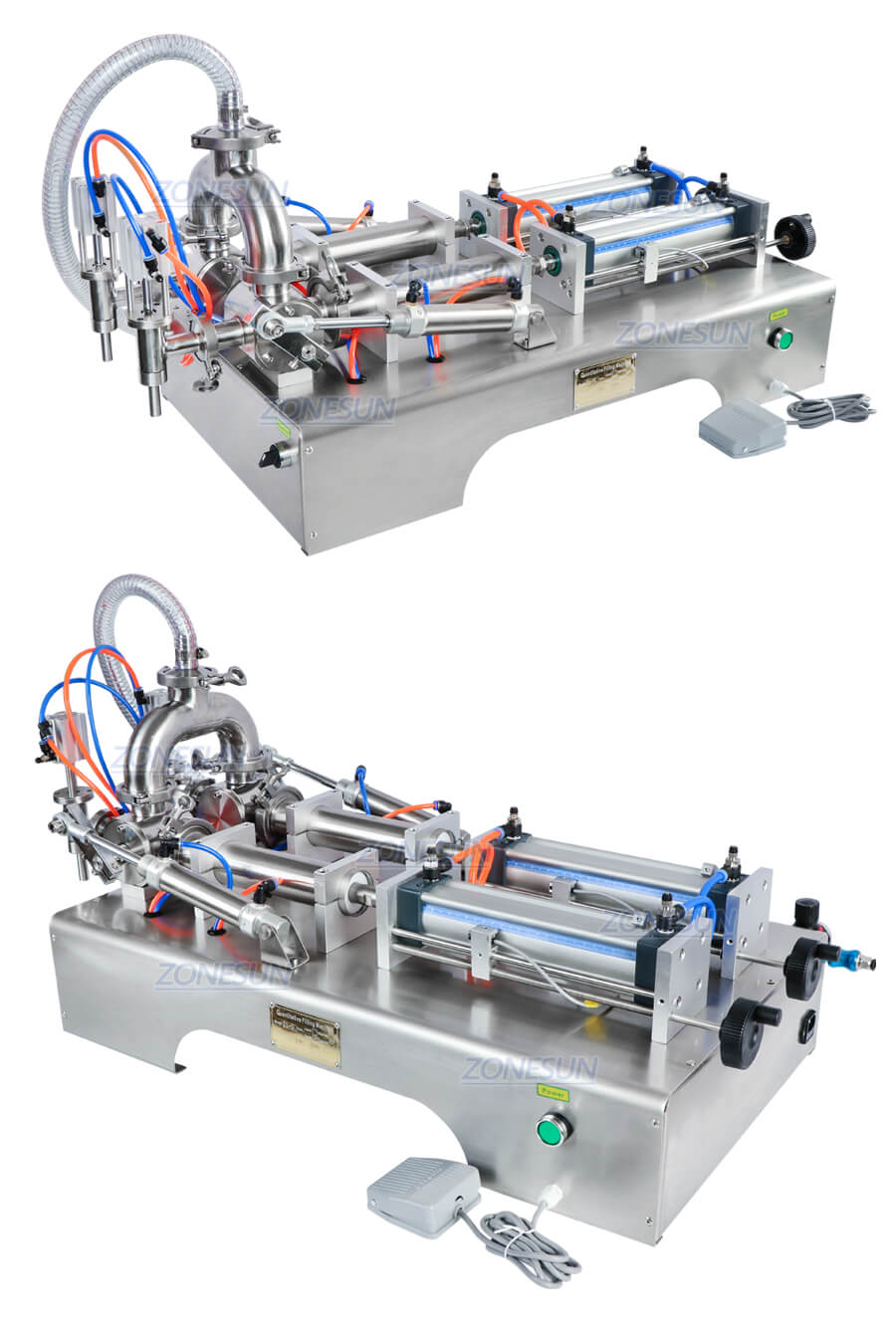

Paste Filling MachineLiquid Filling Machine
