Description

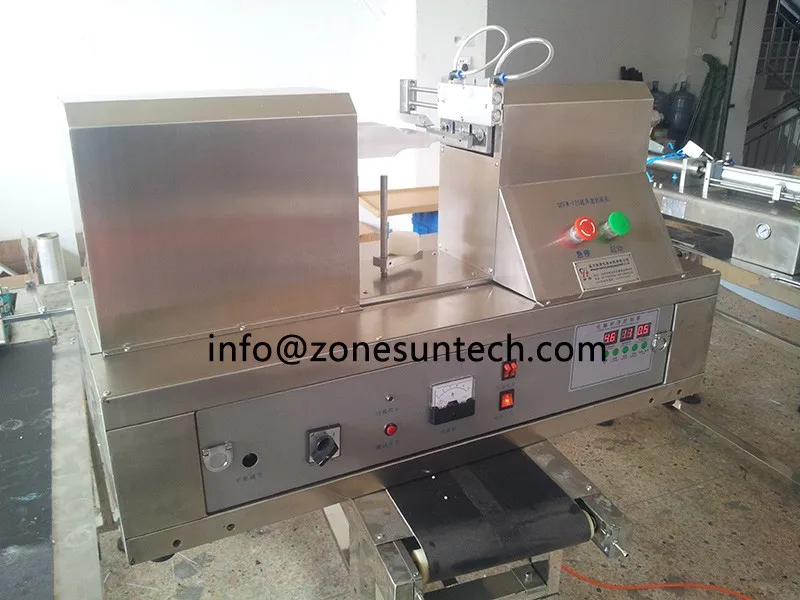

This machine is designed for sealing soft tube like toothpaste,hand cream,lotion,shampoo etc. It is with the cutting function,can cut off the needless soft tube after sealing.It can be equipped with date coder to make it achieve to seal and date code at the same time.reduce your production process and cost.
Parameter
Machine name:Ultrasonic Sealing Machine
Machine model:QDFW-125S
Power supply:220V/110V (can be customized)
Power:1200W
Sealing speed:About 20 pieces/min
Sealing diameter:10-80mm (80-100mm can be customized)
Suitable product height:≤210mm
Suitable material:Aluminum-plastic soft tube/Plastic soft tube
Cooling method:Cold air
Machine dimensions:1000mm*500mm *1040mm(L*W*H)
Machine weight:67.5kg
Package size:1060mm*510mm*655mm(L*W*H)
Package weight:74.5kg
Size of air compressor:OD 8mm

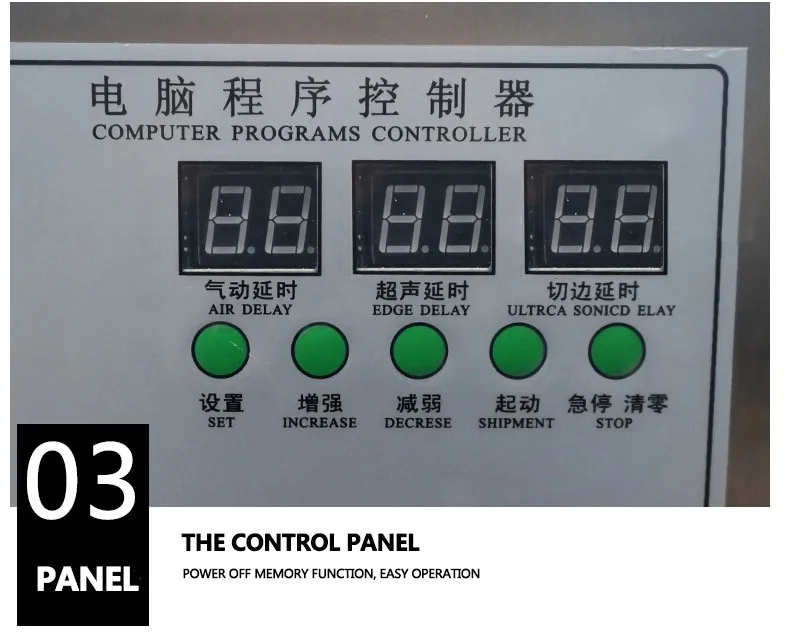

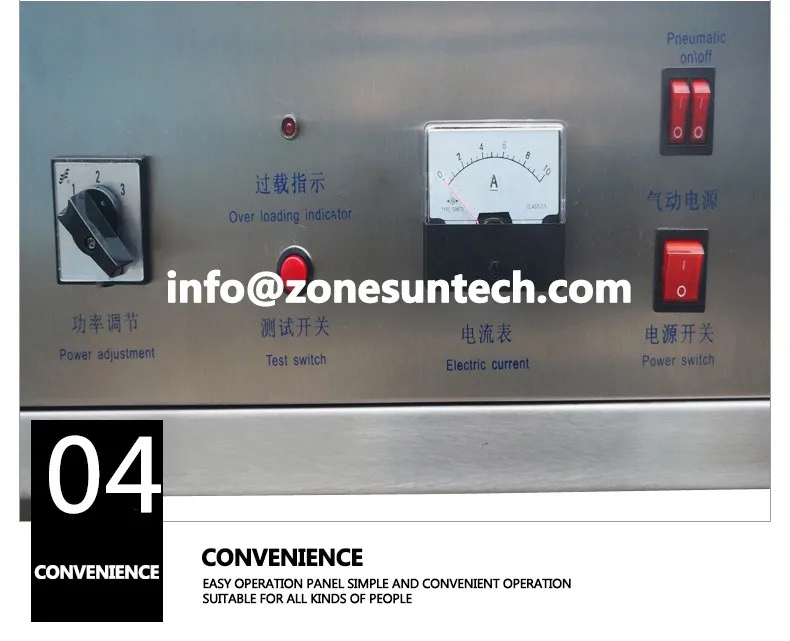

With simple control panel,each function can be controlled easily according to this panel.The imported chip and high quality circuit board makes the machine work stably.

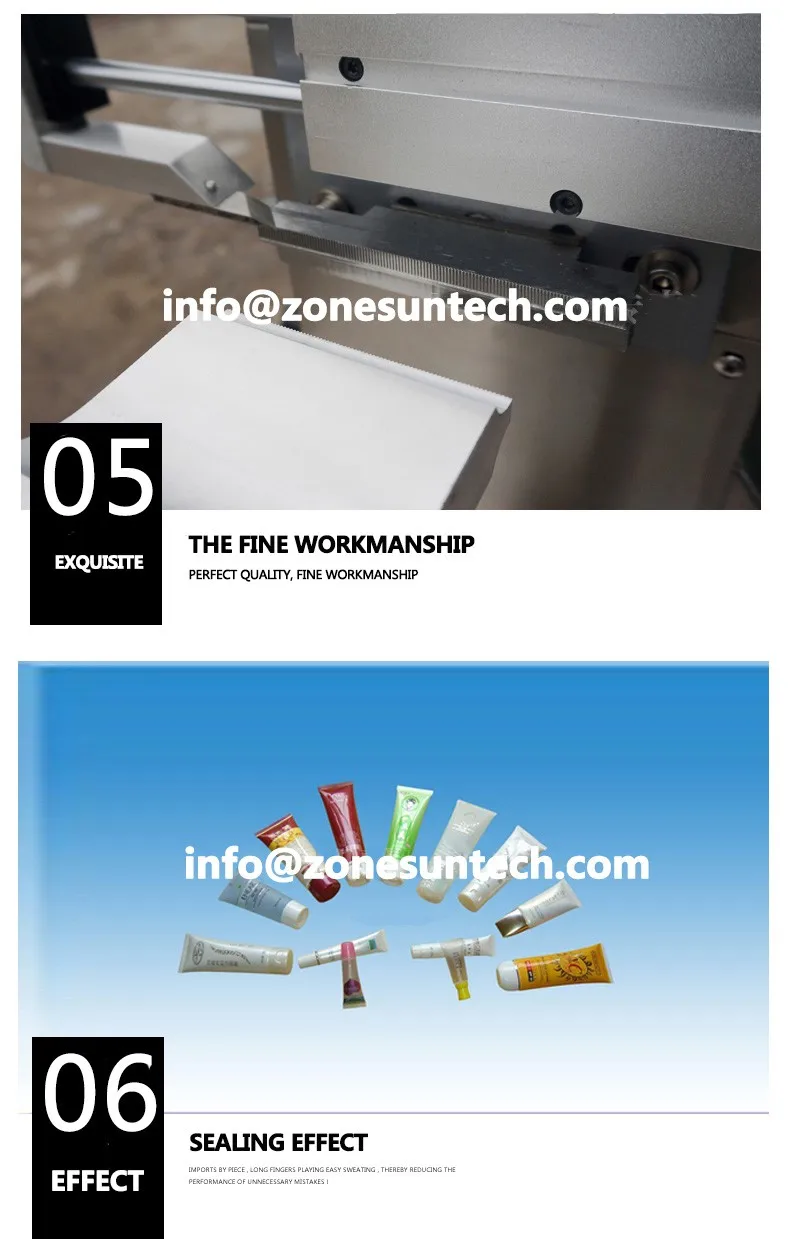

With sealing and cutting function,this machine can be customized for larger sealing diameter,and the cutting blade is made of imported material,ensure the edge will be cut neatly,improve production quality.Letter stamps can be installed for embossing production number.
Adjustable product holder,it can be adjusted according to tube height,suitable for different sizes of soft tube.

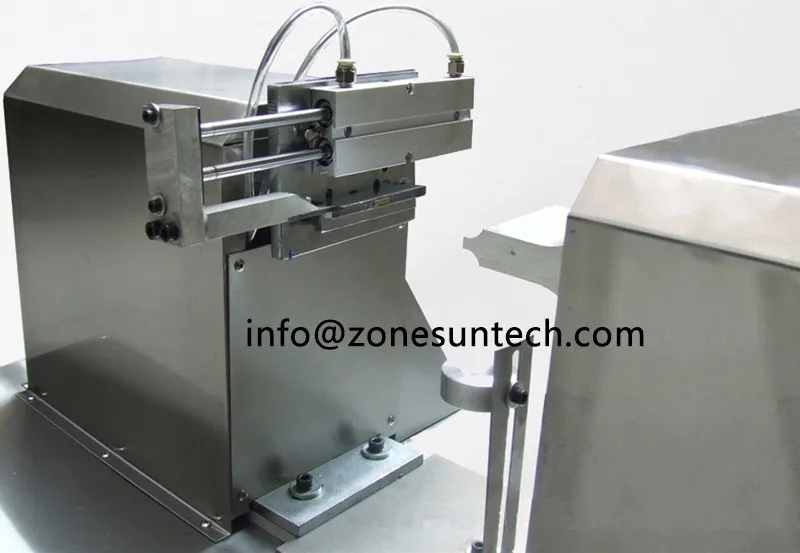

High quality air cylinder,make sure the machine work stably and can seal soft tube better.
With overload protection,prevent the machine from damage due to the overload.it ensures the safety operation.
