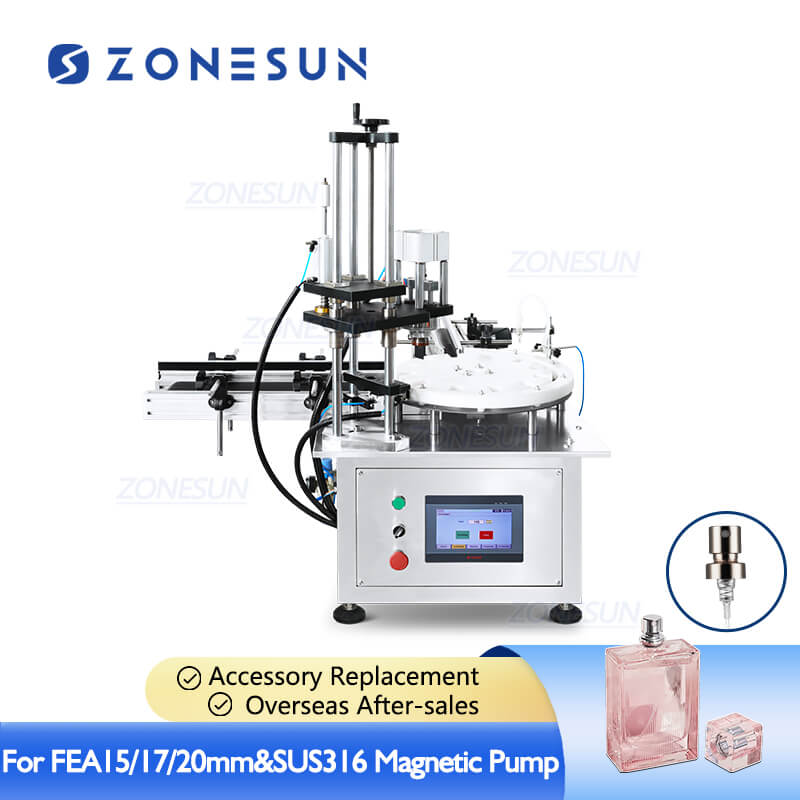

ZONESUN ZS-AFC25 Monoblock Automatic Magnetic Pump Perfume Spray Bottle Filling Crimping Capping Machine
Earn 0 points on this purchase.
Regular price
$3,649.00 USD
Regular price
Sale price
$3,649.00 USD
Save $-3,649 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

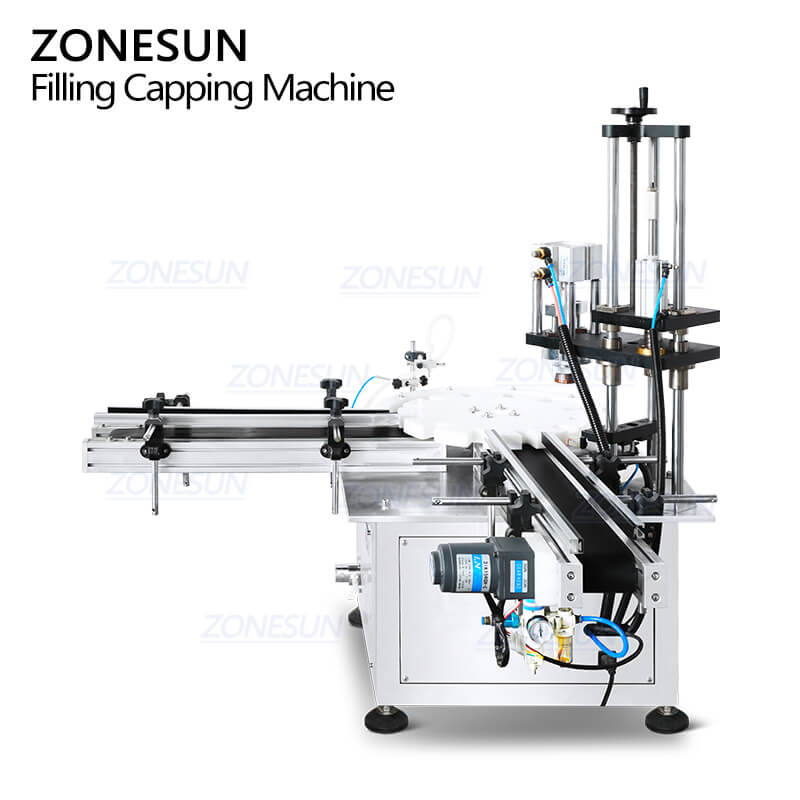

This compact machine features a space-saving design, making it ideal for small-scale production. It is capable of filling liquids into bottles and securely crimping perfume spray caps. With interchangeable crimping heads, the machine can easily accommodate various bottle sizes, offering flexibility and efficiency in your production process.
Parameter
- Machine model: ZS-AFC25
- Machine voltage: 110/220V 50-60HZ
- Filling pump: Magnetic Pump
- Bottle Diameter: 10-60 mm
- Max Flow Rate: 4L/min
- Recommend Filling Range: ≤10-500ml
- Bottle Height: ≤120 mm(Can customize for higher bottles)
- Cap Diameter: ≤20 mm
- Working Speed: 20 bottles/min(depends on liquid and bottle size)
- Conveyor belt size: About 600*145.5 mm
- Machine size: About 1106*1199*1243 mm

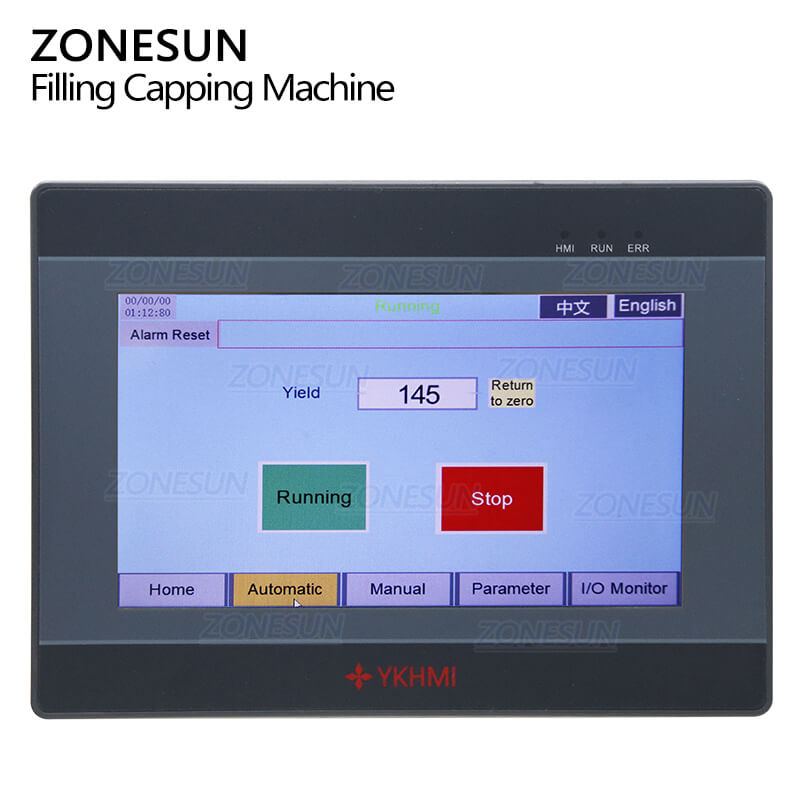

Control Panel
Touch screen control panel makes parameter setting more intuitively, customizable operation language.
Touch screen control panel makes parameter setting more intuitively, customizable operation language.

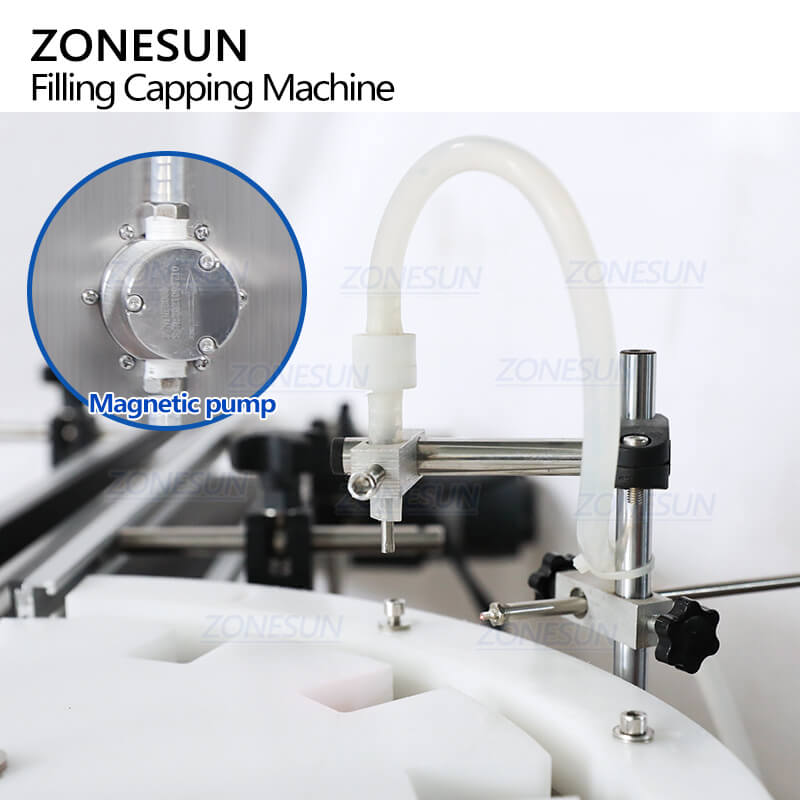

Filling Structure
Equipped with SUS316 magnetic pump, nozzle size is changeable for different sizes of bottles.
Equipped with SUS316 magnetic pump, nozzle size is changeable for different sizes of bottles.

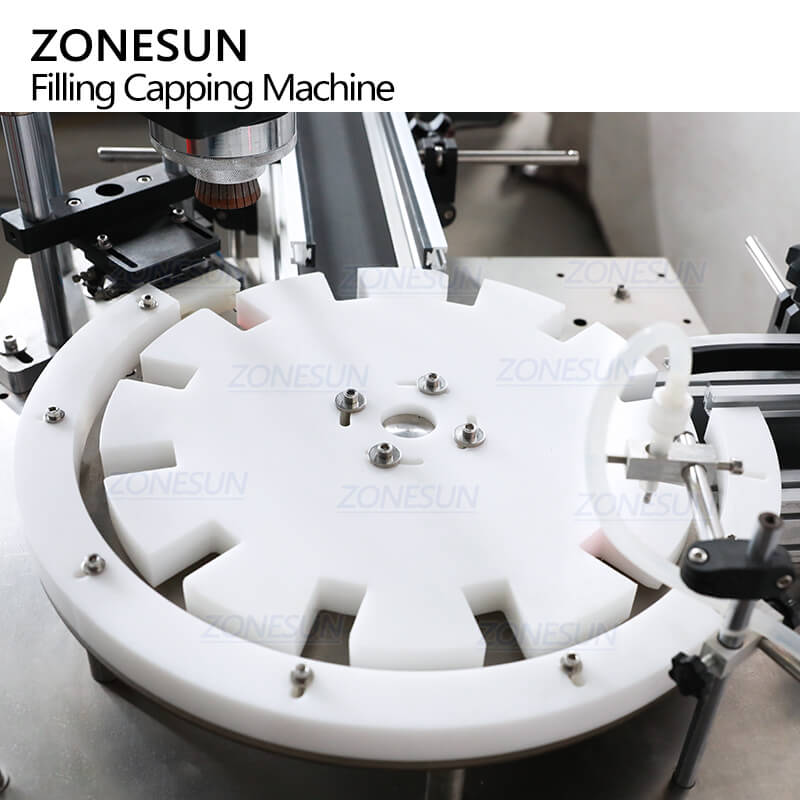

Starwheel
Changeable starwheel suits for different size and shapes of bottles.
Changeable starwheel suits for different size and shapes of bottles.

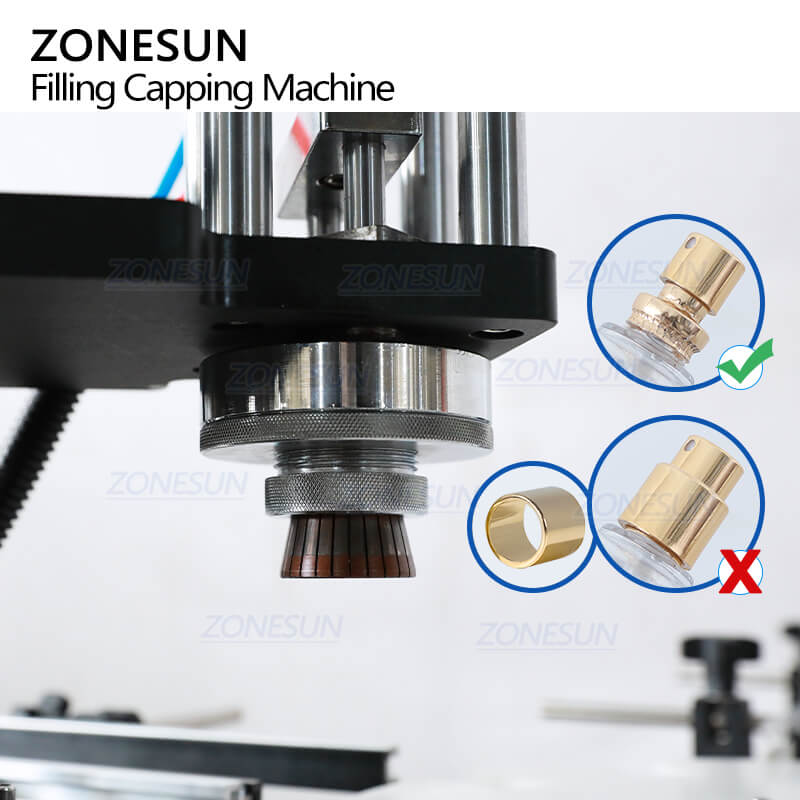

Crimping Structure
Changeable molds for FEA 15/17/20mm perfume spray caps, it widens application range.
Changeable molds for FEA 15/17/20mm perfume spray caps, it widens application range.

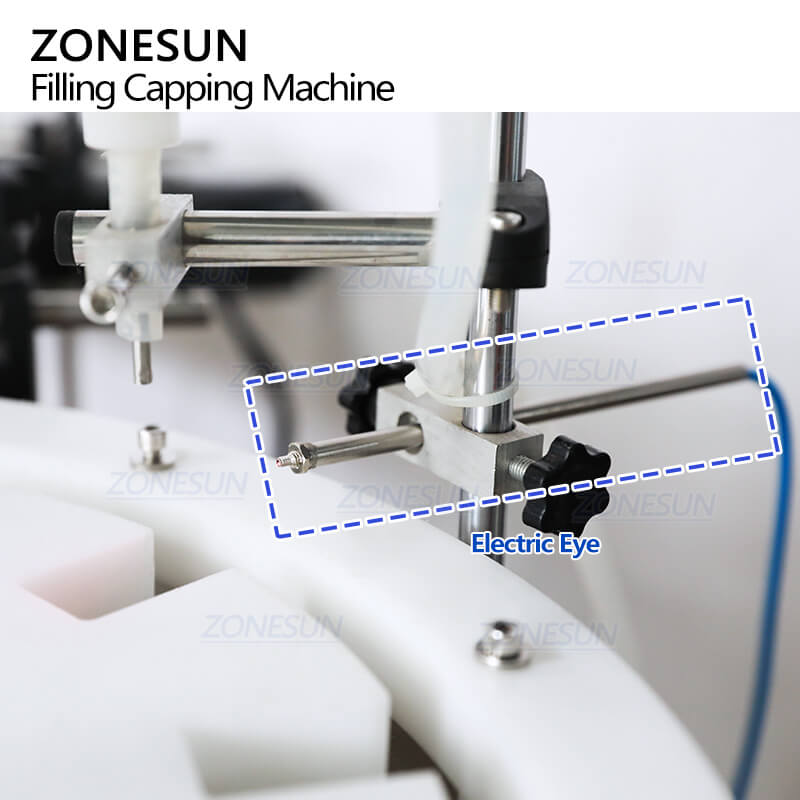

Electric Eye
It can detect passing by bottles for realize automated production.
It can detect passing by bottles for realize automated production.
