ZONESUN ZS-AFC46 Monoblock Automatic Servo Cam System Body Mist Perfume Mosquito Repellent Spray Bottle Filling Capping Machine
Earn 0 points on this purchase.
Regular price
$27,999.00 USD
Regular price
$37,500.00 USD
Sale price
$27,999.00 USD
Save $9,501 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

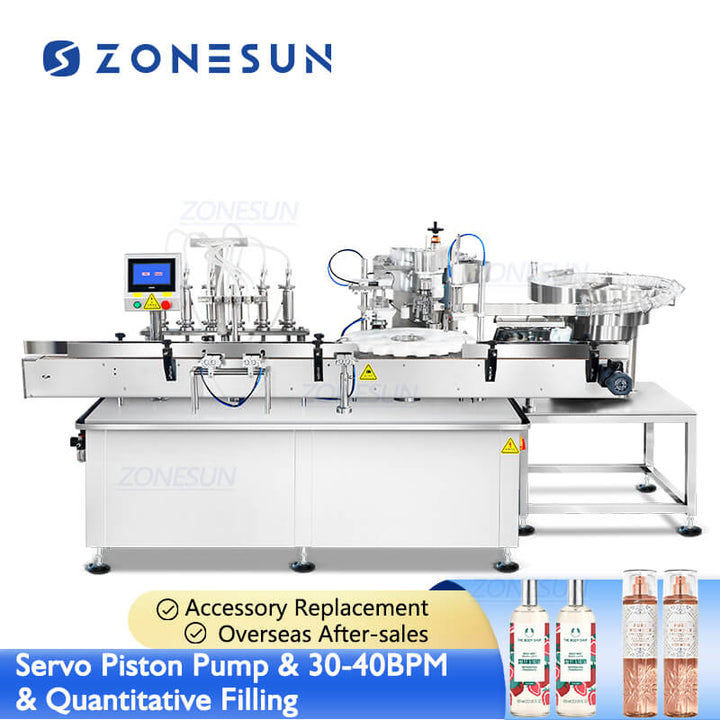

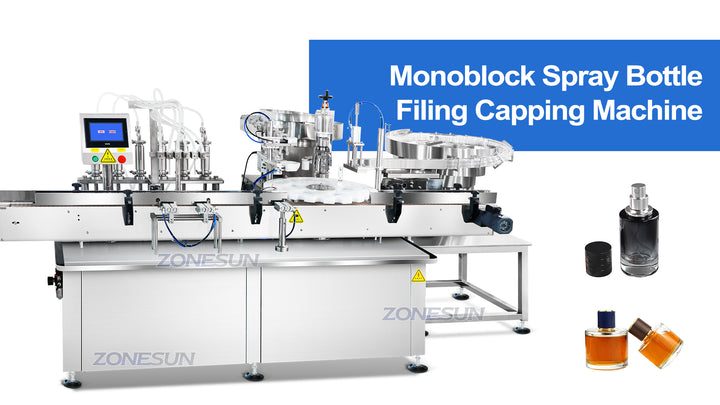

This automatic filling and capping machine is designed for small-batch production of liquid products like body mist, perfume, and essential oils. It features a servo-driven piston pump for precise and consistent filling, and a mechanical cam system for stable and synchronized operation. With a compact design and user-friendly interface, it can achieve a speed of 30–40 bottles per minute (BPM), making it ideal for cosmetic and personal care industries.
Parameter
- Machine Model: ZS-AFC46
- Machine Voltage: 110/220V 50-60HZ 3KW
- Filling Range: 100 ml (Customizable)
- Working Capacity: 30-40 BPM
- Filling Pump: Servo Piston Pump
- Quantity of Filling nozzle: 6
- Filling Accuracy: ±1%
- Suitable Bottle Size: Customizable
- Suitable Cap Size: Customizable
- Machine Size: About 2608*1769*1448 mm(L*W*H)
- Machine Weight: About 600 kg
- Package Size: 2760*1110*1720 mm(Main Machine)+1550*1560*900 mm(Vibratory Bowl Sorter)
- Package Weight: 945 kg(Main Machine)+330 kg(Vibratory Bowl Sorter)

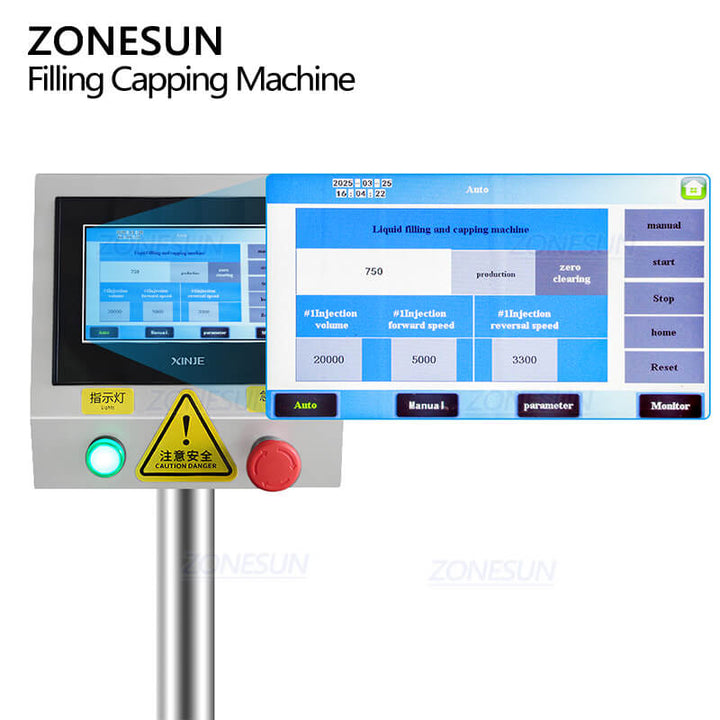

Touch Screen Control Panel
User-friendly human-machine interface for easy operation and real-time adjustments.
User-friendly human-machine interface for easy operation and real-time adjustments.

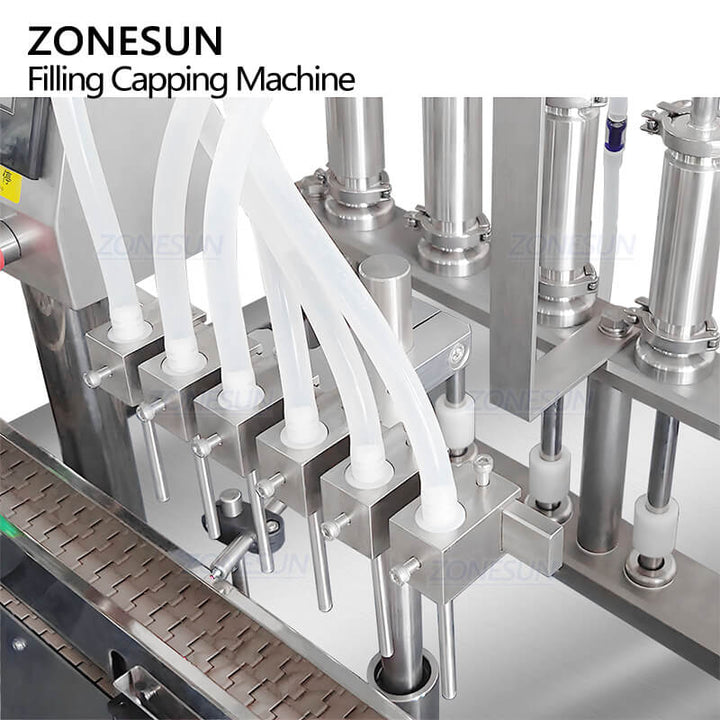

Quantitative Filling
Servo piston pump, it can dispense a precise, pre-set amount of liquid into each bottle.
Servo piston pump, it can dispense a precise, pre-set amount of liquid into each bottle.

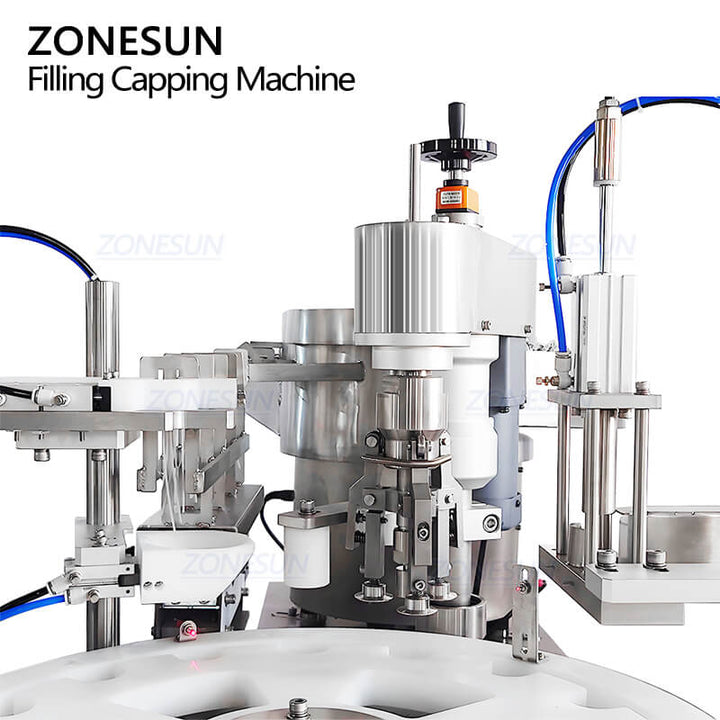

Cam System
Controls the machine’s movement, achieving a speed of 30 to 40 bottles per minute.
Controls the machine’s movement, achieving a speed of 30 to 40 bottles per minute.
Multi-Functional Operation
Capable of filling liquid, feeding spray caps, crimping caps, and pressing covers simultaneously, increasing efficiency.
Capable of filling liquid, feeding spray caps, crimping caps, and pressing covers simultaneously, increasing efficiency.

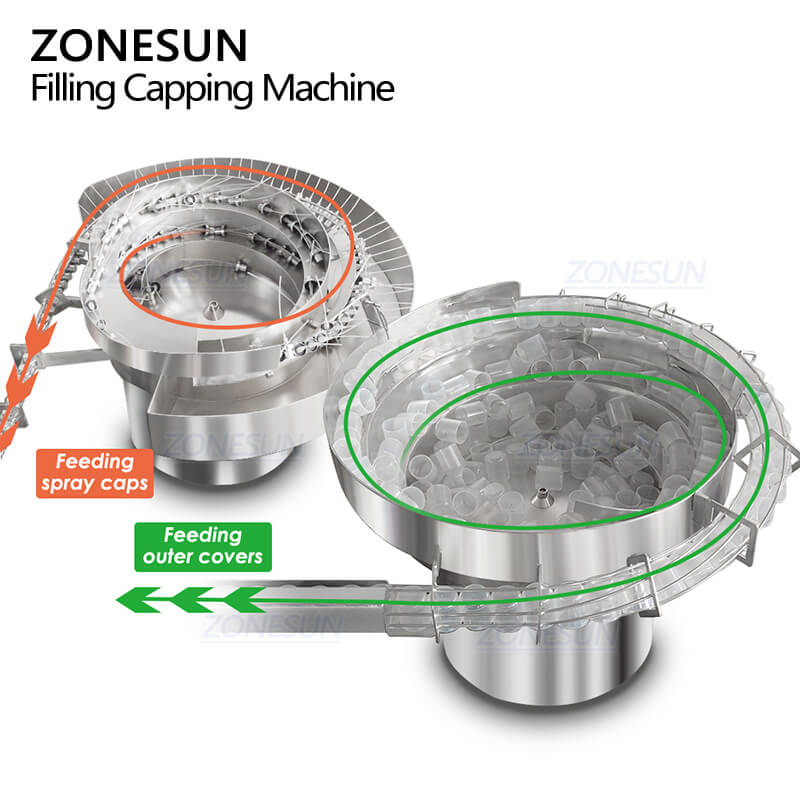

Vibratory Bowl Sorter
Feed bottle caps in time, it is customizable as production need.
Feed bottle caps in time, it is customizable as production need.
