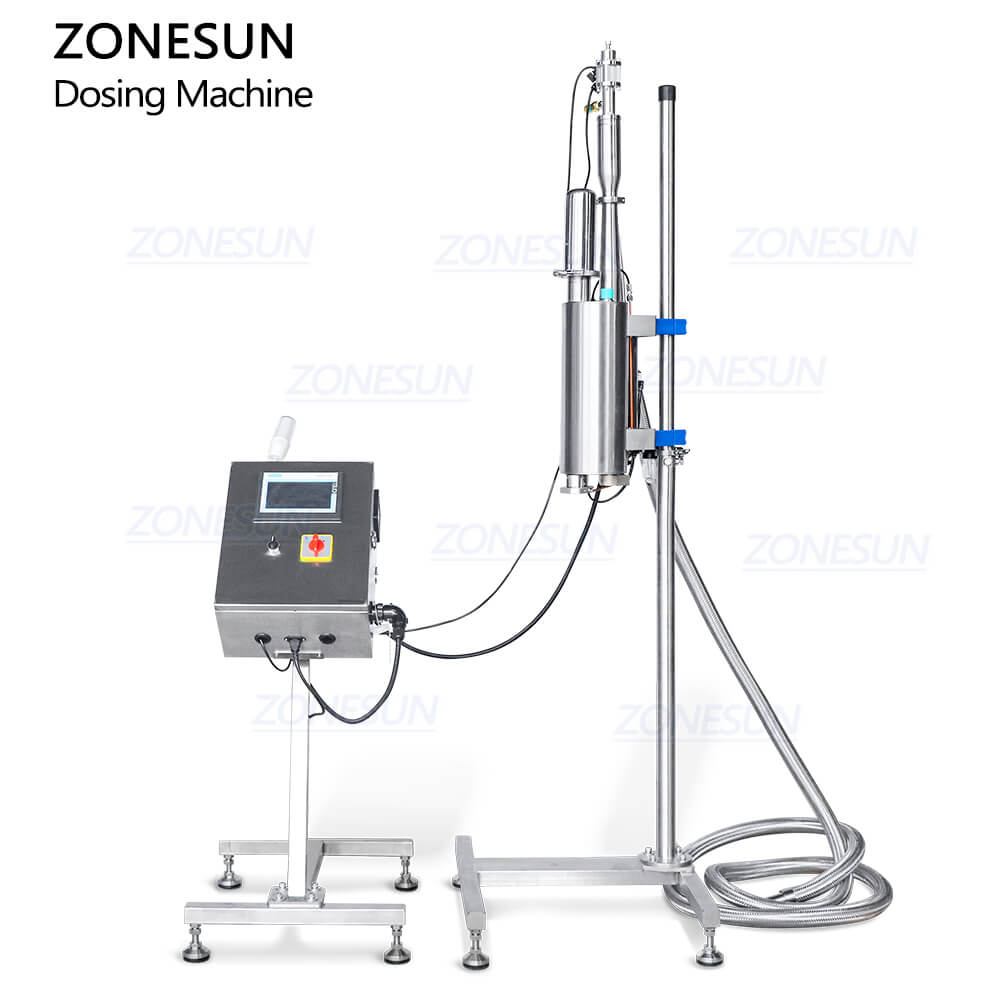

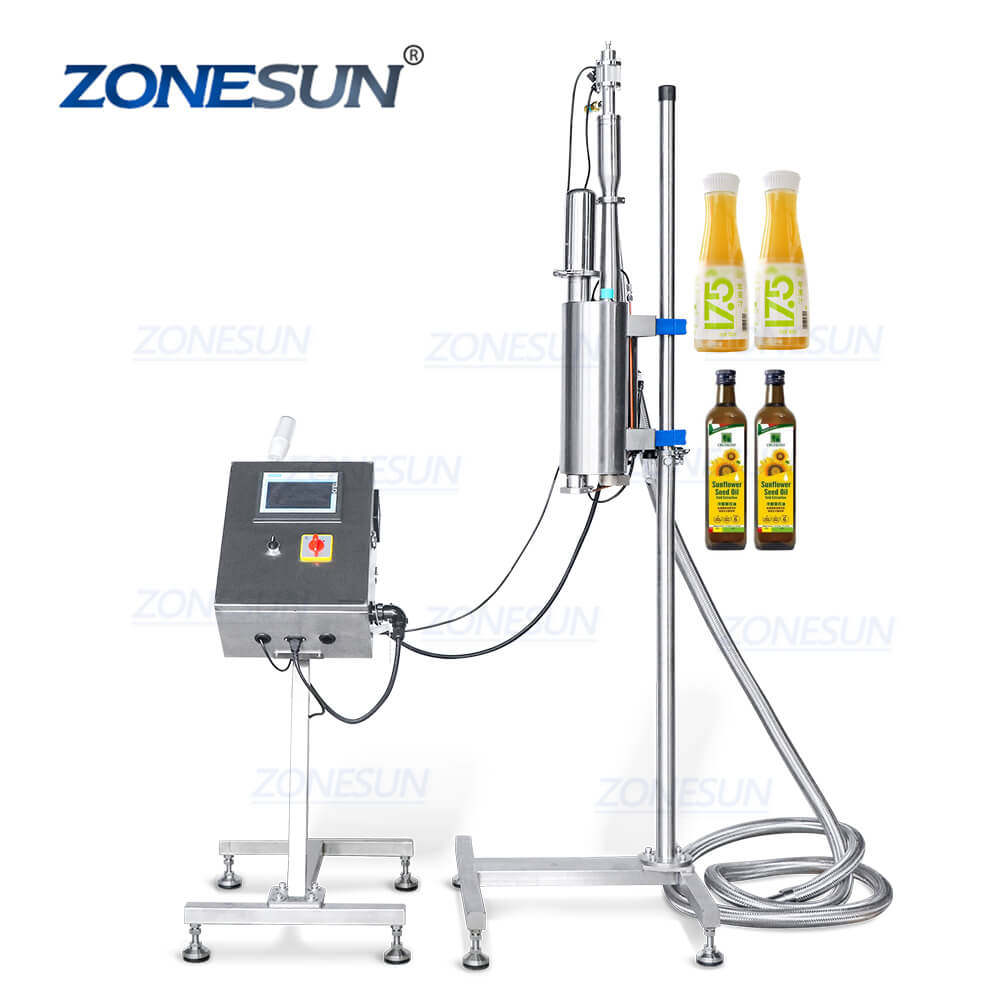

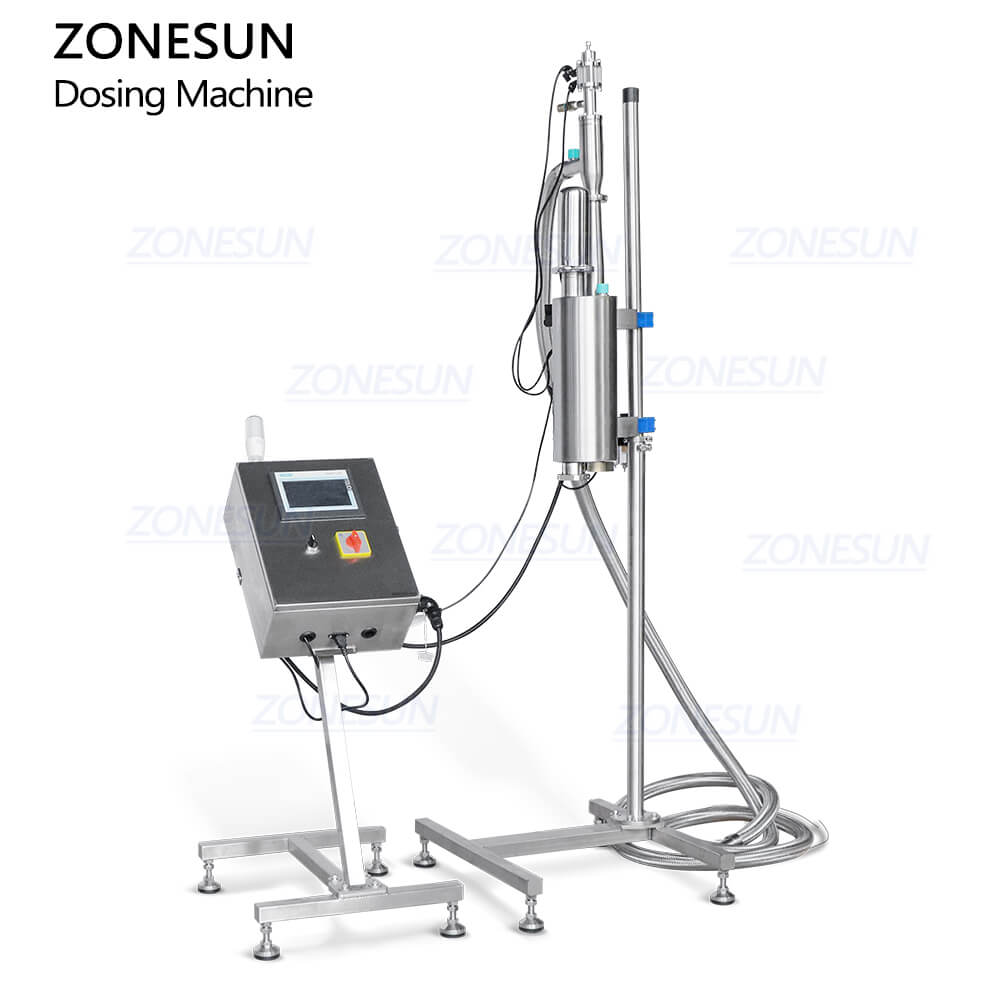

ZS-LN01 Liquid Nitrogen Filling Injector for Bottle Cans Juice Drinks Beverage Filling Line Nitrogen Dosing Machine

Liquid Nitrogen Dosing Machine
Control Panel of Liquid Nitrogen Dosing Machine
Filling Nozzle of Liquid Nitrogen Dosing Machine
Electric Eye of Liquid Nitrogen Dosing Machine
Hose of Liquid Nitrogen Dosing Machine
Liquid Nitrogen Dosing Machine For Filling System
Atomatic Liquid Nitrogen Dosing Machine
Liquid Nitrogen Dosing Machine For Liquid Filling Line

ZS-LN01 Liquid Nitrogen Filling Injector for Bottle Cans Juice Drinks Beverage Filling Line Nitrogen Dosing Machine

Voltage
Regular price $11,499.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

The liquid nitrogen dosing machine is mainly used to pressurize and reinforce thin-walled (aluminum, PET) containers such as mineral water, juice, iced tea and other beverages. On the one hand, an internal pressure can be created in the can/bottle to avoid shrinkage after cooling and deformation during packaging and handling. Second, air (especially oxygen) can be removed from the jar/bottle, giving the product a longer shelf life and better taste

Parameter

Machine model:ZS-LN01
Voltage:110VAC-60Hz/220V AC-50Hz
Current:≤5A
Working speed:Max 3000 cans/H
Humidity:relative humidity 0%-100%
Noise:Continuous noise ≤78dB (A)
Machine weight:32KG
Package size:About 1220*770*470mm
Package weight:About 94kgLiquid Nitrogen Filling Machine

Application of Liquid Nitrogen Filling Machine

Machine Detail of Liquid Nitrogen Filling Machine

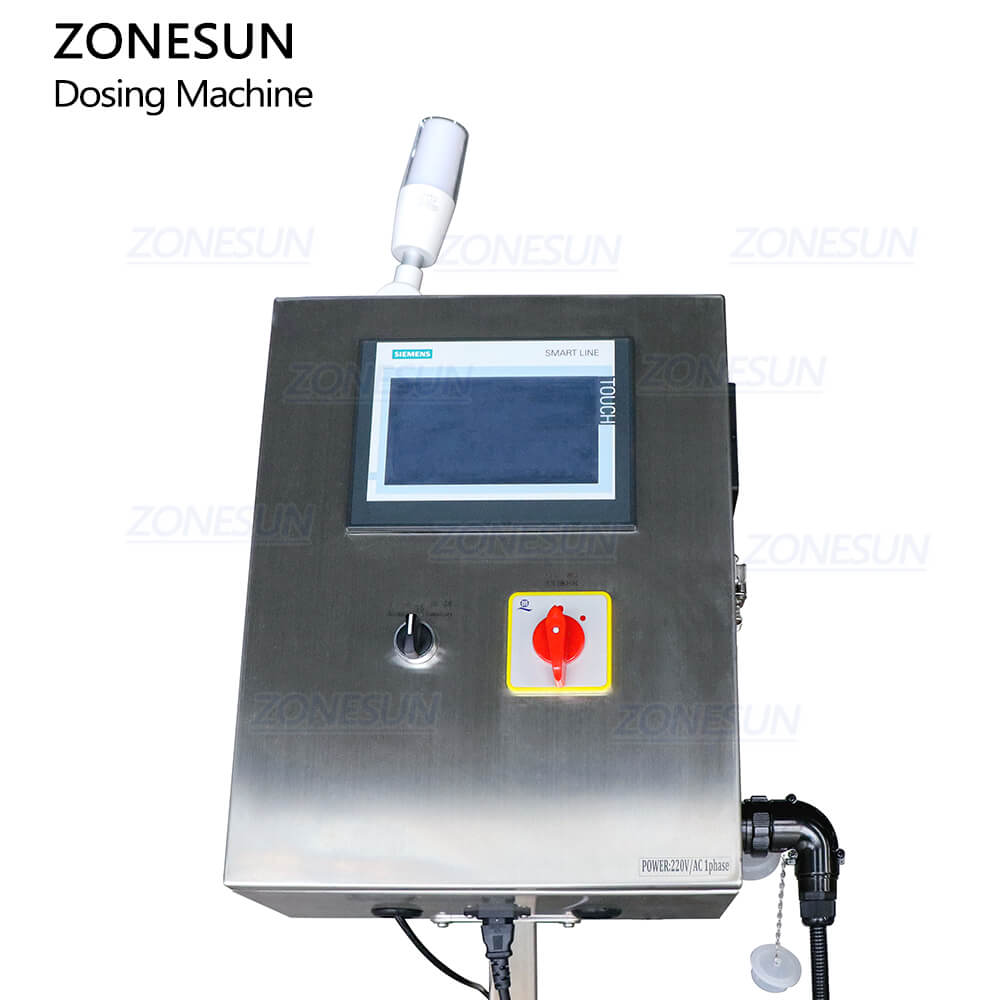

Control Panel of Liquid Nitrogen Filling Machine

PLC touch screen control panel, it makes working data visual, easier to debugging machine.The operation language can be changed as operation need.

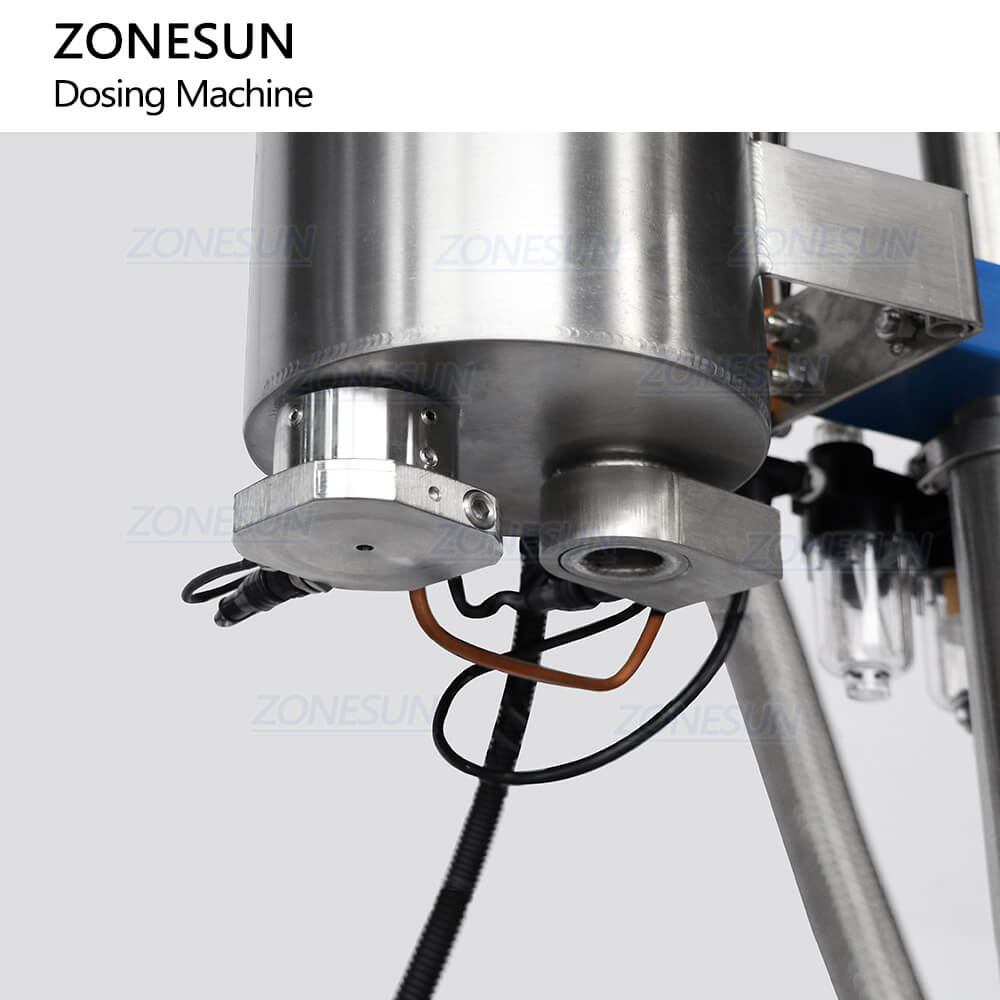

Filling Nozzle of  Liquid Nitrogen Filling Machine

The machine has temperature monitoring function, dosing nozzle can automatically add or subtract liquid nitrogen filling amount according to the change of filling temperature

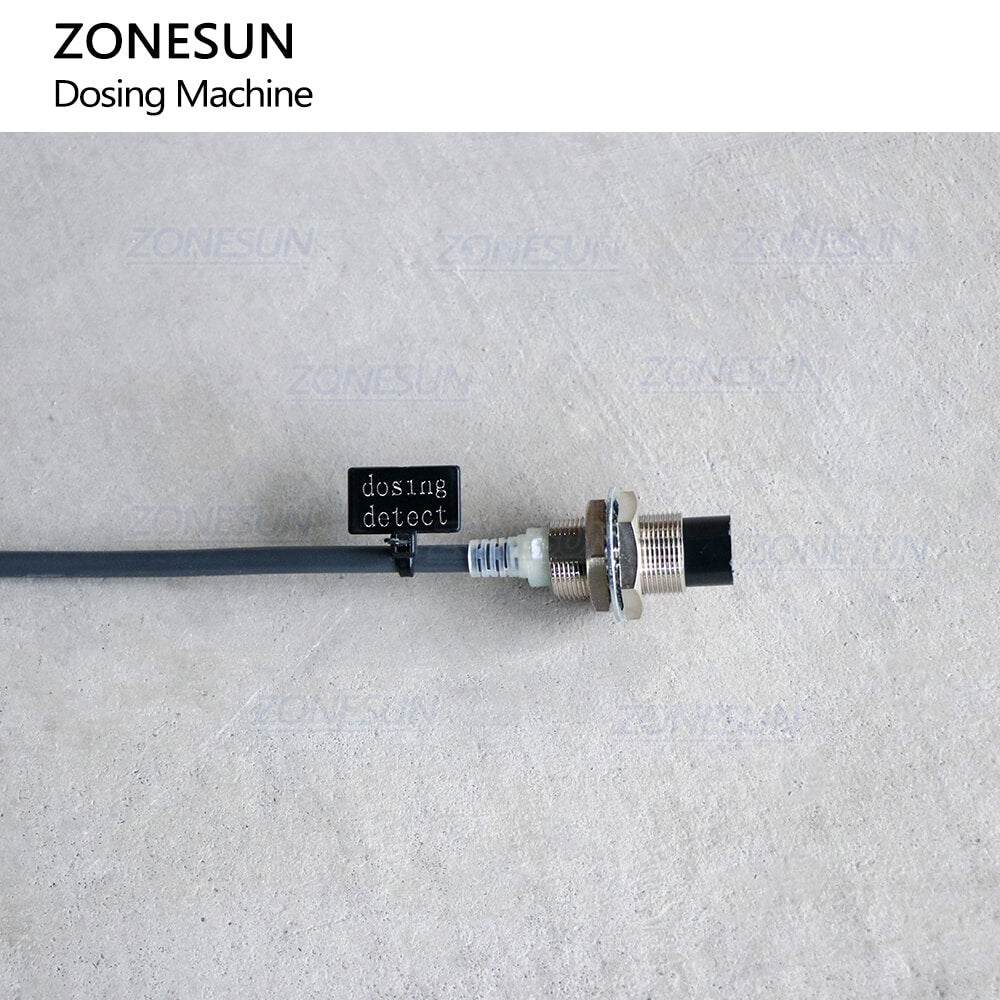

Electric Eye of  Liquid Nitrogen Filling Machine

Equipped with electric eye, it can detect passing by bottles and control the machine to work automatically,improves working efficiency.

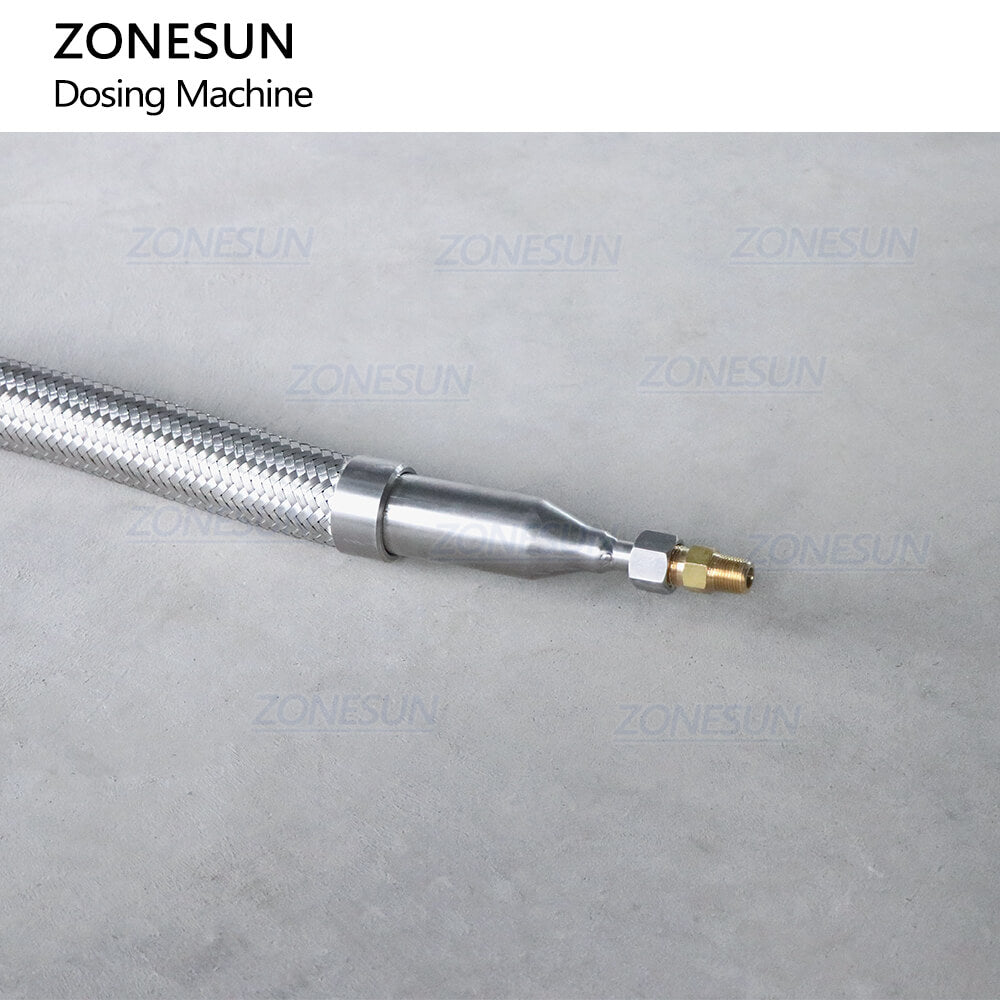

Hose of  Liquid Nitrogen Filling Machine

Vacuum liquid nitrogen insulated hose ensures minimum liquid nitrogen consumption

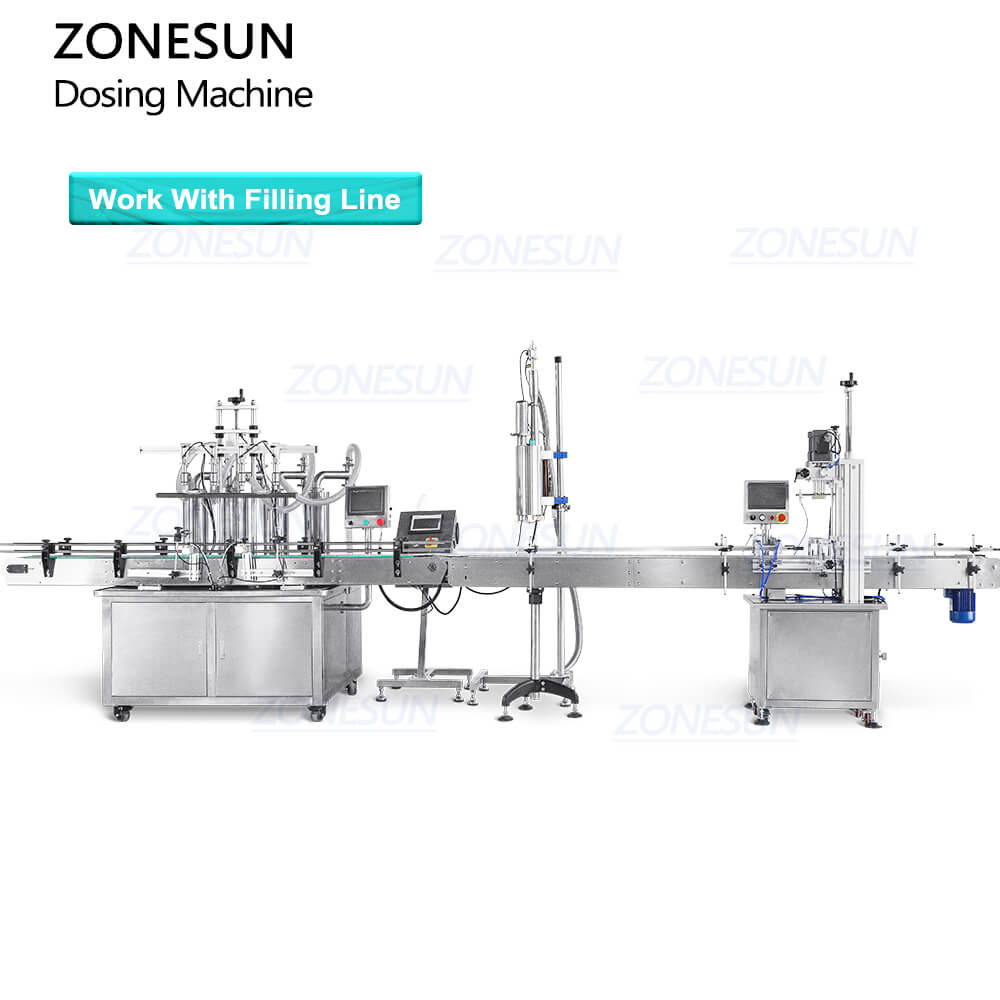

Liquid Nitrogen Filling Machine For Filling System

We know some customers may need the product urgently and hope they can place the order as soon as possible.Or they already placed order on zonesuntech.com and have problems of using machine.In these situation,we offer e-mail and online chat support to help our customers to know more thing about our products and service.For contact support:

Kelly
Whatsapp / Wechat / Phone:+86-18928646433
Email: sales@zonesuntech.com
Joyce
E-mail:sales12@zonesuntech.com

Notice
For after-sales service,please offer below information
①Order number of zonesuntech.com (Usually it will be 4 digits,you can check it in your e-mail when you place the order)
②Any image or video showing the problem you have met
