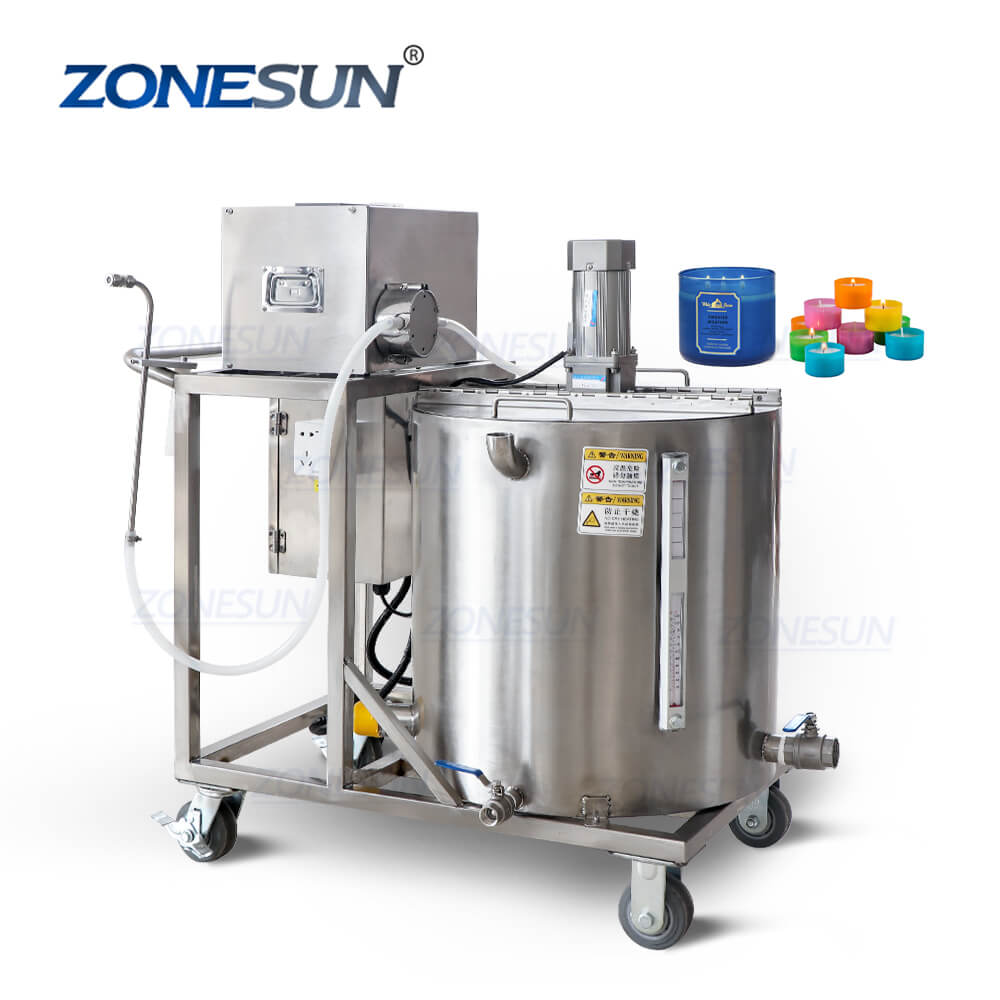

ZS-GTCD Soy Hot Paraffin Bee Wax Soap Jar Mold Pillar Scented Candle Making Equipment Filling Melting And Mixing Machine

ZS-GTCD Soy Hot Paraffin Bee Wax Soap Jar Mold Pillar Scented Candle Making Equipment Filling Melting And Mixing Machine

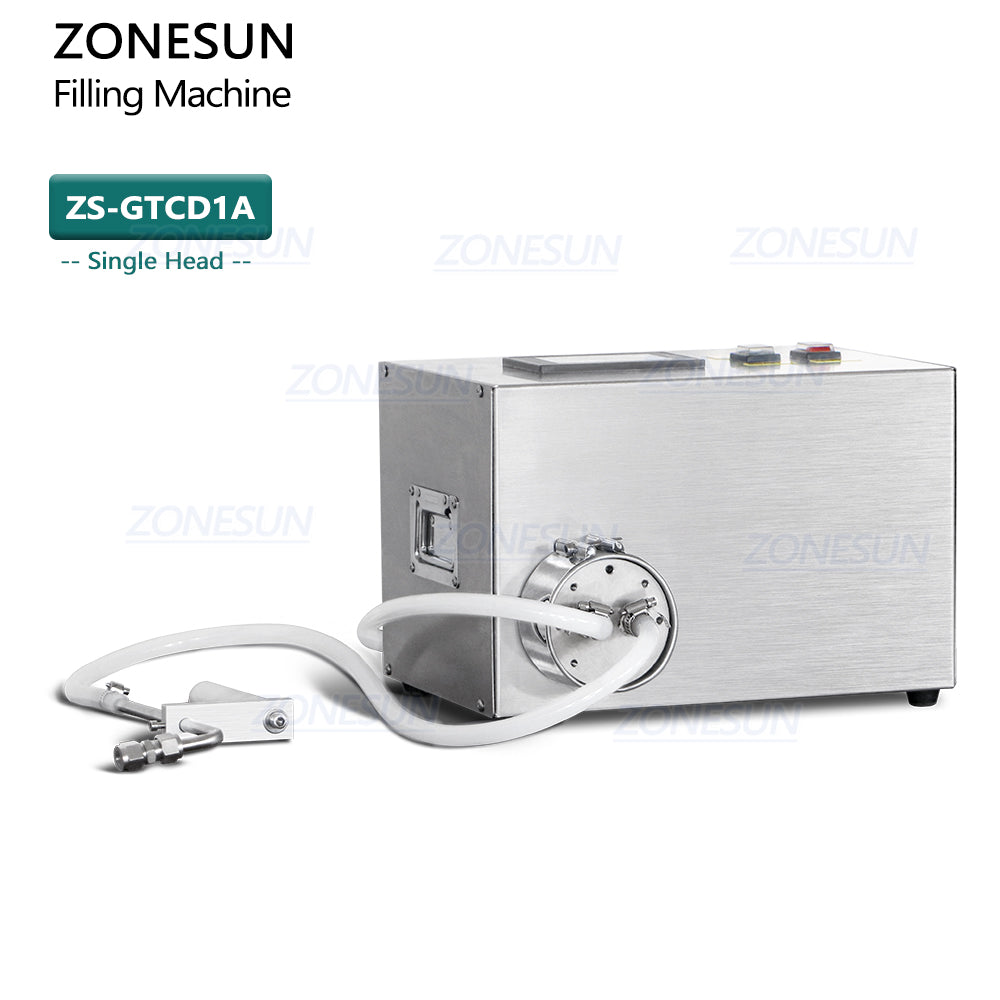

Filling Head
Regular price $2,699.00 USD
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Click Video Link For Video

This semi automatic filling machine is designed for melting,mixing wax and filling them into mold or containers. The stainless steel gear pump ensures the filling accuracy and production quality.This machine is suitable for wax like scented candle.The filling speed,temperature can be adjusted according to operation need.

Machine Model:ZS-GTCD
Machine Voltage:110V/220V 50-60HZ
Machine Power:350W(Filling Machine)+6500W(Heating Tank)
Tank Size: 60L
Machine Pump :304 Stainless Steel Gear Pump
Heating Temperature: 0-90℃ ( When setting the temperature, it cannot exceed 100°C )
Working Speed:900pcs/h for 100g
Max Flow Rate:4L/min
Machine Size:About 850*1030*580mm
Machine Weight:About 85.5kg


Candle Making Equipment

Application of Candle Making Machine

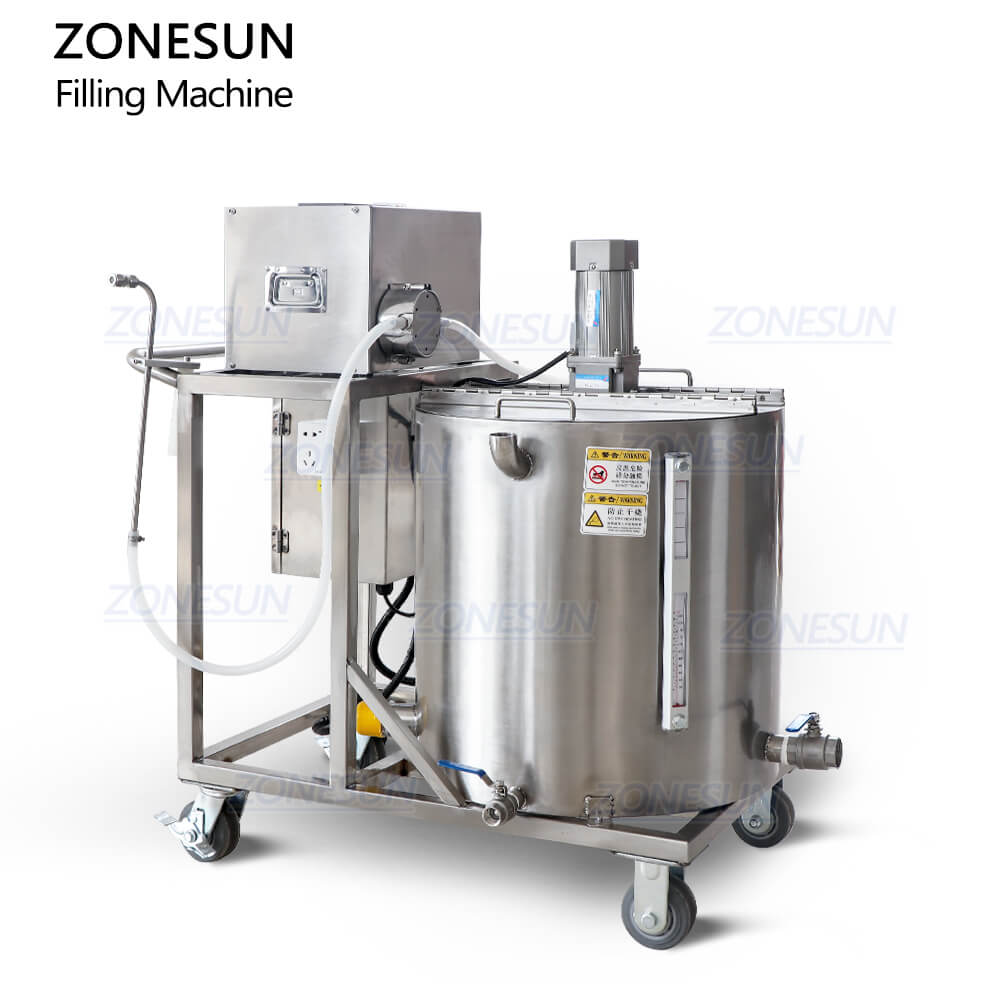

Machine Details of Wax Melting Mixing Filling Machine
Control Panel of Wax Making Machine
With simple control panel,it is easy to set working parameters like mixing speed and heating temperature.

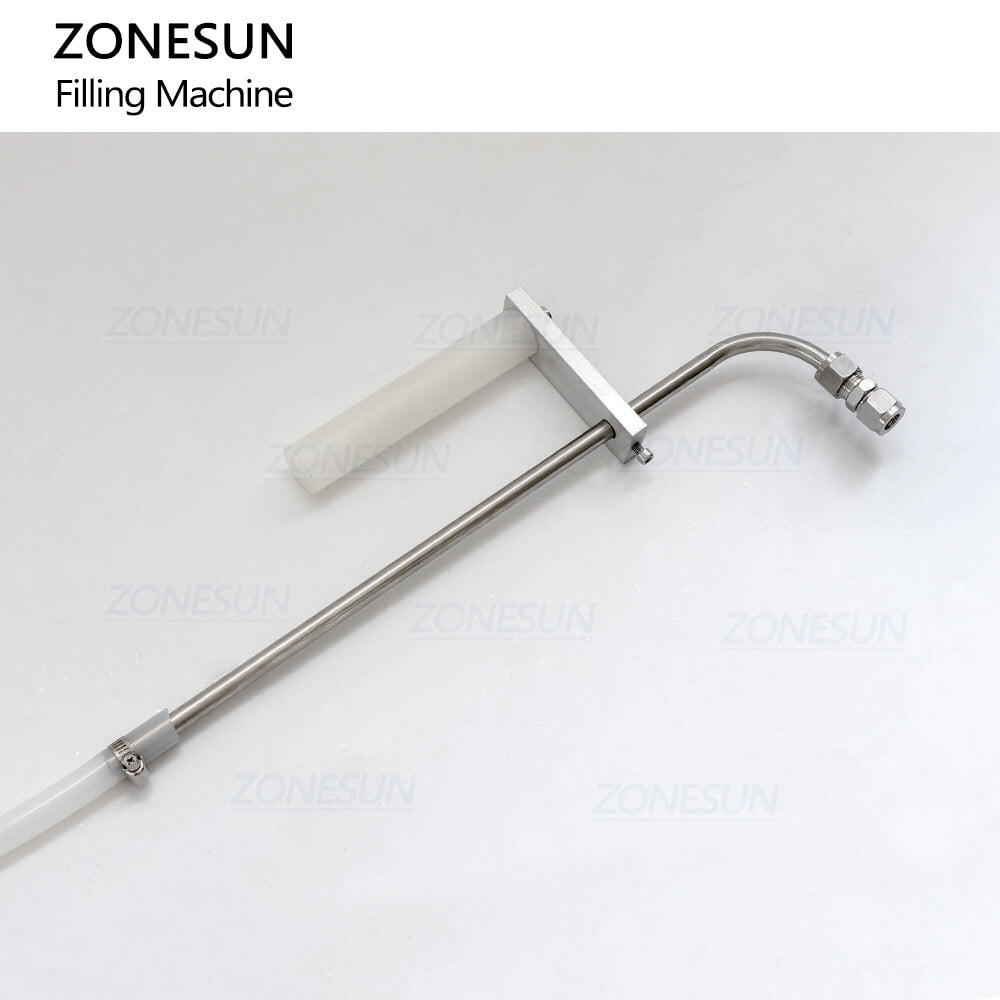

Filling Head of Candle Making Machine
With movable filling head,it is more convenient to fill materials. Multiple  filling  heads  can be customized as production need

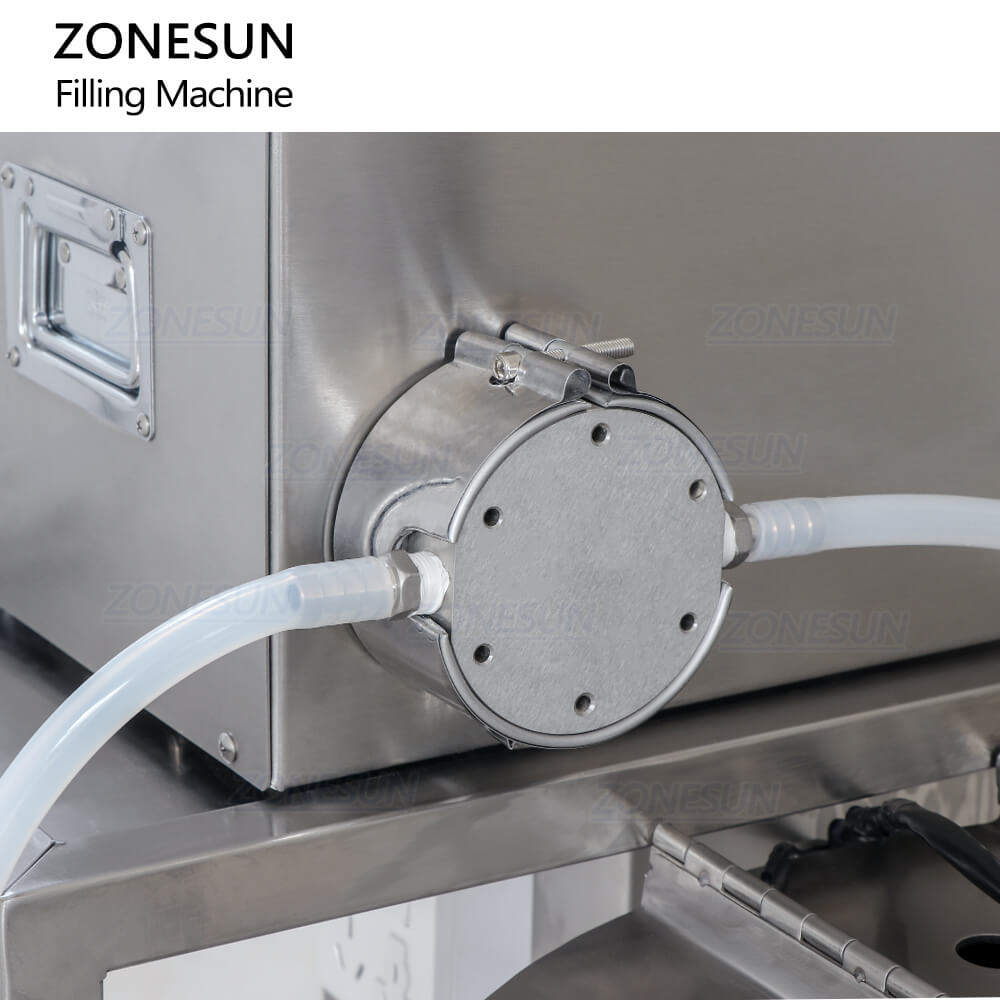

Gear Pump of Candle Making Machine
With stainless steel gear pump,it is durable and can fill materials accurately. There is heating device inside pumps, which can prevent wax from solidifying and clogging the pump,making filling smoother.

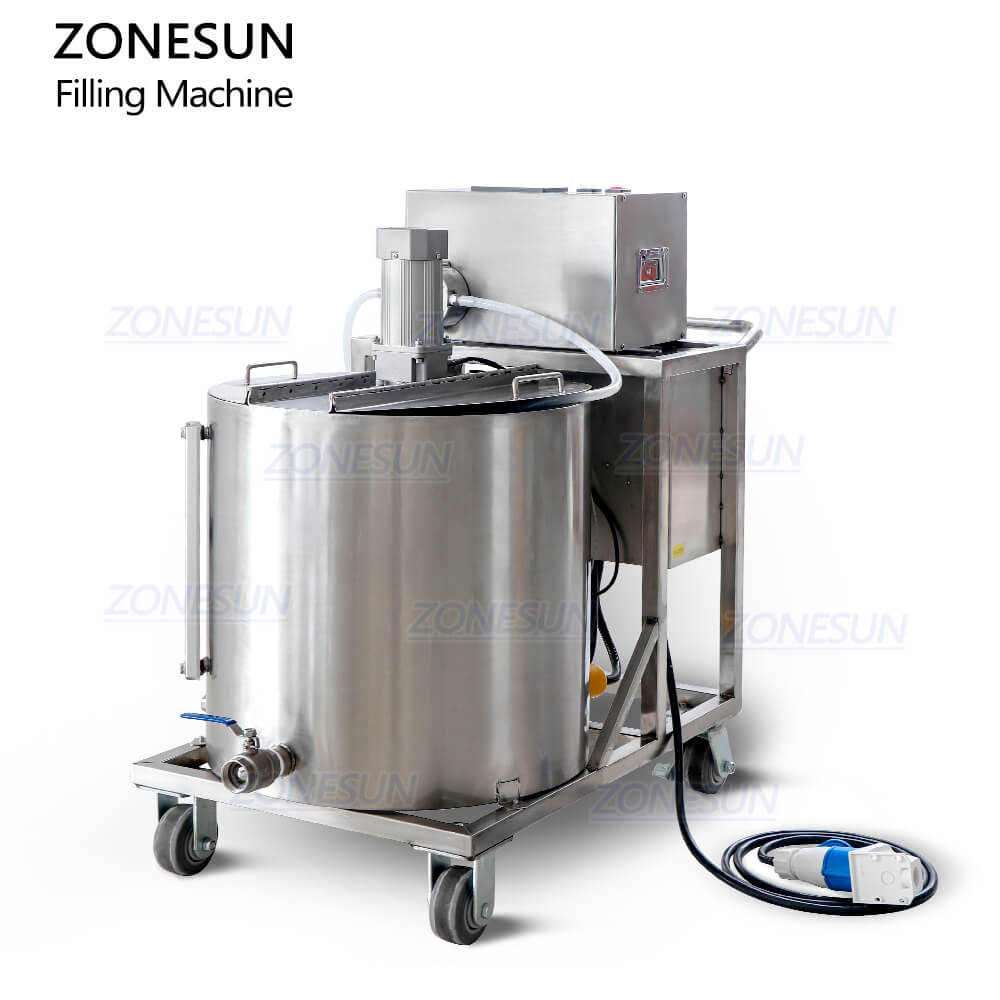

Mixing Tank of Candle Making Machine
With large-capacity tank,it is convenient to pour materials,improving working efficiency.It is with mixing and heating function,ensuring wax can be filled smoothly.

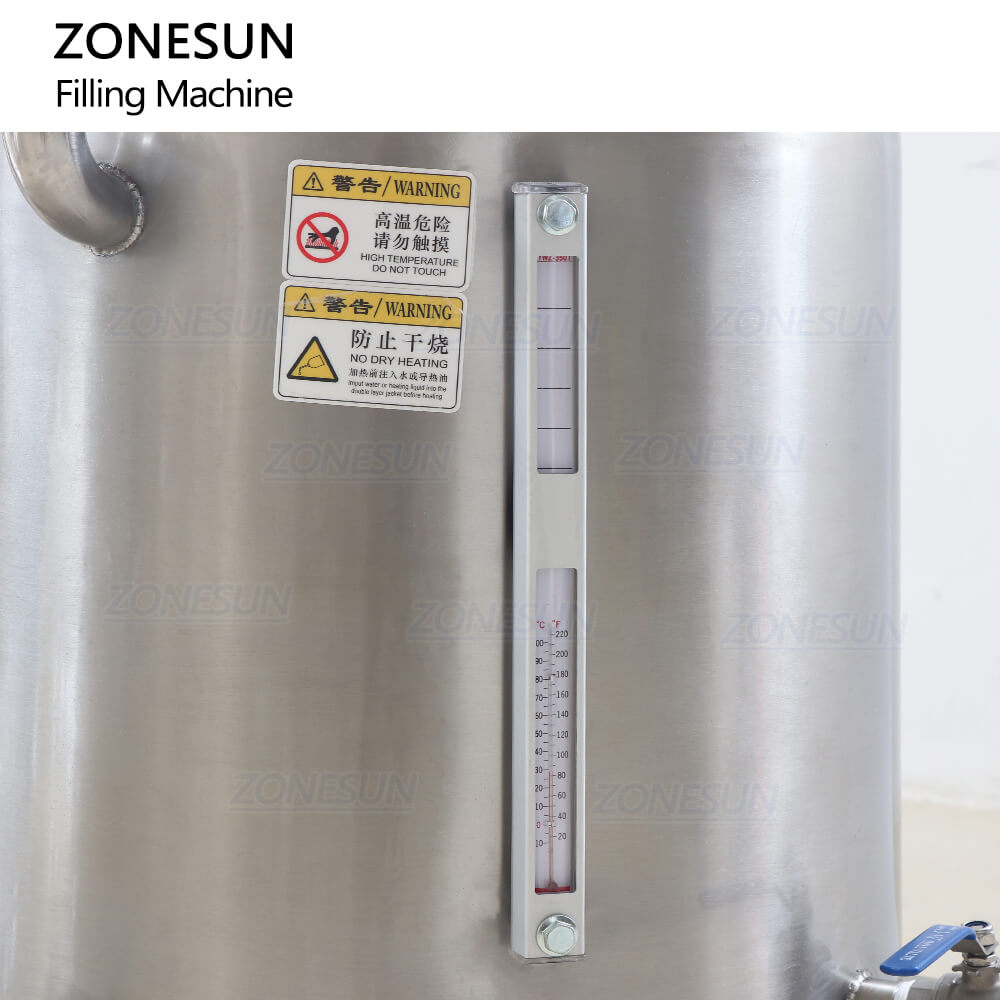

Thermometer of Candle Making Machine
With the thermometer,you can watch the material temperature in real time,helping to control the filling effect better.

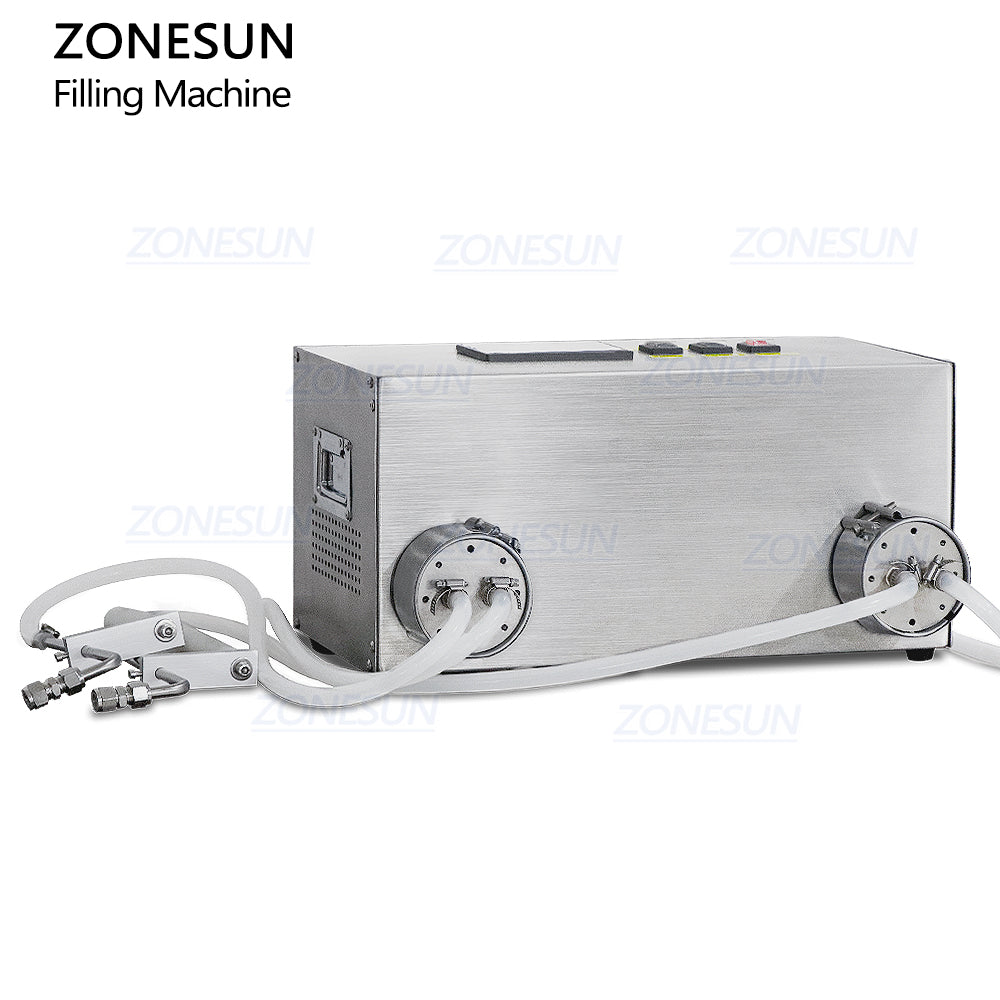

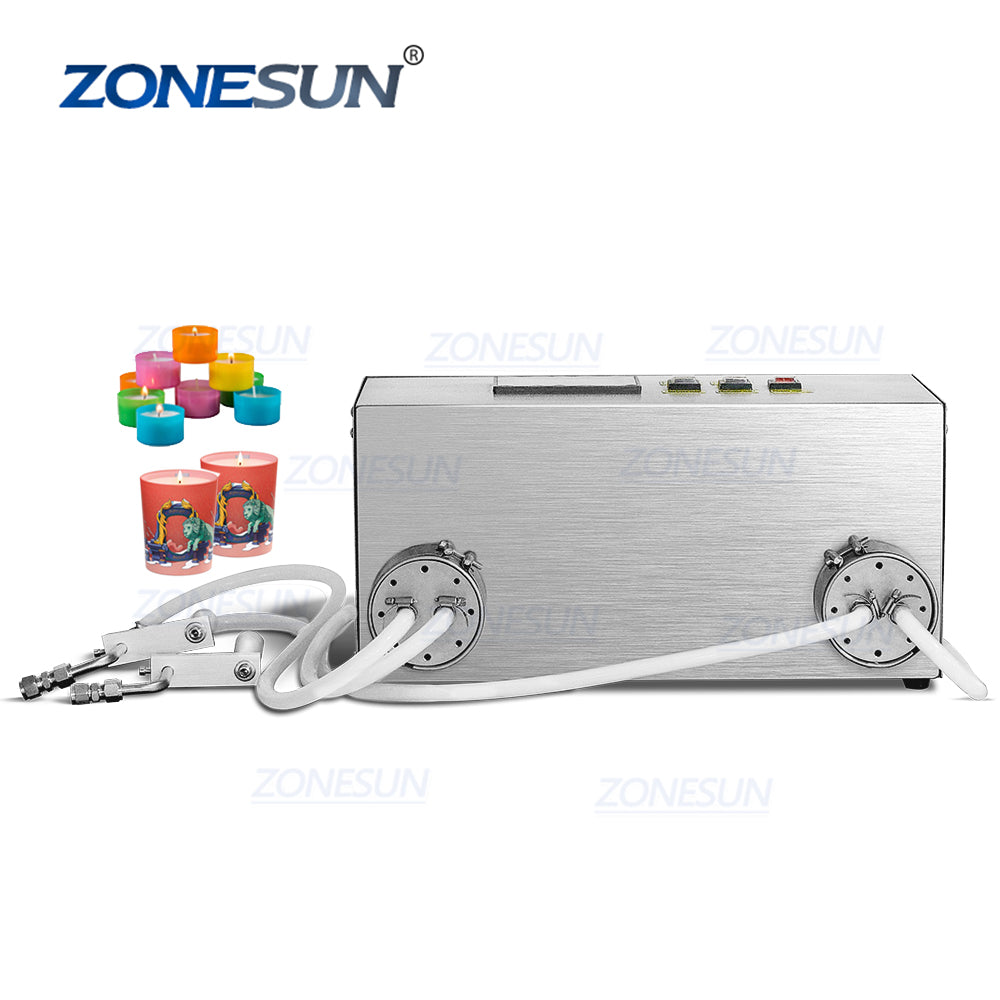

Candle Making Filling Machine
Candle Making Equipment
Candle Wax Melting Filling Machine
