ZONESUN ZS-AFC12M High Speed Servo Piston Pump 6 Heads Spout Pouch Filling and Capping Machine For Sauce Fruit Puree
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

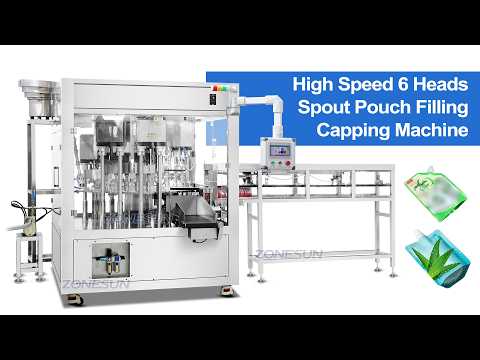

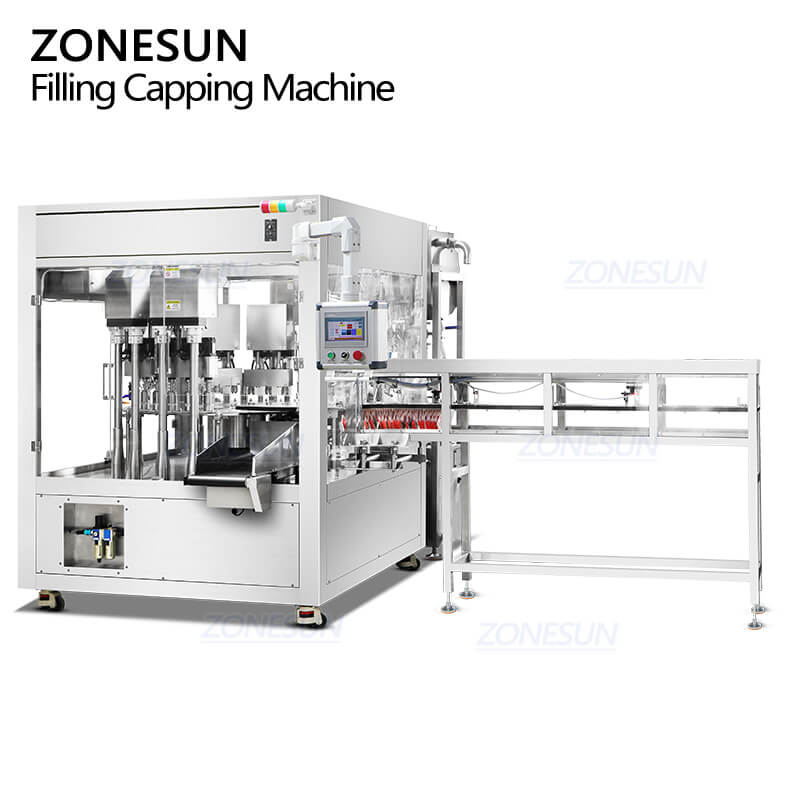

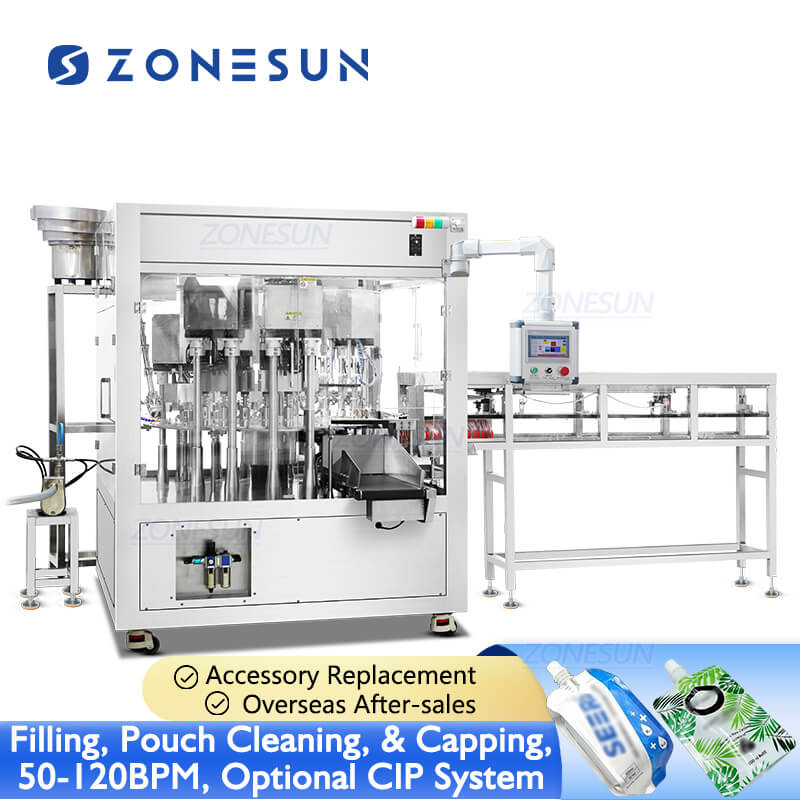

The ZONESUN fully automatic high-speed spout pouch filling capping machine is designed for food, daily chemical, and automotive liquid products. Equipped with a servo-driven filling and capping system, the machine ensures precise dosing and consistent sealing quality. It integrates pouch feeding, pouch cleaning, filling, cap placing, and capping in one system, offering stable and efficient production. The ZONESUN high speed spout pouch filling machine features GMP-grade laminar flow dust control, and can be equipped with nitrogen flushing and sterilization functions. With a waterproof structure and optional CIP system, it ensures hygienic operation and easy cleaning, while maintaining compatibility with different pouch sizes through mold change.
Key Feature
- The ZONESUN spout pouch filling and capping machine is designed for filling liquids and semi-liquids such as juice, sauces, detergents, and cosmetics into pre-assembled spout pouches
- Fully automatic process: bag feeding (optional), filling, pouch and spout cleaning, cap placing, and torque-controlled capping
- High-speed industrial production, reaching 50–120 pouches per minute depending on product viscosity and filling volume
- Six-station rotary system for improved efficiency; stations can be customized based on production requirements
- Equipped with full servo piston pump for high-precision filling of various viscous and liquid products
- Automatic liquid level detection and feeding system enable unmanned filling operation
- Servo-controlled capping system with automatic cap feeding, missing cap detection, and alarm function
- Machine made of 304 stainless steel, with 316 stainless steel contact parts for hygienic production
- Optional high-temperature hot water cleaning system for food-grade applications
- Optional nitrogen flushing and sterilization system to extend product shelf life
Spout Pouch Filling Capping Machine Parameter
- Machine Model: ZS-AFC12M
- Voltage: 110 V/220 V 50-60 Hz
- Power: 5 kW
- Filling Range: 100-1000 ml (Customizable)
- Production Capacity: 30–50 g: 100–120 bags/minute; 200–300 g: 70–100 bags/minute; 500 g: 60–80 bags/minute; 1L: Approx. 50 bags/minute (Based on filling volume)
- Filling Accuracy: ±1 %
- Hopper Capacity: 120 L(Customizable)
- Filling Pump: Piston Pump
- Filling Nozzle Quantity: 6 (Customizable)
- Suitable Cap Diameter: Can be Customized
- Suitable Pouch Size: Can be Customized
- Frame Material: 304 Stainless Steel
- Material Contact Parts: 316 Stainless Steel
- Machine Size: 3525*2400*2090 mm(L*W*H)
- Machine Weight: 1000 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required

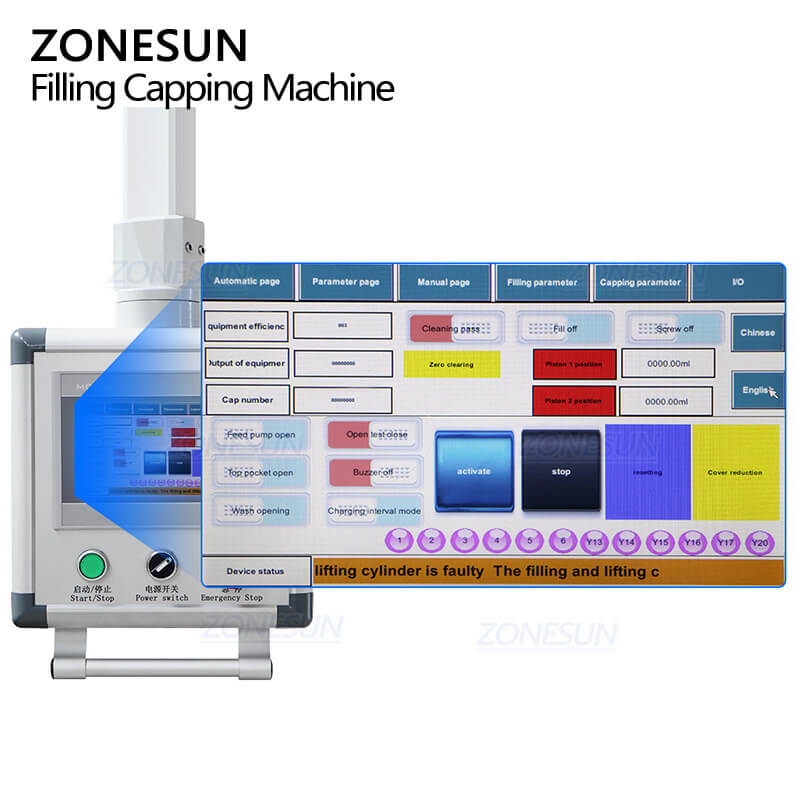

Centralized control system enables easy operation, parameter setting, and real-time monitoring.

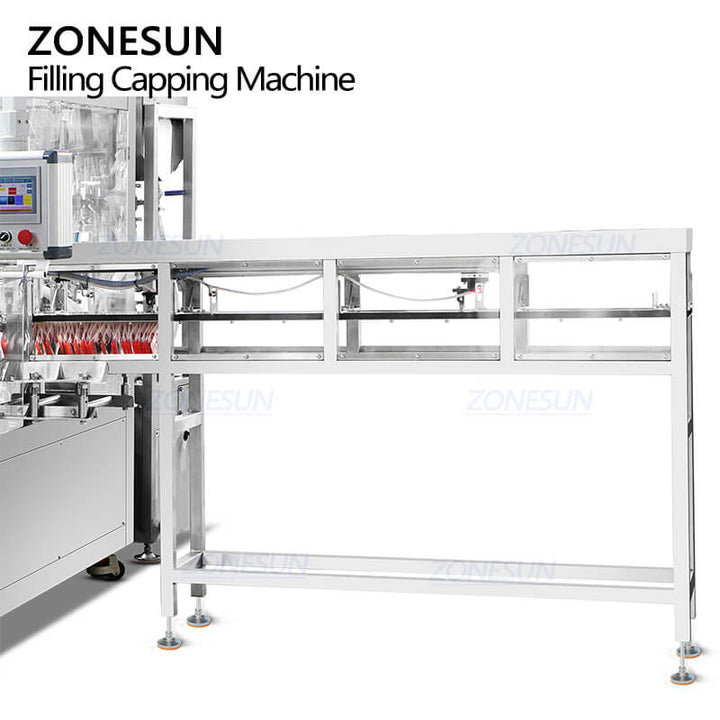

Arrange pouch orderly, optional automatically pouch loading structure can realize continuous high-speed production.

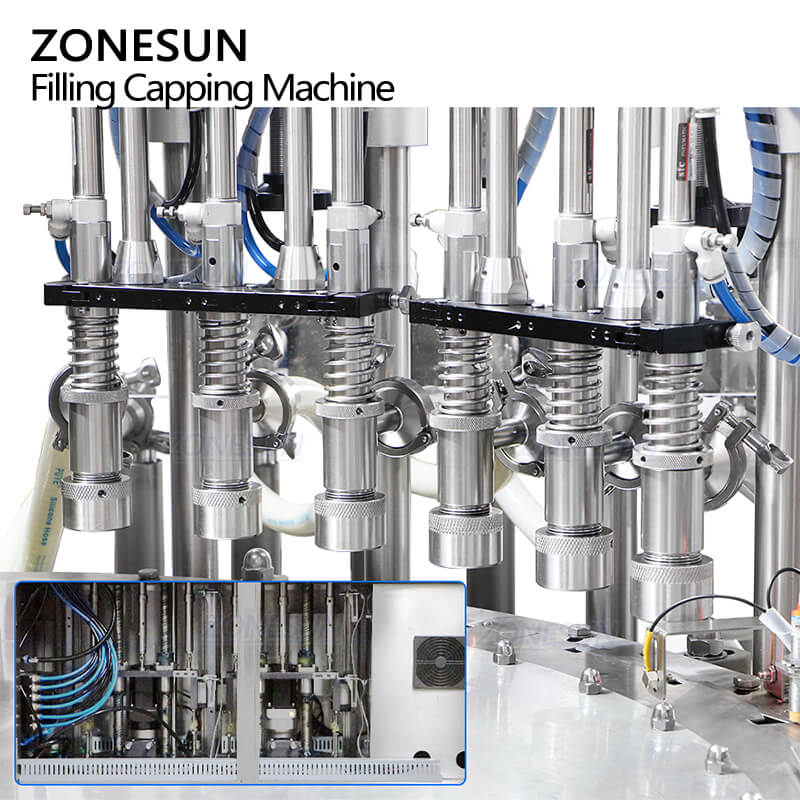

Controlled by servo piston pump, customizable multiple filling nozzles. Using 304 & 316 stainless steel for hygienic filling.
Cleans the pouch body and spout opening to ensure hygienic filling conditions.

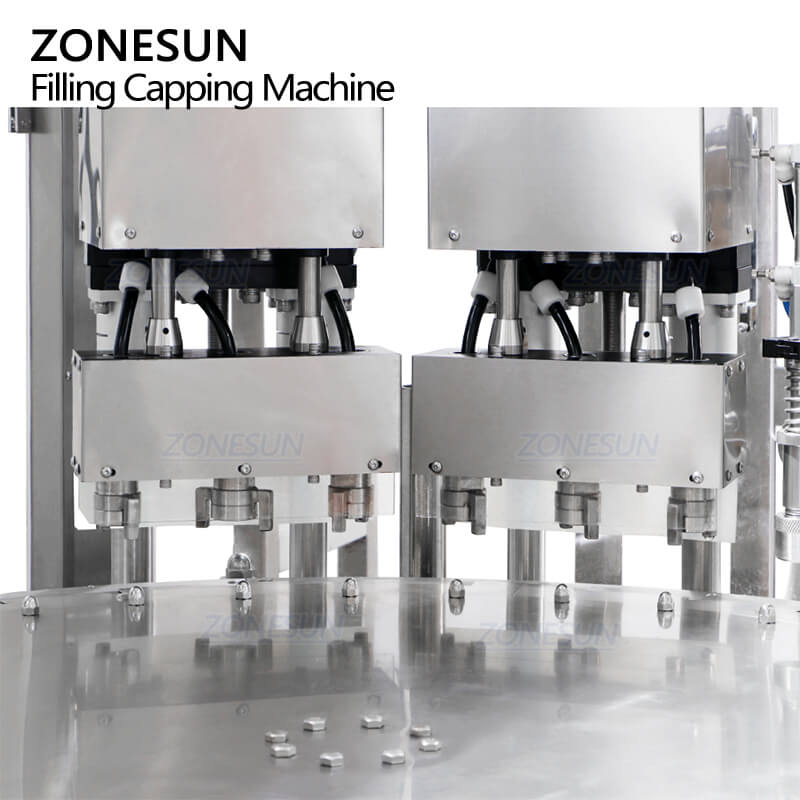

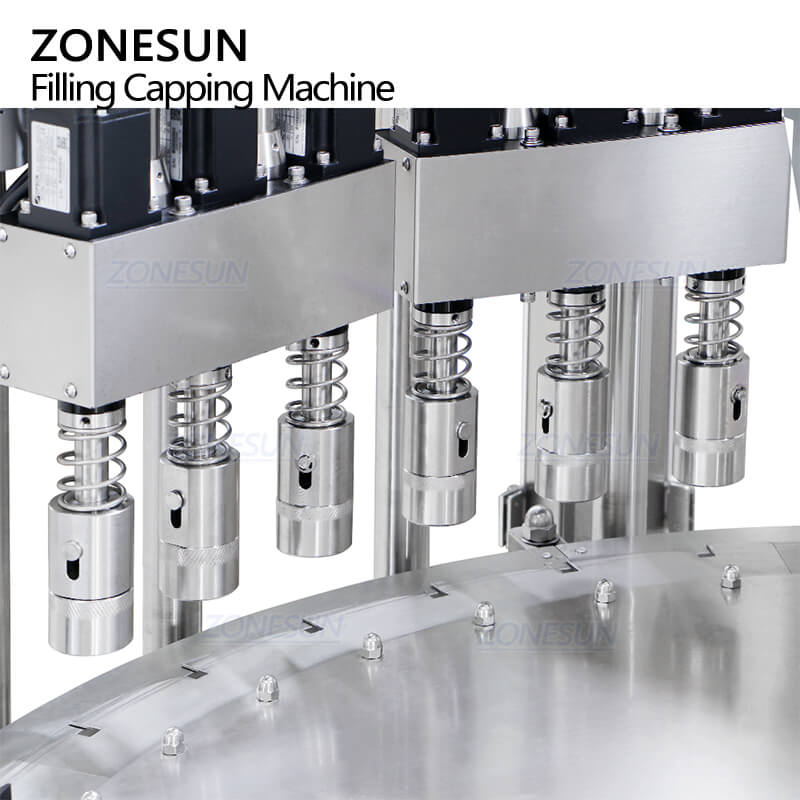

Applies consistent torque with independent servo control for reliable sealing.
