ZS-VTRP1A Automatic Rotor Pump Sriracha Sauce Ketchup Jam Honey Bottle Paste Filling Machine

automatic honey jam filling machine
hopper of automatic honey jam filling machine
filling nozzle of  of automatic honey jam filling machine
 of automatic honey jam filling machine
back side of  of automatic honey jam filling machine
real shot of automatic honey jam filling machine

ZS-VTRP1A Automatic Rotor Pump Sriracha Sauce Ketchup Jam Honey Bottle Paste Filling Machine

Voltage
Regular price $4,299.00 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico)

Click Video Link For Video

This machine is equipped with high quality rotor pump which can filling paste faster and more accurately.It can work with automatic capping and labeling machine to realize automated production.This machine is widely used in food,daily chemicaly and cosmetics industries.

Parameter

Machine Model:ZS-VTRP1A
Voltage:220V/110V 50-60Hz
Power:About 230W
Machine Pump:Rotor Pump
Minimum Filling Range:50-1500ml
Filling Speed:About 25 bottles/min(based on 500ml water,depends on bottle size and liquid)
Filling Accuracy:≤±1%
Filling Nozzle Diameter:OD 25mm
Suitable Bottle Height:30mm-235mm
Suitable Bottle Diameter:30mm-110mm
Hopper Capacity:About 30L
Machine Size:About 1880*760*1510mm
Machine Weight:About 95kg

Automatic Lotion Facecream Filling Machine

Application of  honey jam filling machineDetails of honey jam filling machineOperation panel of honey jam filling machine

Through the touch screen panel, it’s easy to set working parameters and control the machine to work. The language of panel can be customized according to customers’ need.

Filling Nozzle of honey jam filling machine

With pneumatic filling nozzle, it can be used for filling viscous liquid like gel, honey. The height of filling nozzle can be adjusted according to bottles’ height.

rotor pump of honey jam filling machine

Equipped with high quality rotor pump,this filling machine is a filling equipment composed of a servo motor and a cam rotor pump. The pump head is a metering pump with a positive displacement structure. The displacement per revolution is a fixed value. The servo motor can accurately control the speed for metering and filling.

electric eye of honey jam filling machine

It is used for detecting bottles and controlling the machine to work automatically. Intelligent and efficient. The sensitivity of it is adjustable.

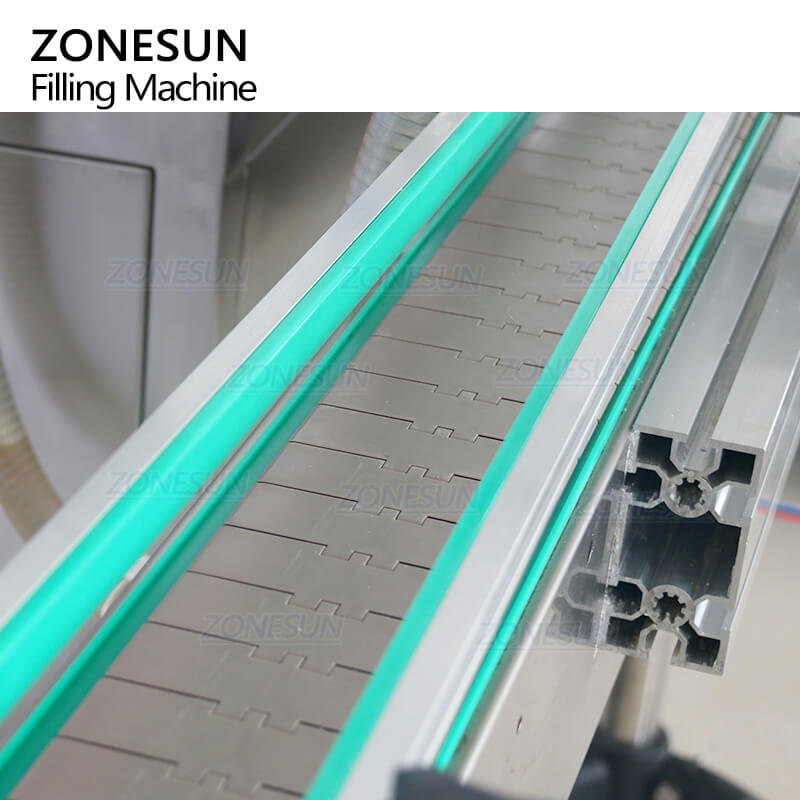

conveyor of honey jam filling machine

With chain conveyor belt, it has large loading capacity, which can transport bottles stably. The width and conveying speed of it can be adjusted as needed.

honey jam filling machinehoney jam filling machine
