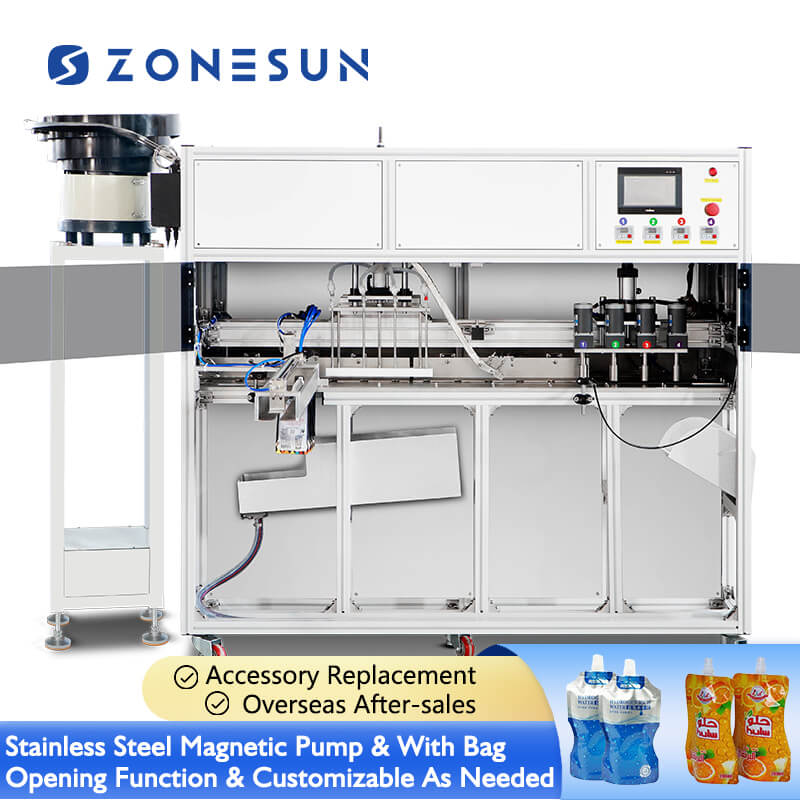

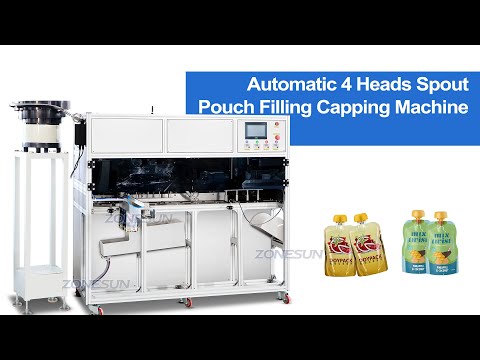

ZONESUN ZS-ASPM4 Fully Automatic 4 Heads Magnetic Pump Spout Pouch Liquid Filling Capping Machine For Fruit Juice Drinks
Regular price
$14,399.00 USD
Regular price
Sale price
$14,399.00 USD
Save $-14,399 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This fully automatic spout pouch filling capping machine completes bag feeding, pouch opening by air blow, liquid filling, cap feeding, and capping in one continuous process. it is ideal for filling spout pouches with non-particulate liquids such as juice, cocktails, coffee concentrate, energy gel and nutritional supplements, providing stable and efficient production.

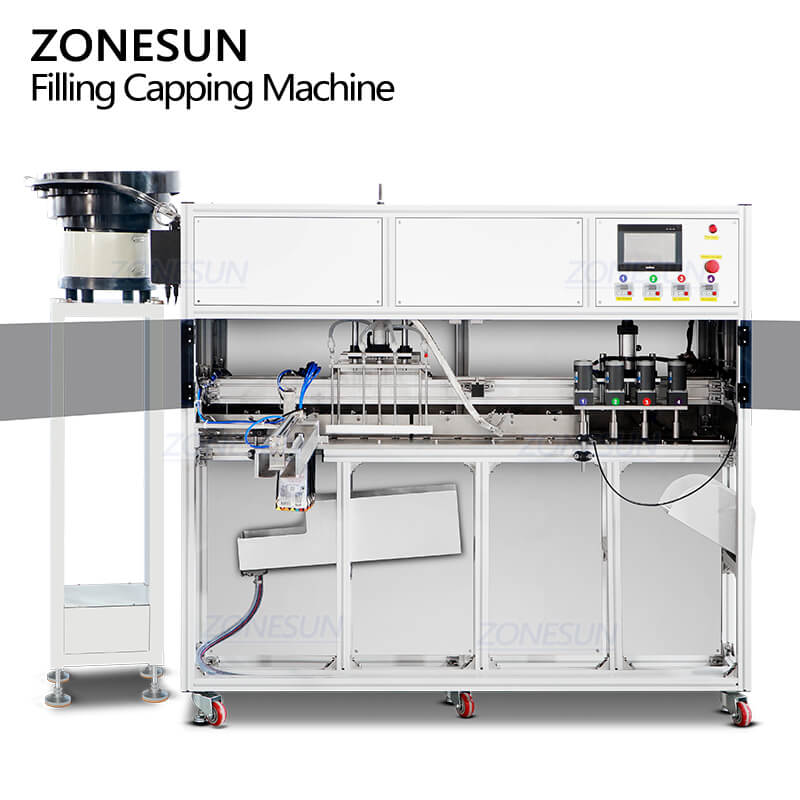

Spout Pouch Filling Capping Machine
- Machine Model: ZS-ASPM4
- Machine Voltage: 110/220V 50-60HZ
- Machine Power: 1200W
- Filling Volume: 10-300 ml(Customizable)
- Filling Pump: Stainless Steel 316 Magnetic Pump ( 6L/min )
- Filling Accuracy: ±1%
- Filling Nozzle Quantity: 4(Customizable)
- Working Capacity: 1600-1800 BPH
- Suitable Spout Size: Customizable
- Suitable Cap Size: Customizable
- Air Pressure: 0.4-0.6 MPa
- Machine Size: About 2480*1760*1730 mm
- Package Weight: About 434 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

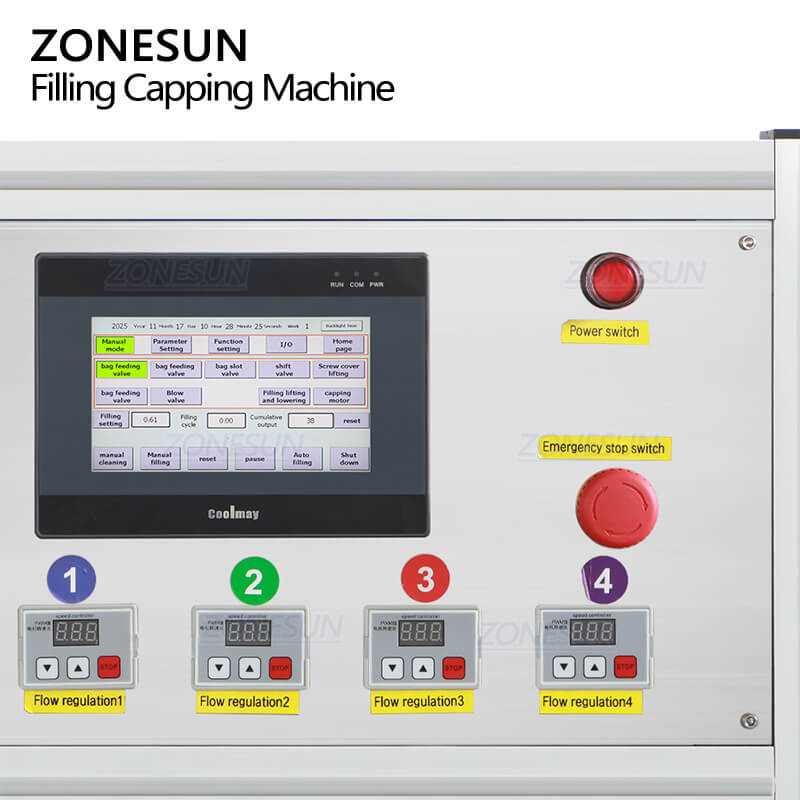

Touchscreen Control Panel
Offers easy parameter setup and real-time operation status monitoring.
Offers easy parameter setup and real-time operation status monitoring.

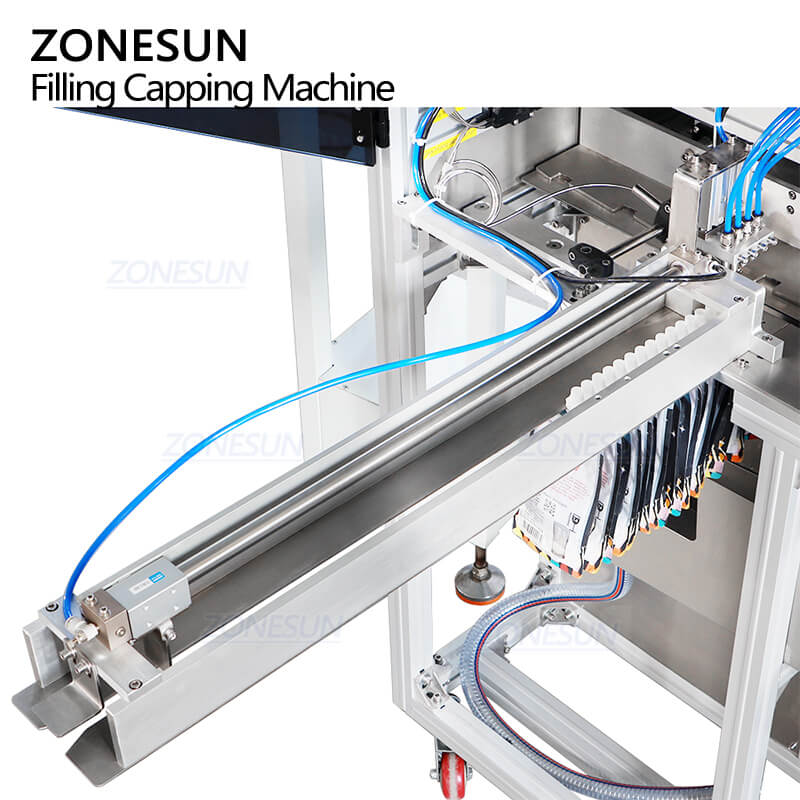

Bag Infeed Mechanism
Automatically feeds and positions spout pouches for continuous processing.
Automatically feeds and positions spout pouches for continuous processing.

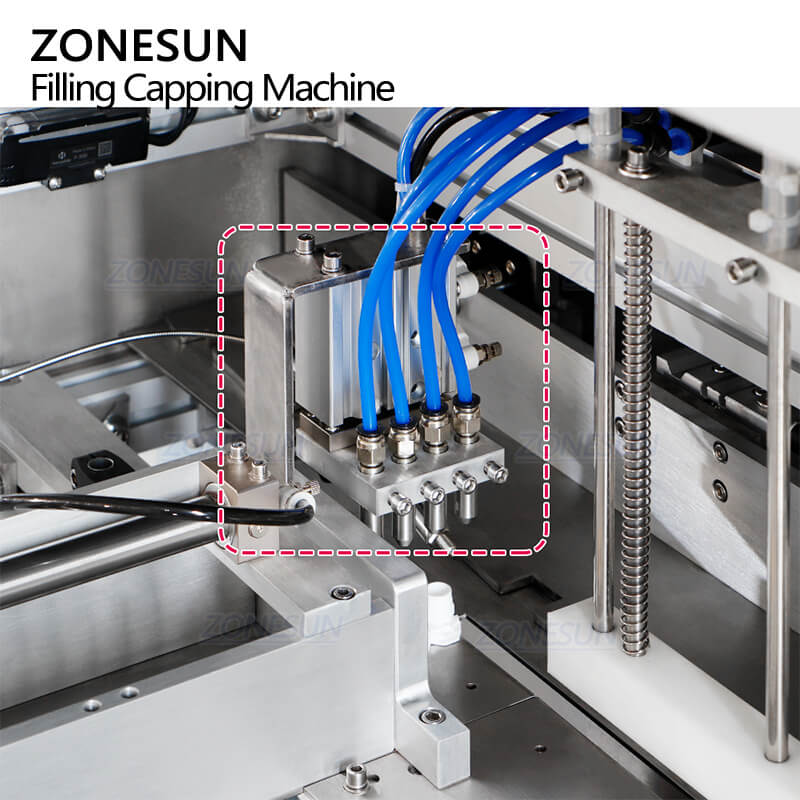

Air-Blow Pouch Opening System
Uses controlled airflow to open and stabilize the pouch before filling.
Uses controlled airflow to open and stabilize the pouch before filling.

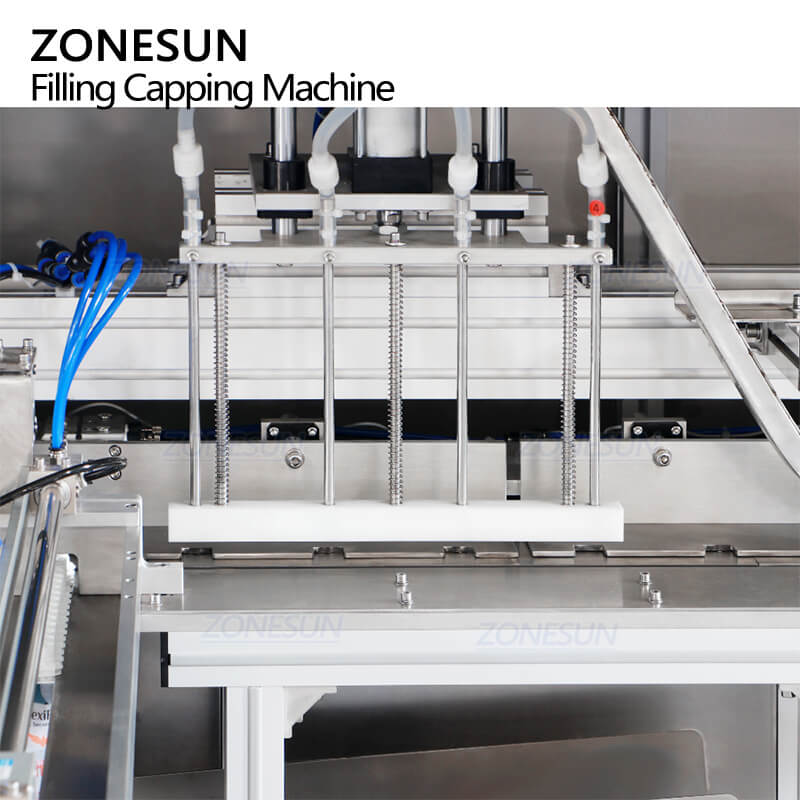

Magnetic Pump Filling Structure
Multi filling heads are customizable, it provides accurate, clean, and repeatable liquid dosing for non-particulate products.
Multi filling heads are customizable, it provides accurate, clean, and repeatable liquid dosing for non-particulate products.

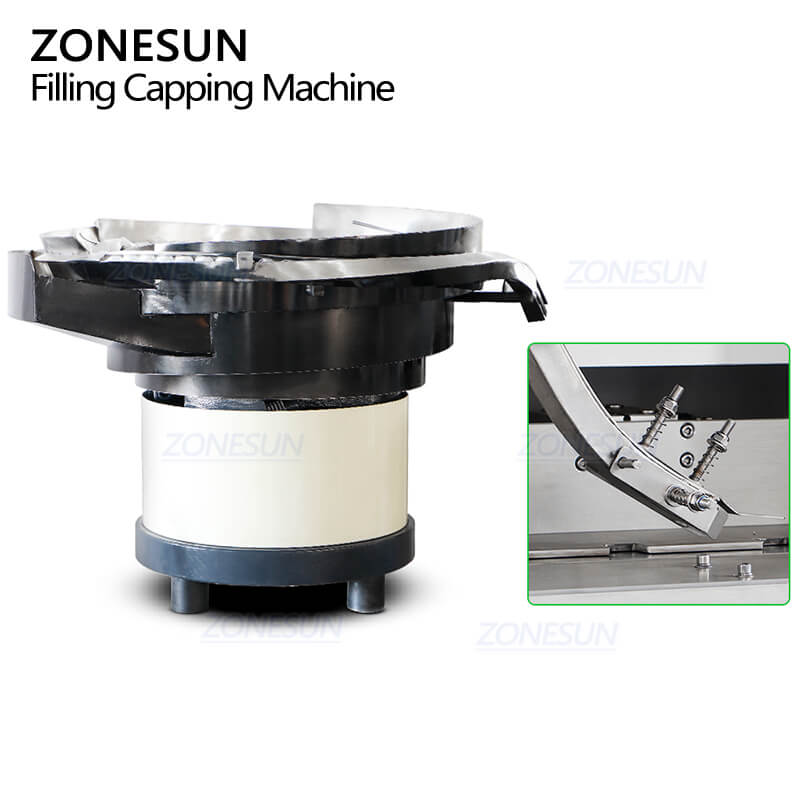

Vibratory Cap Feeding System
Sorts and orients caps to ensure smooth and uninterrupted caps supply.
Sorts and orients caps to ensure smooth and uninterrupted caps supply.

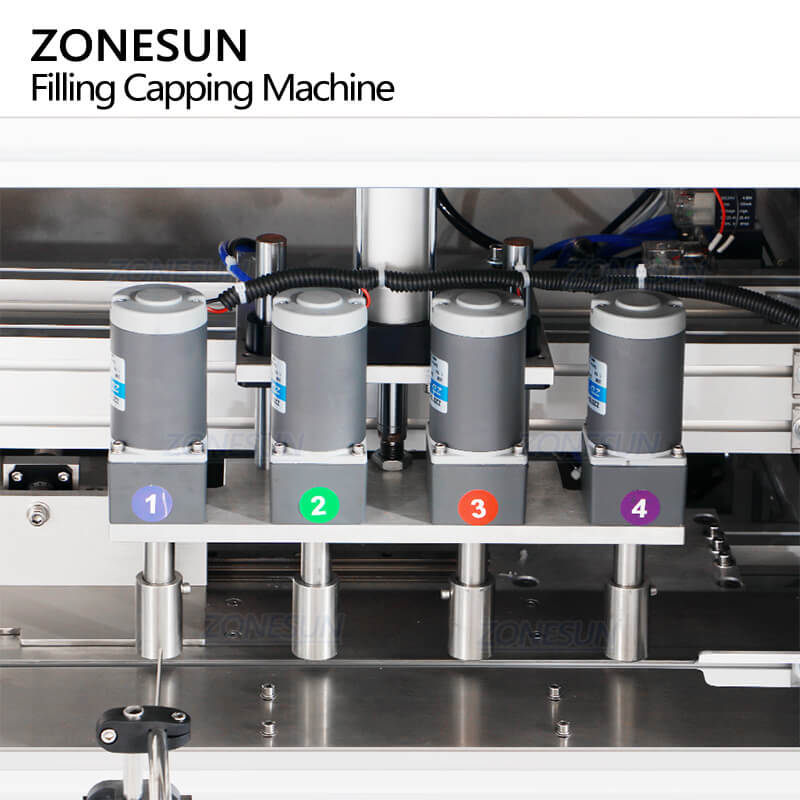

Capping Station
Multi capping heads improves capping efficiency, the capping structure tightens caps with consistent torque for leak-proof sealing.
Multi capping heads improves capping efficiency, the capping structure tightens caps with consistent torque for leak-proof sealing.
