Name: ZS-GT1V Full Pneumatic Ointment Chili Paste Soy Sauce Glass Bottle Filling Machine
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00100900039-0002
Price: 749.0 USD
Availability: InStock

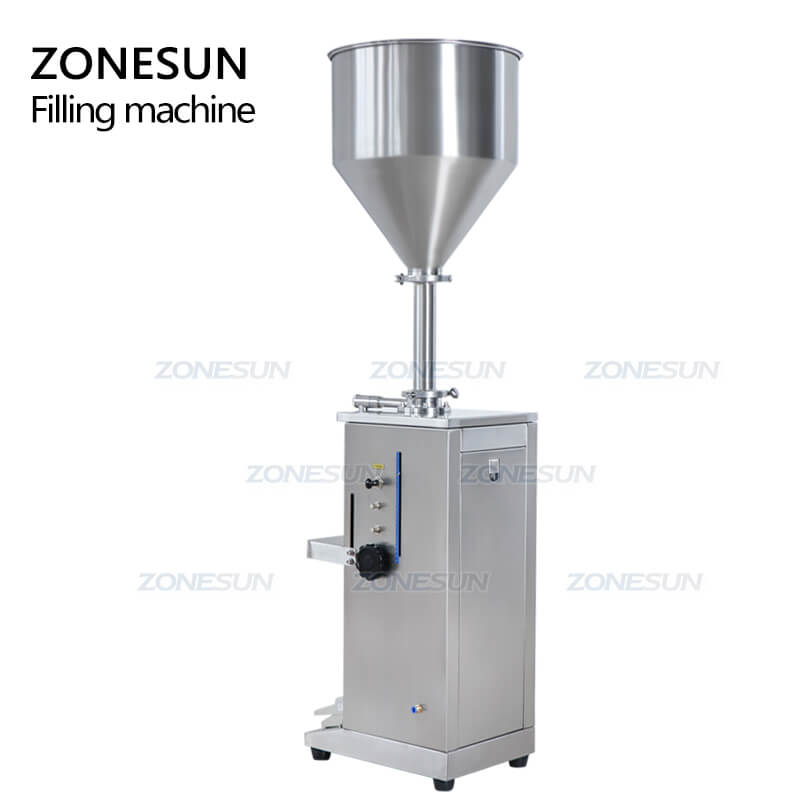

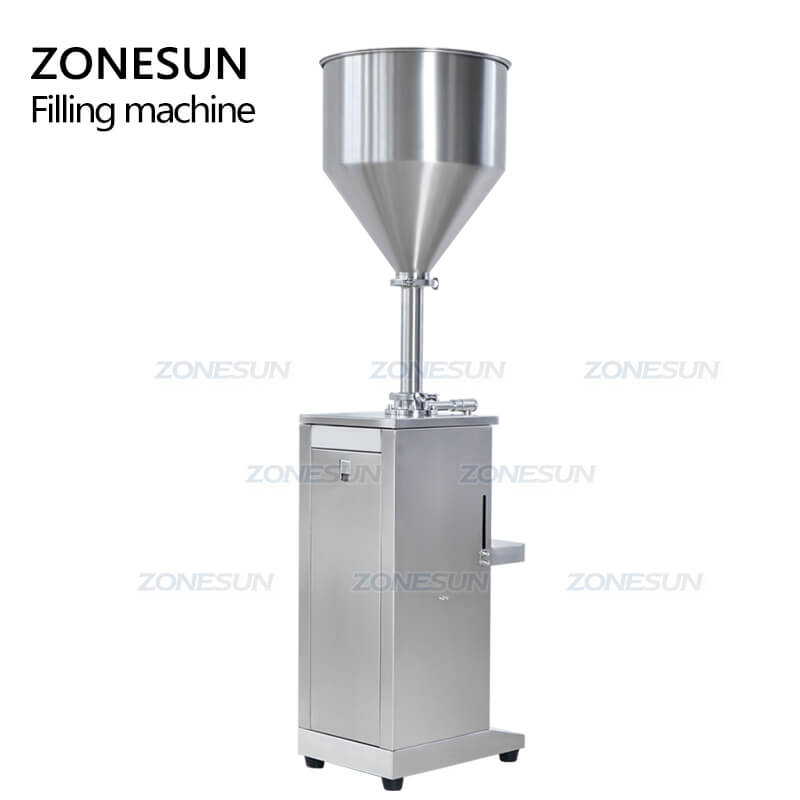

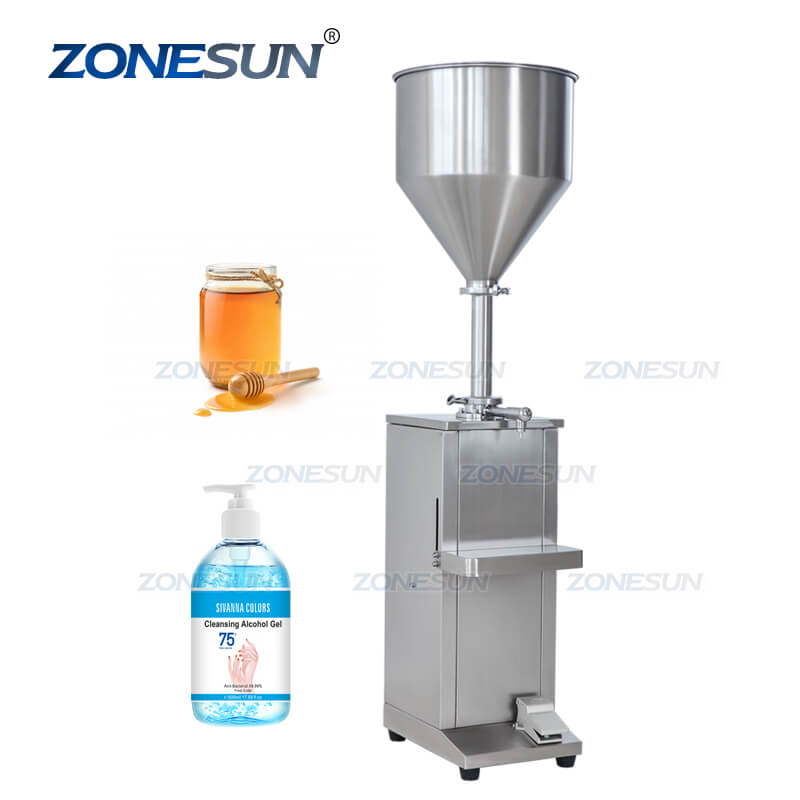

This piston pump filling machine is used for filling liquid or paste into bottles,the filling speed can be adjusted according to operation need.This machine is widely used in food,beverage,daily chemical and cosmetics industries.

Parameter

Machine Model:ZS-GT1V
Filling Range:5-100ml/10-300ml/50-500ml/100-1000ml
Filling Speed:About 1-25bottles/min
Filling Nozzle Diameter:OD 8mm
Hopper Capacity:30L
Filling Accuracy:±1%
Air Pressure:0.4-0.6MPa
Size of Air Compressor Connector:OD 8mm
Machine Weight:About 32kg
Machine Size:About 300mm*320mm*1555mm
Package Weight:About 46KG
Package Size:About 1595mm*450mm*460mm

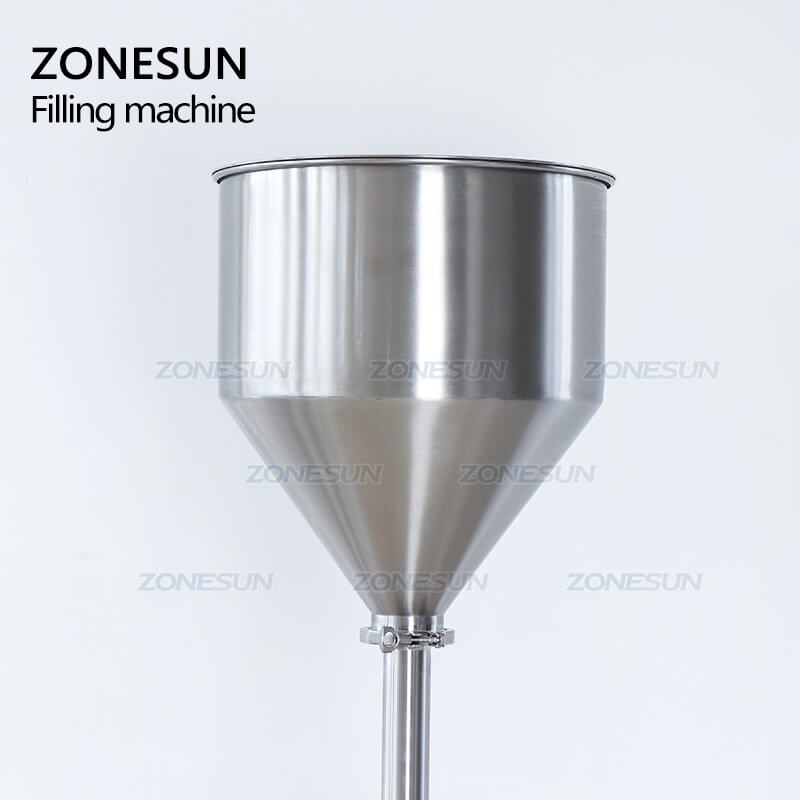

Semi-automatic Full Pneumatic Jam Paste Filling Machine Application of Semi-automatic Full Pneumatic Jam Paste Filling Machine Machine Details of Semi-automatic Full Pneumatic Jam Paste Filling Machine Hopper of Semi-automatic Full Pneumatic Jam Paste Filling Machine

Designed with large hopper,this is good for pouring liquid/paste,this can get the paste or liquid flow more smoothly and improves filling accuracy.

Filling Nozzle of Semi-automatic Full Pneumatic Jam Paste Filling Machine

The filling nozzle is made of high quality materials,we also offer different size of filling nozzle which can be replaced according to operation need,improves production quality.

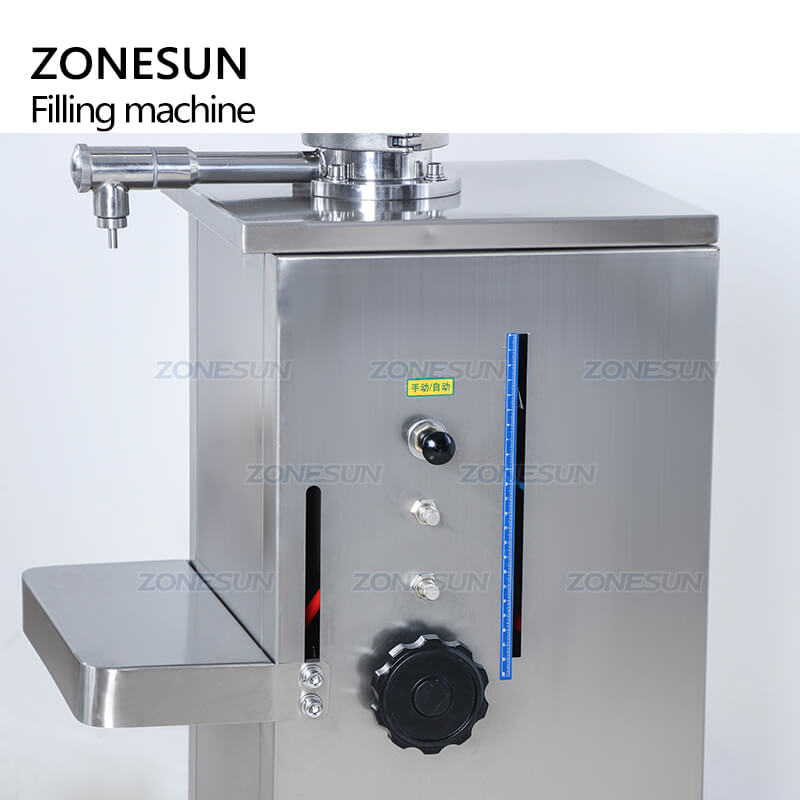

Control Button of Semi-automatic Full Pneumatic Jam Paste Filling Machine

The working height of the tray can be adjusted by the rotary knob.Working mode can be changed by pressing one button.Operator can use the middle two screws to control the interval time and filling speed indirectly.

Pedal Switch of Semi-automatic Full Pneumatic Jam Paste Filling Machine

Equipped with foot pedal switch,this is more convenient to adjust the machine and help operator reduce production error.
