ZONESUN ZS-FAL180X Full Automatic Vacuum Liquid Perfume Aluminium Spayer Pump Bottle Filling Capping Machine Line

Video For Perfume Filling Line

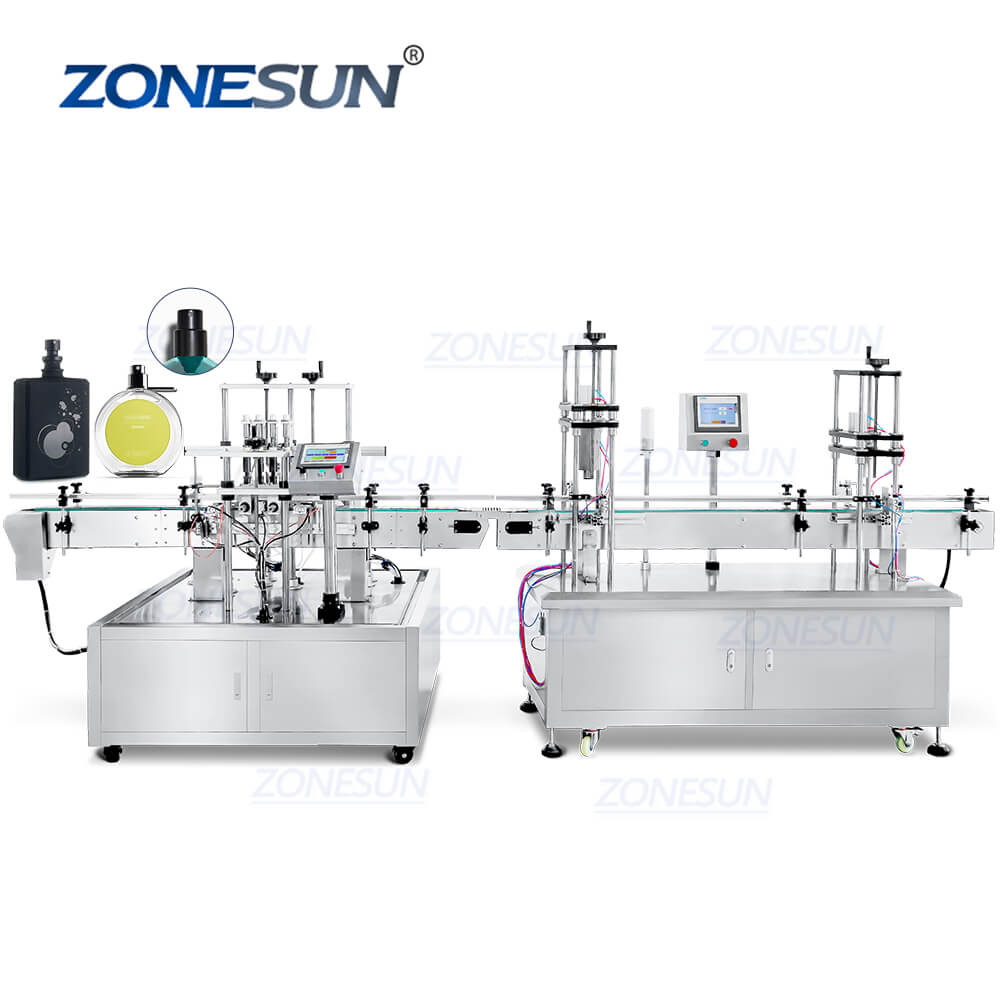

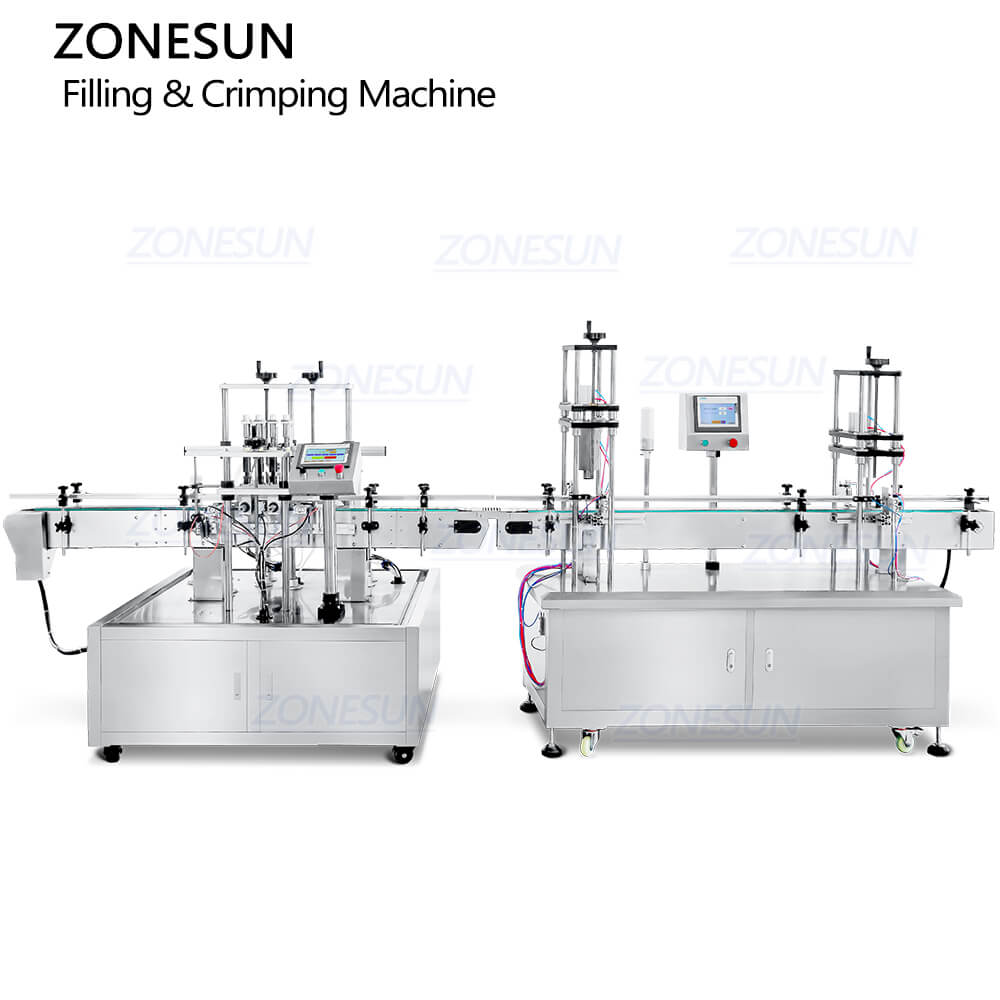

The full automatic production line for producing perfume.Consisting of vacuum filling machine and bottle crimping machine,it can help you improve working efficiency and save production labor.

Parameter

Filling Machine

• Model:ZS-YTZL4A
• Filling Head:4 Heads
• Air Pressure:0.5-0.8MPa
• Liquid Level Accuracy:±1mm
• Viscosity Range:The maximum applicable viscosity is 20Cps (static viscosity)
• Working Speed:20-40 bottles/min(depending on filling volume)
• Bottle Height:≤250mm
• Bottle Opening Size:≤φ4.5mm-φ28mm
• Adjustable Liquid Level (from the bottle mouth): <27mm (can be customized for larger size)
• Pumping Rate:5.5L/S
• Machine Size:About 1500*1150*1530mm
• Package Size:About 1660*1310*1670mm
• Net Weight/Gross Weight:About 278kg/339kg

Capping Machine

• Machine Model:ZS-YG11U
• Voltage:220V/110V 50-60Hz
• Power:1.5kW
• Capping Speed:About 20bottles/min(depending on bottle and cap size)
• Suitable Bottle Height:50-200mm
• Bottle Cap Diameter:15-22mm
• Bottle Mouth Diameter:14-20mm
• Suitable Bottle Diameter:40-110mm
• Machine Size:About 2600*760*1700mm(L*W*H)

Equipped with PLC operation panel,it is easy to control and debug the machine. The language of panel can be customized as your need.

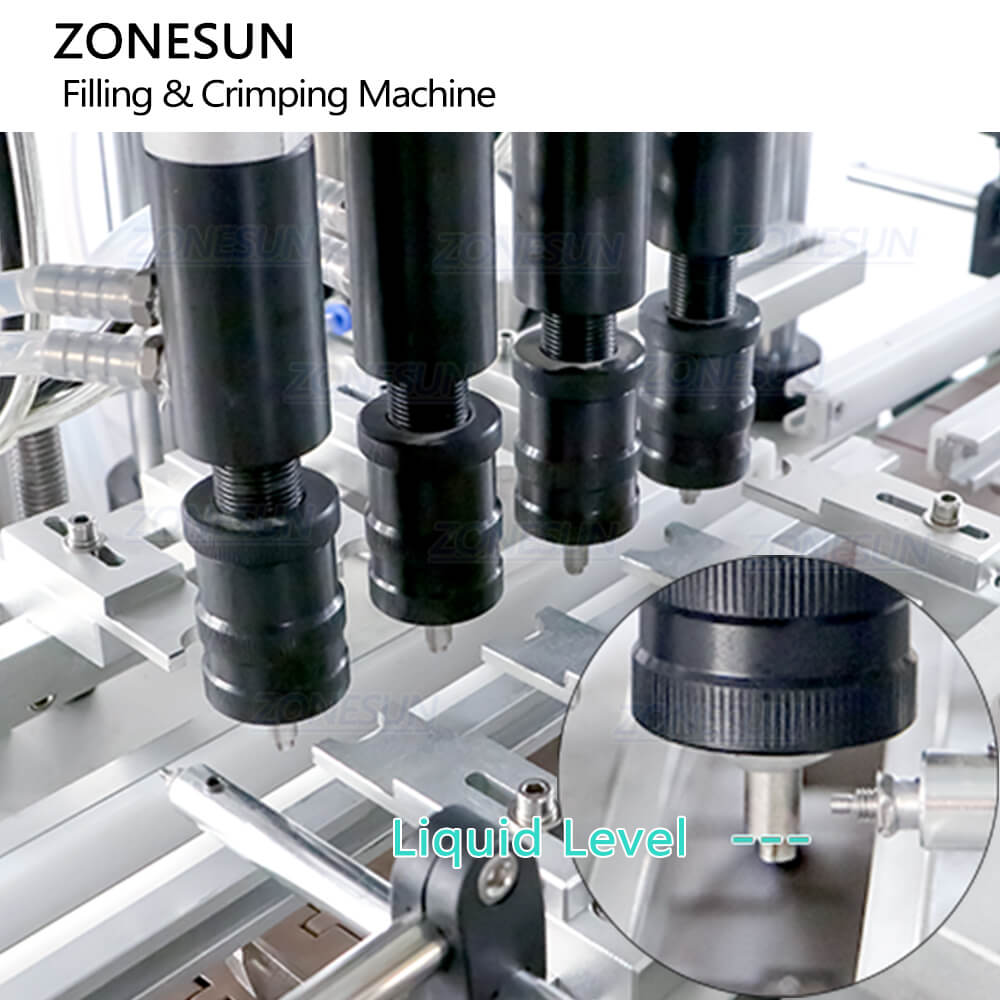

Adopting the vacuum constant liquid-level working principle,it can fill liquid accurately.If the liquid level is over the position that marked by red line,the machine will suck the extra liquid and make it back flow to the material container.The filling nozzles can be controlled separately.

These large material cylinders can be used to contain flowed back liquid. Ensure the filling accuracy.

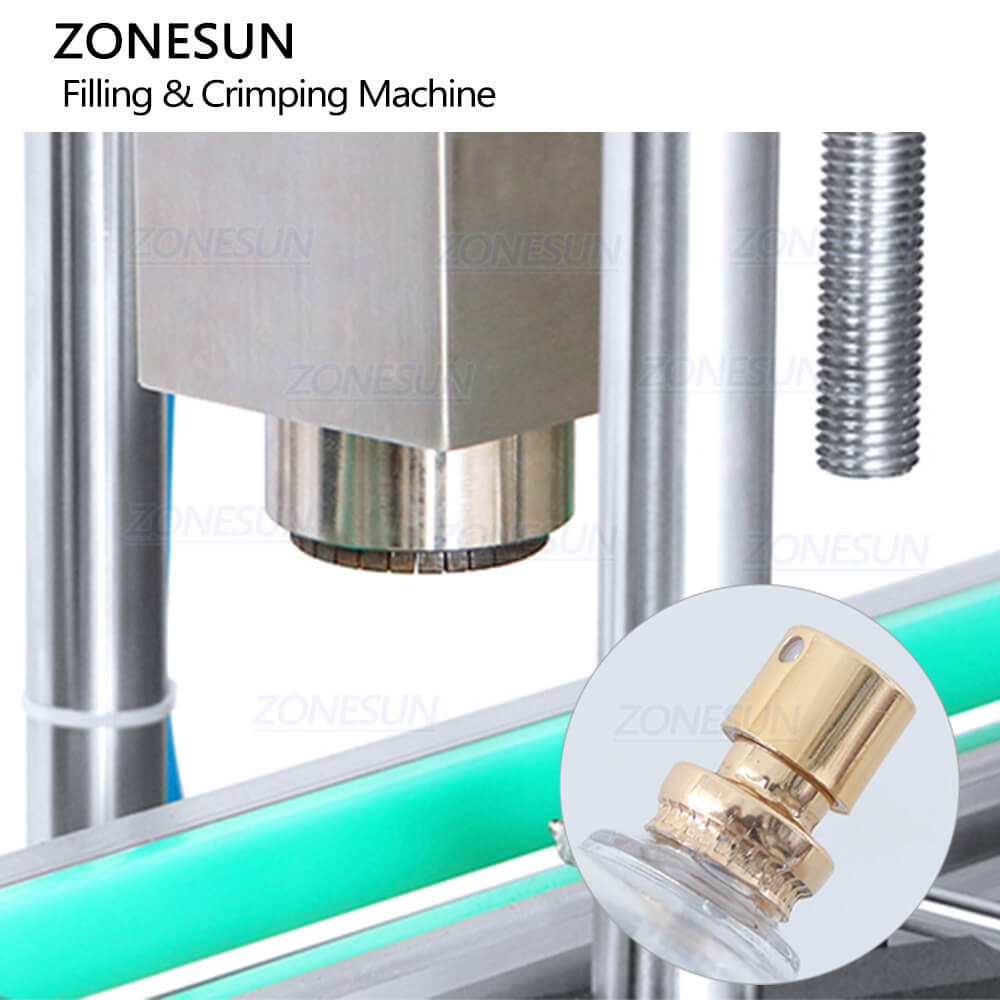

The capping mold can be customized and changed according to bottle size,ensures the production quality

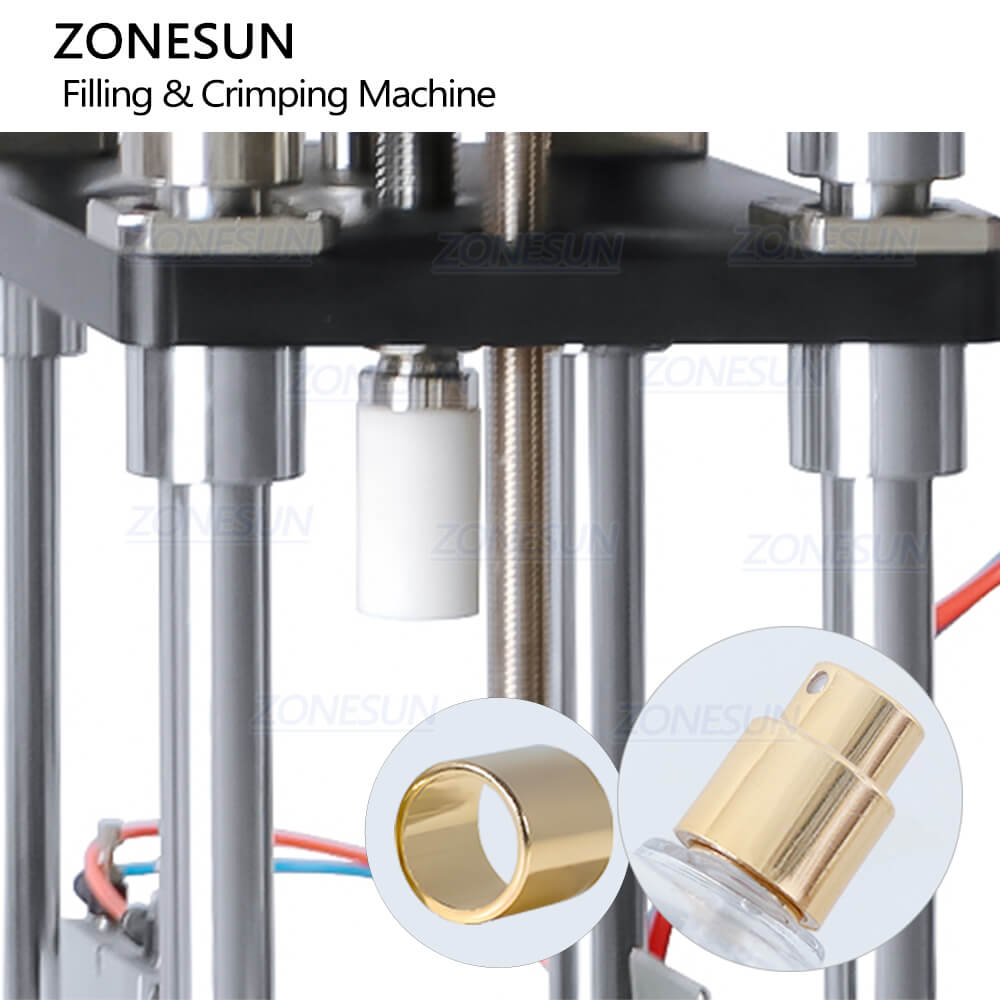

The pressing head should be customized according to caps and bottle sizes.It can also be used to press collar ring.
