ZS-YG11U FEA15mm Automatic Liquid Aluminium Perfume Pump Sprayer Bottle Collar Ring Caps Crimping Pressing Capping Machine
ZS-YG11U FEA15mm Automatic Liquid Aluminium Perfume Pump Sprayer Bottle Collar Ring Caps Crimping Pressing Capping Machine
perfume bottle capper
perfume crimper machine

ZS-YG11U FEA15mm Automatic Liquid Aluminium Perfume Pump Sprayer Bottle Collar Ring Caps Crimping Pressing Capping Machine

Voltage
Machine Type
Price
Regular price $9,099.00 USD
Regular price Sale price $9,099.00 USD
Save $-9,099 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Machine Video

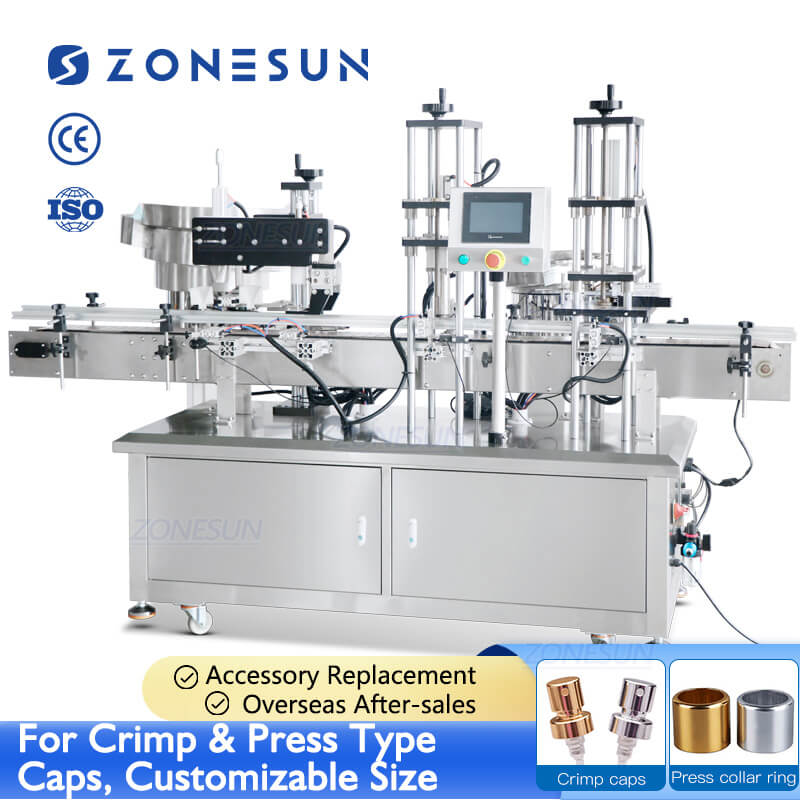

This perfume capping machine is suitable for two kinds of bottle caps,the pressing type and the crimping type.It can also be used to cap collar ring.It can work with automatic filling machine to realize automated production,and change the capping mold,it can be used for different sizes of bottles.

Parameter

Vibratory Bowl Sorter

  • Machine Power:110/220V 50-60HZ
  • Material:Stainless Steel
  • Suitable Caps Diameter:Customized
  • Working Speed:Customized
  • Machine Size:Customized

Capping Machine

  • Machine Model:ZS-YG11U

  • Voltage:220V/110V 50-60Hz
  • Power:1.5kW
  • Capping Speed:About 20bottles/min(depending on bottle and cap size)
  • Suitable Bottle Height:50-200mm
  • Bottle Cap Diameter:15-22mm
  • Bottle Mouth Diameter:14-20mm
  • Suitable Bottle Diameter:40-110mm
  • Machine Size:About 2600*760*1700mm(L*W*H)

    perfume bottle crimping machine

    application of perfume bottle crimping machine

    automatic perfume bottle capping machine

    control panel of perfume bottle capping machine

    Equipped with PLC operation panel,it is easy to control and debug the machine. The language of panel can be customized as your need.

    cap positioning structure of perfume crimping machine

    Equipped with guide housing and positioning structure, this can ensure spray caps can be crimped accurately, improves production quality.

    crimping head of  perfume bottle capping machine

    The capping mold can be customized and changed according to cap size, ensuring production quality.

    pressing head of  perfume bottle capping machine

    The pressing head should be customized according to bottle and cap size.It is also suitable for pressing collar ring.

    electric eye of  perfume bottle capping machine

    The electric eye is designed for detecting bottles and controlling machine to run automatically.Its sensitivity can be adjusted as production need.

    vibrating sorter of perfume crimping machine

    The machine has two vibratory bowl sorting machine, one for spray caps, another one for collar ring.They are customized according to cap and collar ring size, and helps to save working labor.

    conveyor of perfume capping machine

    The chain conveyor belt has large loading capacity,which can transport containers stably.The conveying speed and width of conveyor belt can be adjusted as production need.



    perfume spray capping machine
