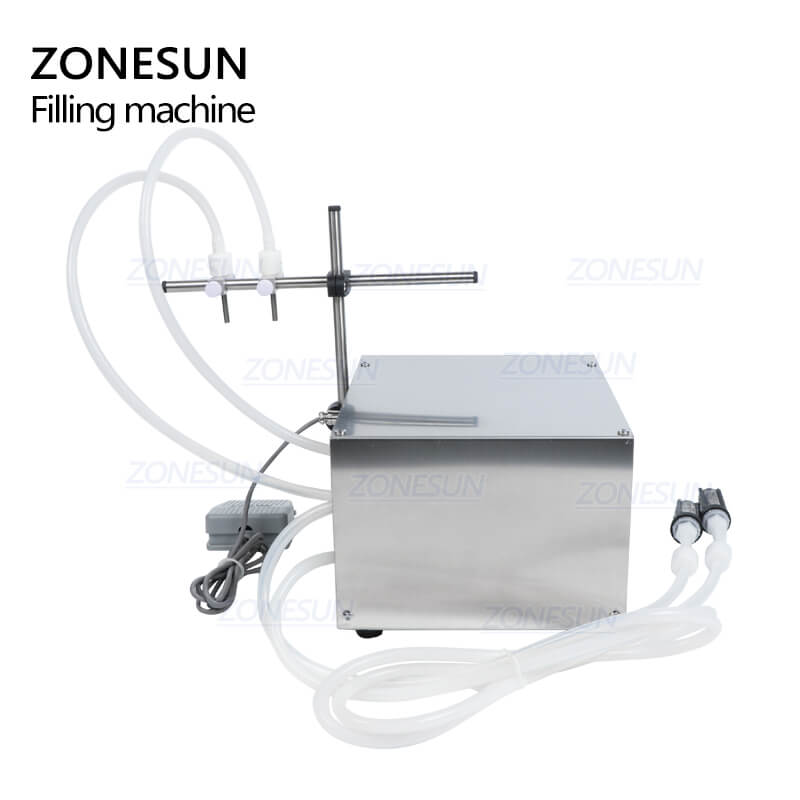

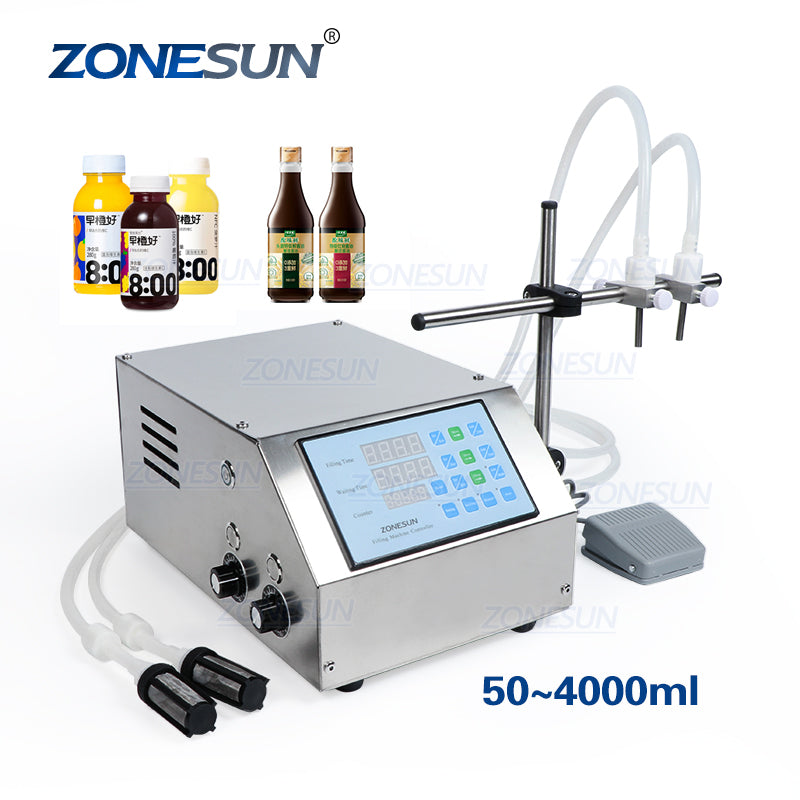

Double Head Diaphragm Pump Liquid Filling Machine

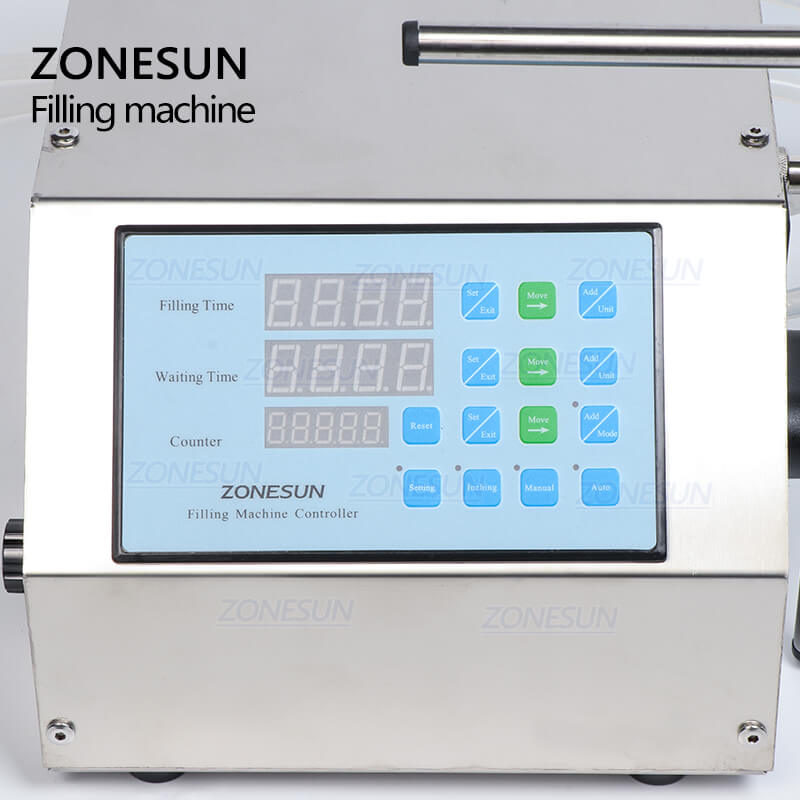

Control Panel of Double Head Diaphragm Pump Liquid Filling Machine

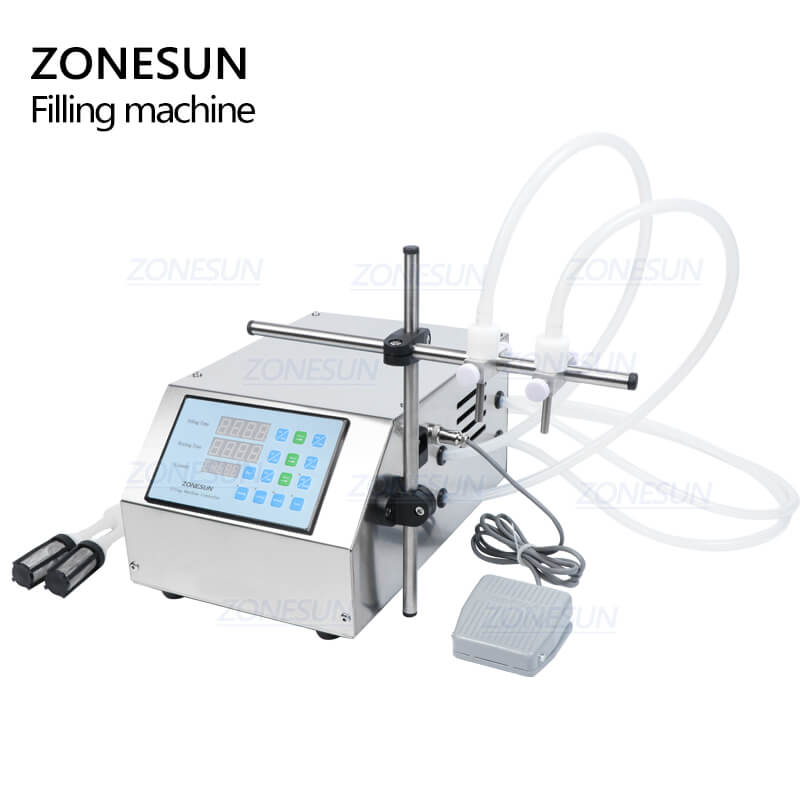

Double Head Diaphragm Pump Liquid Filling Machine

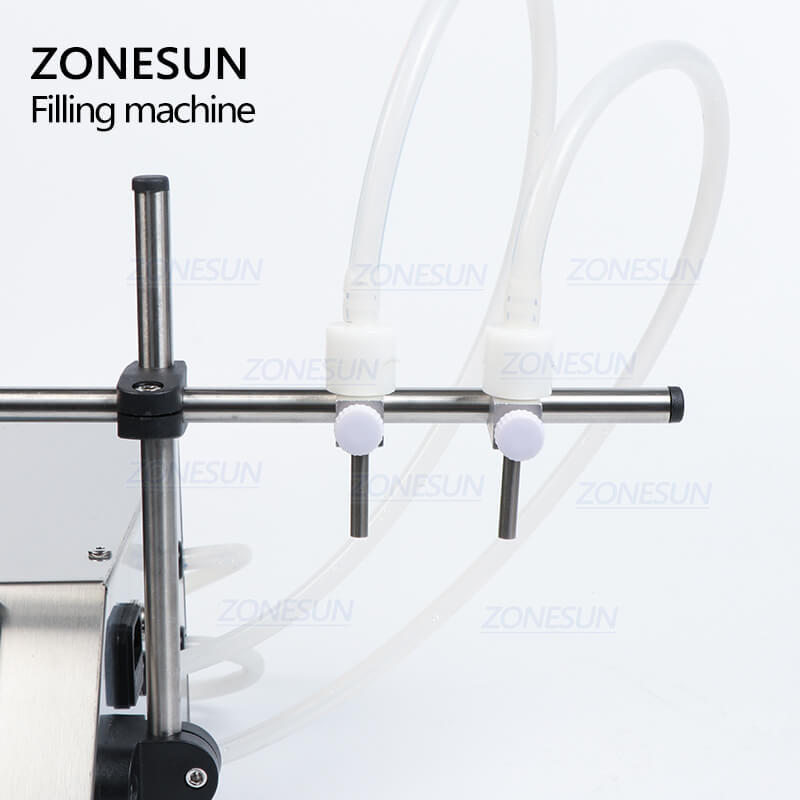

Filling nozzle of Double Head Diaphragm Pump Liquid Filling Machine

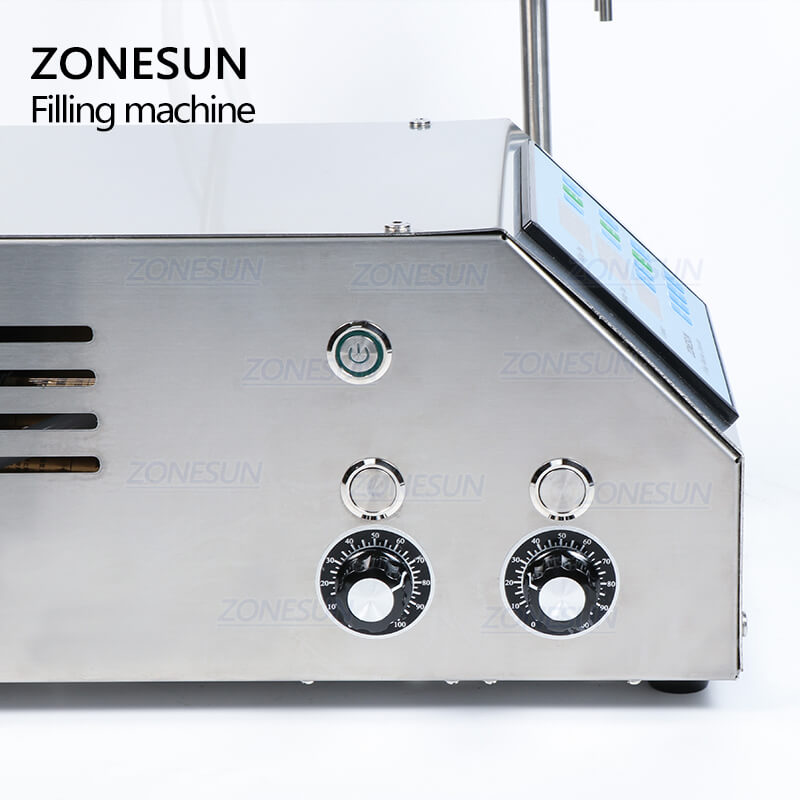

Double Head Diaphragm Pump Liquid Filling Machine
Double Head Diaphragm Pump Liquid Filling Machine

ZS-DPYT2P Double Head Liquid Filling Machine For Perfume Water Juice Oil Cosmetics

Power
Shipping Location
Price
Regular price $149.00 USD
Regular price $160.00 USD Sale price $149.00 USD
Save $11 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

Description

This semi automatic filling machine is suitable for filling low viscosity liquid without particle like water,juice,milk,perfume etc.It fills liquid by controlling the filling time and speed,the time and speed are adjustable according to operation.There are two filling nozzles and each nozzle can be controlled separately.

Paramter

  • Machine model:ZS-DPYT2P
  • Voltage:AC220V/110V 50-60HZ
  • Power:40W*2
  • Filling range:50-4000ml
  • Maximum suction distance:1.5M
  • Maximum flow rate:4L / MIN
  • Repetitive error smaller than:0.5% (depending on the density of product)
  • OD of filling nozzle:OD 6mm
  • Machine weight:5kg
