ZS-DTDP4G Diaphragm Pump Small Bottle 4 Heads Liquid Filling Machine With Conveyor Belt

SKU: 00100200093-0024
Automatic Small Bottle Filling Machine
Control Panel of Automatic Small Bottle Filling Machine
Filling Nozzle of 4 Heads Liquid Filling Machine
Conveyor Belt of 4 Heads Small Bottle Filling Machine

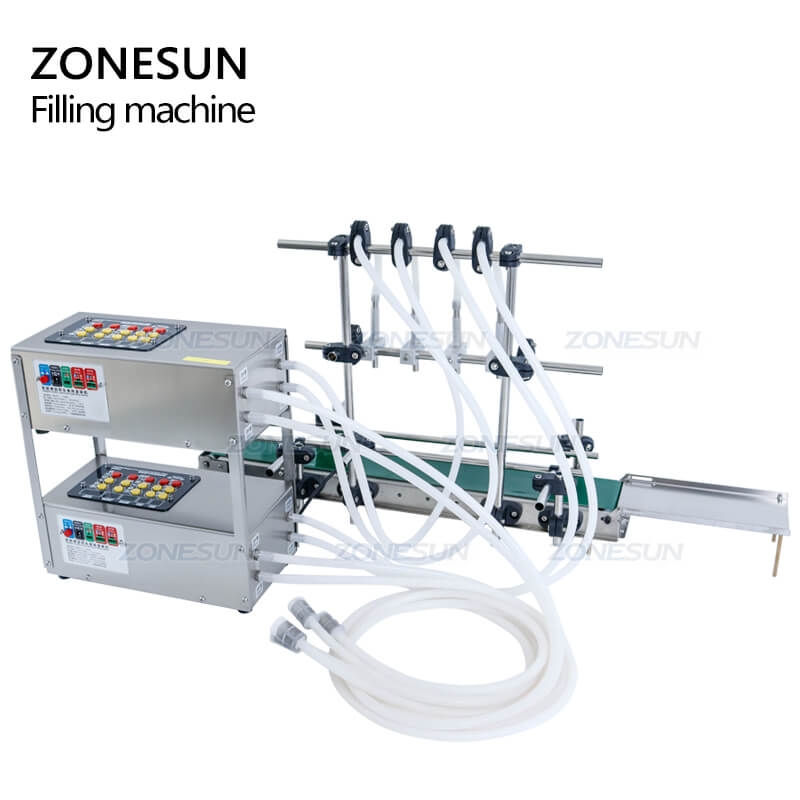

4 Heads Small Bottle Filling Machine

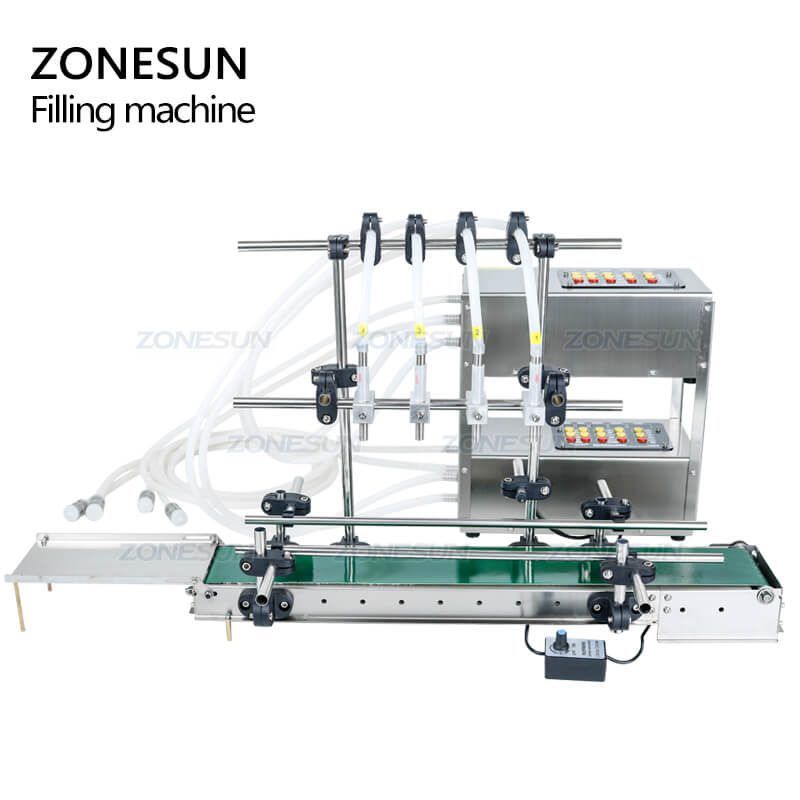

Automatic Diaphragm Pump Filling Machine

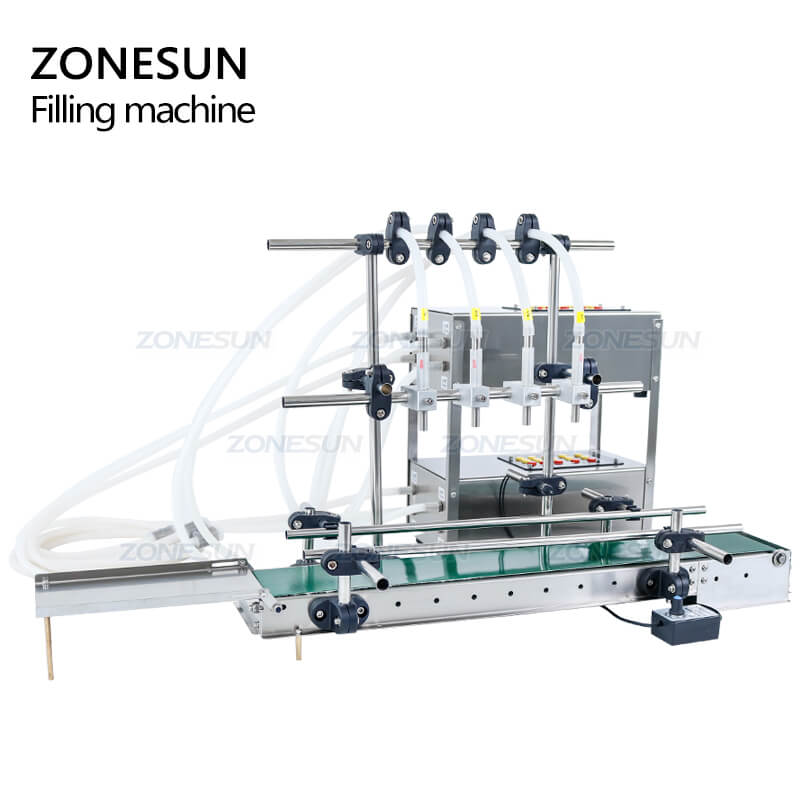

4 Heads Small Bottle Filling Machine

ZS-DTDP4G Diaphragm Pump Small Bottle 4 Heads Liquid Filling Machine With Conveyor Belt

SKU: 00100200093-0024
Voltage
Conveyor Length
Regular price $429.00
/
Only 666 items in stock!
  • Multiple shipping method
  • Custom Service
  • Two Local Service Location
  • Secure payments

Click Video Link For Video

The biggest advantage of this machine is the Intelligent induction working mode.This one can detect bottles and filling liquid automatically,each filling nozzle can be controlled separately.It can help you reduce working error and filling liquid.This machine is suitable for water,beverage,sauce.juice,soybean milk,toner etc

Parameter

Machine Model:ZS-DTDP4G
Machine Pump:Diaphragm Pump
Voltage:220V/110V 50-60Hz
Power:About 240W
Filling Range:10-500ml
Max Flow Rate:4L/min(based on water)
Filling Speed:About 30-60 bottles/min(based on 100ml water)
Filling Accuracy:±1%
Applicable Bottle Height:<250mm
Applicable Bottle Diameter:25mm-80mm
Bottleneck Diameter:>15mm
Filling Nozzle Diameter:OD 9mm
Size of Conveyor Belt:About 600*100mm(Can choose 1200mm)
Size of Collecting Tray:About 210*102mm
Main Machine Size:About 285*145*125mm
Machine Weight:About 10.5kg
Package Size:About 390*200*150mm(Main Machine)
About 650*160*180mm(Conveyor Belt)
Package Weight:About 13KG

4 Heads Liquid Filling Machine With Conveyor

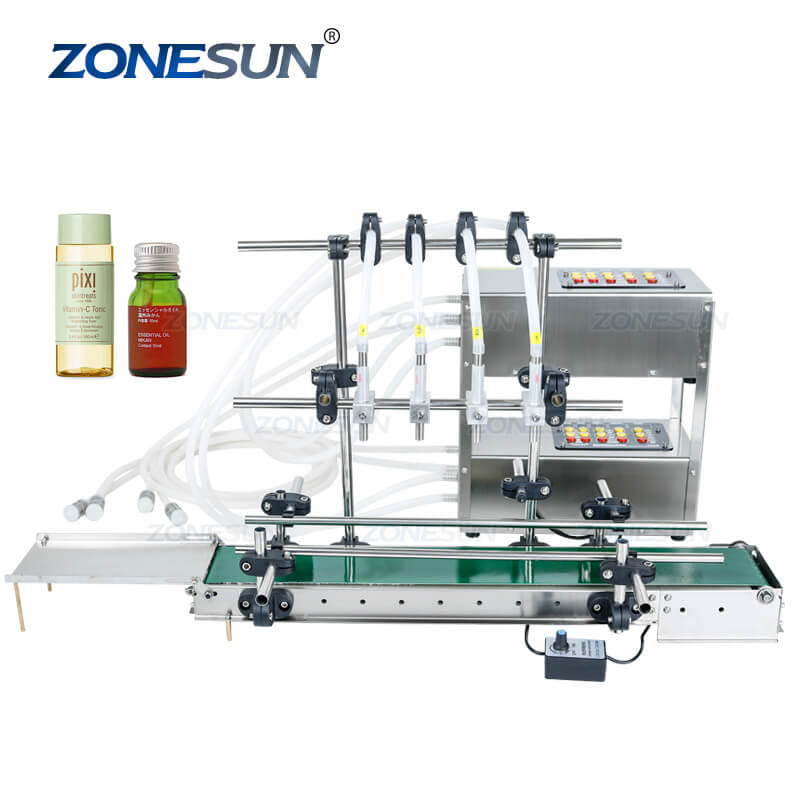

Application of 4 Heads Liquid Filling Machine With Conveyor

Machine Details of 4 Heads Liquid Filling Machine With Conveyor

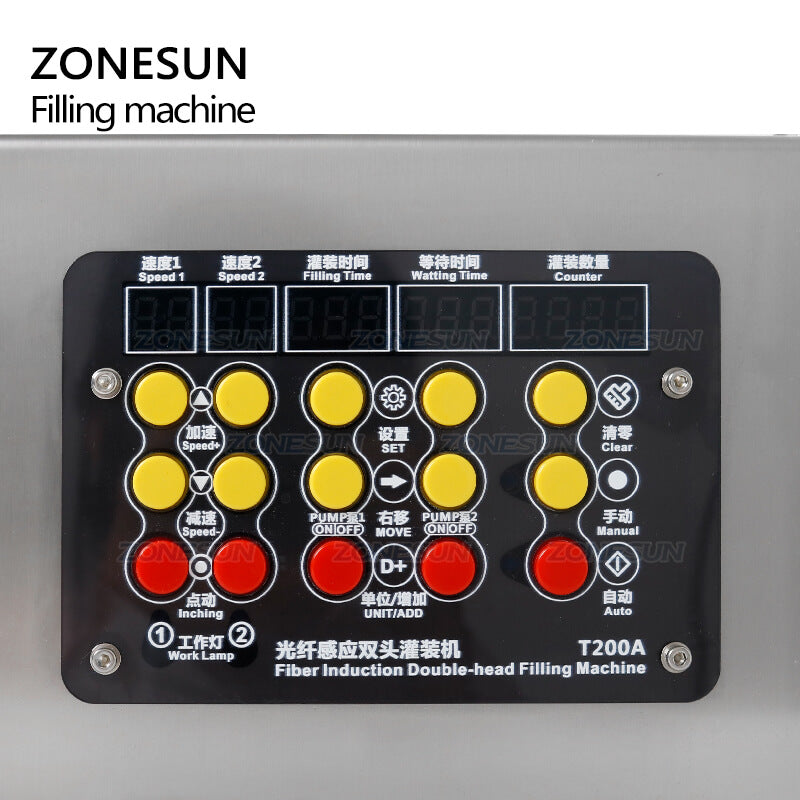

Control Panel of 4 Heads Liquid Filling Machine With Conveyor

Through the digital panel, it is easy to set filling speed and filling time. The number of filled bottles will show on the panel. Visual and accurate.

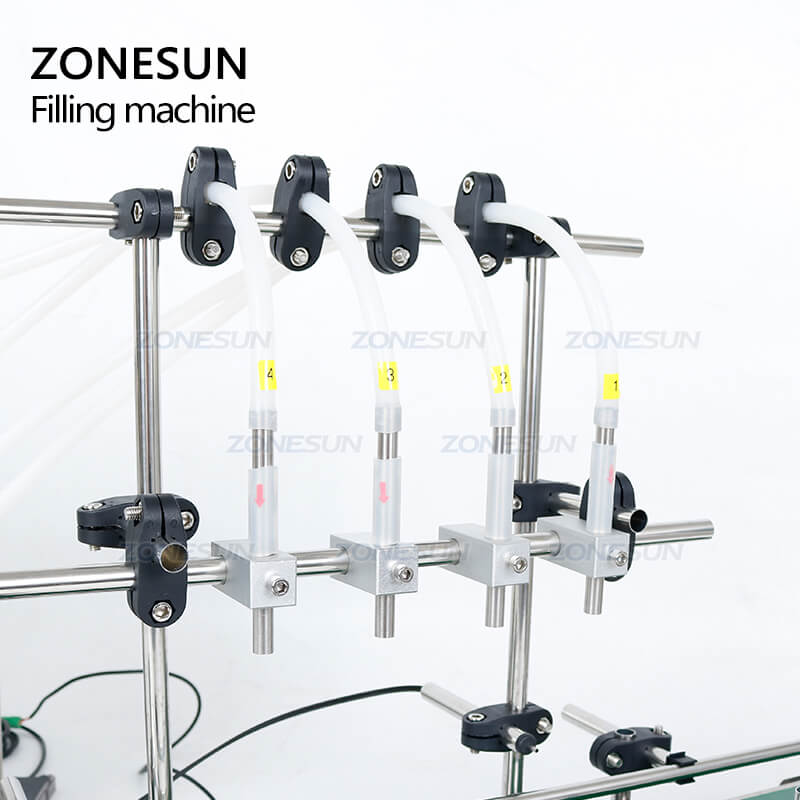

Filling Nozzle of 4 Heads Liquid Filling Machine With Conveyor

With anti-dripping function, it can fill liquid accurately. The filling speed of 4 heads can be adjusted separately, easy to operate. And the height of them can be adjusted according to bottles’ height.

Electric Eye of 4 Heads Liquid Filling Machine With Conveyor

With electric eye to detect bottles, this machine can work automatically. Intelligent and efficient. The sensitivity and position of electric eye can be adjusted according to production need.

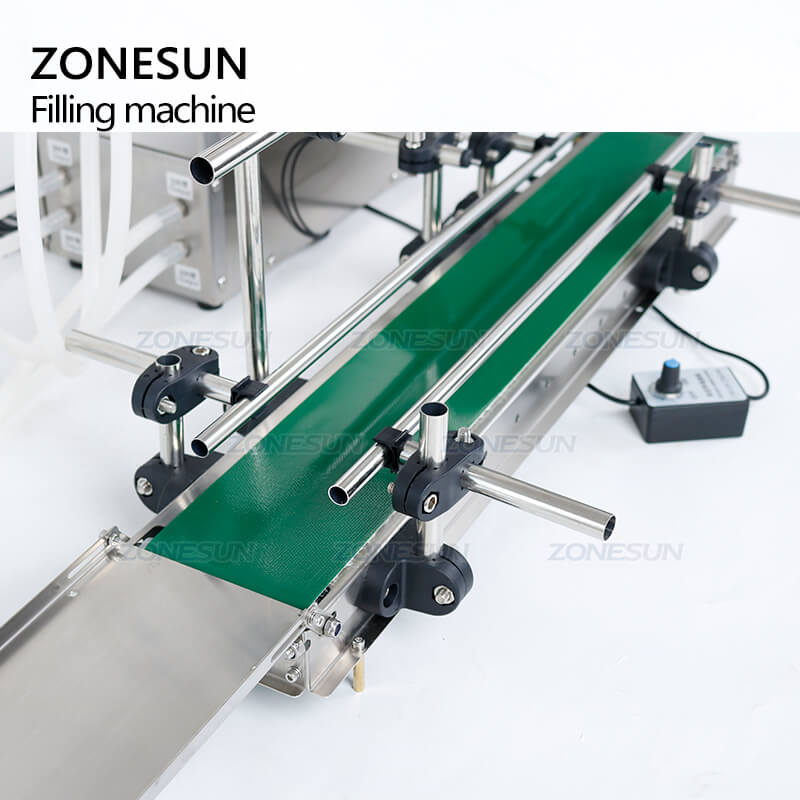

Conveyor Belt of 4 Heads Liquid Filling Machine With Conveyor

With high-quality conveyor belt, it can convey bottles steadily. It’s with waterproof function, which can ensure production cleanliness. The conveying speed can be regulated as production need.

4 Heads Liquid Filling Machine With Conveyor

4 Heads Liquid Filling Machine With Conveyor
