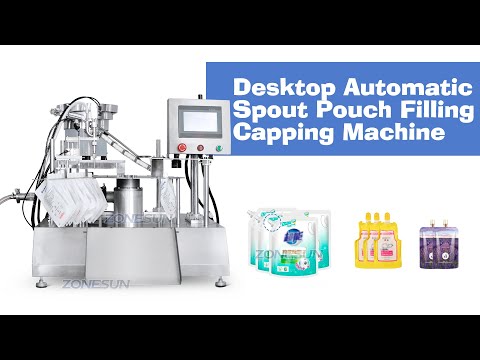

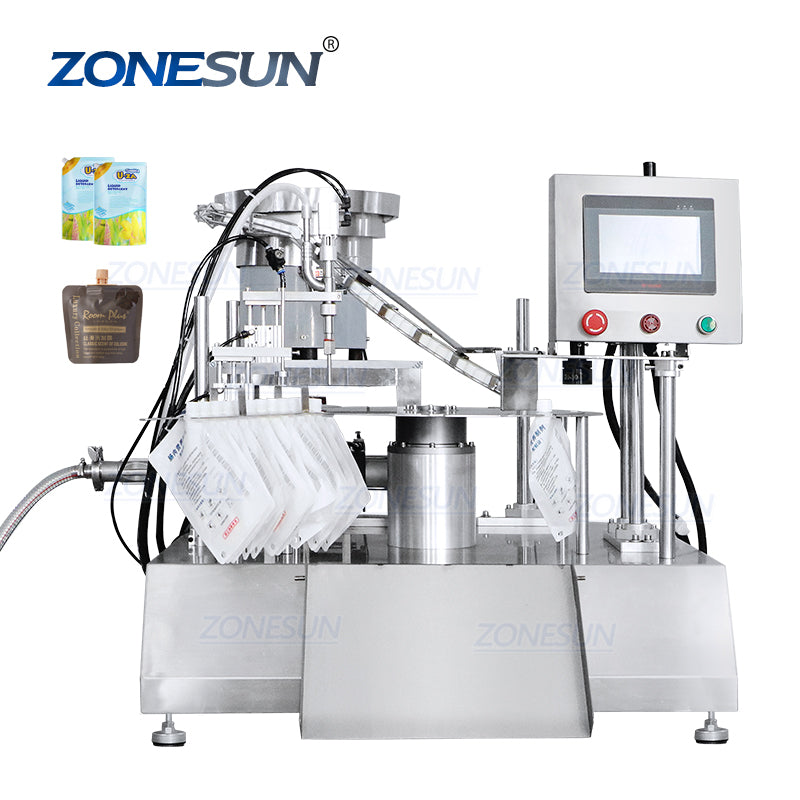

Name: ZS-AFC12D Desktop Piston Pump Liquid Spout Pouch Bag Filling Capping Machine For Laundry Detergent Juice
Brand: ZONESUN TECHNOLOGY LIMITED
SKU: 00101900004-0408
Price: 6549.0 USD
Availability: InStock

This desktop filling capping machine is designed for filling liquid into spout pouch bag like laundry detergent, essence, juice.It is equipped with piston pump, different filling range can be chosen as need. It is widely used in food, daily chemical industries.

Parameter

Machine Model:ZS-AFC12D
Voltage:220V/110V 50-60Hz
Power:1500W
Filling Pump:Piston Pump
Working Speed:About 15pcs/min(depending on filling materials and pouch size)
Filling Range:20-200ml(Can be customized)
Applicable Cap Size:Can be customized
Air Pressure:6Mpa
Machine Size:About 1000*1000*1000mm

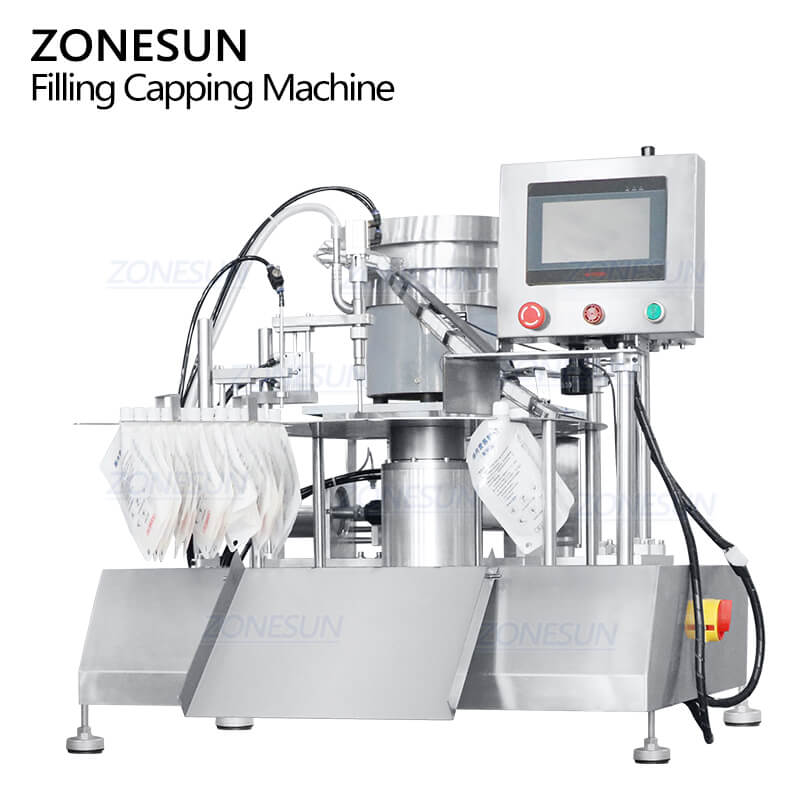

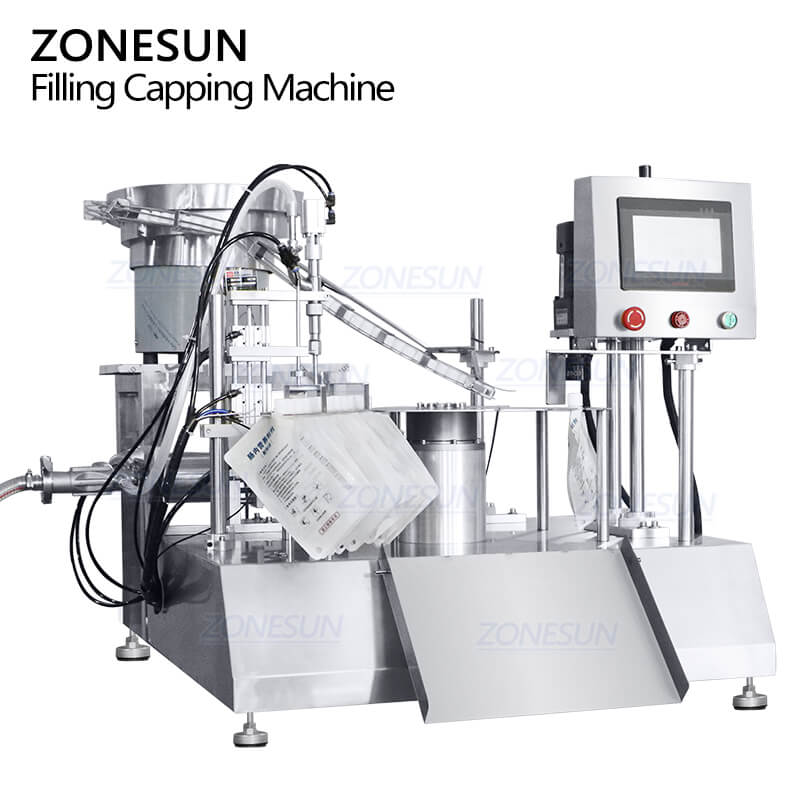

Spout Pouch Filling Capping Machine

Machine Details of Spout Pouch Filling Capping Machine

Application of Spout Pouch Filling Capping Machine

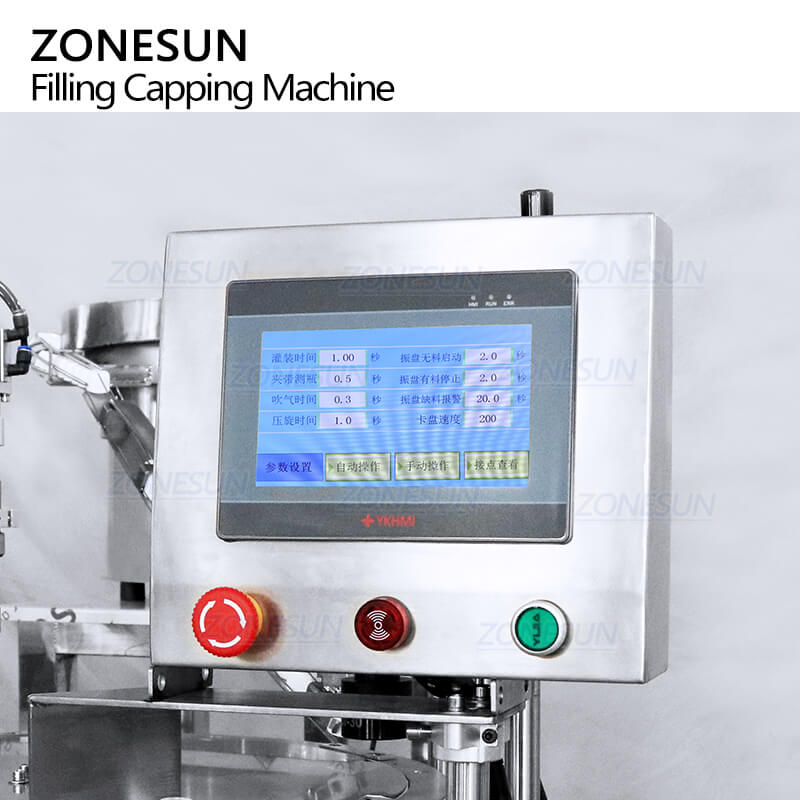

Control Panel of Spout Pouch Filling Capping Machine

Through PLC operation panel, it is easy to set or adjust working parameters. The language of panel can be customized as your need.

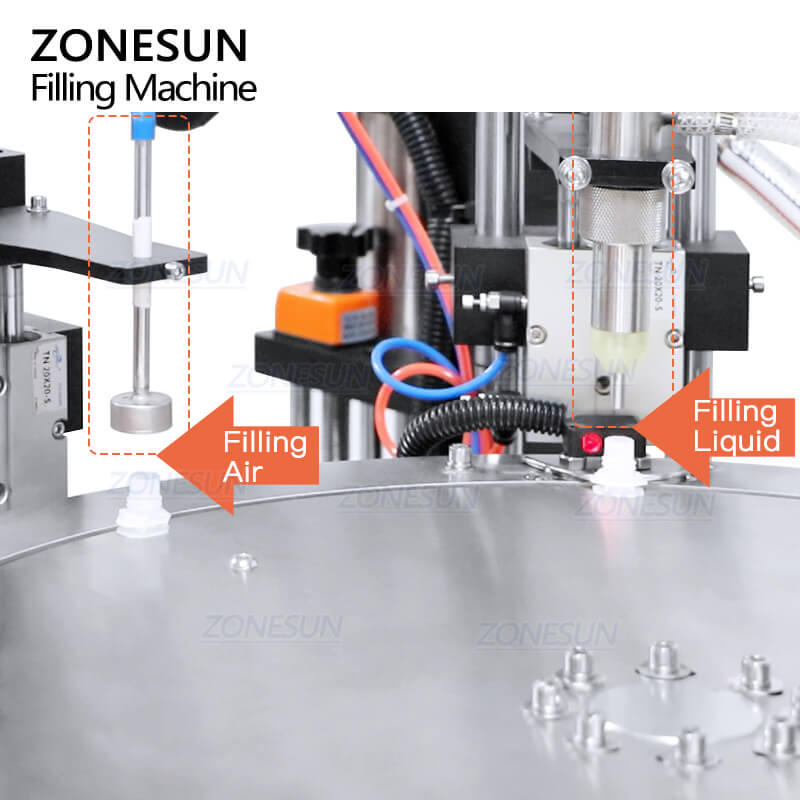

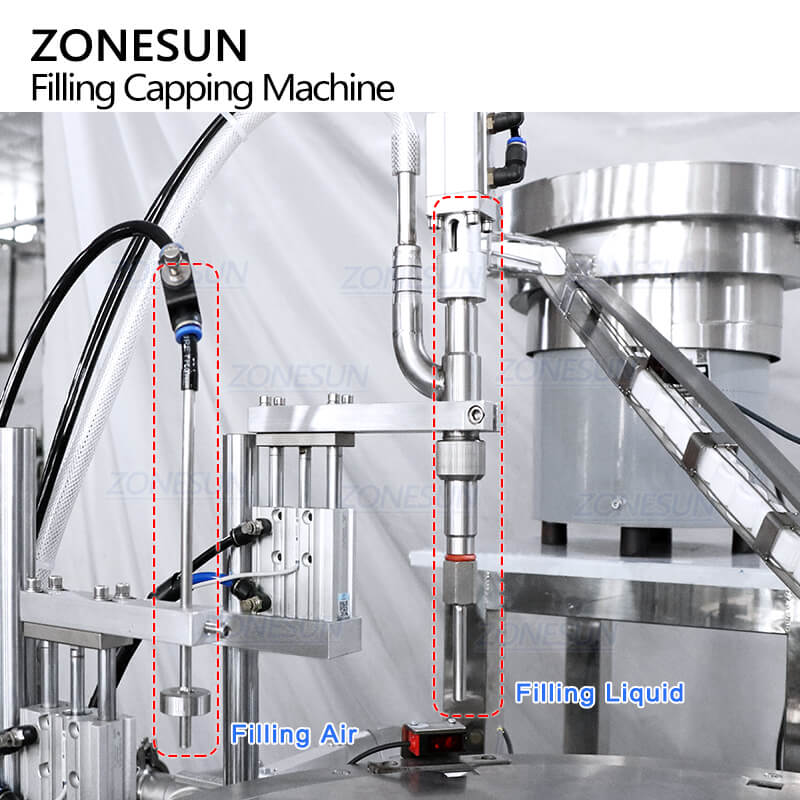

Filling Nozzle of Spout Pouch Filling Capping Machine

The left filling head is for filling air and the right one is for filling liquid. Driven by piston pump, it can fill liquid like laundry detergent, oil. Filling range can be customized according to production need.

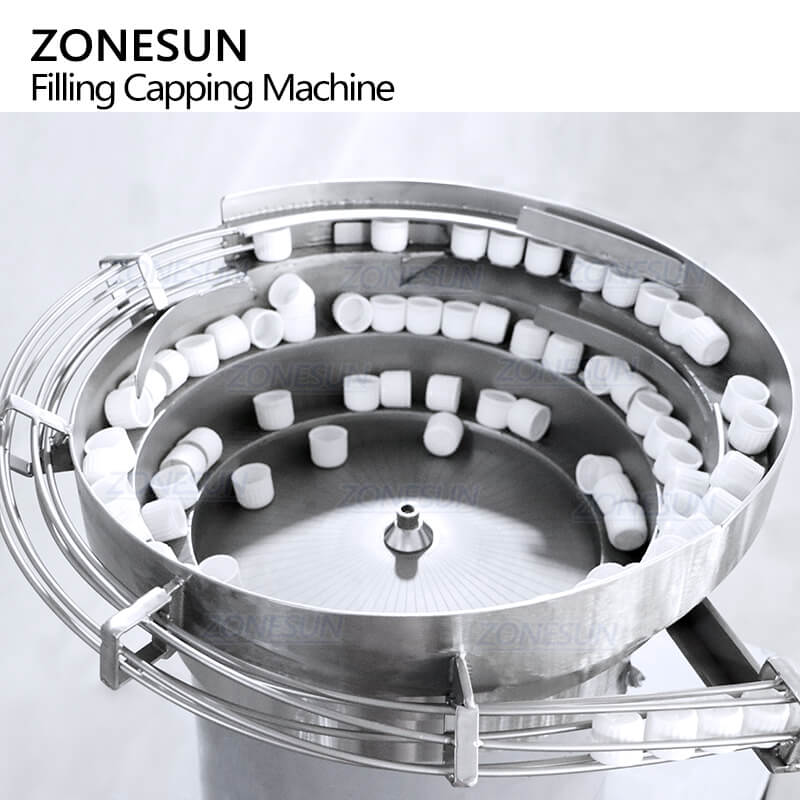

Vibratory Bowl Sorter of Spout Pouch Filling Capping Machine

The vibratory bowl can arrange caps in order and feed them automatically, saving labor cost. It can be customized according to cap size.

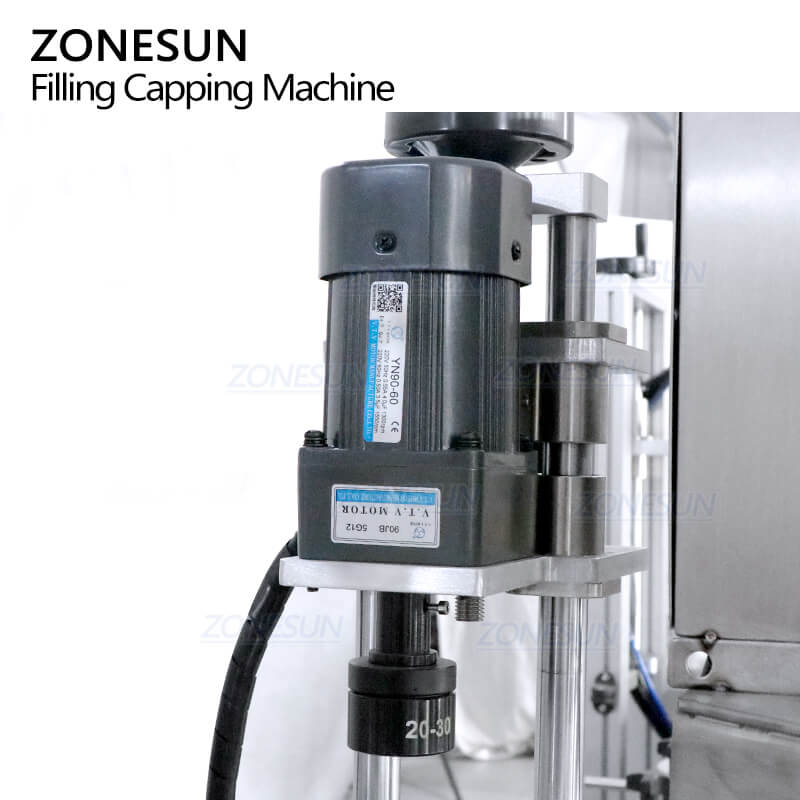

Motor of Spout Pouch Filling Capping Machine

The capping head is suitable for tightening screw-type caps. With powerful motor, it can run steadily. It can be customized according to cap size.

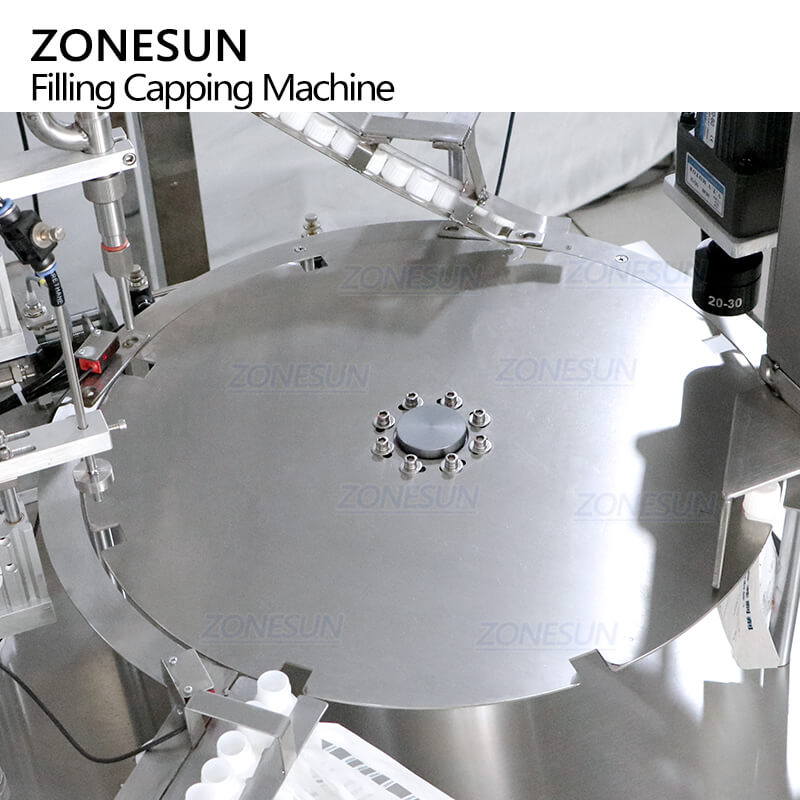

Rotary Plate of Spout Pouch Filling Capping Machine

The rotary plate is designed for conveying spout pouch during production. It can be customized according to pouch size.

Spout Pouch Filling Capping Machine For Juice
