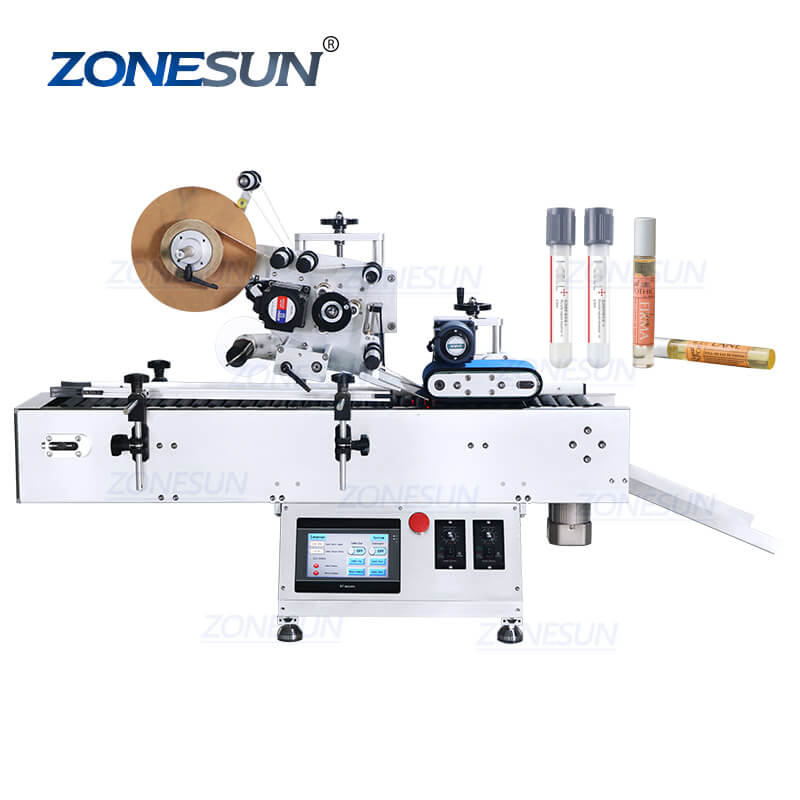

ZONESUN ZS-TB800 Desktop Automatic Horizontal Ampoule Vials Roll-on Bottles Lip Gloss Self-adhesive Stickers Labeler Applicator Labeling Machine

Designed for small round vials and cylindrical containers that cannot remain stable during vertical conveying, this horizontal labeling machine ensures smooth and accurate labeling. With a working speed of 30–50 bottles per minute, it significantly improves production efficiency. It is ideal for labeling ampoules, perfume vials, lip gloss tubes, test tubes, and other small cylindrical containers, making it widely used in cosmetic, pharmaceutical, and laboratory packaging applications.

Parameter

• Machine Model: ZS-TB800
• Machine Voltage: 110/220V 50-60HZ
• Working Speed: About 30-50 bottles/min
• Label Object Size: H≤150 mm φ≤10-30 mm
• Label Size: 15-150 mm (H)
• Roll Inside Diameter (mm): φ76 mm
• Roll Outside Diameter (mm): φ350 mm
• Machine Size: About 1500*600*940 mm
• Machine Weight: About 145 kg

*Specifications are for reference only and may vary by your product. Please confirm with us if required

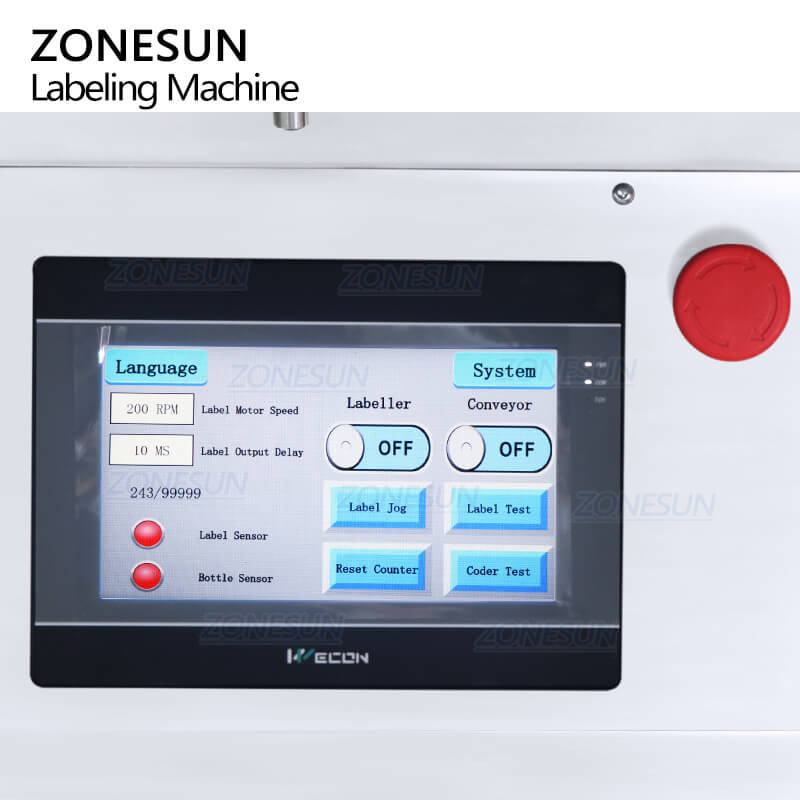

Equipped with PLC touch screen control panel, it shows working data more intuitively. Different kinds of operation language can be customized according to production need, the customzable interface simplifies machine operation.

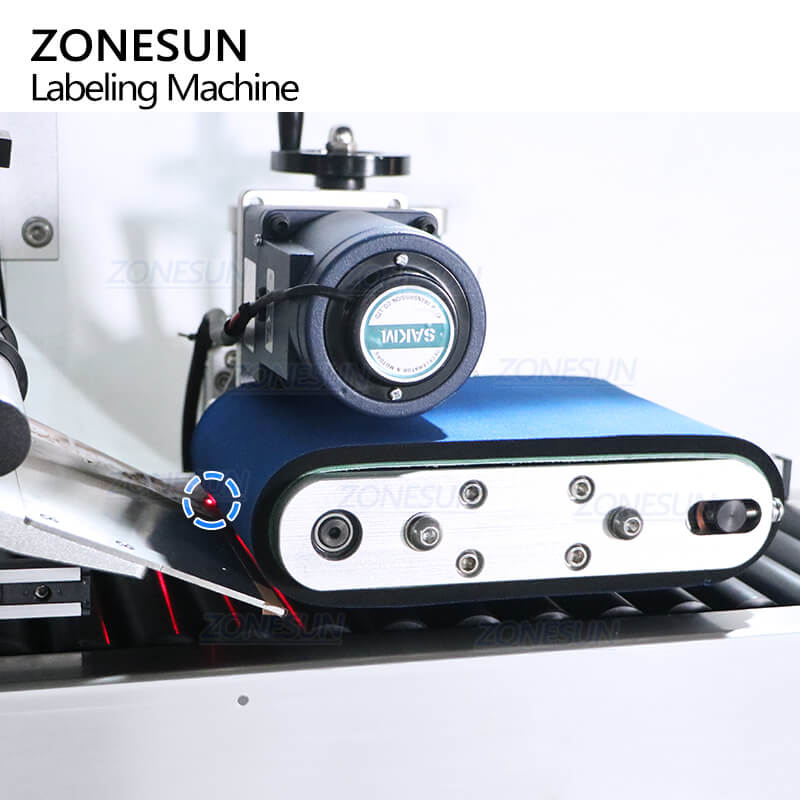

The electric eye will detect labeling object and control the machine to start the labeling work automatically. The position of label pressing belt can be adjusted according to production, improves labeling accuracy.

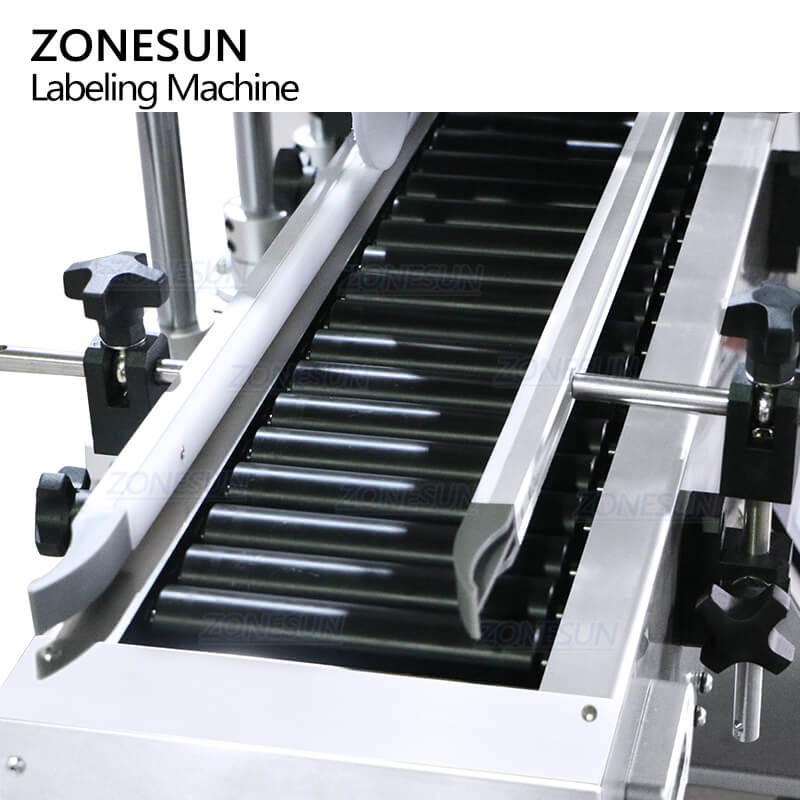

Equipped with roller conveyor, it can transport vials or round cylinder stably during labeling accuracy, reduce working error. The roller conveyor customized according to labeling object.

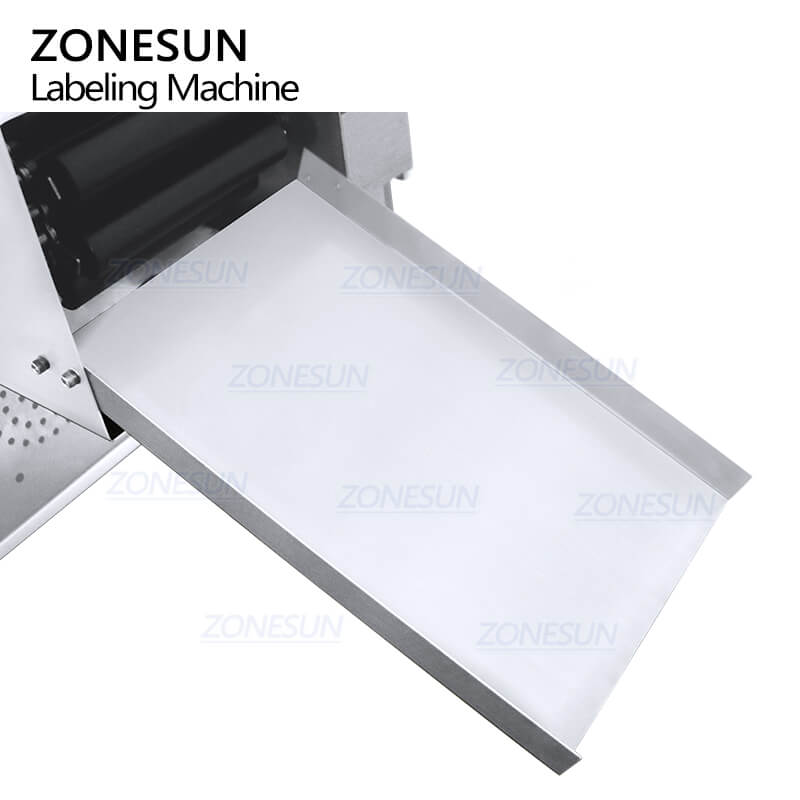

The product collecting tray can conveyed finished products to the next production process more smoothly.
