ZONESUN ZS-AFC50 Monoblock Automatic Servo Magnetic Pump Vitamin Drops Filling Capping Machine For Essential Oil & Flavoring Essence
Regular price
$29,799.00 USD
Regular price
Sale price
$29,799.00 USD
Save $-29,799 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

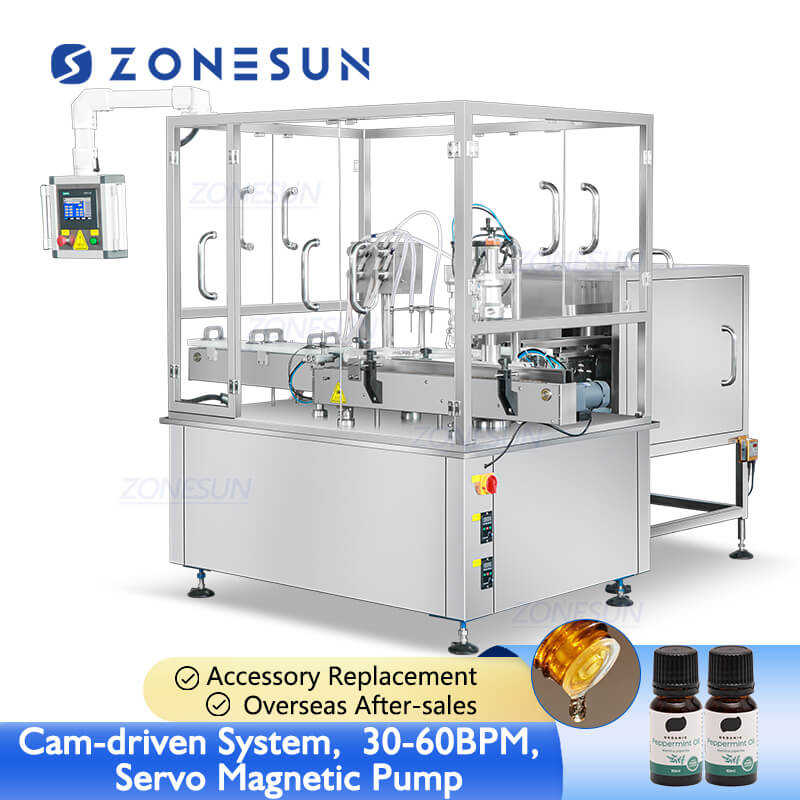

This monoblock filling capping machine machine is controlled by cam system, features 4 magnetic pump filling heads for high-precision liquid filling of essential oil, massage oil, cosmetic serum. With a compact rotary design, it integrates bottle feeding, filling, cap placing, and capping in one system, ensuring smooth,and accurate production for liquid products.
Monoblock Filling Capping Machine Parameter
- Machine Model: ZS-AFC50
- Voltage: 220V/110V 50-60Hz
- Power: About 3kW
- Production Speed: About 30-60 bottles/min(depending on bottle size and filling materials)
- Filling Range: 15-100 ml (Can be customized)
- Filling Pump: 316 Magnetic Pump
- Max Flow Rate: 3L/min(based on water)
- Suitable Bottle Size: Can be customized
- Bottle Cap Size: Can be customized
- Air Pressure: 0.6-0.8 MPa
- Machine Size: About 2180*1160*1920 mm
- Machine Weight: About 600 kg
- Package Size: About 2300*1030*1440 mm (Vibratory Bowl Sorter) +2330*1430*2120 mm (Main Machine)
- Package Weight: About 415 kg (Vibratory Bowl Sorter)+960 kg(Main Machine)
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

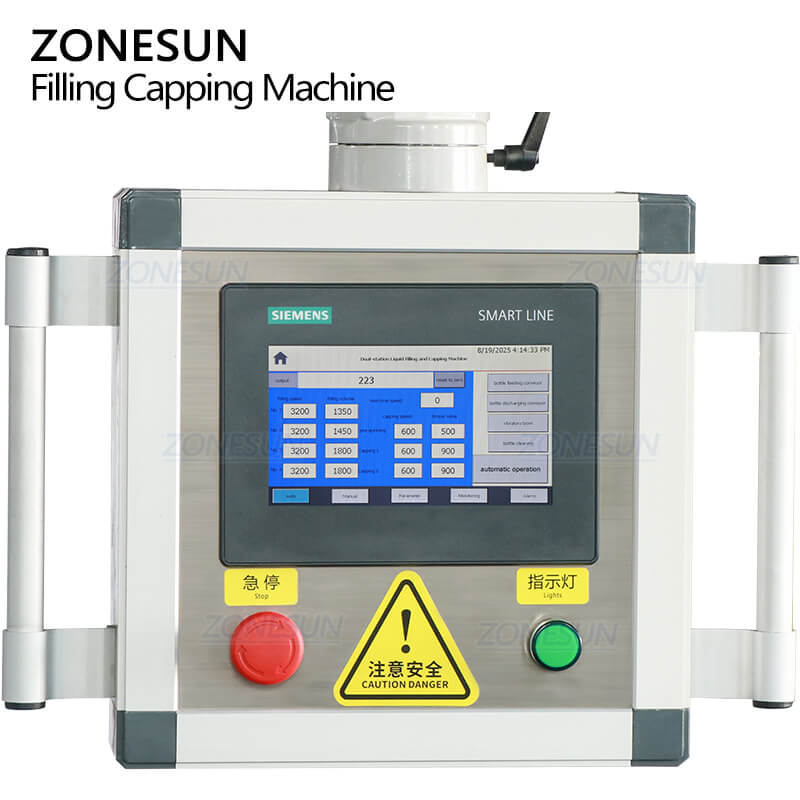

Control Panel
Touchscreen interface, intuitive operation and parameter adjustment.
Touchscreen interface, intuitive operation and parameter adjustment.

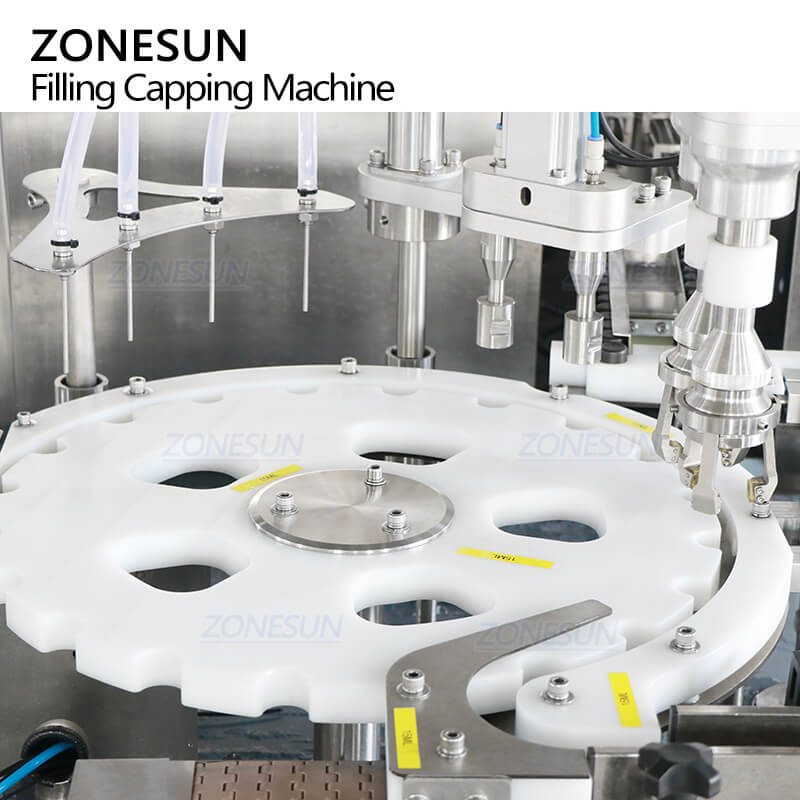

Integrated Rotary Table
Driven by high-precision cam indexer for synchronized motion.
Driven by high-precision cam indexer for synchronized motion.

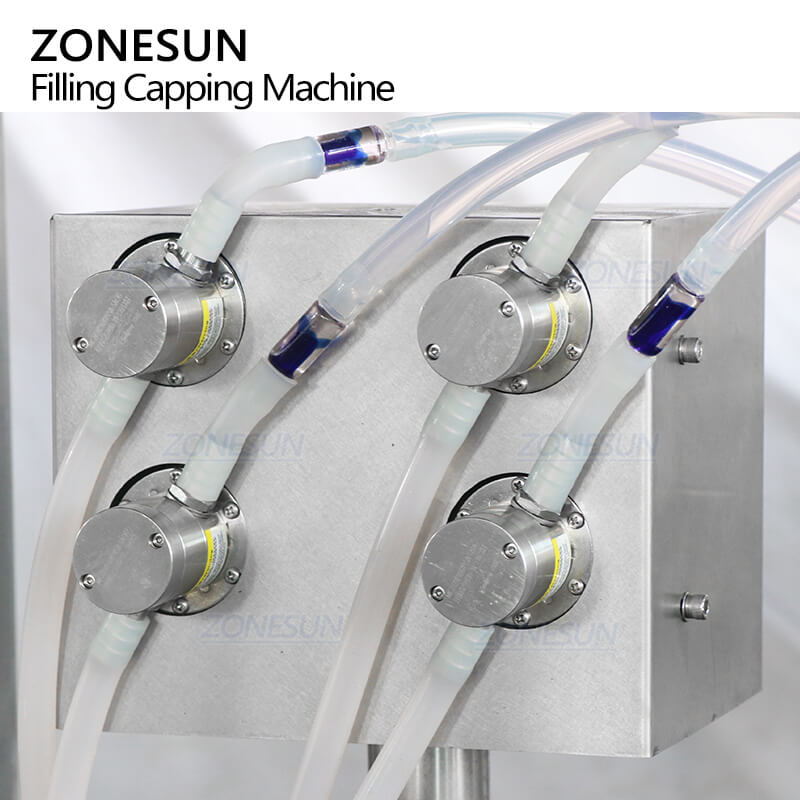

Filling Structure
4-heads servo magnetic pump for accurate and clean liquid filling.
4-heads servo magnetic pump for accurate and clean liquid filling.
Cap Picking & Capping Structure
Pneumatic pick-and-place system with cam-driven gripper for secure sealing.
Pneumatic pick-and-place system with cam-driven gripper for secure sealing.

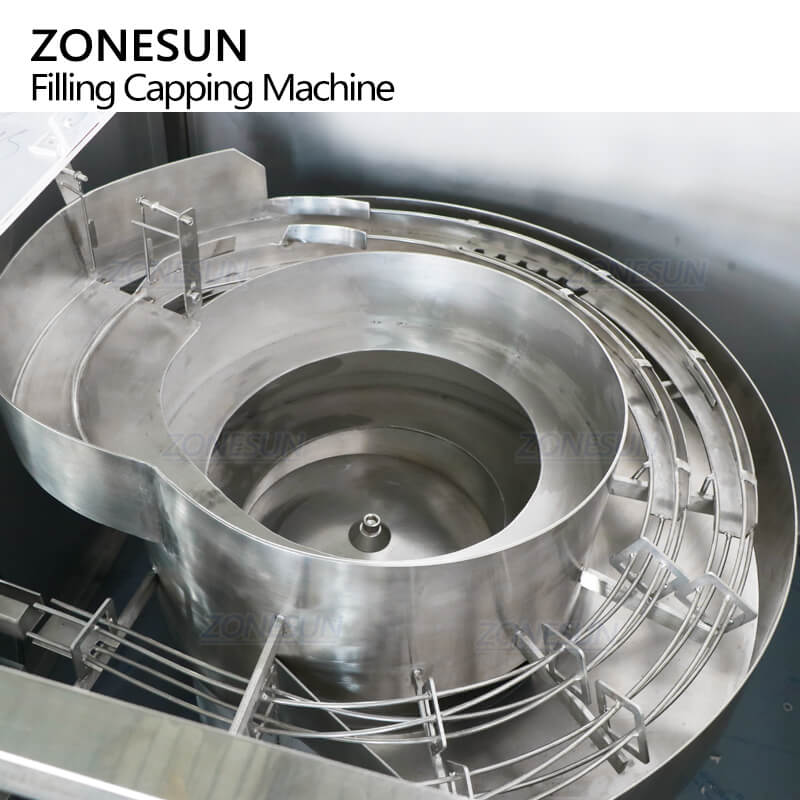

Vibratory Bowl
With soundproof dust cover, it automatically arranges and feeds caps for continuous operation.
With soundproof dust cover, it automatically arranges and feeds caps for continuous operation.
Dual-track Bottle Feeding
Improves bottle infeeding speed, filters out bottles with incorrect sizes, ensures steady production flow.
Improves bottle infeeding speed, filters out bottles with incorrect sizes, ensures steady production flow.
