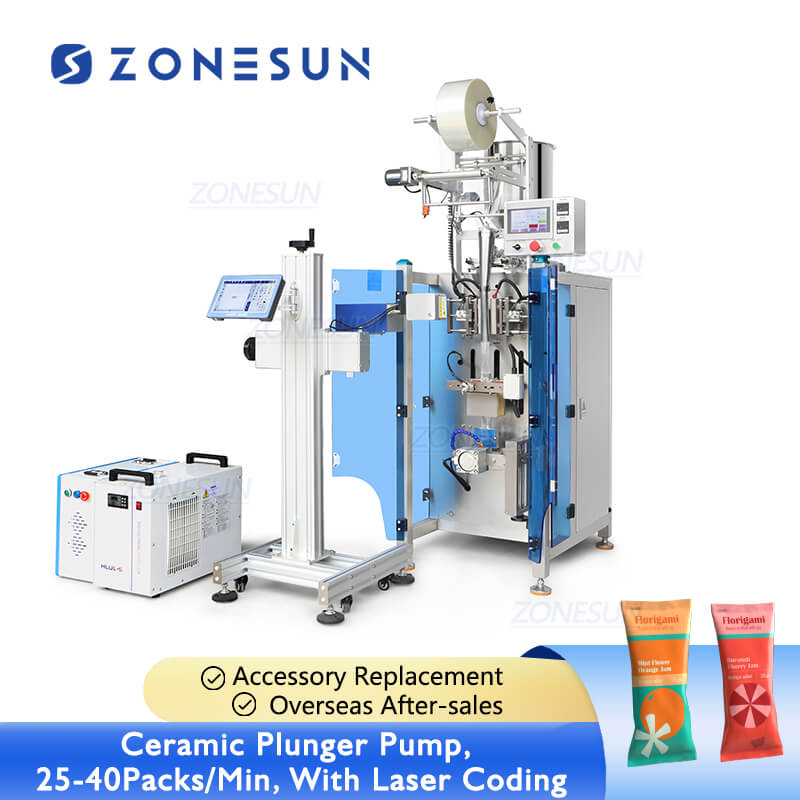

ZONESUN ZS-FS240LC Automatic Ceramic Pump 1-50 ml Liquid Sachet Filler Packaging Machine
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

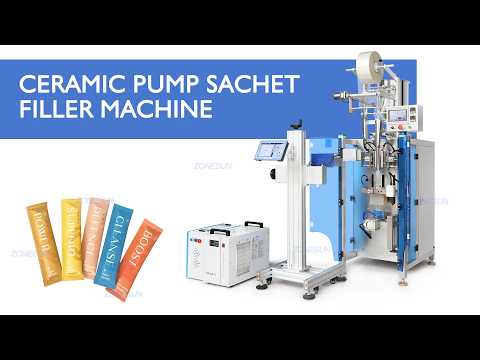

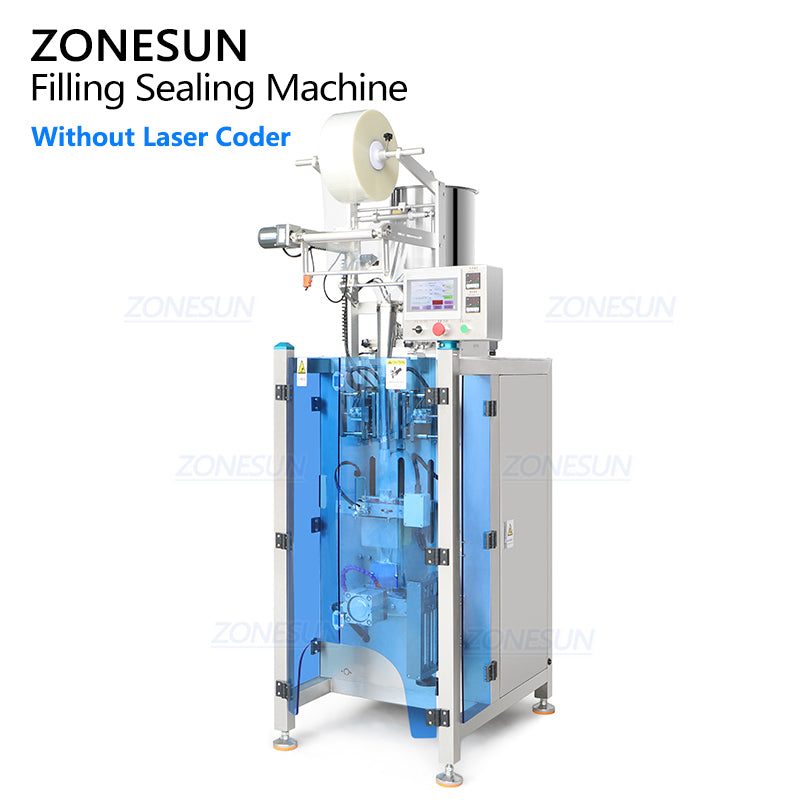

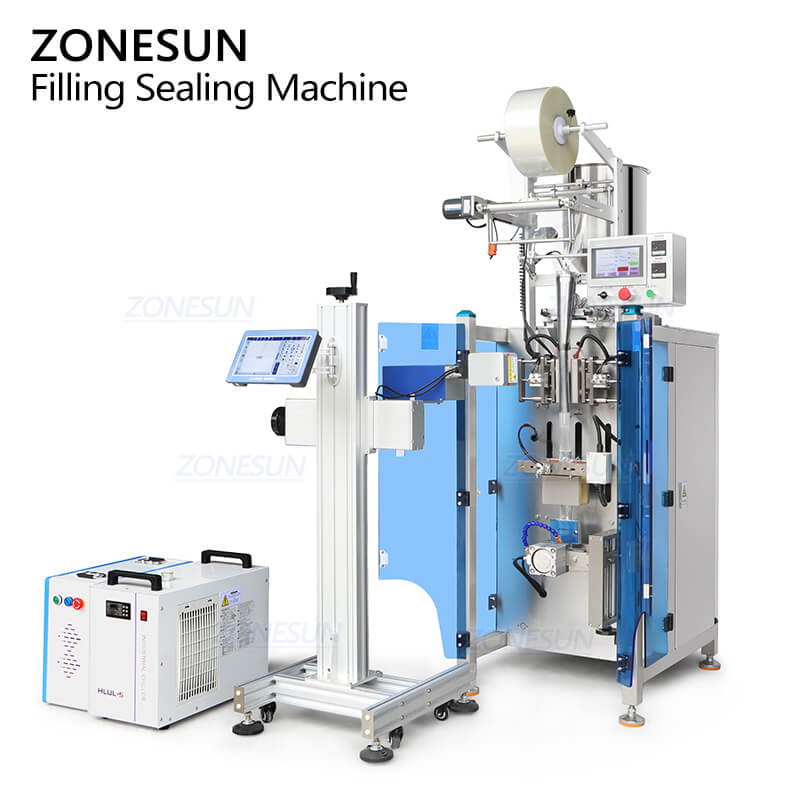

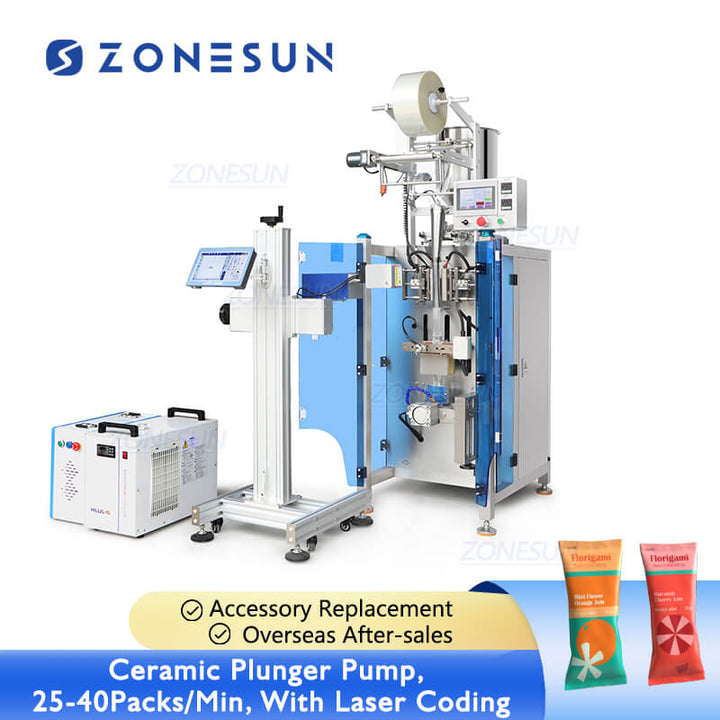

The ZONESUN sachet filler machine is a vertical form fill seal (VFFS) packaging system designed for liquids, creams, gels and sauces. It completes film unwinding, laser coding, bag forming, product filling, sealing and cutting in a continuous automated process. Equipped with a PLC touchscreen control system, operators can directly set filling volumes and bag lengths for efficient production. Servo-driven film feeding ensures accurate pouch dimensions, while independently controlled heat sealing provides reliable seal quality. The machine supports composite films, aluminum films and various packaging materials, with production speeds of up to 25-40 sachets per minute. Optional heating and mixing functions for the 30L hopper make it suitable for shampoo, shower gel, lotion, cream, juice, jam and condiment packaging applications.
Sachet Filler Machine Parameter
- Machine Model: ZS-FS240LC
- Machine Voltage: 110/220 V, 50-60 HZ
- Power: 2.5 KW
- Metering Method: Ceramic Pump
- Packaging Form: Round Corner & Back Side Sealing (Can Be Customized)
- Dosage Range: 1-50 ml (Can Be Customized)
- Hopper Size: 30 L
- Bag Size: Length 40-200 mm, Width 20-110 mm
- Packaging Speed: 25-40 Bags/Minute (Depending on the actual material)
- Machine Size: About 1055*825*2195 mm (L*W*H)
- Machine Weight: 300 KG

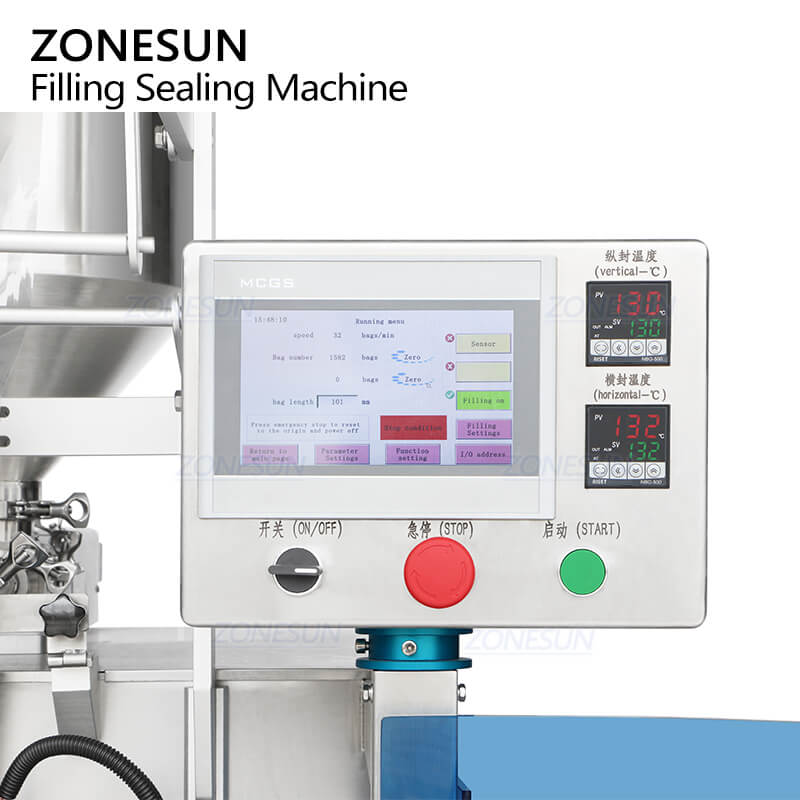

Operators can directly set filling volume, bag length and production parameters through the touchscreen interface, simplifying setup and product changeovers.
Designed for accurate dosing of liquids and pastes, the ceramic piston pump ensures stable filling performance for viscous products.

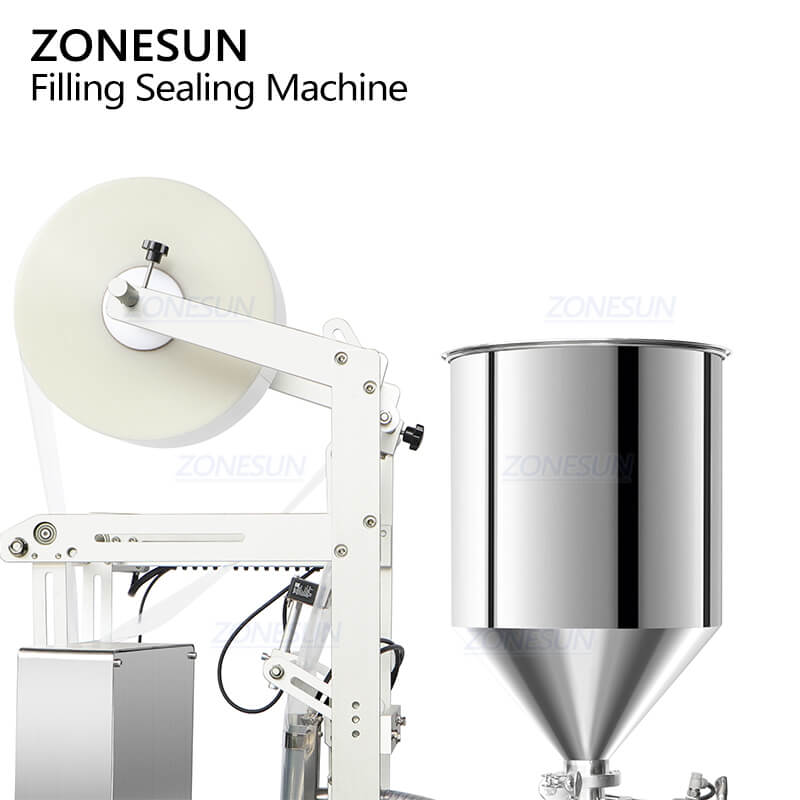

The large-capacity hopper can be equipped with optional heating and mixing functions to maintain product consistency during production.

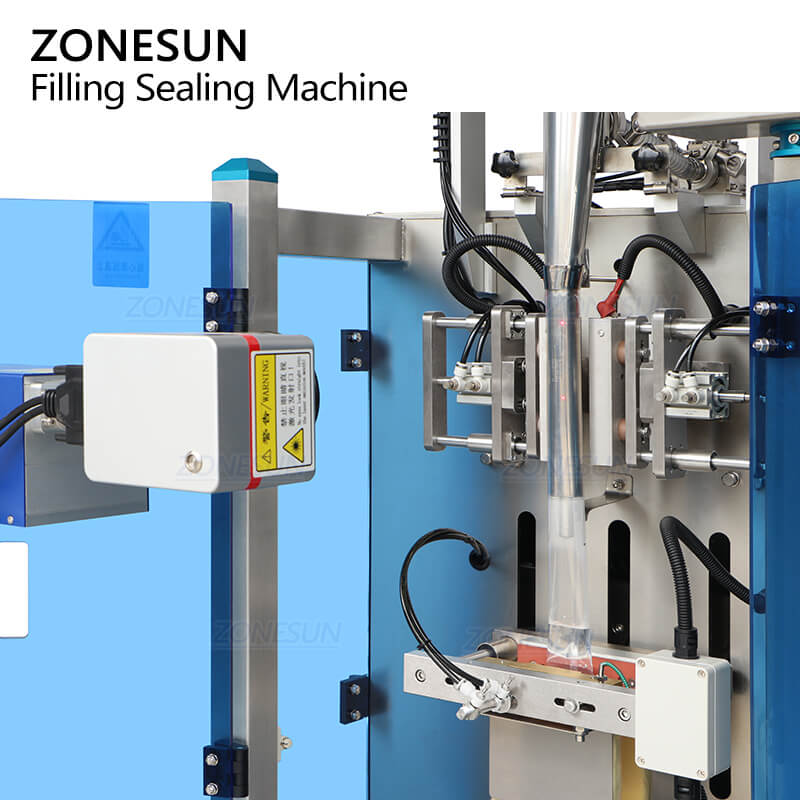

Optional laser coding prints batch numbers, dates and traceability information directly onto the packaging film.

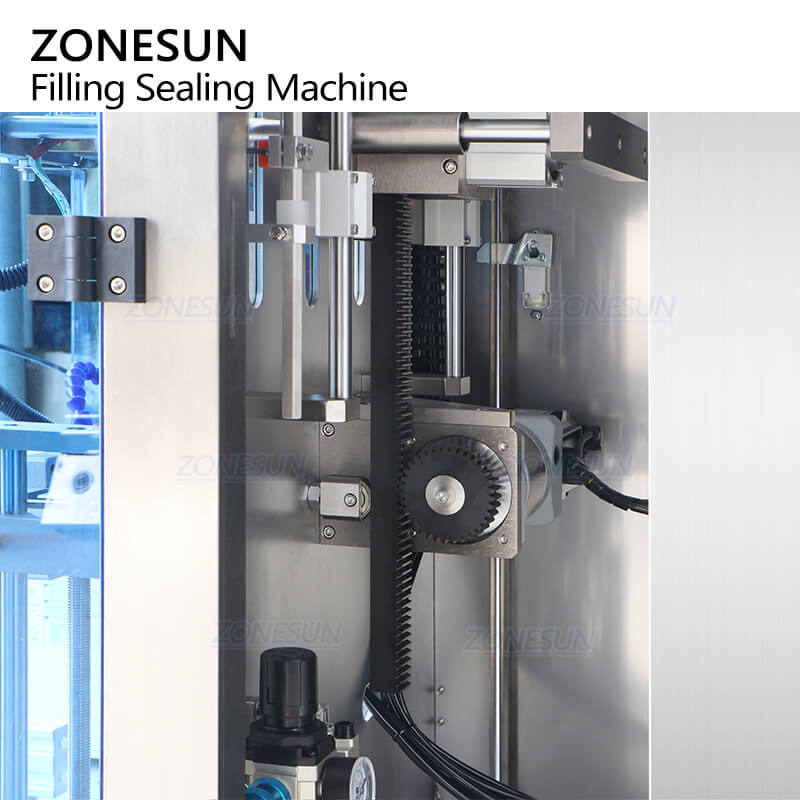

A servo motor precisely controls film transport length and speed, allowing one-touch bag length adjustment.

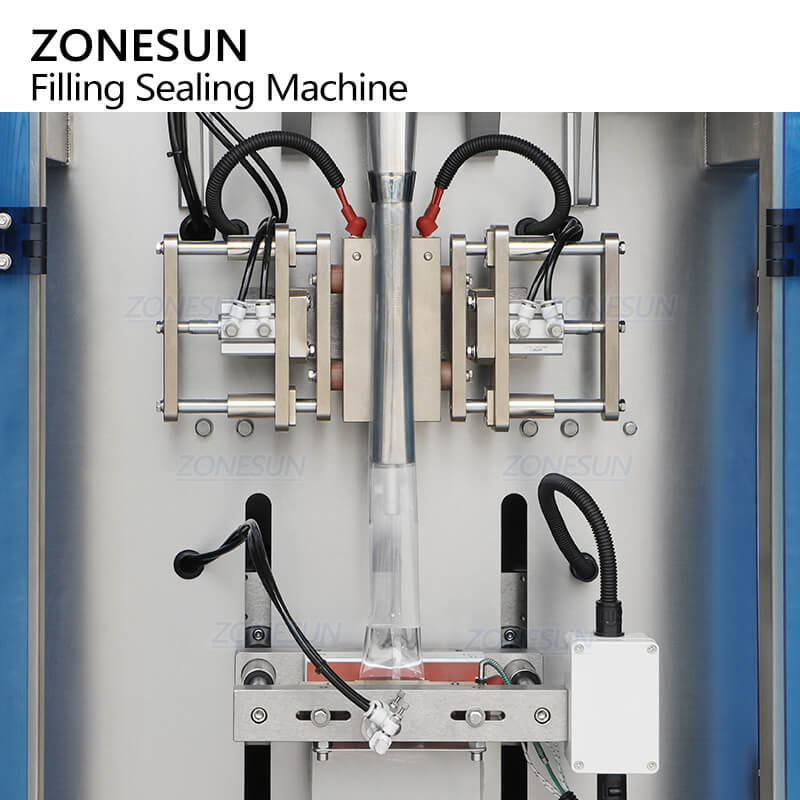

Independently controlled sealing temperatures ensure even heat distribution across different packaging film.

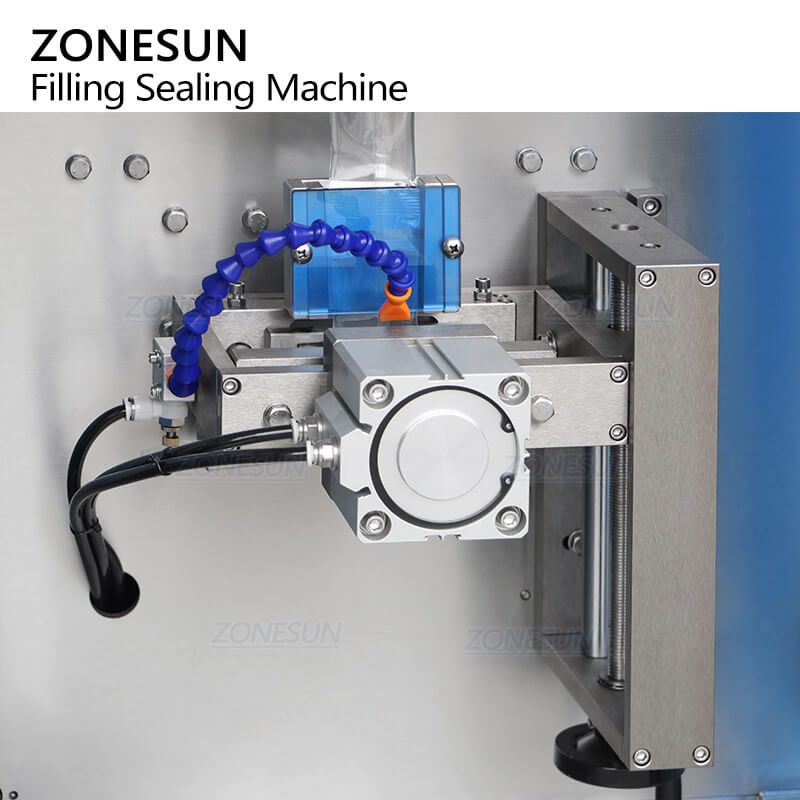

Interchangeable cutting blades support straight-cut, patterned-cut and connected-sachet designs while ensuring smooth and stable pouch separation.
