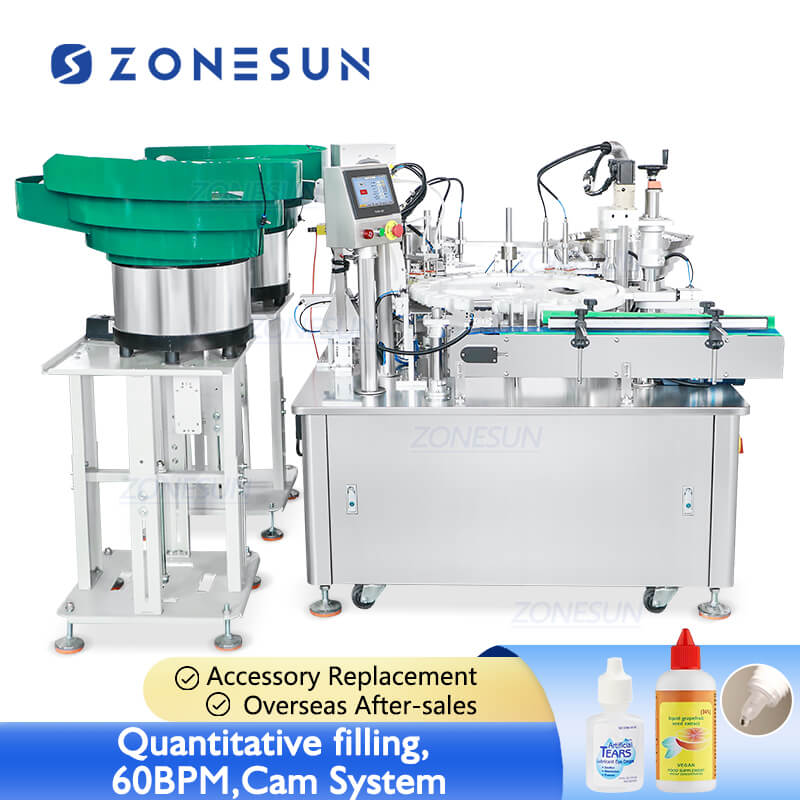

ZONESUN ZS-AFC13A Cam System Peristaltic Pump Biological Extract Eye Drops Adhesives Small Bottle Liquid Filling Capping Machine
Earn 0 points on this purchase.
Regular price
$29,500.00 USD
Regular price
$36,000.00 USD
Sale price
$29,500.00 USD
Save $6,500 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

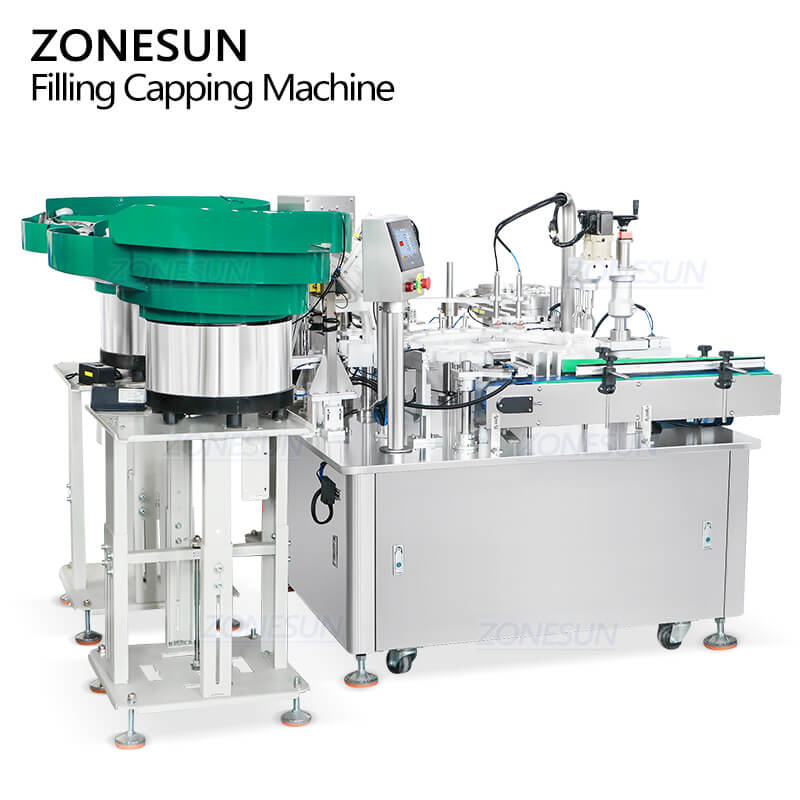

This filling capping machine is customized for small irregular bottle packaging like Biological extract, eyedrops.It can feed bottle, fill liquid, press stopper, tighten outer cover, cam-driven mechanism ensures high working capacity (40-60BPM).
Parameter
- Machine Model: ZS-AFC13A
- Machine Voltage: 110/220V 50-60HZ 8KW
- Filling Pump: Peristaltic Pump
- Recommend Filling Range: 45 ml (Customizable)
- Working Speed: 60 BPM (based on material and volume)
- Filling Accuracy: ±2 ml (based on material and volume)
- Suitable Bottle Size: L52*W24*H94 mm (Customizable)
- Suitable Cap Size: φ18.6*H25.7 mm (Customizable)
- Machine Size: L2318.06*W1975*H1557.53 mm
- Machine Weight: About 1608 kg

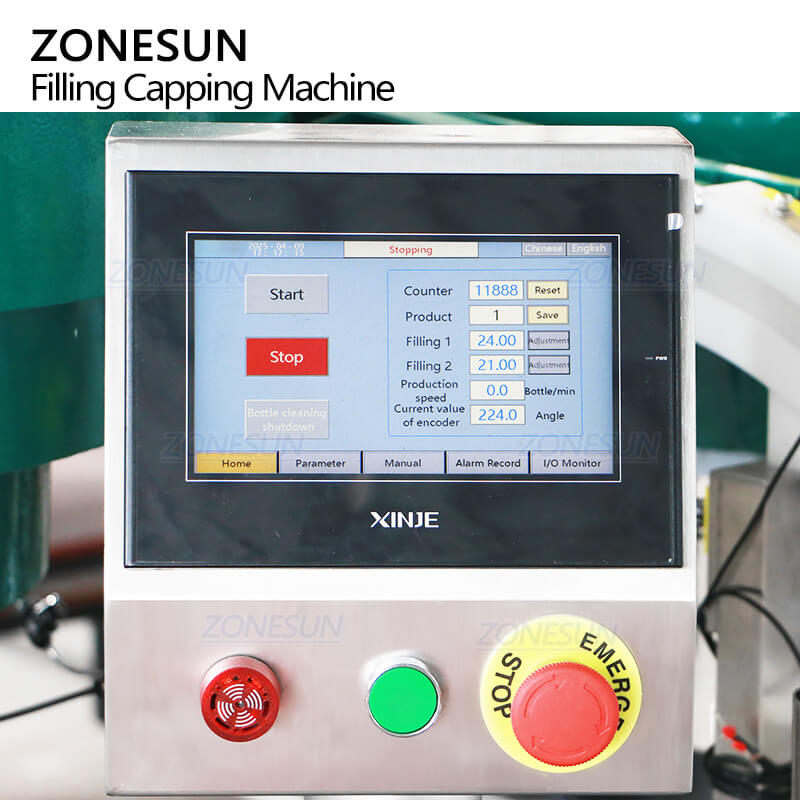

Touchscreen Control Panel
User-friendly HMI interface for easy operation and real-time monitoring.
User-friendly HMI interface for easy operation and real-time monitoring.
Customizable Starwheel
Modular star wheel design consolidates all functional parts, cam-driven mechanism ensures stable operation at 60 BPM.
Modular star wheel design consolidates all functional parts, cam-driven mechanism ensures stable operation at 60 BPM.

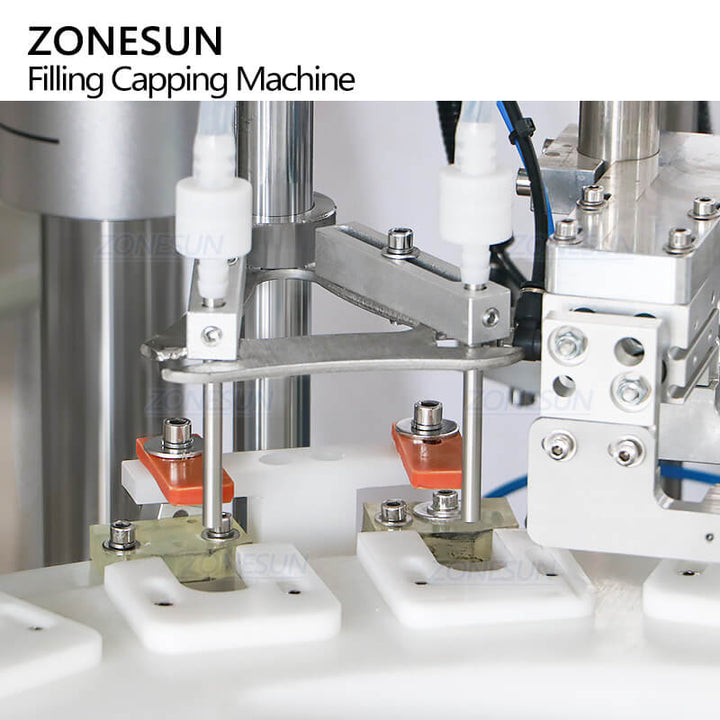

Peristaltic Pump Filling
Quantitative filling, contamination-free filling as materials only contact the tubing.
Quantitative filling, contamination-free filling as materials only contact the tubing.
Vibratory Bowl Sorter
Bottles, caps, stoppers are feeded orderly through vibratory bowl sorter, these are customized as needed.
Bottles, caps, stoppers are feeded orderly through vibratory bowl sorter, these are customized as needed.

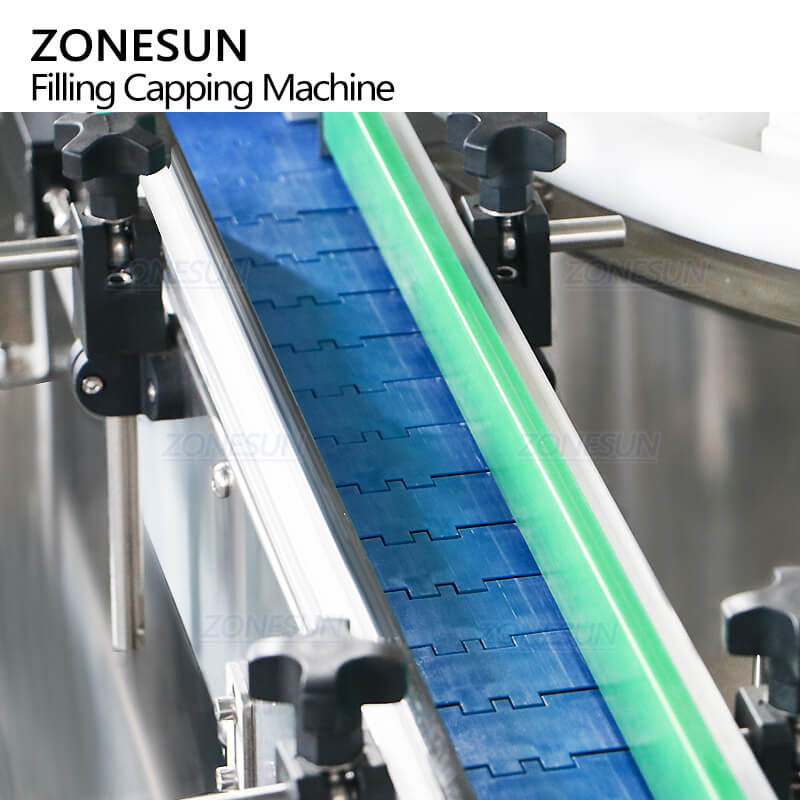

Outfeed Conveyor
Chain conveyor with larger capacity, it can connect with labeler to realize automated production.
Chain conveyor with larger capacity, it can connect with labeler to realize automated production.
Electric Circuit
Using branding components, electric circuit are connected neatly to ensure smooth working.
Using branding components, electric circuit are connected neatly to ensure smooth working.
