ZONESUN ZS-DTPP6B 6/8/10 Heads Automatic Essential Oil Solvent Glass Vial Small Bottle Filling Machine

Voltage
Pump Material
Filling Heads Quantity
Price
Regular price $1,799.00 USD
Regular price $3,000.00 USD Sale price $1,799.00 USD
Save $1,201 USD
/
  • One Year Warranty
  • User Manual
  • One-to-one Video Chat Support
  • Install & Debug Video
  • Custom Package Solution
  • Local Service Location (Romania /Serbia /Kazakhstan/Mexico/Indonesia)

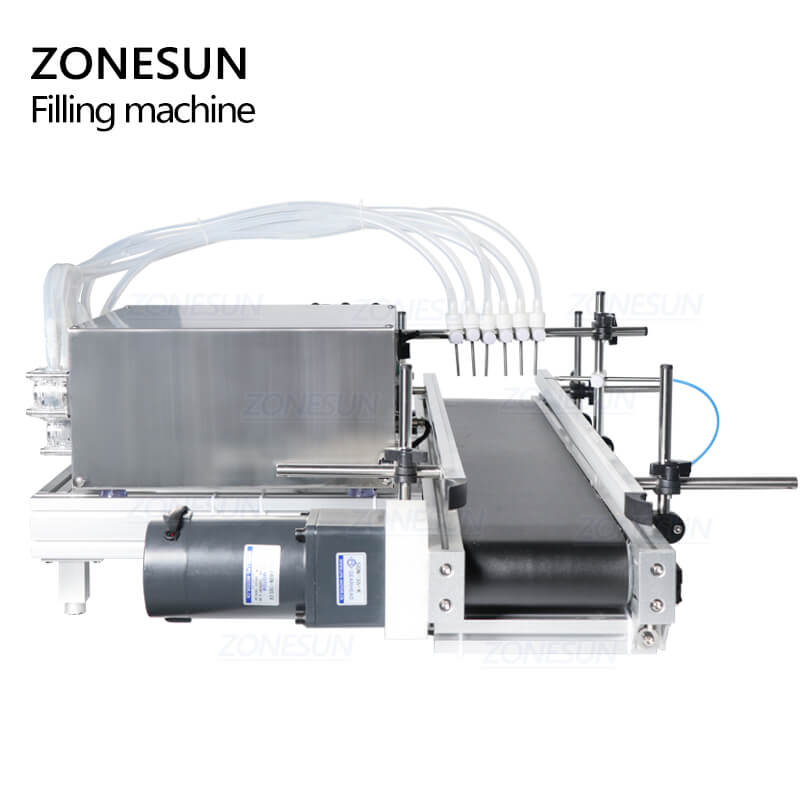

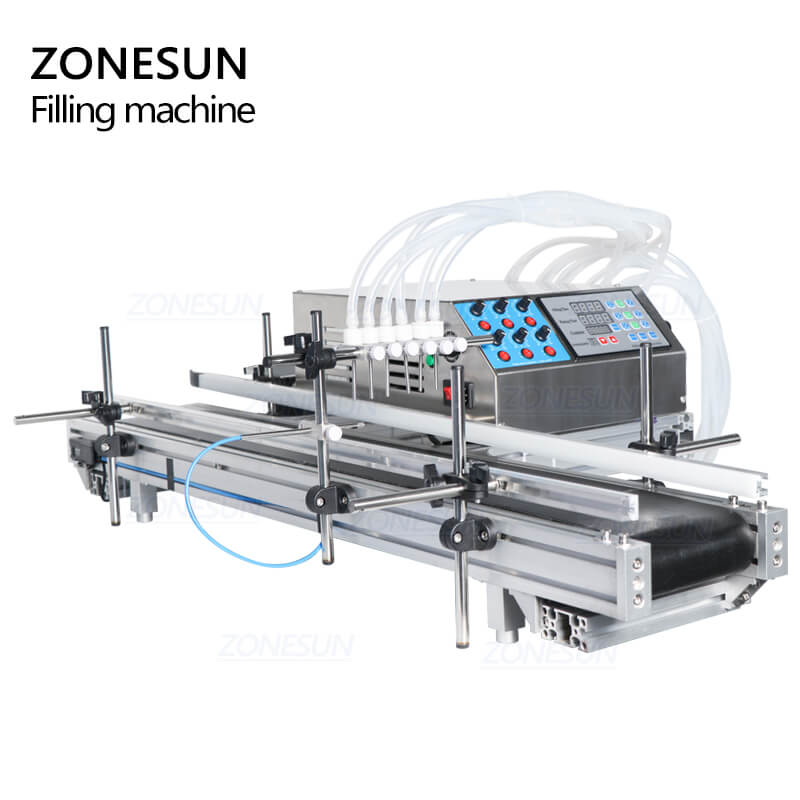

The 6 nozzle peristaltic pump is designed with automatic conveyor belt to realize automated production.It is suitable for small volume liquid like eye drops,essential oil.Each nozzle of this machine can be controlled separately.The peristaltic pump can ensure the liquid cleaness and filling accuracy.

Parameter
  • Machine model: ZS-DTPP6B
  • Power supply: AC110V/220V 50Hz-60Hz 60W*6
  • Filling Range: ≤50ml
  • Maximum flow: 650ml/min for each nozzle (based on water )
  • Filling nozzles: 6/8/10(we can customize nozzles based on your demands)
  • Working speed: 40-50 bottles/min(based on 50 ml-water)
  • Filling accuracy: ≤±1% (For water)
  • Diameter of filling nozzle: 4mm
  • Delay range: 0.01-999.9s
  • Conveyor size:1080*350mm(L*W)
  • Machine size:About 320*440*300mm(Without conveyor belt)
  • Net weight:About 31kg
  • Package size: About 1110*840*530 mm
  • Package weight: About 60 kg

tabletop filling machine
application of tabletop filling machinecomponent of tabletop filling machine

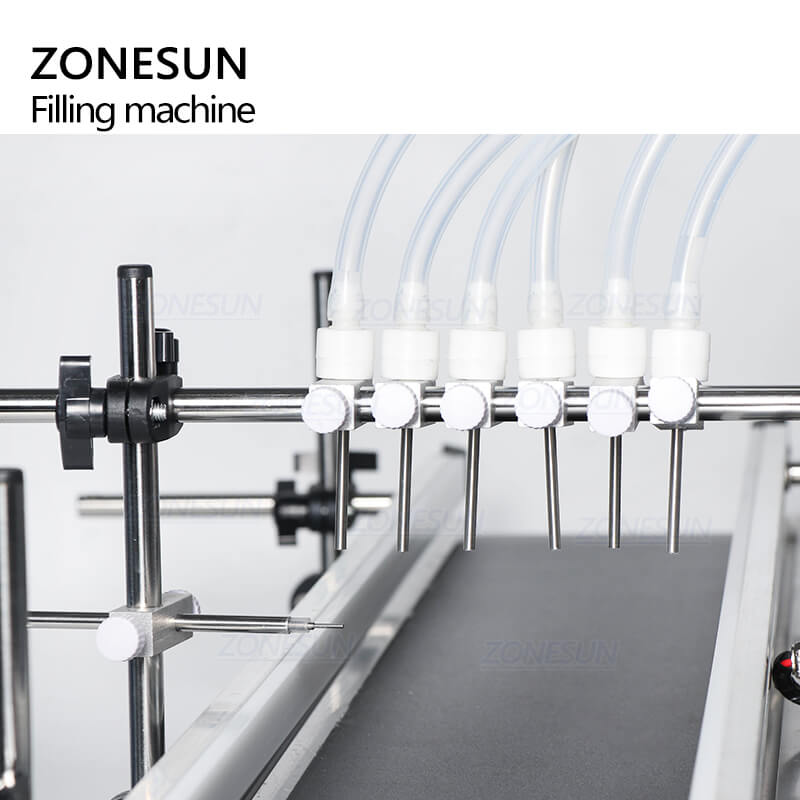

Equipped with small size filling nozzle(OD 4mm), which can prevent from spraying out liquid during filling.We also offer different sizes of filling nozzles for different production needs.
Simple control panel,this machine control filling volume by adjusting filling time and filling speed.The filling time and speed of each nozzle can be controlled separately.
High quality conveyor belt can help to transport bottle faster and more smooth.This can reduce production process and error.

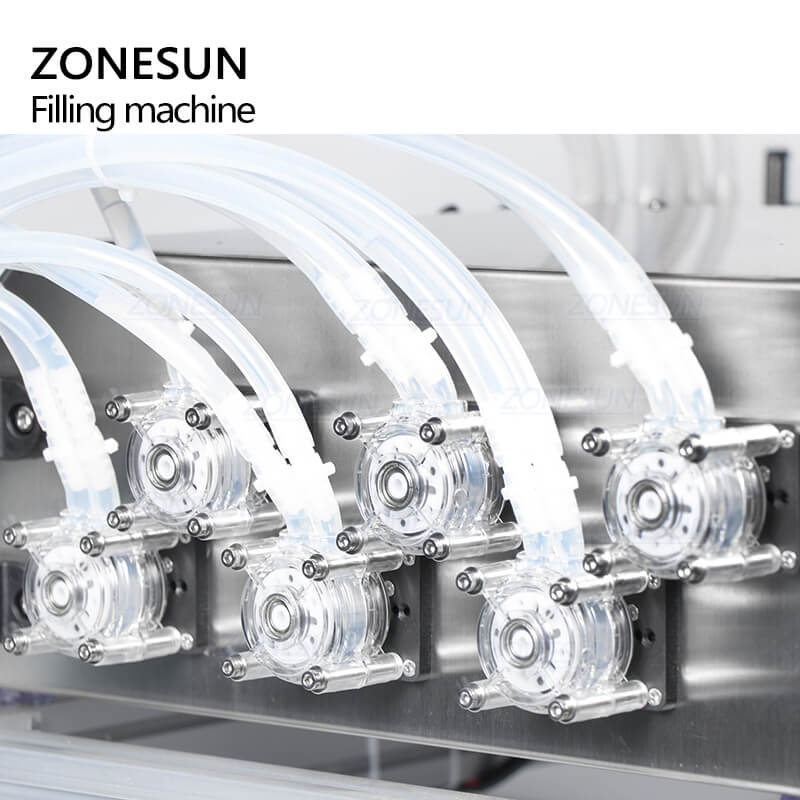

Equipped with high quality peristaltic pump,it can fill liquid accurately,and the liquid will not pass through pump.Operator can watch the filling status during working.
Equipped with high quality peristaltic pump,it can fill liquid accurately,and the liquid will not pass through pump.Operator can watch the filling status during working.
The electric eye can be used to detect the passing by bottles, control the machine to work and realize the automated production.

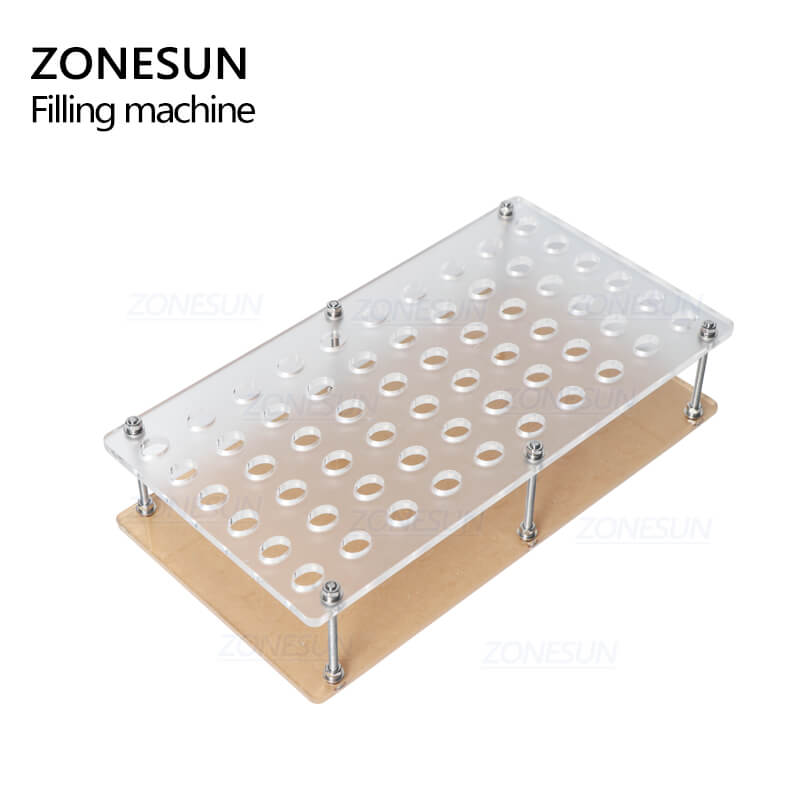

The bottle tray can be customized according to bottle sizes,it can ensure that bottles will be arranged together,makes the filling work be in order.The bottle tray will be sent with the machine together.
