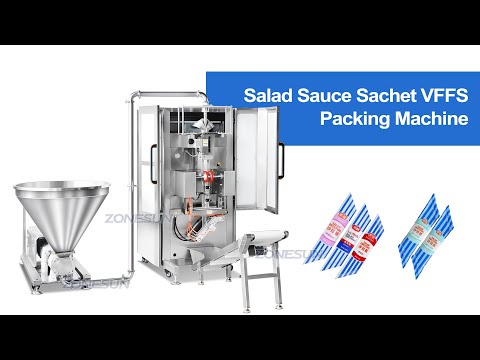

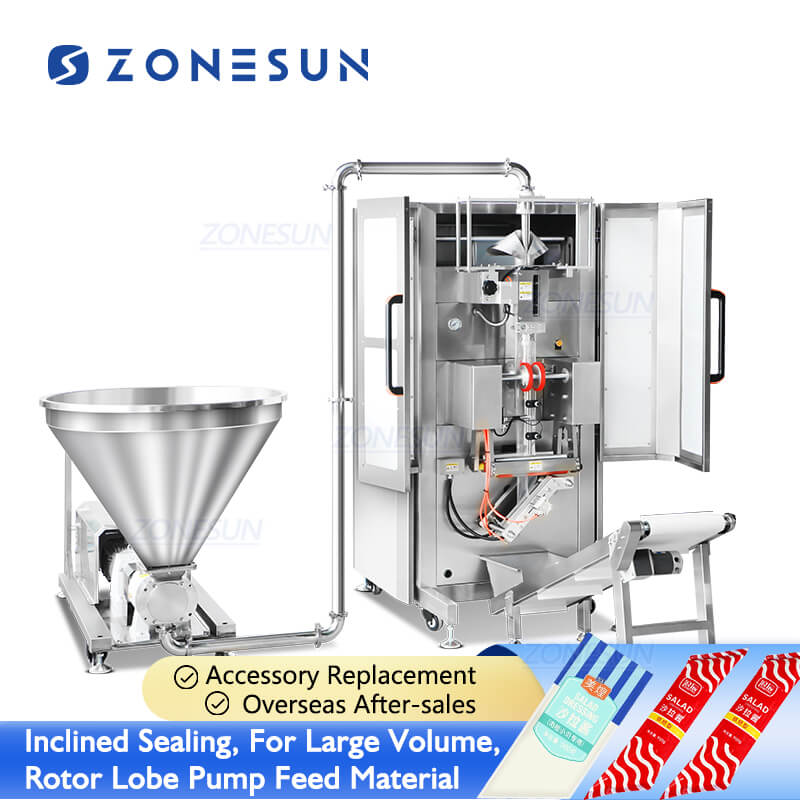

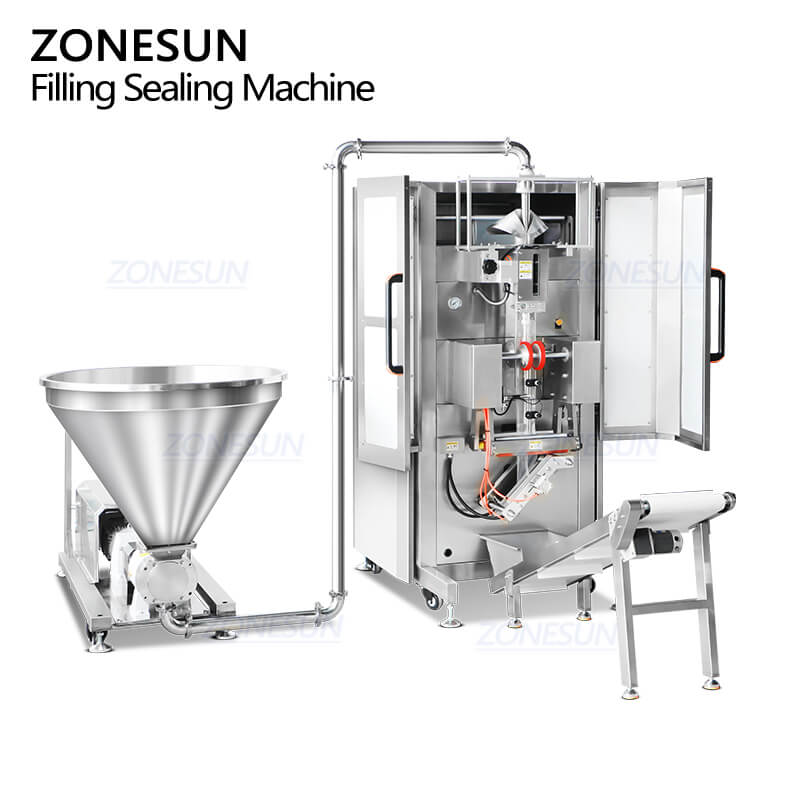

ZONESUN ZS-RPFS120X Automatic Rotor Lobe Pump Salad Dressing Sauce Sachet Vertical Form Filling Sealing Packing Machine
Regular price
$27,799.00 USD
Regular price
Sale price
$27,799.00 USD
Save $-27,799 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）
This automatic salad dressing packing machine is designed for semi-fluid and viscous materials (Material has good flowability). Efficient filling, bag forming, and bag sealing with rotor lobe pump material feeding. It is suitable for packaging honey, salad, cake cream, fruit jam.
Salad Dressing Packing Machine Parameter
- Machine Model: ZS-RPFS120X
- Machine Voltage: Three-phase four-wire 380V 60HZ 8KW
- Filling Range: 500-1000g (Can be customized)
- Feeding Pump: Rotor Lobe Pump
- Sealing Type: Inclined Cutting (Can be customized)
- Packaging Speed: 12-18 bags/min
- Bag Size: 200-450 mm(L, sensor controls )*95-120 mm(W)
- Bag Material: Heat Sealable Bags
- Hopper Size: About 900*900*650 mm
- Air Pressure: 0.7MPa 0.3m³/min
- Machine Size: About 2390*2660*2000 mm
- Machine Weight: About 400 kg
*Specifications are for reference only and may vary by your product. Please confirm with us if required.

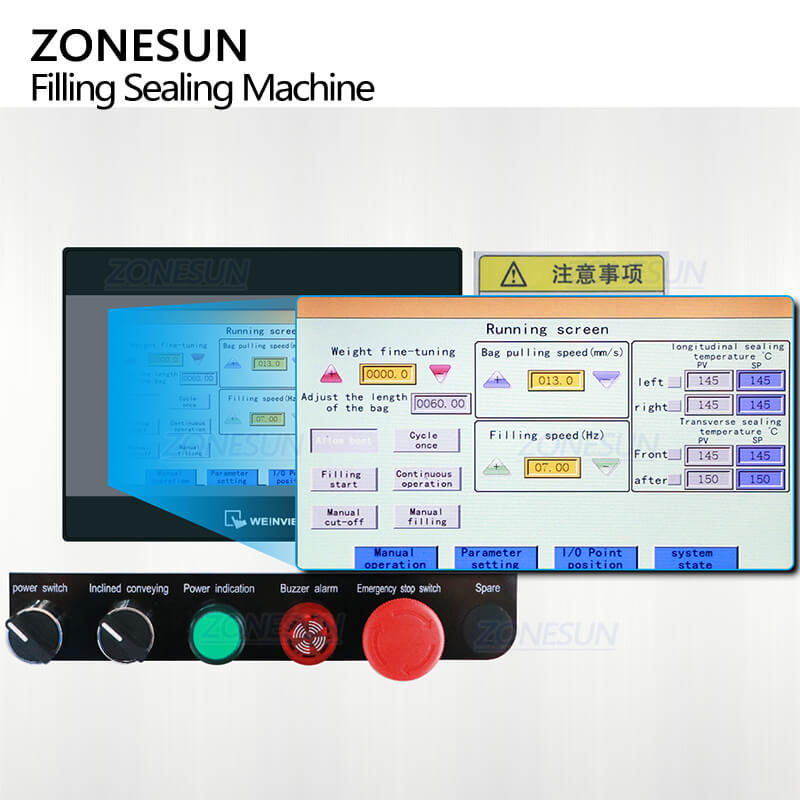

Control panel
User-friendly touchscreen interface for easy operation and quick parameter adjustments. Customizable operation language.
User-friendly touchscreen interface for easy operation and quick parameter adjustments. Customizable operation language.

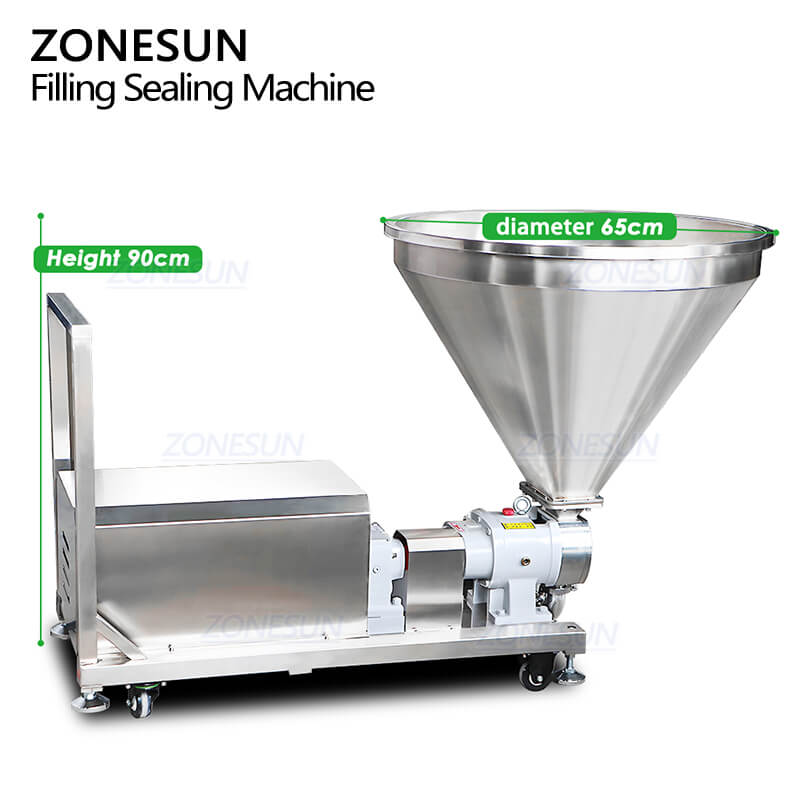

Material Feeding System
90L large hopper and rotor lobe pump ensures filling materials can be supplied in time.
90L large hopper and rotor lobe pump ensures filling materials can be supplied in time.
Bag Making Structure
Under gravity, the bag length is controlled by photo-eye sensor, suitable for large-capacity packaging.
Under gravity, the bag length is controlled by photo-eye sensor, suitable for large-capacity packaging.

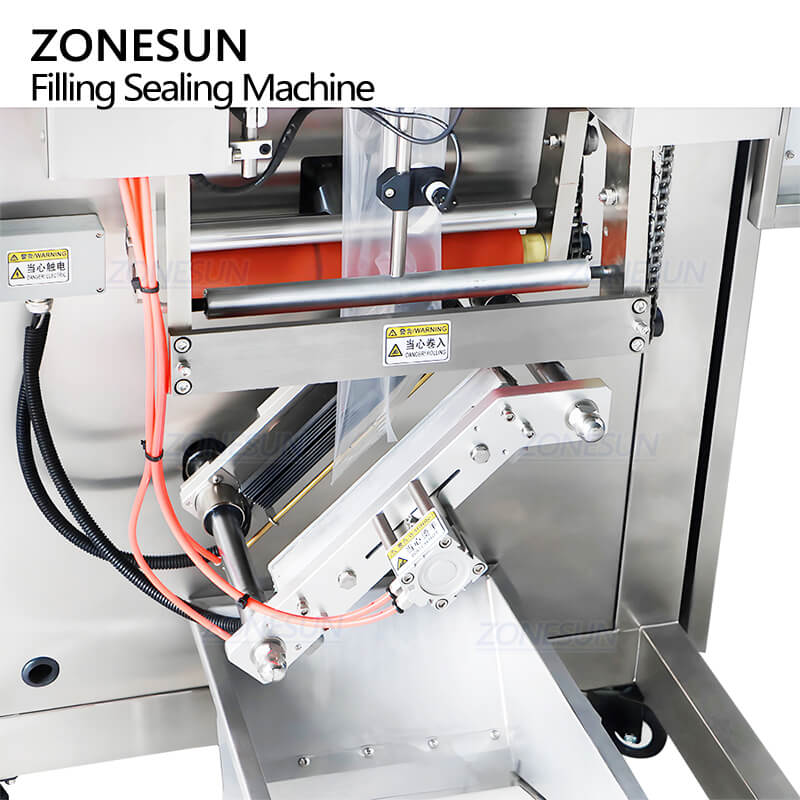

Sealing Structure
Customizied inclined sealing, back side/three side/four sides sealing are optional. Suitable for heat sealable packaging film.
Customizied inclined sealing, back side/three side/four sides sealing are optional. Suitable for heat sealable packaging film.

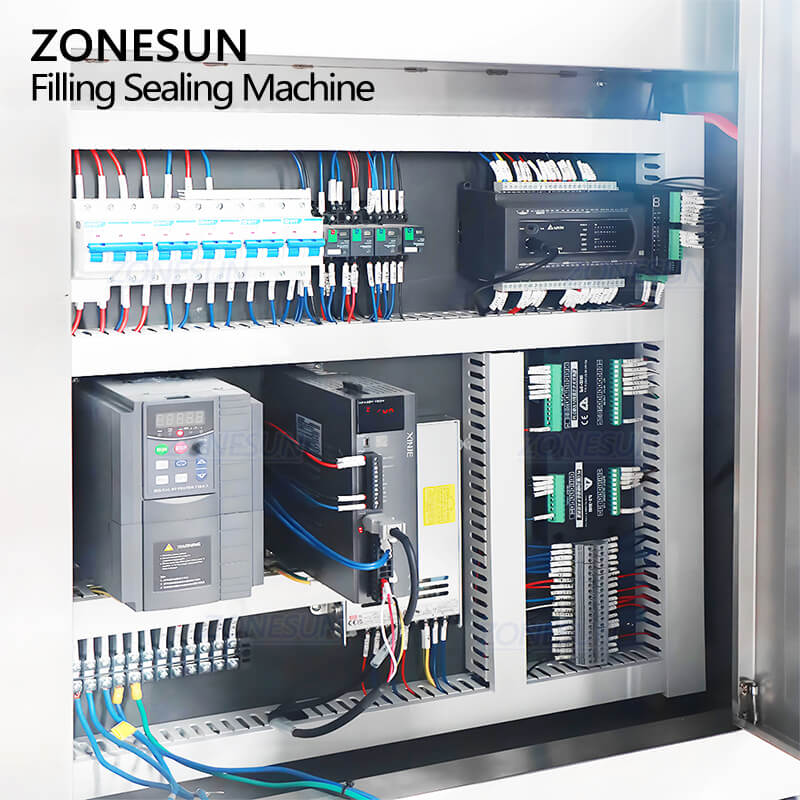

Electronics
High-reliability control board with stable performance and long-term durability.
High-reliability control board with stable performance and long-term durability.

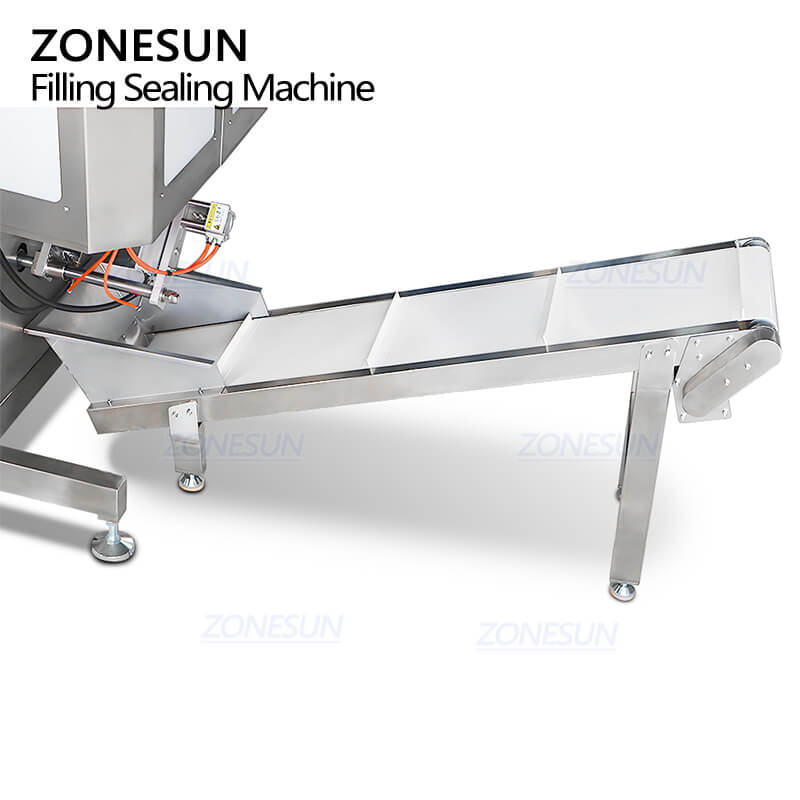

Discharge Conveyor
Inclined conveyor facilitates smooth finished product conveying and prevents blockages during discharge.
Inclined conveyor facilitates smooth finished product conveying and prevents blockages during discharge.
