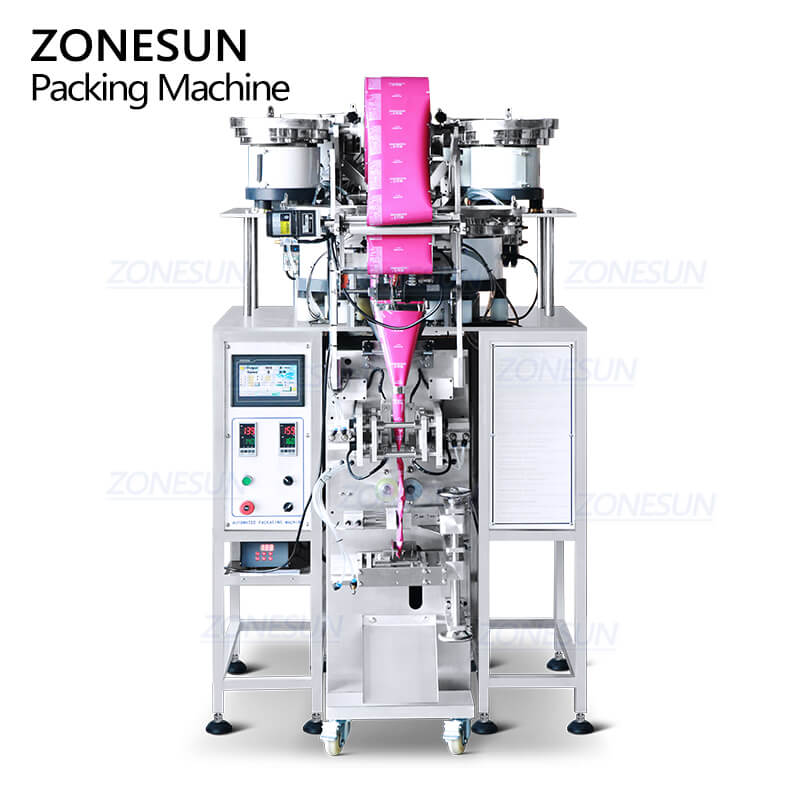

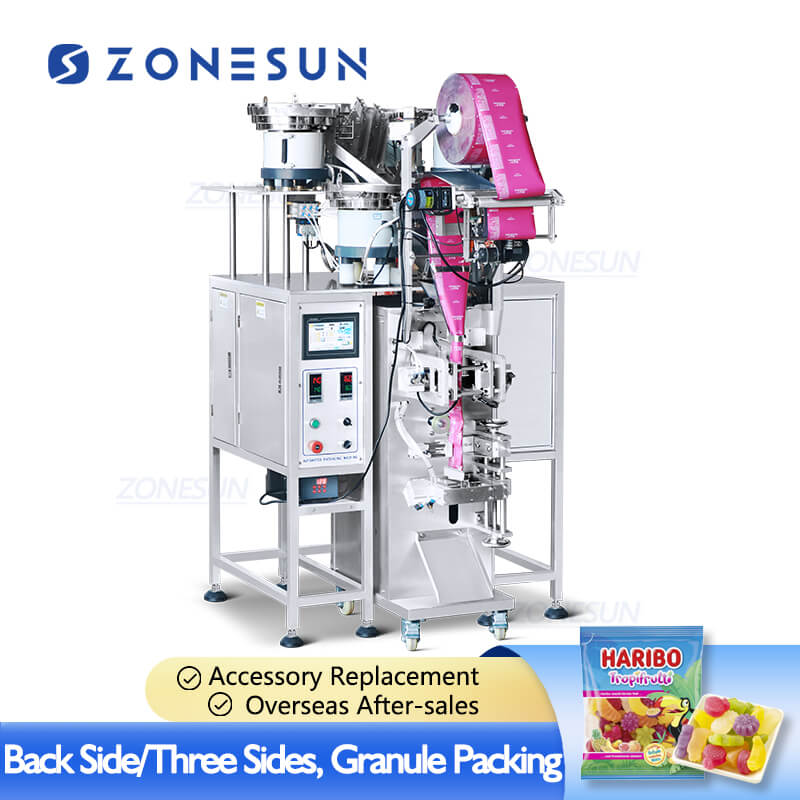

ZONESUN ZS-FSCS01 Automatic VFFS Vitamin Fish Oil Capsules Supplements Granule Counting Filling Sachet Packaging Machine
Earn 0 points on this purchase.
Regular price
$16,799.00 USD
Regular price
Sale price
$16,799.00 USD
Save $-16,799 USD
/
- One Year Warranty
- User Manual
- One-to-one Video Chat Support
- Install & Debug Video
- Custom Package Solution
- Local Service Location （Romania /Serbia /Kazakhstan/Mexico/Indonesia）

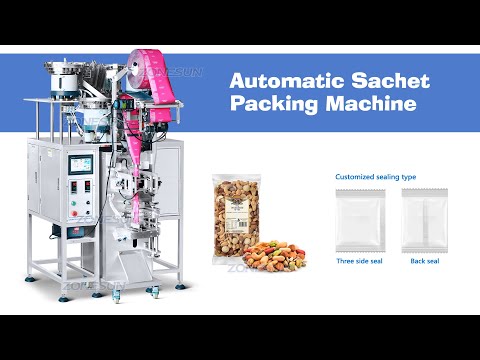

This sachet packing machine can finish counting, bag making, filling, sealing and cutting at the same time. It is suitable for small scale production of vitamin capsules, raisins, dried blueberries, chocolate-coated nuts, hard candies, industrial plastic granules
Parameter
- Machine model: ZS-FSCS01
- Machine voltage: 110/220V 1.5 KW
- Bag making size: 40-140 mm*40-100 mm(L*W)
- Counting range: 1-10 pieces
- Working capacity:20-40 bags/min
- Machine material: SUS304(Part in contact with materials)
- Roll film width: 220 mm
- Sealing type: Three sides (Or back side)
- Suitable film material: Composite packaging film
- Gas consumption: 20 L/min 0.75 Ma
- Machine size: About 1100*1500*1850 mm
- Machine weight: About 220 kg

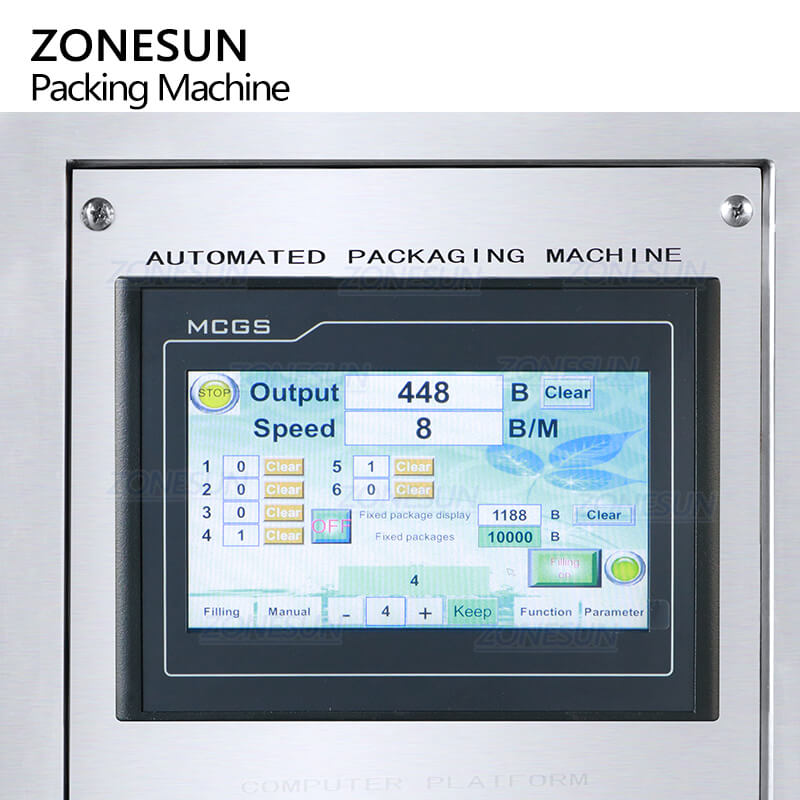

PLC Control System
This can be easily programmed and reprogrammed for different tasks or processes.
This can be easily programmed and reprogrammed for different tasks or processes.

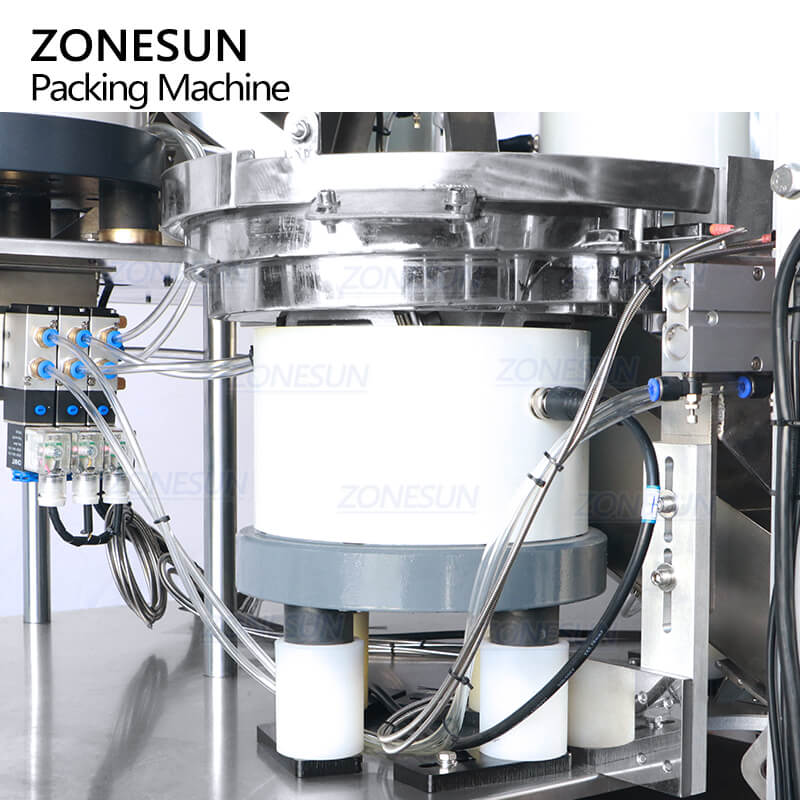

Vibrating Bowl Sorter
Based on the type and quantity of filling materials, multiple vibrating bowl feeders or a single feeder can operate independently.
Based on the type and quantity of filling materials, multiple vibrating bowl feeders or a single feeder can operate independently.

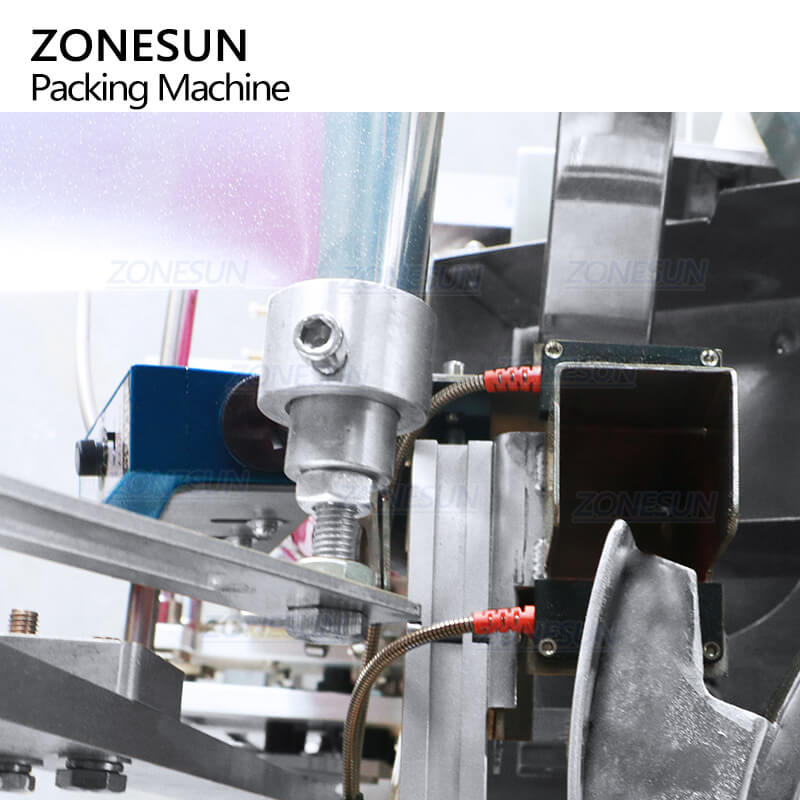

Counting Structure
Using a counting control device, it ensures accurate measurement for uniform-shaped and evenly dense materials.
Using a counting control device, it ensures accurate measurement for uniform-shaped and evenly dense materials.

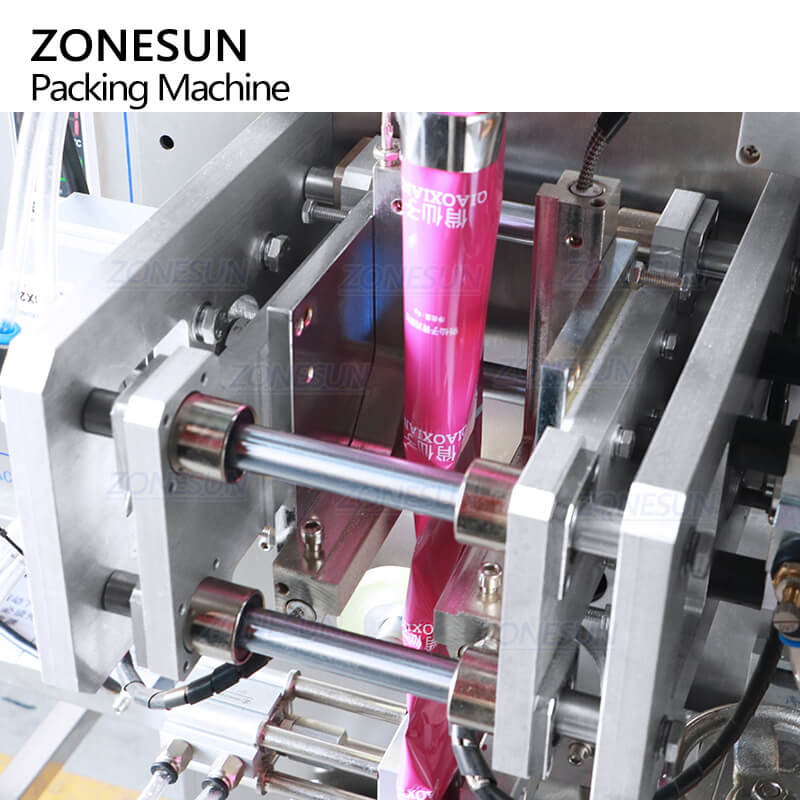

Sealing Structure
It suits composite packaging film, sealing type (back side/three sides) are customizable as needed.
It suits composite packaging film, sealing type (back side/three sides) are customizable as needed.

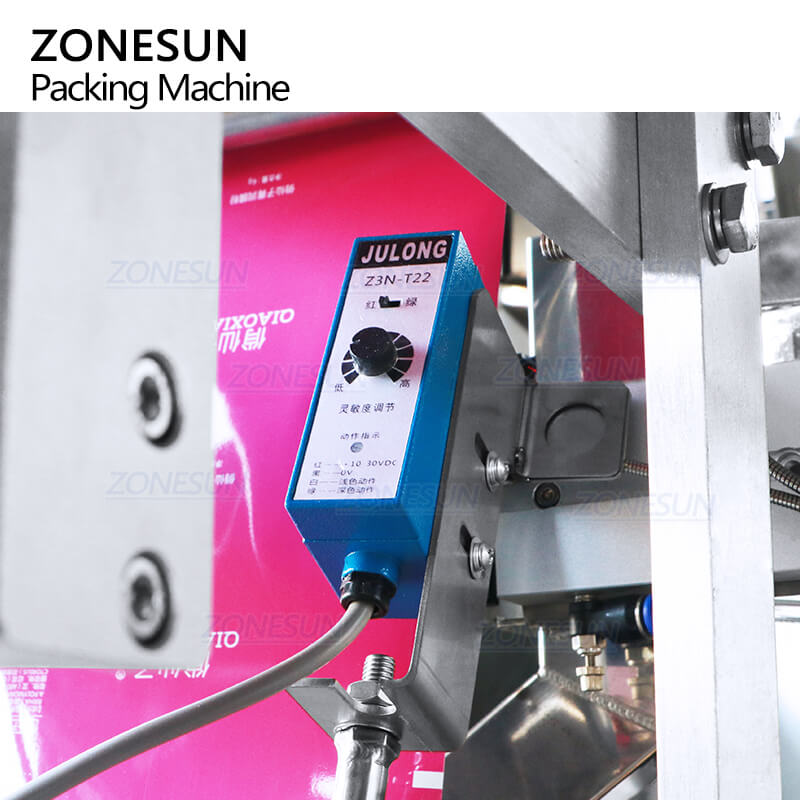

Color Mark Sensor
Equipped with a cursor tracking system, it ensures complete trademark recognition before packaging.
Equipped with a cursor tracking system, it ensures complete trademark recognition before packaging.

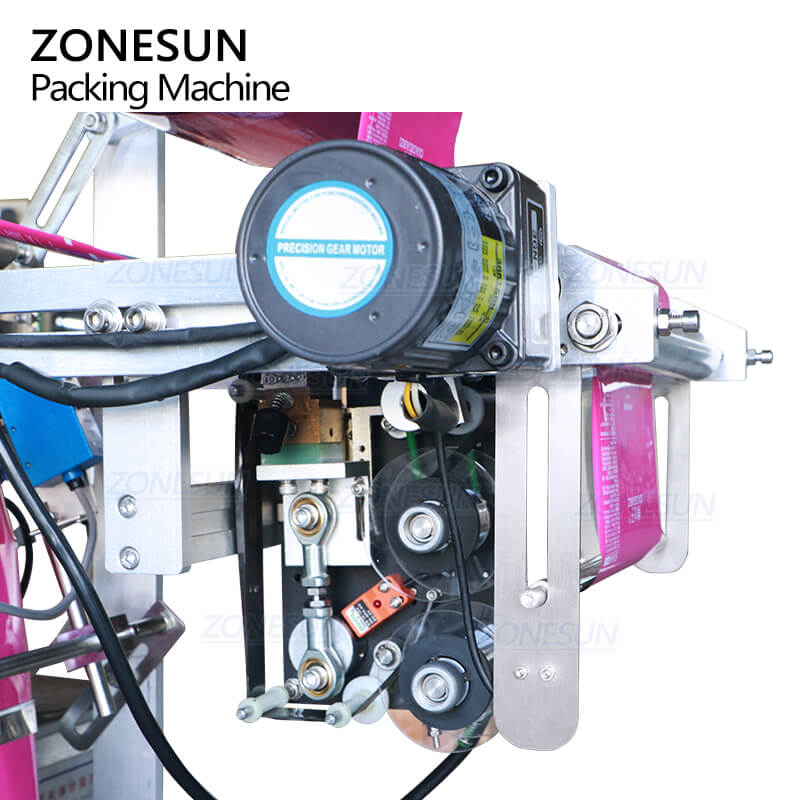

Date Coder
This is optional for printing batch number or production date on sachets,multi colors can be chosen.
This is optional for printing batch number or production date on sachets,multi colors can be chosen.
